Complement enhances in vitro neutralizing potency of antibodies to human cytomegalovirus glycoprotein b (gb) and immune sera induced by gb/mf59 vaccination

ABSTRACT Human cytomegalovirus (HCMV) is the leading cause of in utero viral infection in the United States. Since congenital HCMV infection can lead to birth defects in newborns, developing

a prophylactic vaccine is a high priority. One of the early experimental vaccines, composed of a recombinant glycoprotein B (gB) formulated with MF59 adjuvant, has demonstrated

approximately 50% efficacy against HCMV infection in seronegative women. Using immune sera from two gB/MF59 Phase 1 studies in humans we showed that complement can enhance the in vitro HCMV

neutralizing potency of antibodies induced by the gB/MF59 vaccination. To characterize this complement-dependent antiviral activity, we analyzed three rabbit non-neutralizing gB monoclonal

antibodies (mAbs) with different biochemical profiles including epitope specificity. Two of the three mAbs, r272.7 and r210.4, exhibited neutralizing activity when complement was added to

the assays, and this complement-dependent antiviral activity was not related to the antibody’s affinity to gB but appeared to be associated with their epitope specificities. Moreover,

neutralization could only be demonstrated when complement was present at or before viral entry, suggesting that IgG Fc-mediated function was not the basis for this antiviral activity.

Lastly, we demonstrated that gB/MF59 immune sera contained antibodies that can cross-compete with r272.7 for gB binding and that the titers of these antibodies correlated with

complement-dependent neutralization titers. These results suggested that gB antibodies with certain biochemical properties have neutralizing potency when complement is present and that this

complement-dependent antiviral activity may be a part of immune components which conferred protection against HCMV infection by gB/MF59 vaccination. SIMILAR CONTENT BEING VIEWED BY OTHERS

VACCINATION WITH A REPLICATION-DEFECTIVE CYTOMEGALOVIRUS VACCINE ELICITS A GLYCOPROTEIN B-SPECIFIC MONOCLONAL ANTIBODY REPERTOIRE DISTINCT FROM NATURAL INFECTION Article Open access 10

October 2023 ANTIBODIES TARGETING THE GLYCAN CAP OF EBOLA VIRUS GLYCOPROTEIN ARE POTENT INDUCERS OF THE COMPLEMENT SYSTEM Article Open access 17 July 2024 MULTIVALENT CYTOMEGALOVIRUS

GLYCOPROTEIN B NUCLEOSIDE MODIFIED MRNA VACCINES DID NOT DEMONSTRATE A GREATER ANTIBODY BREADTH Article Open access 20 February 2024 INTRODUCTION Human cytomegalovirus (HCMV) is a common

β-herpesvirus which rarely causes any discernible disease in healthy children and adults; however, in utero infection of HCMV or infection in immune-compromised patients can lead to severe

consequences. Congenital HCMV infection is the leading cause of non-genetic birth defects in the United States.1,2 It is estimated that over 5500 newborns suffer from sequelae of congenital

HCMV infection each year, with clinical manifestations including microcephaly, sensorineural hearing and/or vision loss, intellectual disability and psychomotor impairment.2 Developing a

prophylactic vaccine against congenital HCMV infection and disease has been assigned to the category of top priority by the Institute of Medicine.3 In immune-compromised individuals such as

those under immunosuppression post stem-cell or solid-organ transplantation, HCMV is the most frequently encountered infectious pathogen, despite the routine use of antiviral small molecule

drugs in clinical practice.4 Restoration or reconstitution of host anti-HCMV immunity could provide long-term control of HCMV post transplantation.5,6 However, despite tremendous unmet

medical needs and active vaccine research in the past 40 years, there is still no approved vaccine.7,8 Vaccine candidates for prevention of congenital HCMV infection generally fall into two

categories8: those composed of modified whole viruses, such as the live attenuated virus Towne vaccine,9 and those focusing on individual viral antigens, exemplified by the recombinant

glycoprotein B (gB) vaccine formulated with an oil-in-water emulsion adjuvant MF59 (gB/MF59).10 Towne and gB/MF59 vaccines are the most advanced candidates in development; both have been

tested in several Phase 2 efficacy trials, and the results are informative for current research efforts on vaccine design and characterization. The Towne vaccine failed to protect HCMV

seronegative women against acquisition of wild-type virus from their young children in daycare.11 In addition, it did not provide protection against HCMV infection in renal transplant

recipients although it was effective against severe HCMV disease.7,12 Lastly, the Towne vaccine provided protection against viral challenge with a low passage pathogenic Toledo strain in

HCMV seronegative vaccine recipients, however, the protection was less effective when compared to the immunity conferred by natural infection in HCMV seropositive subjects.13 These trials

collectively suggest that there are protective components in the immune responses by Towne vaccination. However, the large number of antigens present in the Towne vaccine makes it

challenging to determine which antigen components or what types of immune responses are important for the observed protection. In contrast, the gB/MF59 vaccine is composed of a single

truncated viral glycoprotein, and its design goal is to induce antiviral antibodies. The gB/MF59 vaccine has been evaluated in efficacy trials for prevention of HCMV acquisition in HCMV

seronegative women or adolescent girls, and for prevention of HCMV viremia in solid-organ transplant recipients. Overall, the vaccine achieved approximately 50% efficacy for protection

against HCMV acquisition in seronegative women, mostly in the first 12 months post vaccination.14,15 It was also effective in reducing viral episodes in both HCMV seropositive and

seronegative transplant recipients.16 Thus, further characterization of the gB/MF59 immune responses may lead to better understanding of the immune response required to prevent HCMV

infection. We had reported that the immune sera from rabbits immunized with a recombinant gB formulated with an oil-in-water emulsion adjuvant failed to neutralize virus in either MRC-5 or

ARPE-19 cells; however, we could observe neutralizing activities when rabbit complement was supplemented in the neutralization assays.17 In addition, our previous work has identified a panel

of rabbit monoclonal antibodies (mAbs) to HCMV, and all mAbs specific to gB in this panel lack neutralizing activity in cell culture assays.18 To understand this complement-dependent

neutralization, we selected three non-neutralizing gB mAbs with different biochemical profiles for further analysis. Here we show that two of the three gB mAb can neutralize HCMV when rabbit

complement was supplemented in the assays. Furthermore, the neutralizing activities of the human immune sera from previous gB/MF59 vaccine trials were enhanced by complement. Our results

suggest that complement-enhanced neutralization by antibodies induced by gB/MF59 vaccination may play a role in antiviral activity which contributed to the efficacy observed against HCMV

infection in seronegative women. RESULTS COMPLEMENT IS REQUIRED FOR NEUTRALIZING ACTIVITY OF SOME GB-SPECIFIC MABS Three gB-specific rabbit mAbs, all IgGκ lacking neutralizing activity in

vitro, were evaluated for complement-dependent neutralization of HCMV.18 With no complement, none of the three antibodies had neutralizing activity in either MRC-5 or ARPE-19 cells, in

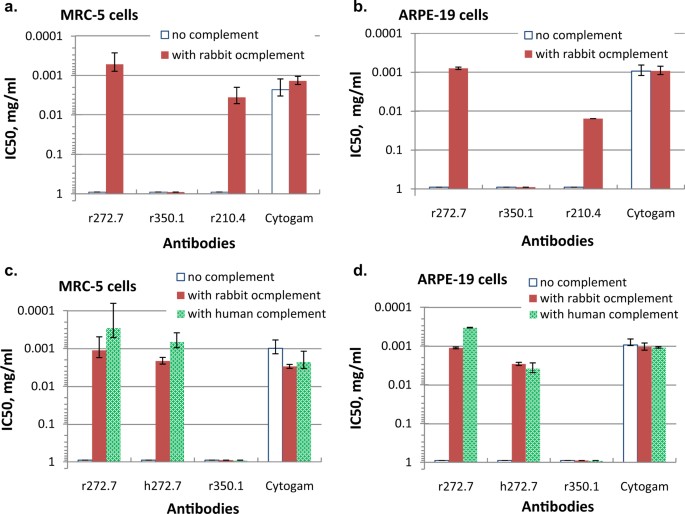

contrast to CytoGam®, human CMV hyperimmune globulin (Fig. 1). When rabbit complement was added to the assays, antibodies r272.7 and r210.4, but not r350.1, exhibited neutralizing activity

in both cell types. The neutralization potency was calculated by the concentration of IgG needed to achieve 50% inhibition of viral infection (IC50), and the IC50 values for r272.7 were 0.5

and 0.8 μg/mL in MRC-5 and APRE-19 cells, respectively, slightly better than those of CytoGam® (Fig. 1a, b). Rabbit complement did not enhance the activity of CytoGam®, and without

complement, its IC50 value in MRC-5 cells was about 3-fold lower when compared with that in ARPE-19 cells, consistent with previous reports.19,20 To address the possibility that antibody

affinity played a role in this complement-dependent antiviral activity, we measured the relative affinity to gB for each antibody, and the affinity was quantified by the antibody

concentration required to generate 50% of maximal binding signal in enzyme-linked immunosorbent assay (ELISA; EC50).18 The EC50 values for mAbs r272.7, r350.1 and r210.4 were measured as

0.002, 0.031 and 0.017 μg/mL, respectively (Supplementary Fig. S1). Thus, although r350.1 and r210.4 had similar affinity to gB in ELISA, their neutralizing profile with complement were

different. In conclusion, gB-specific mAbs r272.2 and r210.4, previously described as non-neutralizing, exhibited neutralization activity when complement was added, and this

complement-dependent antiviral activity appeared unrelated to their affinity to gB. Next, we evaluated kinetics of the complement effect on neutralization by gB-specific mAbs. The

complement-dependent neutralization could only be observed when the complement was added to the mixture of mAb r272.7 and HCMV in suspension prior to applying to the MRC-5 or ARPE-19 cell

monolayers; no virus neutralization was observed if complement was added to cell monolayers 1 h after adding the mAb r272.7 and virus mixture to the cells (data not shown). In addition,

there was no sign of cytotoxic effects when mAb r272.7 and complement were added to cells 24 h after viral infection, and there was no increase of lactate dehydrogenase in the culture

supernatant above the baseline, an indication of the membrane damage of the virus-infected cells at 24 h post infection (data not shown). Thus, this gB-specific antibody-mediated

neutralization seemed dependent on the presence of complement prior to viral attachment/entry. BOTH RABBIT AND HUMAN COMPLEMENT ENHANCE NEUTRALIZATION BY GB-SPECIFIC ANTIBODIES To evaluate

the complement effects with human immune sera, we wanted to assess if there was species restriction on the source of complement. We first humanized mAb r272.7 (Meng et al., in press for

publication in _Antimicrobial Agents and Chemotherapy_), and the new antibody, named h272.7, demonstrated approximately the same EC50 value of 0.002 μg/mL as parental antibody r272.7. We

then tested HCMV neutralization using fresh serum from a donor of HCMV seronegative status as a source of human complement. The neutralization was evaluated for the effects of human vs.

rabbit complement on h272.7 vs. parental r272.7; CytoGam® and mAb r350.1 were included as positive and negative controls, respectively (Fig. 1c, d). Rabbit complement was equally effective

in mediating neutralizing activity of r272.7 and h272.7, with both conditions producing IC50 values of 1.1 and 2.1 μg/mL, respectively in MRC-5 cells, and 1.1 and 2.9 μg/mL, respectively in

ARPE-19 cells. Human complement did not show any better efficiency in mediating neutralization of h272.7 than r272.7, as the IC50 for r272.7 with human complement were lower than those of

h272.7 in MRC-5 and ARPE-19 cells. As expected, mAb r350.1 showed no activity with either source of complement, and the neutralizing potency of CytoGam® was not significantly affected by

either type of complement. These results suggested that rabbit and human complement were equally effective in enhancing neutralizing activity of the gB antibodies of either human or rabbit

IgG Fc region; rabbit complement can be used to assess human antibodies to gB in neutralization assays. CHARACTERIZATION OF BINDING PROFILES OF GB-SPECIFIC MABS Full-length gB is cleaved by

furin into a 116-kDa N-terminal and a 55-kDa C-terminal subunits.21 Western analyses using denatured and reduced HCMV virions revealed that mAb r350.1 recognized a 116-kDa protein likely

representing the N-terminal subunit of gB; both r210.4 and r272.7 recognized a 55-kDa that presumably represents the C-terminal subunit of gB, and as expected, h272.7 exhibited the same

recognition pattern as r272.7 (Fig. 2a). However, unlike r272.7, mAb r210.4 also reacted strongly to an approximately 40 kDa protein, the nature of which has not been resolved. These results

suggested that all three antibodies likely react with different epitopes on gB, with the epitope for r350.1 located in N-terminal subunit and the epitopes for r272.7 and mAb r210.4 located

in the C-terminal subunit. To further support this conclusion, mAb h272.7 was used to compete the gB binding of all three rabbit mAbs. As shown in Fig. 2b, r350.1 and r210.4 were not as

effective in competing against mAb h272.7 binding to gB in ELISA as r272.7, thus confirming that mAb r272.7 recognized an epitope different from those of r210.4 and r350.1. We attempted to

map their epitopes using a peptide array composed of synthetic peptides of 15-mer in length overlapping by 11 amino acids, however, none of the three mAbs reacted to any of the linear gB

peptides (data not shown). This data suggested that their epitopes may not be strictly linear but may depend on additional sequences or some degree of refolding that survived denaturation in

Western blot. Alternatively, these mAbs may recognize epitopes with some post-translational modification such as glycosylation. COMPLEMENT-DEPENDENT NEUTRALIZING ANTIBODIES INDUCED BY THE

GB/MF59 VACCINE The immune sera from two Phase 1 gB/MF59 trials were available for analysis; one trial was designed to test vaccine immunogenicity in a dose escalation scheme at 5, 30 and

100 μg/dose, and the other to evaluate the vaccine immunogenicity at 20 μg/dose. In both trials, gB/MF59 was administrated at study months 0, 1 and 6 as previously reported.10 We first

evaluated gB/MF59 immune sera for the reactivity to recombinant gB in ELISA, and the results for samples at the selected study month confirmed that the vaccine was highly immunogenic in HCMV

seronegative human subjects (Fig. 3). All 17 subjects responded to vaccination and developed high levels of serum antibodies to gB, but no clear dose-response was observed among these

vaccine subjects, consistent with an earlier report.22 To increase the power of analysis, we grouped all samples together regardless of the vaccine dose levels. The geometric mean titer

(GMT) for all subjects prior to immunization (study month 0) was slightly above 100, and the GMT at 1 month after dose 3 (study month 7) was approaching 1 × 106. The antibody levels

persisted with the GMT maintained at 3.4 × 105 at 6 month after dose 3 (study month 12). The gB/MF59 immune sera were then tested for neutralizing activities with or without rabbit

complement against HCMV infection in MRC-5 and ARPE-19 cells. The neutralizing titers were calculated as the reciprocal of serum dilutions resulting in neutralization of 50% input virus

(NT50). NT50 titers with or without complement were plotted longitudinally. Only three out of 10 subjects developed neutralizing antibodies in MRC-5 cells, regardless of complement, after

the first and second immunization (Fig. 4a, b). After the third immunization high neutralizing titers were observed in 14 out of 17 subjects but these activities were highly

complement-dependent. Two weeks after dose 3 the GMT of the neutralizing titers in MRC-5 cells was 160 with complement vs. 9 without complement. Similar complement-dependent neutralizing

titers were sustained at study months 7 and 9 (1 and 3 months after the third dose) and remained detectable in four out of 17 subjects at study month 12. The gB/MF59 vaccine was much less

effective at eliciting neutralizing antibodies against viral epithelial cell entry (Fig. 4c, d), as only ten out of 17 subjects developed measurable epithelial entry neutralizing titers with

complement at two weeks post dose 3 (study month 6.5), consistent with a previous report.19 To calculate the extent of complement dependence for the gB/MF59 immune serum, the neutralizing

titers for individual serum samples obtained at study month 6.5 or 7 were paired for comparison analysis (Supplementary Fig. S2). The neutralizing GMTs with or without complement in MRC-5

cells were 108 and 7, respectively, or a 15-fold increase. This difference was statistically significant in a paired two-tailed _t_-test (_P_ = 0.045). In contrast, the neutralizing GMTs in

APRE-19 cells with or without complement were 18 and 11, respectively, or merely a 1.6-fold increase, with no statistical significance (_P_ = 0.188). Lastly, we calculated the responder rate

for those vaccine recipients who developed NT50 ≥ 100. Complement changed the responder rates with titers against viral fibroblast entry from 20 to 78% at study month 6.5, and the responder

rate sustained at 59, 41, and 15% at study months 7, 9, and 12, respectively. Complement did not significantly impact the responder rates for neutralizing titers against viral epithelial

cell entry, as without complement the rates were 28 and 29% at study months 6.5 and 7, respectively, compared to rates of 33 and 24% with complement at the same time points. ASSOCIATION OF

R272.7-LIKE ANTIBODIES IN GB/MF59 SERA WITH THE COMPLEMENT-ENHANCED NEUTRALIZING ACTIVITY The mAb r272.7 exhibited the potent neutralizing activity with complement, so we next measured

whether gB/MF59 immune sera contained antibodies that could cross-compete with r272.7 for binding to gB in competition ELISA. When tested at fixed serum dilution of 1:320, some of gB/MF59

immune sera inhibited r272.2 ELISA binding by up to 70%. To determine whether the presence of antibodies capable of competing against r272.2 for binding would correlate with

complement-dependent serum neutralizing activities, NT50 titers determined with complement were plotted against percent inhibition of gB binding by r272.7 (Fig. 5). The positive correlation

in both cases was demonstrated as the Pearson correlation coefficient (_r_) was 0.50 and 0.45 in MRC-5 and APRE-19 cells, respectively. The analyses also revealed _p_ values of 0.0048 for

the correlation in MRC-5 cells and 0.0118 in ARPE-19 cells, respectively. When the same analysis was performed using NT50 titers without complement (Supplementary Fig. S3), the correlation

was not significant (Pearson (_r_)=0.36, _P_ = 0.052 for the association in MRC-5 cells; Pearson (_r_)=0.29, _P_ = 0.81 in ARPE-19 cells). These results indicated that when neutralizing

activity in the gB/MF59 immune sera was measured using complement, the results positively correlated with the amount of antibodies in the sera that likely bound at or near the r272.7

epitope, such that their binding could interfere the r272.7 binding. DISCUSSION HCMV gB is considered an important viral antigen in vaccine compositions based on the observations that gB is

essential in viral replication, serving as a viral fusogenic protein critical for viral entry into host cells, and also that prominent immune responses to gB are routinely detected in HCMV

seropositive subjects.23,24,25 Supporting this notion, the experimental gB/MF59 vaccine is highly immunogenic in HCMV seronegative subjects, and importantly, it is effective against HCMV

acquisition in young women.14,15 However, the protection conferred by the vaccination against HCMV infection was modest with approximately 50% efficacy, and was mostly observed during the

first 12 months.14 Paradoxically, low neutralizing titers against viral entry in fibroblast and epithelial cells were detected in the immune sera of gB/MF59 vaccine recipients as compared to

those of HCMV seropositive subjects.16,19 Thus, the efficacy seen from gB/MF59 vaccination has been speculated from effector functions such as antibody-dependent cell-mediated cytotoxicity

or complement-dependent cytotoxicity (CDC) mediated through IgG Fc. The results presented here offered an alternative explanation to the observed efficacy by gB/MF59 vaccination. With a

panel of gB mAbs with no neutralizing activity, we showed that the addition of complement can change their antiviral property in neutralization assays in vitro. Two mAbs r272.7 and r210.4

exhibited neutralizing activity when complement was present in the assays. With complement, mAb r272.7 demonstrated potent neutralization in both MRC-5 and ARPE-19 cells with IC50 values

comparable to those of CytoGam®. Intriguingly, this complement-dependent antiviral function seemed not related to antibodies’ affinity to gB, but likely associated with the epitopes they

recognize. The antiviral mechanism for complement is commonly explained by the antibodies recognizing viral antigens on the infected cell surface or virion envelope, and this would in turn

trigger complement activation cascades which assemble the complement complex leading to membrane damage, known as CDC or virolysis.26,27,28 However, this mechanism could not explain our

observation. First, although all three antibodies were the same isotype of IgGκ, the complement-mediated antiviral activity was not demonstrated for all three, suggesting that binding to gB

and the ability to fix complement was not sufficient for the observed neutralization in culture. Second, the antiviral activity could only be observed when complement was added with mAbs to

virus prior to applying the mixture to cell monolayers; no neutralization was observed if the complement and antibody mixture was added 1 h or 24 h post viral infection. The result suggested

that, in this particular case, the complement-mediated antiviral function was mostly effective at targeting non-cell-associated virions in suspension, prior to their attachment to cell

surface. Also, there was no cytotoxicity detected with complement in viral neutralization assay that could be suggestive of any antiviral activity targeting virus-infected cells. There are

many gB-specific mAbs that have been described. Although the majority of these mAbs demonstrate poor antiviral activity in cell culture,18,29,30,31 there are neutralizing antibodies with

activity independent of complement, with some of these mapped to gB antigenic determinant (AD)-2, AD-4 and AD-5 regions.30,31,32,33 There are also several gB-specific mAbs that have been

described as having neutralizing activity that is complement-dependent.34,35,36 In addition, complement-enhancing neutralization without virolysis has been described, and one proposed

mechanism for this is that the accumulation of complement on viral envelop would inhibit viral interaction with its cellular receptor required for viral entry.28,37 Our data were consistent

with this proposed mechanism, and our results further indicated that this mechanism could be affected by the antibodies’ biochemical properties, including epitope specificity. The antibodies

in our study exhibited different neutralizing profiles in the presence of complement and different patterns in Western blot analysis. These observations suggested that their antiviral

activity with complement was likely associated with their epitope specificity. Since we could not identify the epitopes of these mAbs, the exact mechanism underlying their

complement-dependent antiviral activity remains to be determined. That complement had a much larger impact on the neutralizing activity of gB/MF59 immune sera against viral fibroblast entry

vs. epithelial entry suggests that viral epithelial entry is less sensitive to antiviral antibodies targeting these complement-dependent neutralizing epitopes. Similar data have been

reported for sera from rabbits immunized with gB-encoding DNA vaccine.38 However, this phenomenon with the immune sera was not observed with mAb r272.7 which displayed similar neutralizing

potencies of blocking viral fibroblast vs. epithelial entry. This difference in mAbs vs. the immune sera could be explained as the gB/MF59 immune sera may contain antibodies to additional

complement-dependent neutralizing epitopes in gB, such as the one of r210.4. The r210.4 IC50 values with complement were determined as 3.6 vs. 15.5 μg/mL, respectively in MRC-5 cells and

ARPE-19 cells, about 5-fold difference in its potency against viral fibroblast vs. epithelial entry (Fig. 1a, b). Thus, the inhibition seemed to be related with antibody’s epitope

specificity as the epitopes defined by r272.7 and r210.4, but certain regions of gB may be more selective at blocking viral fibroblast over epithelial entry as the epitope defined by r210.4.

Future efforts to define these antibodies’ and other mAbs’ epitopes may offer important clues to the underlying mechanisms. The presence of r272.7-like antibodies in the gB/MF59 immune sera

was demonstrated by the competition assays. Correlation between the levels of r272.7-competing antibodies and complement-enhanced neutralizing activity suggested that antibodies targeting

the r272.7 epitope may be in part responsible for the complement dependence of gB/MF59 immune sera, and given that complement is abundantly present in vivo, complement-dependent neutralizing

activities could be a contributor toward the observed clinical efficacy of the gB/MF59 vaccine.14,15 There are several interesting observations. First, the effects of complement-enhanced

neutralization were more pronounced in MRC-5 cells, reflected not only in the higher neutralizing titers, but also the higher percent responders post vaccination. This was inconsistent with

the comparable IC50 values in MRC-5 and ARPE-19 cells that we observed for r272.7 with complement in neutralization assays, and it could suggest that additional antibodies or mechanism would

be also be in play for the observed antiviral activity with complement. Second, complement-enhancing effects were mostly observed after third immunization at study month 6, indicating that

the antiviral activities were mediated through gB-specific IgG, not IgM. Lastly, the complement-dependent neutralization were not durable with most of the antiviral activities observed

within 6 months post the third vaccination; this result could in part explain the short duration for the observed efficacy against HCMV acquisition after gB/MF59 vaccination.14 However, it

should be noted that the gB/MF59 immune sera used in our study were from two Phase 1 safety and immunogenicity trials, not those of the Phase 2 efficacy trials. With the serum samples

analyzed in this study, it would not be possible to definitely link r272.7-competing antibodies to the reported efficacy in those clinical trials, and based on the current data, it would be

challenging to determine whether the r272.7-like antibody titer be a useful surrogate for future vaccine studies. In summary, we described a complement-dependent neutralization with

gB-specific antibodies, and such antiviral activity appeared to be associated with their biochemical profiles, including epitope specificities, not with their affinity to gB, as shown for

some mAbs. Complement-enhanced neutralization was also demonstrated in the human gB/MF59 immune sera, and this activity correlated with antibodies in the immune sera that could compete for

binding with mAb r272.7. These results suggested that the enhanced neutralization by complement may be a part of the immune components that confer protection against HCMV infection by

gB/MF59 vaccination. MATERIALS AND METHODS REAGENTS, CELLS, VIRUS, MABS AND HUMAN SERA The gB protein was based on Towne strain sequence as described previously.39 The protein was purified

from HEK293 cells using transient transfection (Sinobiologicals, Inc., Beijing, China). MRC-5 and ARPE-19 cells, and AD169 and AD169rev viruses were cultured as previously described.20

AD169rev-GFP virus was a generous gift of Thomas Shenk of Princeton University. Rabbit complement was purchased from Cedarlane (Burlington, Ontario, Canada). Human complement was obtained

from fresh serum of a HCMV seronegative human donor with informed consent and the collection was approved by Merck internal ethic review committee. Rabbit mAbs were isolated from a rabbit

immunized with AD169rev  vaccination, and the three mAbs specific to gB were selected based on their unique biochemical properties.18 CytoGam®, lot#905332, was manufactured by CSL Behring

LLC. Human immune sera were collected from study subjects with informed consent in clinical trials of the gB/MF 59 vaccine as previously described.19,22,40 Methods were performed in

accordance with relevant regulations and guidelines. Methods and study protocols were approved by Institutional Review Board of Virginia Commonwealth University, Richmond, VA. Human sera

were inactivated at 56 oC for 30 min prior to in vitro assays. WESTERN BLOT ANALYSIS Purified HCMV virions (AD169) were denatured and reduced, and used as antigen source in capillary

Western, Wes™ (ProteinSimple, Santa Clara, CA) as previously described.41 Briefly, the virus sample was mixed with 2× master mix sample buffer containing three fluorescence molecular mass

markers, SDS and DTT, and then heated for 10 min at 70 °C. The molecular size-based separation (SDS–PAGE) occurs in the capillary for 30 min at 375V. The gB antibodies were probed for 30 min

followed with secondary antibody either anti-rabbit horseradish peroxidase (HRP) or anti-human HRP for 30 min incubation. The chemiluminescence signal was collected with HDR at nine

different exposure times (1, 2, 4, 8, 16, 32, 64, 128, 256, and 512 s). The data were analyzed using vendor software, Compas®. ELISA The gB protein was immobilized at 2.0 μg/mL in PBS on

96-well Nunc-Immuno plates at 4 °C overnight. Plates were blocked with 3% (vol/vol) nonfat milk in PBS/0.05% Tween-20 for 1 h and then incubated for 1.5 h with serial 3-fold serum starting

from 1:40 in 100 μL. Plates were washed after serum incubation and then HRP-conjugated goat anti-human IgG (Southern Biotech) at 1:1000 dilution was added to the plates for 1 h, and then

washed. HRP substrate, 3,3/,5,5/ -tetramethylbenzidine (Virolabs, Chantilly, VA) was then added in 100 μL volume for 3–5 min, and the reaction was stopped with equal volume of 1 M H2SO4. The

optical density was captured at 450 nm wave length on a plate reader. Endpoint titers were calculated as the highest dilution that was greater than twice the geometric mean of negative

controls. Competition ELISA was used to determine the epitope specificity of gB-specific mAb r210.4 and r350.1 against h272.7, and the method was modified from a procedure published

previously.42 Briefly, recombinant gB was immobilized at 0.2 μg/mL in PBS on 96-well FluoroNunc plates at 4 °C overnight. Plates were then blocked with 3% nonfat milk in PBS/0.05% Tween-20

for 1 h Rabbit mAbs in titration in PBS was mixed with 0.01 μg/mL of h272.7, and then the mixture was transferred to the plates for 1.5 h. Plates were washed with PBS/0.05% Tween-20

afterwards and then incubated with a HRP-conjugated detection agent, goat anti-human IgG at a 1:500 dilution (Southern Biotech), for 1 h A fluorogenic HRP substrate,

10-acetyl-3,7-dihroxyphenoxazine (ADHP) (Virolabs), was added at 100 μL per well for 3–5 min to generate resorufin and the fluorescent signals with excitation at 531 nm and emission at 595 

nm were measured (Victor III; Perkin Elmer). To measure the serum-competition, the immune sera at 1:320 dilution in PBS were mixed with 0.01 μg/mL r272.7 antibody before added to the plate

coated with recombinant gB. The plates were then incubated with goat anti-rabbit IgG with HRP conjugate and the signals were developed with ADHP. The percent inhibition by gB/MF59 immune

sera was calculated based reduction of signals with the immune sera vs. no immune sera. VIRAL NEUTRALIZATION ASSAY MRC-5 or ARPE-19 cells were seeded on day 1 at 1.2 × 104 or 1.7 × 104

cells/well, respectively, in 50 μL medium per well in 96-well plates. Heat-inactivated serum or antibody samples in 2-fold serial dilutions were mixed with 6 × 104 pfu/ml of AD169rev-GFP

virus in equal volume in the presence or absence of complement. The final dilutions for rabbit and human complement used in the assays were 1:64 and 1:32, respectively.17 The mixture was

incubated at 37 °C for 1 h and then 50 μL were transferred to MRC-5 or ARPE-19 cells. The plates were cultured for 2 days and cells expressing GFP as a surrogate for HCMV infection were then

enumerated using Acumen eX3 laser-scanning fluorescence microplate Cytometer (TTP Lab Tech Ltd, Melbourn, United Kingdom) and Cellista software as previously described.43 NT50 titers or

IC50 values were calculated as reciprocal dilution of serum sample or concentration of mAb which achieve 50% reduction in the number of virus infected cells by 4-parameter non-linear curve

fittings using Prism® software (GraphPad® Software, San Diego, CA, USA). STATISTICAL ANALYSIS All analyses were calculated using Prism® program from GraphPad® (San Diego, CA). The comparison

was conducted using unpaired, two-tailed _t_-test. Geometric means and 95% confidence intervals were calculated using algorithms in Prism®. DATA AVAILABILITY All data supporting figures and

presentation are included in this study, and non-published data are available upon request. REFERENCES * Arvin, A. M. et al. Vaccine development to prevent cytomegalovirus disease: report

from the National Vaccine Advisory Committee. _Clin. Infect. Dis._ 39, 233–239 (2004). Article  PubMed  Google Scholar  * Kenneson, A. & Cannon, M. J. Review and meta-analysis of the

epidemiology of congenital cytomegalovirus (CMV) infection. _Rev. Med. Virol._ 17, 253–276 (2007). Article  PubMed  Google Scholar  * Modlin, J. F., Arvin, A. M., Fast, P., Myers, M.,

Plotkin, S., & Rabinovich, R. National Vaccine Advisory Committee, Vaccine development to prevent cytomegalovirus disease: Report from the National Vaccine Advisory Committee. _Clin.

Infect. Dis._ 39, 233–239 (2004). * Fishman, J. A. Infection in solid-organ transplant recipients. _N. Engl. J. Med._ 357, 2601–2614 (2007). Article  CAS  PubMed  Google Scholar  * Gerna, G.

et al. Monitoring of human cytomegalovirus-specific CD4 and CD8 T-cell immunity in patients receiving solid organ transplantation. _Am. J. Transplant._ 6, 2356–2364 (2006). Article  CAS

PubMed  Google Scholar  * Gabanti, E. et al. Reconstitution of human cytomegalovirus-specific CD4+ T cells is critical for control of virus reactivation in hematopoietic stem cell transplant

recipients but does not prevent organ infection. _Biol. Blood Marrow Transplant._ 21, 2192–2202 (2015). Article  CAS  PubMed  Google Scholar  * Sung, H. & Schleiss, M. R. Update on the

current status of cytomegalovirus vaccines. _Expert. Rev. Vaccines_ 9, 1303–1314 (2010). Article  CAS  PubMed  PubMed Central  Google Scholar  * Fu, T. M., An, Z. & Wang, D. Progress on

pursuit of human cytomegalovirus vaccines for prevention of congenital infection and disease. _Vaccine_ 32, 2525–2533 (2014). Article  CAS  PubMed  Google Scholar  * Plotkin, S. A.,

Farquhar, J. & Horberger, E. Clinical trials of immunization with the Towne 125 strain of human cytomegalovirus. _J. Infect. Dis._ 134, 470–475 (1976). Article  CAS  PubMed  Google

Scholar  * Pass, R. F. et al. A subunit cytomegalovirus vaccine based on recombinant envelope glycoprotein B and a new adjuvant. _J. Infect. Dis._ 180, 970–975 (1999). . Article  CAS  PubMed

  Google Scholar  * Adler, S. P. et al. Immunity induced by primary human cytomegalovirus infection protects against secondary infection among women of childbearing age. _J. Infect. Dis._

171, 26–32 (1995). Article  CAS  PubMed  Google Scholar  * Plotkin, S. A. et al. Multicenter trial of Towne strain attenuated virus vaccine in seronegative renal transplant recipients.

_Transplantation_ 58, 1176–1178 (1994). CAS  PubMed  Google Scholar  * Plotkin, S. A., Starr, S. E., Friedman, H. M., Gonczol, E. & Weibel, R. E. Protective effects of Towne

cytomegalovirus vaccine against low-passage cytomegalovirus administered as a challenge. _J. Infect. Dis._ 159, 860–865 (1989). Article  CAS  PubMed  Google Scholar  * Pass, R. F. et al.

Vaccine prevention of maternal cytomegalovirus infection. _N. Engl. J. Med._ 360, 1191–1199 (2009). Article  CAS  PubMed  PubMed Central  Google Scholar  * Bernstein, D. I. et al. Safety and

efficacy of a cytomegalovirus glycoprotein B (gB) vaccine in adolescent girls: A randomized clinical trial. _Vaccine_ 34, 313–319 (2016). Article  CAS  PubMed  Google Scholar  * Griffiths,

P. D. et al. Cytomegalovirus glycoprotein-B vaccine with MF59 adjuvant in transplant recipients: a phase 2 randomised placebo-controlled trial. _Lancet_ 377, 1256–1263 (2011). Article  CAS

PubMed  PubMed Central  Google Scholar  * Finnefrock, A. C. et al. Preclinical evaluations of peptide-conjugate vaccines targeting the antigenic domain-2 of glycoprotein B of human

cytomegalovirus. _Hum. Vaccin. Immunother._ 12, 2106–2112 (2016). Article  PubMed  PubMed Central  Google Scholar  * Freed, D. C. et al. Pentameric complex of viral glycoprotein H is the

primary target for potent neutralization by a human cytomegalovirus vaccine. _Proc. Natl. Acad. Sci. USA_ 110, E4997–E5005 (2013). Article  CAS  PubMed  PubMed Central  Google Scholar  *

Cui, X., Meza, B. P., Adler, S. P. & McVoy, M. A. Cytomegalovirus vaccines fail to induce epithelial entry neutralizing antibodies comparable to natural infection. _Vaccine_ 26,

5760–5766 (2008). Article  CAS  PubMed  PubMed Central  Google Scholar  * Tang, A. et al. A novel high-throughput neutralization assay for supporting clinical evaluations of human

cytomegalovirus vaccines. _Vaccine_ 29, 8350–8356 (2011). Article  CAS  PubMed  Google Scholar  * Britt, W. J. & Vugler, L. G. Processing of the gp55-116 envelope glycoprotein complex

(gB) of human cytomegalovirus. _J. Virol._ 63, 403–410 (1989). CAS  PubMed  PubMed Central  Google Scholar  * Frey, S. E. et al. Effects of antigen dose and immunization regimens on antibody

responses to a cytomegalovirus glycoprotein B subunit vaccine. _J. Infect. Dis._ 180, 1700–1703 (1999). Article  CAS  PubMed  Google Scholar  * Burke, H. G. & Heldwein, E. E. Crystal

structure of the human cytomegalovirus glycoprotein B. _PLoS Pathog._ 11, e1005227 (2015). Article  PubMed  PubMed Central  Google Scholar  * Sylwester, A. W. et al. Broadly targeted human

cytomegalovirus-specific CD4+ and CD8+ T cells dominate the memory compartments of exposed subjects. _J. Exp. Med._ 202, 673–685 (2005). Article  CAS  PubMed  PubMed Central  Google Scholar

  * Boppana, S. B., Pass, R. F. & Britt, W. J. Virus-specific antibody responses in mothers and their newborn infants with asymptomatic congenital cytomegalovirus infections. _J. Infect.

Dis._ 167, 72–77 (1993). Article  CAS  PubMed  Google Scholar  * Blue, C. E., Spiller, O. B. & Blackbourn, D. J. The relevance of complement to virus biology. _Virology_ 319, 176–184

(2004). Article  CAS  PubMed  Google Scholar  * Lachmann, P. J. & Davies, A. Complement and immunity to viruses. _Immunol. Rev._ 159, 69–77 (1997). Article  CAS  PubMed  Google Scholar

* Hirsch, R. L. The complement system: its importance in the host response to viral infection. _Microbiol. Rev._ 46, 71–85 (1982). CAS  PubMed  PubMed Central  Google Scholar  * Macagno, A.

et al. Isolation of human monoclonal antibodies that potently neutralize human cytomegalovirus infection by targeting different epitopes on the gH/gL/UL128-131A complex. _J. Virol._ 84,

1005–1013 (2010). Article  CAS  PubMed  Google Scholar  * Potzsch, S. et al. B cell repertoire analysis identifies new antigenic domains on glycoprotein B of human cytomegalovirus which are

target of neutralizing antibodies. _PLoS Pathog._ 7, e1002172 (2011). Article  PubMed  PubMed Central  Google Scholar  * Xia, L. et al. Active evolution of memory B-cells specific to viral

gH/gL/pUL128/130/131 pentameric complex in healthy subjects with silent human cytomegalovirus infection. _Oncotarget_ 8, 73654–73669 (2017). * Kauvar, L. M. et al. A high-affinity native

human antibody neutralizes human cytomegalovirus infection of diverse cell types. _Antimicrob. Agents Chemother._ 59, 1558–1568 (2015). Article  CAS  PubMed  PubMed Central  Google Scholar

* Chandramouli, S. et al. Structure of HCMV glycoprotein B in the postfusion conformation bound to a neutralizing human antibody. _Nat. Commun._ 6, 8176 (2015). Article  CAS  PubMed  PubMed

Central  Google Scholar  * Rasmussen, L., Mullenax, J., Nelson, R. & Merigan, T. C. Viral polypeptides detected by a complement-dependent neutralizing murine monoclonal antibody to human

cytomegalovirus. _J. Virol._ 55, 274–280 (1985). CAS  PubMed  PubMed Central  Google Scholar  * Britt, W. J., Vugler, L. & Stephens, E. B. Induction of complement-dependent and

-independent neutralizing antibodies by recombinant-derived human cytomegalovirus gp55-116 (gB). _J. Virol._ 62, 3309–3318 (1988). CAS  PubMed  PubMed Central  Google Scholar  * Ohta, A. et

al. Recombinant human monoclonal antibodies to human cytomegalovirus glycoprotein B neutralize virus in a complement-dependent manner. _Microbes Infect._ 11, 1029–1036 (2009). Article  CAS

PubMed  Google Scholar  * Nemerow, G. R., Jensen, F. C. & Cooper, N. R. Neutralization of Epstein-Barr virus by nonimmune human serum. Role of cross-reacting antibody to herpes simplex

virus and complement. _J. Clin. Invest._ 70, 1081–1091 (1982). Article  CAS  PubMed  PubMed Central  Google Scholar  * McVoy, M. A. et al. A cytomegalovirus DNA vaccine induces antibodies

that block viral entry into fibroblasts and epithelial cells. _Vaccine_ 33, 7328–7336 (2015). Article  CAS  PubMed  PubMed Central  Google Scholar  * Fu, T. M. et al. Restoration of viral

epithelial tropism improves immunogenicity in rabbits and rhesus macaques for a whole virion vaccine of human cytomegalovirus. _Vaccine_ 30, 7469–7474 (2012). Article  CAS  PubMed  Google

Scholar  * Wang, J. B. et al. Mucosal antibodies to human cytomegalovirus glycoprotein B occur following both natural infection and immunization with human cytomegalovirus vaccines. _J.

Infect. Dis._ 174, 387–392 (1996). Article  CAS  PubMed  Google Scholar  * Rustandi, R. R., Lancaster, C., Hamm, M. & Loughney, J. W. in _Methods in Molecular Biology: Capillary

Electrophoresis of Proteins and Peptides_ Vol. 1466 (eds N.Tran, T. & Taverna, M.) 197–217 (Humana Press, New York, 2016). * Ha, S. et al. Neutralization of diverse human cytomegalovirus

strains conferred by antibodies targeting viral gH/gL/pUL128-131 pentameric complex. _J. Virol._ https://doi.org/10.1128/JVI.02033-16 (2017). * Gardner, T. J. et al. Development of a

high-throughput assay to measure the neutralization capability of anti-cytomegalovirus antibodies. _Clin. Vaccin. Immunol._ 20, 540–550 (2013). Article  CAS  Google Scholar  Download

references ACKNOWLEDGEMENTS We thank Dr. Thomas Shenk for his generous gift of AD169rev-GFP virus. We also want to acknowledge the contributions of Ronzo Lee of Virginia Commonwealth

University, Ying Huang of Rutgers New Jersey Medical School for their technical assistance. The research described in this manuscript was supported by funding from Merck & Co., Inc.

AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Vaccines Research, MRL, Merck & Co., Inc, Kenilworth, NJ, USA Fengsheng Li, Daniel C. Freed, Aimin Tang, Richard R. Rustandi,

Matthew C. Troutman, Amy S. Espeseth, Sha Ha, Dai Wang & Tong-Ming Fu * Texas Therapeutics Institute, Brown Foundation Institute of Molecular Medicine, University of Texas Health Science

Center at Houston, Houston, TX, 77030, USA Ningyan Zhang & Zhiqiang An * Virginia Commonwealth University, Richmond, VA, USA Michael McVoy * Rutgers New Jersey Medical School, Newark,

NJ, USA Hua Zhu * CMV Research Foundation, Richmond, VA, USA Stuart P. Adler Authors * Fengsheng Li View author publications You can also search for this author inPubMed Google Scholar *

Daniel C. Freed View author publications You can also search for this author inPubMed Google Scholar * Aimin Tang View author publications You can also search for this author inPubMed Google

Scholar * Richard R. Rustandi View author publications You can also search for this author inPubMed Google Scholar * Matthew C. Troutman View author publications You can also search for

this author inPubMed Google Scholar * Amy S. Espeseth View author publications You can also search for this author inPubMed Google Scholar * Ningyan Zhang View author publications You can

also search for this author inPubMed Google Scholar * Zhiqiang An View author publications You can also search for this author inPubMed Google Scholar * Michael McVoy View author

publications You can also search for this author inPubMed Google Scholar * Hua Zhu View author publications You can also search for this author inPubMed Google Scholar * Sha Ha View author

publications You can also search for this author inPubMed Google Scholar * Dai Wang View author publications You can also search for this author inPubMed Google Scholar * Stuart P. Adler

View author publications You can also search for this author inPubMed Google Scholar * Tong-Ming Fu View author publications You can also search for this author inPubMed Google Scholar

CONTRIBUTIONS F.L. designed and performed experiments, prepared manuscript; D.C.F. designed and performed experiments, revised manuscript; A.T. designed and performed experiments, analyzed

experiments, revised manuscript; R.R.R. designed and performed experiments; M.C.T. performed experiments; A.S.E. analyzed experiments, revised manuscript; N.Z. designed and performed

experiments, revised manuscript; Z.A. analyzed experiments, revised manuscript; M.M. analyzed experiments, revised manuscript; H.Z. designed and performed experiments, revised manuscript;

S.H. analyzed experiments, revised manuscript; D.W. analyzed experiments, revised manuscript; S.P.A. analyzed experiments, prepared manuscript; T.-M.F. designed experiments, analyzed data,

and prepared manuscript. CORRESPONDING AUTHOR Correspondence to Tong-Ming Fu. ETHICS DECLARATIONS COMPETING INTERESTS F.L., D.C.F., A.T., R.R.R., M.C.T, A.S.E., S.H., D.W., and T.-M. F. are

employees of Merck & Co., Inc. and as such receiving salaries and benefits from the company. ADDITIONAL INFORMATION PUBLISHER'S NOTE: Springer Nature remains neutral with regard to

jurisdictional claims in published maps and institutional affiliations. ELECTRONIC SUPPLEMENTARY MATERIAL FIGURE S1 FIGURE S2 FIGURE S3 FIGURE S4 RIGHTS AND PERMISSIONS OPEN ACCESS This

article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as

you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party

material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s

Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder.

To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Li, F., Freed, D.C., Tang, A. _et al._

Complement enhances in vitro neutralizing potency of antibodies to human cytomegalovirus glycoprotein B (gB) and immune sera induced by gB/MF59 vaccination. _npj Vaccines_ 2, 36 (2017).

https://doi.org/10.1038/s41541-017-0038-0 Download citation * Received: 17 August 2017 * Revised: 21 October 2017 * Accepted: 23 November 2017 * Published: 14 December 2017 * DOI:

https://doi.org/10.1038/s41541-017-0038-0 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
