Agronomic conditions and crop evolution in ancient near east agriculture

ABSTRACT The appearance of agriculture in the Fertile Crescent propelled the development of Western civilization. Here we investigate the evolution of agronomic conditions in this region by

reconstructing cereal kernel weight and using stable carbon and nitrogen isotope signatures of kernels and charcoal from a set of 11 Upper Mesopotamia archaeological sites, with chronologies

spanning from the onset of agriculture to the turn of the era. We show that water availability for crops, inferred from carbon isotope discrimination (Δ13C), was two- to fourfold higher in

the past than at present, with a maximum between 10,000 and 8,000 cal BP. Nitrogen isotope composition (_δ_15N) decreased over time, which suggests cultivation occurring under gradually

less-fertile soil conditions. Domesticated cereals showed a progressive increase in kernel weight over several millennia following domestication. Our results provide a first comprehensive

view of agricultural evolution in the Near East inferred directly from archaeobotanical remains. You have full access to this article via your institution. Download PDF SIMILAR CONTENT BEING

VIEWED BY OTHERS NEW AMS 14C DATES TRACK THE ARRIVAL AND SPREAD OF BROOMCORN MILLET CULTIVATION AND AGRICULTURAL CHANGE IN PREHISTORIC EUROPE Article Open access 13 August 2020 PLANT

CULTIVATION AND DIVERSITY AT THE EARLY NEOLITHIC SETTLEMENT IN BISKUPICE IN POLAND Article Open access 02 September 2024 NEW EVIDENCE FOR SUPPLEMENTARY CROP PRODUCTION, FODDERING AND FUEL

USE BY BRONZE AGE TRANSHUMANT PASTORALISTS IN THE TIANSHAN MOUNTAINS Article Open access 02 July 2021 INTRODUCTION The study of how growing conditions, farming practices and crop

domestication evolved from the beginning of agriculture is crucial for revealing the complexity and dynamics of ancient societies and to understand the current Mediterranean landscapes. The

initial steps towards plant domestication in the Fertile Crescent can be pushed back to the 12th millennium cal BP, with different cereals being the main staples. Plant domestication in this

region was a slow process with crop cultivation appearing at least 1,000 years before the earliest morphological changes supporting domestication (for example, changes in seed shedding,

increase in kernel size)1. However, the evolution of agricultural systems after domestication, including water availability, soil fertility and potential yields achieved, as well as the pace

of ‘post-domestication’ progress in kernel size, remains mostly unknown2. The carbon isotope discrimination (Δ13C) of charred kernels has been used to reconstruct water conditions3,

including cereal water inputs of Neolithic4,5 and Bronze Age sites6,7 in the Near East. The comparison of Δ13C values from cultivated plant remains (charred seeds) and forest trees

(charcoal) has aided the discrimination between climate and anthropogenic effects on crop performance3,8. Since water availability is the main factor limiting cereal productivity in

Mediterranean conditions and, in turn, the Δ13C of plant biomass integrates water conditions during growth9, information on potential crop productivity can be gained by combining 13C

signatures10 and kernel weight11. Shortages of soil nutrients probably constituted important constraints on growth in prehistoric agriculture12. Measures to enhance the availability of

nutrients for crops included burning of native vegetation and application of nutrient-enriched sediments, domestic waste, and green and animal manure13. However, there is very little direct

evidence relating to the history of ancient manuring. Intensive manuring may be taken as an indicator of marked social changes in land use and tenure during the Neolithic14. Manuring crops

involves a long-term investment in arable land associated with adoption of a sedentary way of life. In general, any agronomic practice aiming to improve soil fertility, such as the use of

animal and green manure or fallow, would increase the nitrogen isotope composition (_δ_15N) of both soil and plants. Different studies suggest that the long-term application of manure to

permanently cultivated sites leaves a recognizable N-isotopic imprint on kernels and straw15. However, analysis of _δ_15N in kernels as a proxy to infer soil management practices and

fertility in ancient agriculture is only a recent development4,11,14,15. Kernel weight is a key factor determining nutritional quality in cereals and, as such, has profound economic

implications1. Archaebotanists interested in the evolution of kernel size at the origin of agriculture usually report on the breadth and thickness of charred kernels1. However, kernel

dimensions may suffer alterations because of carbonization. Alternatively, the original weight of kernels can be inferred from archaeological (charred) kernel dimensions, after considering

the impact of carbonization on three-dimensional deviations5,11. This allows data of archaeological kernels to be compared with the huge amount of information available on kernel weight for

present-day agriculture. Three main objectives were pursued in this study. The first was to characterize the evolution of water availability and nutritional status of cereal crops in the

Near East from the beginnings of agriculture to the turn of the era. Second, the increase in kernel weight (ultimately linked to directional selection) was tracked to determine when values

comparable to those of present-time cereals were achieved by domesticated barley and naked wheat. Finally, the third objective was to estimate cereal yields in the past as compared with

current values for rainfed agriculture in the region. The study shows crop water availability, inferred from Δ13C, being two- to fourfold higher in the past than at present, with a maximum

between 10,000 and 8,000 cal BP, whereas grain yield values are comparable to those achieved now-a-days in the region. The decrease of _δ_15N over time suggests cultivation occurring under

gradually less-fertile soil conditions. A progressive increase in kernel weight over several millennia following domestication is also accounted. RESULTS STUDIED KERNELS Size, _δ_15N and

Δ13C of charred kernels from five cereal species (including wild and domesticated) (Supplementary Fig. 1), together with charcoal Δ13C records of two forest trees (_Quercus_ sp. and

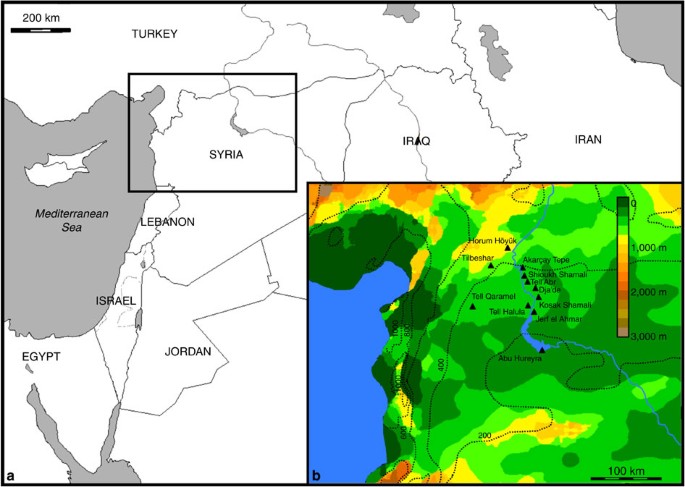

_Pistacia_ sp.), were studied. These remains belong to a set of 11 Near East archaeological sites (from Upper Mesopotamia or Al-Jazira) spanning 11,000 years from the onset of agriculture in

the region (13th millennium cal BP) (Fig. 1). CROP WATER STATUS The Δ13C of ancient cereals and trees was significantly higher than present-day values achieved under rain-fed conditions in

the region (Fig. 2), which points to the prevalence of a plant environment wetter than the present day. At least for early Neolithic agriculture, cultivation in intensive agricultural

gardens may have been prevalent in the area. In fact, the most accepted hypothesis among today’s researchers is that early Neolithic agriculture was based on small-scale horticulture on

water-retentive alluvial soils16 such as those found in the middle Euphrates valley, where most of the study sites are located. Previous results on Δ13C, together with the evidence of flax

cultivation for the PPNB of Tell Halula (one of the sites included in this study), also support planting in wet areas17. Nevertheless, reports on a higher Δ13C in charcoal recovered in those

Neolithic sites compared with present-time wood samples indicate the prevalence of a more humid natural environment than at present18. In contrast, by the end of the Early Bronze Age

(~\n4,000 BP) irrigation agriculture was widespread in this region19. In the case of barley, the overall agreement between the Δ13C of kernels and wood charcoal from the same sites and

dating (Supplementary Fig. 2) indicates that water availability through the studied period was mostly determined by the same climatic factors that affected natural vegetation (Supplementary

Note 1). In the case of wheat, the Δ13C of kernels was not significantly correlated with that of charcoal (Supplementary Fig. 2). Nevertheless, the relationship between the Δ13C of wheat and

barley became marginally significant (_P_=0.08) after samples from one site (Horum Höyük, whose kernels suggest a much better water status for barley) were discarded (Supplementary Fig. 3).

Therefore, at least for barley, there is no supporting evidence for an active management strategy aimed at increasing crop water availability (for example, planting in naturally wet areas,

water harvesting or even irrigation). The greater water inputs in the past seem to be of climatic origin, a conclusion reinforced by the higher charcoal Δ13C of _Quercus_ sp. and _Pistacia_

sp. (species found in open park woodland and woodland steppes, respectively, and not present in riverine forests20) compared with wood samples of these species currently growing in the

region (Fig. 2). In fact, barley is now-a-days only cultivated under rain-fed conditions, usually in areas too dry for wheat. Nevertheless, water inputs during grain filling were two- to

fourfold higher than today for rain-fed cereals in the region (Supplementary Fig. 4). The wettest period, occurring in the early Holocene between the 11th and 9th millennium cal BP, was

immediately preceded by the cool Younger Dryas period (14th–12th millennium cal BP). Water availability at ~\n7th millennium cal BP was lower, thereafter remaining around twice the value of

the present time until the turn of the era, but occasionally approaching current values (Supplementary Fig. 4). Crop water inputs matched well with previously reported trends in climate

assessed for the region using alternative approaches (see Fig. 3 and references therein). The early Holocene was a period of warming, increases in rainfall and decreases in the amplitude of

climatic oscillations. Under these conditions, cultivation probably developed into a sustainable economy. In fact, based on morphometric evidence the earliest domestic cereals identified in

this area date to about 10 ka cal BP21,22. After the climatic optimum of the 11th-10th millennia cal BP, more restrictive water conditions for cultivation, starting at the end of the 9th

millennium cal BP, probably coincided with the ‘8.2 ka event’23. Water availability dropped more during the second half of the 5th millennium cal BP, with the lowest estimates coinciding

with the ‘4.2 ka event’7. This observation is in line with other studies of Δ13C in plant remains reporting increased aridity in the Near East during the Bronze Age6,7 (Supplementary Note

2). Besides this, the existence of local variability in climate effects24 (for example, upper versus middle Euphrates) (Supplementary Note 3) suggests that aridity was already widespread

several centuries before the ‘4.2 ka event’, supporting the drop in Δ13C recorded during the mid-Holocene (7–5 ka cal BP). The agreement between kernel Δ13C fluctuations and other climate

proxies further supports the rainfed nature of cereal cultivation, which was exposed to the vagaries of climate. In addition to climate, low water inputs may also have been related to other

factors such as an increasingly greater use of land and cultivation of marginal areas. Expansion into marginal areas has been inferred by archaeologists through observation of changing

settlement size25. Unlike the Mesopotamian lowlands, which became the focus of irrigation-based riverine civilizations, the settlements of Upper Mesopotamia were primarily based on rainfed

agriculture13. Even so, our results clearly show that the growing conditions were in general far wetter than for present-time rainfed crops in the region, which supports cultivation during

the Neolithic in naturally humid areas and fertile soils5. SOIL FERTILITY AND MANURING Regarding soil fertility, the highest _δ_15N values of archaeological kernels were recorded in the

oldest remains, which mostly comprised wild but likely cultivated cereals26 (Fig. 2). Thereafter, the _δ_15N of both wild and domesticated cereals decreased continuously from the 9th

millennium through to the 6th millennium cal BP (Fig. 4a). The _δ_15N was in any case much higher than present-time values of wheat and barley for the region, pointing overall to

more-fertile conditions in the past. Interestingly, cereals cultivated in the oldest (>10 ka cal BP) versus the most recent (<10 ka cal BP) sites of our study differed in their

relationship between Δ13C and _δ_15N (Fig. 4c). In the oldest sites such an association was lacking, whereas a positive relationship was detected in the more recent sites. This relationship

is in line with findings for present-day cereals grown in conditions of limited water availability11,15,27,28, indicating that water stress decreases the _δ_15N of plants, and that

more-fertile conditions propitiate a better plant water status. A positive relationship was also found between the _δ_15N and N concentration (%) of fossil kernels (Fig. 4d). These results

support the concept that cultivation under more-fertile conditions (for example, associated with naturally or manure-induced higher _δ_15N) provided an increase in the nutritional qualities

(that is, higher protein content) of seeds. Denitrification in wetland or seasonally wet conditions can also lead to high _δ_15N values29,30. However, this cannot explain the high _δ_15N

values at the end of the dry and cold Younger Dryas, and the subsequent decrease during the Early Holocene (see Fig. 3). Alternatively, it has been recently hypothesized that manuring dates

back to the initial crystallization of the mixed farming package in western Asia, facilitating the spread of these interdependent practices across diverse climatic zones in Europe14.

However, in our study the highest _δ_15N was found in pre-domestic cereals, that is, from the oldest sites (Figs 2 and 4), which at first precludes intensive manuring as the cause for such

high values. Nevertheless, pre-domestic cultivation does not exclude the possibility of manuring/middening as a management practice (Supplementary Note 4). High _δ_15N in plants may also be

a consequence of growing crops in naturally fertile soils, whereas possible environmental factors such as high rainfall and temperature, which could increase _δ_15N, should not be

discarded15,28, at least during the Early Holocene climate optima. The development of early agriculture in soils that were wetter and richer than at present merged with a trend towards

cultivation under less favourable conditions with time. A combination of miscellaneous factors of anthropogenic nature (for example, continuous farming, monoculture, diminution of fallow,

erosion, cultivation of marginal lands or remoteness from urban centres for efficient manuring), superimposed on a long-term trend of increased aridity, may thus have been involved in the

evolution of prehistoric agroecosystems in the Fertile Crescent. The adoption and spread of agriculture set the starting point for significant human-induced impacts on natural ecosystems31.

Unsustainable practices associated with agricultural overexploitation, such as continuous cultivation (that is, no-fallow farming) together with the use of less fertile soils, were probably

present during the Neolithic5 (Supplementary Note 5). _δ_15N evidence points to decreased soil fertility through to the early Holocene (Fig. 4). However, resource limitation due to land

degradation was not likely to occur on a large scale before the Bronze Age32. Early Bronze Age (5th and 4th millennium cal BP) urban settlements in Upper Mesopotamia represented a

substantial change in scale from Chalcolithic communities (8th and 7th millennium cal BP), with population density, urban places and land-use increasing significantly13 (Fig. 3d). Whether

rising population caused land overexploitation, with the consequent degradation of soil fertility, or forced the cultivation of less fertile areas remains a matter for debate. Our results

suggest a shift towards more extensive, low-yielding agricultural practices from the Chalcolithic to the Bronze Age, probably balanced with a larger cropping area. KERNEL WEIGHT Contrasting

with the overall trends of environmental degradation, kernel weight increased steadily throughout the Holocene. In addition to the expected changes from pre-domesticated to domesticated

cereals (Fig. 4b), we found a steep increase until the 10th-8th millennia cal BP, a tendency that continued for several millennia (specially for barley), reaching values similar to

present-time rainfed crops in the region (Fig. 4b). Our results with domesticated cereals (barley and naked wheat) suggest that kernel weight evolved for a long time after non-shattering

ears were present in domesticated wheat and, particularly, barley1,11. Initial changes in weight may have been favoured by improved environmental conditions for cultivation, that is,

phenotypic plasticity11. However, this can be discarded as the main driver for the subsequent increase in kernel size, which occurred in parallel with isotopic evidence for impoverished

(water and fertility) growing conditions (Fig. 3f, see also Supplementary Note 6). The longer-term trend of change for the first 3,000–4,000 years of agriculture, likely linked to the

gradual accumulation of favourable alleles in genes controlling kernel size, points to an evolutionary process affecting domesticated populations33. Whereas the kernel weight values used

here as the present-time reference for the region are very low (around 30 mg, in accordance with the harsh prevalent rainfed conditions), constitutive values (that is, in the absence of any

stress) for both species are around 50 mg or even higher4,28,34. Kernel weight was probably the first trait under artificial selection having a quantitative genetic basis. Because this trait

is encoded by multiple genes, its improvement through empirical selection, although feasible, may have been a lengthy process34. Nevertheless, historical records show that weights similar

to those attained at present were not infrequent10, and wheat and barley landraces and old varieties available today exhibit comparable (or even larger) kernel sizes to those of modern

cultivars (Supplementary Note 7). Therefore, kernel sizes akin to that of present breeding material were probably achieved a long time ago, but not necessarily during the few millennia after

domestication. DISCUSSION Following the aforementioned environmental and genetic changes, yield estimates during the Neolithic were in general lower than 0.8 t ha−1, but showed an

increasing trend with time associated with a higher kernel weight up to the 8th millennium cal BP, reaching values of around 1.2 t ha−1 in wheat (Supplementary Fig. 5). Thereafter, yields

remained around 0.5 t ha−1, linked to an increase in aridity until the 6th millennium cal BP. By the 3rd millennium cal BP, yields reached values close to 1 t ha−1, which are comparable to

those currently achieved by rainfed crops in the region5,10. The estimated yields for ancient cereal agriculture are in line with the historical reports available from the second half of the

Holocene and, obviously, do not exclude the occasional occurrence of values several times larger10. The minimum cultivated land required per inhabitant in Neolithic sites of the Near East

has been estimated to be around 0.25 ha5. This value derives from yield estimates of prehistoric agriculture and daily minimum calorie intake10 and may be extrapolated for later cultural

periods in the region (and even considered conservative, considering that productivity probably decreased after the Neolithic) (Supplementary Fig. 5). For a Neolithic settlement like Tell

Halula (Fig. 1), with a population fluctuating between ~\n300 and 1,400 inhabitants, the required cultivated land would have ranged between 80 and 700 ha5. Although such an estimation of

land requirement does not take into account hunting and gathering activities, which may result in lower requirements for land cultivation, small-garden cultivation can be discarded as the

only way to grow cereals (the main staples), while suggesting that extensive cultivation was already present during the early stages of agriculture. Moreover, the estimated values are

probably in the upper limit range of achievable yields considering breeding advances, water availability and past CO2 concentrations35. Therefore, the above calculation of cultivated land

required per inhabitant may be too conservative, which reinforces the conclusion that extensive cultivation was already practised by Neolithic farmers. The existence of much wetter growing

conditions in the past compared with present rainfed agriculture agrees with the prevalence of a more humid climate than at present during most of the Holocene in the region (Fig. 3).

Moreover, it is believed that the effect of arid periods led to the abandonment of some well-established and large-scale settlements (Supplementary Note 8). Our study shows that the

emergence of agriculture in the Fertile Crescent (Upper Mesopotamia) took place under very favourable environmental conditions, provided by wet and fertile soils. However, during the

following millennia soil fertility decreased progressively, while water conditions fluctuated in accordance with major climate events and the rainfed nature of cereal crops. Miscellaneous

factors such as continuous cultivation, expansion of agricultural practices to less fertile areas or reduced manuring applications may underlie a continuing loss in soil fertility. Despite

an overall impoverishment in agronomic conditions, kernel size continued increasing for several millennia after the appearance of domesticated cereal crops as the outcome of a long-term

evolutionary process. METHODS ARCHAEOBOTANICAL MATERIAL Agronomic conditions and genetic characteristics of ancient cereal crops, mainly of wheat and barley, were inferred from different

traits of charred kernels. A total of 367 cereal kernels and 362 wood remains from 11 sites were analysed. Cereal kernels and wood remains were found in a carbonized state (as charred

kernels and charcoal) and were gathered in a disparate manner from domestic fires, cooking ovens and cellar floors. The 729 individual kernels and charcoal fragments were obtained from 245

sediment samples, with a median of five sediment samples per site and dating combination. Soil samples were treated using a standard flotation tank in the field with 0.3 mm (flotation) and

2.5 mm (wet) sieves. Plant remains were then dried slowly before the transport and sorting of seeds. The chronology of archaeobotanical samples was based on stratigraphic dating and

radiocarbon ages. All radiocarbon determinations were performed in charcoal samples at Beta Analytic (Miami, Florida, USA). Calibrated ages were determined using the computer program

CALIBTH3 (ref. 36). The total number and provenance of samples used in this study is summarized in Table 1. Isotopic data, nitrogen concentration and kernel dimensions (where applicable) of

each of the archaeobotanical samples used in this study, as well as the estimated information thus derived (water input, kernel size, grain yield), are also included (Supplementary Data 1

and 2). From the total number of cereal samples, 311 were characterized for stable isotopes and 198 for kernel dimensions. REFERENCE MATERIAL: MODERN KERNELS AND WOOD To assess the effect of

precipitation on the _δ_13C of modern cereal (durum wheat and barley) and wood material, we selected sampling sites representative of the distribution area of _Quercus_ spp. and _Pistacia_

spp. and of cereal cultivation in the region. Wood cores were obtained for at least five dominant trees per site. For _δ_13C analysis, a fragment of the cores corresponding to the periods

1975–1999 and 1980–2001 was selected for _Quercus_ and _Pistacia_, respectively. Modern cereal samples came from different experimental trials of the International Center for Agricultural

Research in the Dry Areas (ICARDA), as well as from samples collected near the archaeological sites of Tell Halula and Akarçay Tepe. Extended details on the sampling procedure and sample

preparation can be found elsewhere3,4,8,11,37. STABLE CARBON AND NITROGEN ISOTOPE ANALYSES Carbonate crusts in fossil kernels and charcoal were removed by soaking each kernel and charcoal

fragment separately in 6 M HCl for 24 h at room temperature and then rinsing the kernel repeatedly with distilled water38. All samples (modern and archaeological) were oven-dried at 60 °C

for 24 h before milling to a fine powder for isotope analyses. The stable isotope composition of carbon (_δ_13C, referred to the VPDB standard) and nitrogen (_δ_15N, referred to N2 in air)

as well as carbon and nitrogen concentrations (%C, %N) were determined by elemental analysis and isotope ratio mass spectrometry (EA/IRMS) at the Isotope Services of the University of

Barcelona (Barcelona, Spain). The overall analytical precision was about 0.1‰ for _δ_13C, 0.2‰ for _δ_15N, 0.6% for %C and 0.1% for %N. Carbon isotope discrimination (Δ13C) of

archaeobotanical samples was calculated from sample _δ_13C and from the _δ_13C of atmospheric CO2, as follows: where _δ_13Cair and _δ_13Cplant denote air and plant _δ_13C, respectively39.

The _δ_13Cair was inferred by interpolating a range of data from Antarctic ice-core records40,41,42,43 together with modern data from two Antarctic stations (Halley Bay and Palmer Station)

of the CU-INSTAAR/NOAA-CMDL network for atmospheric CO2 (ftp://ftp.cmdl.noaa.gov/ccg/co2c13/flask/readme.html), as described elsewhere3,44. The whole _δ_13Cair data set thus obtained covered

the period from 16100 BCE to 2003 CE (data available at http://web.udl.es/usuaris/x3845331/AIRCO2_LOESS.xls). CHARRING EFFECTS ON _Δ_13C, _Δ_15N AND NITROGEN CONCENTRATION Most of the

studies available on cereal kernels have reported that δ13C3,11,44,45 and δ15N11,46,47 are not significantly affected by carbonization within the expected range for carbonization and sample

preservation (~\n200–400°C). However, nitrogen concentration in grain is affected by carbonization. Fortunately, the nitrogen concentration of charred kernels can be partly corrected based

on the carbon concentration value of the sample11. In spite of reports of consistent changes in _δ_13C for ground wood in response to different carbonization treatments48, previous results

from our team of experimental charring of wood blocks of several species (including the genera _Pistacia_ and _Quercus_) have shown negligible shifts in _δ_13C8,45,49. ESTIMATION OF KERNEL

WEIGHT FROM CHARRED SAMPLES Kernel weight (KW, mg) of wheat and hulled barley can be assessed from the dimensions in mm (length, L; breadth, B; thickness, T) of charred kernels and the level

of carbonization50,51. To get more robust estimates for the different cereal species included, in this study we developed a new model combining data from wheat and barley, according to the

following two formulae: Kernel weight was estimated as the mean value of both formulae. The range of grain dimensions and carbonization conditions of this model covered the expected range

for the archaeological material. ESTIMATION OF WATER INPUTS FROM THE Δ13C OF CEREAL KERNELS The Δ13C of cereal kernels presents a strong positive relationship with water inputs

(precipitation or precipitation plus irrigation) during grain filling across a wide range of Mediterranean conditions3,9,45. We followed the same modelling approach as in earlier studies,

but combining data from wheat and barley to obtain a more robust model that could potentially handle other cereal species. Thus, past cereal water inputs (mm) were estimated as follows: As a

reference for comparison with present data, total precipitation during grain filling was obtained for the second half of April plus May period3,52. ESTIMATION OF GRAIN YIELD FROM Δ13C AND

KERNEL SIZE Grain yield of cereals was estimated using the model previously developed by our team10,35. The model takes into account the water status (through the Δ13C of kernels), together

with changes in Harvest Index (the ratio of kernel weight to total aerial biomass) due to the Green Revolution and the effect of lower-than-present CO2 (about 270 μl l−1) before the

Industrial Revolution. Following this11, grain yield estimates were further corrected by the smaller kernel size observed in the archaeological kernels when compared with present values

(~\n35 mg) in the area4,11,50. Whereas estimated values through this approach probably represent the upper limit range of achievable yields, actual yields were probably lower because of

miscellaneous factors such as incidence of weeds, pests and diseases and, in general, poor agronomical conditions. Nevertheless, the advantage of this approach is that it allows estimating

yields in a large set of archaeological contexts (wherever seeds are recovered), therefore making it feasible to retrieve information on first agricultural practices, which is obviously not

the case for the available written accounts. ADDITIONAL INFORMATION HOW TO CITE THIS ARTICLE: Araus, J. L. _et al_. Agronomic conditions and crop evolution in ancient Near East agriculture.

_Nat. Commun._ 5:3953 doi: 10.1038/ncomms4953 (2014). REFERENCES * Fuller, D. Q., Willcox, G. & Allaby, R. G. Early agricultural pathways: moving outside the ‘core area’ hypothesis in

Southwest Asia. _J. Exp. Bot._ 63, 617–633 (2012). Article  CAS  Google Scholar  * Fuller, D. Q., Willcox, G. & Allaby, R. G. Cultivation and domestication had multiple origins:

arguments against the core area hypothesis for the origins of agriculture in the Near East. _World Archaeol._ 43, 628–652 (2012). Article  Google Scholar  * Ferrio, J. P., Araus, J. L.,

Buxó, R., Voltas, J. & Bort, J. Water management practices and climate in ancient agriculture: inference from the stable isotope composition of archaebotanical remains. _Veget. Hist.

Archaeobot._ 14, 510–517 (2005). Article  Google Scholar  * Araus, J. L., Ferrio, J. P., Buxó, R. & Voltas, J. The historical perspective of dryland agriculture: Lessons learned from

10,000 years of wheat cultivation. _J. Exp. Bot._ 58, 131–145 (2007). Article  CAS  Google Scholar  * Ferrio, J. P. et al. Agricultural expansion and settlement economy in Tell Halula

(Mid-Euphrates valley): a diachronic study from Early Neolithic to present. _J. Arid. Environ._ 86, 104–112 (2012). Article  ADS  Google Scholar  * Riehl, S., Bryson, R. & Pustovoytov,

K. Changing growing conditions for crops during the Near Eastern Bronze Age (3000–1200 BC): the stable carbon isotope evidence. _J. Archaeol. Sci._ 35, 1011–1022 (2008). Article  Google

Scholar  * Roberts, N., Eastwood, W. J., Kuzucuoğlu, C., Fiorentino, G. & Caracuta, V. Climatic, vegetation and cultural change in the eastern Mediterranean during the mid-Holocene

environmental transition. _Holocene_ 21, 147–162 (2011). Article  ADS  Google Scholar  * Aguilera, M., Ferrio, J. P., Pérez, G., Araus, J. L. & Voltas, J. Holocene changes in

precipitation seasonality in the Western Mediterranean Basin: a multi-species approach using δ13C of archaebotanical remains. _J. Quatern. Sci._ 27, 192–202 (2012). Article  ADS  Google

Scholar  * Araus, J. L. et al. Environmental factors determining carbon isotope discrimination and yield in durum wheat under mediterranean conditions. _Crop Sci._ 43, 170–180 (2003).

Article  Google Scholar  * Araus, J. L., Slafer, G. A., Buxó, R. & Romagosa, I. Productivity in prehistoric agriculture: physiological models for the quantification of cereal yields as

an alternative to traditional approaches. _J. Archaeol. Sci._ 30, 681–693 (2003). Article  Google Scholar  * Aguilera, M. et al. Stable carbon and nitrogen isotopes and quality traits of

fossil cereal grains provide clues on sustainability at the beginnings of Mediterranean agriculture. _Rapid. Comm. Mass. Spect._ 22, 1653–1663 (2008). Article  CAS  ADS  Google Scholar  *

Bogaard, A. in_Manure Matters: Historical, Archaeological and Ethnographic Perspectives_ ed Jones R. L. 25–39Ashgate, Farnham (2012). * Wilkinson, T. J. Soil development and early land use

in the Jazira region, upper Mesopotamia. _World Archaeol._ 22, 87–103 (1990). Article  Google Scholar  * Bogaard, A. et al. Crop manuring and intensive land management by Europe’s first

farmers. _PNAS_ 110, 12589–12594 (2013). Article  CAS  ADS  Google Scholar  * Fraser, R. A. et al. Manuring and stable nitrogen isotope ratios in cereals and pulses: towards a new

archaeobotanical approach to the inference of land use and dietary practices. _J. Archaeol. Sci._ 38, 2790–2804 (2011). Article  Google Scholar  * Sherratt, A. Water, soil and seasonality in

early cereal cultivation. _World Archaeol._ 11, 313–330 (1980). Article  Google Scholar  * Araus, J. L. et al. Crop water availability in early agriculture: evidence from carbon isotope

discrimination of seeds from a tenth millennium BP site on the Euphrates. _Global Change Biol._ 5, 233–244 (1999). Article  Google Scholar  * Masi, A., Sadori, L., Zanchetta, G., Baneschi,

I. & Giardini, M. Climatic interpretation of carbon isotope content of mid-Holocene archaeological charcoals from eastern Anatolia. _Quatern. Int._ 303, 64–72 (2013). Article  Google

Scholar  * Jas, R. M. in_Rainfall and agriculture in Northern Mesopotamia_ Mos Studies 3. Proceeding of the third MOS symposiumNederlands Historisch-Archaeologisch Instituut (2000). *

Zohary, M. in_Geobotanical Foundations of the Middle East_ VOL 2, Fischer, Stuttgart (1973). * Tanno, K. & Willcox, G. How fast was wild wheat domesticated? _Science_ 311, 1886 (2006).

Article  CAS  Google Scholar  * Willcox, G., Buxó, R. & Herveux, L. Late Pleistocene and early Holocene climate and the beginnings of cultivation in northern Syria. _Holocene_ 19,

151–158 (2009). Article  ADS  Google Scholar  * Migowski, C., Stein, M., Prasad, S., Negendank, J. F. W. & Agnon, A. Holocene climate variability and cultural evolution in the Near East

from the Dead Sea sedimentary record. _Quat. Res._ 66, 421–431 (2006). Article  Google Scholar  * Finné, M., Holmgren, K., Sundqvist, H. S., Weiberg, E. & Lindblom, M. Climate in the

eastern Mediterranean, and adjacent regions, during the past 6000 years—A review. _J. Archaeol. Sci._ 38, 3153–3173 (2011). Article  Google Scholar  * Wilkinson, T. J., Ur, J. A. &

Casana, J. In_Side-by-Side Survey: Comparative Regional Studies in ther Mediterranean World_ eds Cherry J., Alcock S. 198–205Oxbow Books (2004). * Willcox, G., Fornite, S. & Herveux, L.

H. Early Holocene cultivation before domestication in northern Syria. _Veget. Hist. Archaeobot._ 17, 313–325 (2008). Article  Google Scholar  * Raimanová, I. & Haberle, J. The effects of

differentiated water supply after anthesis and nitrogen fertilization on δ15N of wheat grain. _Rapid Comm. Mass Spectrom_ 24, 261–266 (2010). Article  Google Scholar  * Araus, J. L.,

Cabrera-Bosquet, L., Serret, M. D., Bort, J. & Nieto-Taladriz, M. T. Comparative performance of δ13C, δ18O and δ15N for phenotyping durum wheat adaptation to a dryland environment.

_Funct. Plant Biol._ 40, 595–608 (2013). Article  CAS  Google Scholar  * Hartman, G. & Danin, A. Isotopic values of plants in relation to water availability in the Eastern Mediterranean

region. _Oecologia_ 162, 837–852 (2010). Article  ADS  Google Scholar  * Hartman, G. Are elevated δ15N values in herbivores in hot and arid environments caused by diet or animal physiology?

_Funct. Ecol._ 2, 1365–2435 (2011). Google Scholar  * Hill, J. B. Land use and an archaeological perspective on socio-natural Studies in the Wadi al-Hasa, West-Central Jordan. _Am. Antiq._

69, 389–412 (2004). Article  Google Scholar  * Deckers, K. & Riehl, S. Resource exploitation of the Upper Khabur Basin (NE Syria) during the 3rd millennium BC. _Paléorient_ 34, 173–189

(2008). Article  Google Scholar  * Fuller, D. Q. & Allaby, R. in_Fruit Development and Seed Dispersal Annual Plant Reviews_ VOL. 38, ed Ostergaard L. 238–295Wiley-Blackwell (2009).

Article  Google Scholar  * Sadras, V. O. Evolutionary aspects of the trade-off between seed size and number in crops. _Field Crops Res._ 100, 125–138 (2007). Article  Google Scholar  *

Araus, J. L., Slafer, G. A. & Romagosa, I. Durum wheat and barley yields in antiquity estimated from 13C discrimination of archaeological grains: a case study from the Western

Mediterranean Basin. _Aust. J. Plant Physiol._ 26, 345–352 (1999). Google Scholar  * Stuiver, M. & Reimer, P. J. A computer program for radiocarbon age calibration. _Radiocarbon_ 28,

1022–1030 (1986). Article  CAS  Google Scholar  * Aguilera, M., Espinar, C., Ferrio, J. P., Pérez, G. & Voltas, J. A map of autumn precipitation for the third millennium BP in the

Eastern Iberian Peninsula from charcoal carbon isotopes. _J. Geochem. Exploration_ 102, 157–165 (2009). Article  CAS  Google Scholar  * DeNiro, M. J. & Hastorf, C. A. Alteration of

15N/14N and 13C/12C ratios of plant matter during the initial stages of diagenesis: Studies utilizing archaeological specimens from Peru. _Geochim. Cosmochim. Acta_ 49, 97–115 (1985).

Article  CAS  ADS  Google Scholar  * Farquhar, G. D., Ehleringer, J. R. & Hubick, K. T. Carbon isotope discrimination and photosynthesis. _Ann. Rev. Plant Physiol. Plant. Mol. Biol._ 40,

503–537 (1989). Article  CAS  Google Scholar  * Eyer, M., Leuenberger, M., Nyfeler, P. & Stocker, T. F. Comparison of two δ13CO2 records measured on air from the EPICA Dome C and Kohnen

Station cores. _Geophys. Res. Abstracts_ 6, 1990 (2004). Google Scholar  * Francey, R. J. et al. A 1000-year high precision record of delta C-13 in atmospheric CO2 . _Tellus B_ 51, 170–193

(1999). Article  ADS  Google Scholar  * Indermühle, A. et al. Holocene carbon-cycle dynamics based on CO2 trapped in ice at Taylor Dome, Antarctica. _Nature_ 398, 121–126 (1999). Article

ADS  Google Scholar  * Leuenberger, M., Siegenthaler, U. & Langway, C. C. Carbon isotope composition of atmospheric CO2 during the last ice age from an Antartic ice core. _Nature_ 357,

488–490 (1992). Article  CAS  ADS  Google Scholar  * Araus, J. L. et al. Identification of ancient irrigation practices based on the carbon isotope discrimination of plant seeds: a case

study from the Southeast Iberian Peninsula. _J. Archaeol. Sci._ 24, 729–740 (1997). Article  Google Scholar  * Ferrio, J. P., Voltas, J., Alonso, N. & Araus, J. L. Reconstruction of

climate and crop conditions in the past based on the carbon isotope signature of archaeobotanical remains. In_Isotopes as Indicators of Ecological Change_ eds Dawson T. E., Siegwolf R.

319–332Elsevier Academic Press (2007). * Bogaard, A., Heaton, T. H. E., Poulton, P. & Merbach, I. The impact of manuring on nitrogen isotope ratios in cereals: archaeological

implications for reconstruction of diet and crop management practices. _J. Archaeol. Sci._ 34, 335–343 (2007). Article  Google Scholar  * Fraser, R. A. et al. Assessing natural variation and

the effects of charring, burial and pre-treatment on the stable carbon and nitrogen isotope values of archaeobotanical cereals and pulses. _J. Archaeol. Sci._ 40, 4754–4766 (2013). Article

  CAS  Google Scholar  * Turney, C. S. M., Wheeler, D. & Chivas, A. R. Carbon isotope fractionation in wood during carbonization. _Geochim. Cosmochim. Acta_ 70, 960–964 (2006). Article

CAS  ADS  Google Scholar  * Resco, V. et al. The stable isotope ecology of terrestrial plant succession. _Plant Ecol. Divers_ 4, 117–130 (2011). Article  Google Scholar  * Ferrio, J. P.,

Alonso, N., Voltas, J. & Araus, J. L. Estimating grain weight in archaeological cereal crops: a quantitative approach for comparison with current conditions. _J. Archaeol. Sci._ 31,

1635–1642 (2004). Article  Google Scholar  * Ferrio, J. P., Alonso, N., Voltas, J. & Araus, J. L. Grain weight changes over time in ancient cereal crops: potential roles of climate and

genetic improvement. _J. Cereal Sci._ 44, 323–332 (2006). Article  Google Scholar  * Araus, J. L. et al. Changes in carbon isotope discrimination in grain cereals from different regions of

the western Mediterranean Basin during the past seven millennia. Palaeoenvironmental evidence of a differential change in aridity during the late Holocene. _Global Change Biol._ 3, 107–118

(1997). Article  ADS  Google Scholar  * Stuiver, M., Grootes, P. M. & Braziunas, T. F. The GISP2 δ18O climate record of the past 16,500 years and the role of the sun, ocean and

volcanoes. _Quat. Res._ 44, 341–354 (1995). Article  CAS  Google Scholar  * Stuiver, M. & Grootes, P. M. GISP2 oxygen isotope ratios. _Quat. Res._ 53, 277–283 (2000). Article  CAS

Google Scholar  * Bar-Matthews, M., Ayalon, A., Kaufman, A. & Wasserburg, G. J. The Eastern Mediterranean paleoclimate as a reflection of regional events: Soreq cave, Israel. _Earth

Planet. Sci. Lett._ 166, 85–95 (1999). Article  CAS  ADS  Google Scholar  * Bar-Matthews, M. & Ayalon, A. Mid-Holocene climate variations revealed by high-resolution speleothem records

from Soreq Cave, Israel and their correlation with cultural changes. _Holocene_ 21, 163–171 (2011). Article  ADS  Google Scholar  * Brayshaw, D. J., Rambeau, C. M. & Smith, S. J. Changes

in Mediterranean climate during the Holocene: Insights from global and regional climate modelling. _Holocene_ 21, 15–31 (2011). Article  ADS  Google Scholar  * Roberts, N., Eastwood, W. J.,

Kuzucuoğlu, C., Fiorentino, G. & Caracuta, V. Climatic, vegetation and cultural change in the eastern Mediterranean during the mid-Holocene environmental transition. _Holocene_ 21,

147–162 (2011). Article  ADS  Google Scholar  * Danzeglocke, U., Jöris, O. & Weninger, B. CalPal-2007online, http://www.calpal-online.de/ (2009). Download references ACKNOWLEDGEMENTS

This work was partially supported by the DGI project CGL2009-13079-C02 and the ERC-Advanced grant 230561 (AGRIWESTMED). We thank George Willcox, Archéorient CNRS, France and Miquel Molist,

Autonomous University of Barcelona, Spain, for their support and comments. AUTHOR INFORMATION Author notes * José L. Araus, Juan P. Ferrio and Jordi Voltas: These authors contributed equally

to this work AUTHORS AND AFFILIATIONS * Department of Plant Biology, University of Barcelona, Barcelona, E-08028, Spain José L. Araus * Department of Crop and Forest Sciences—AGROTECNIO

Center, Universitat de Lleida, Avda Rovira Roure 191, Lleida, E-25198, Spain Juan P. Ferrio, Jordi Voltas & Mònica Aguilera * Museu d’Arqueologia de Catalunya, Pedret 95, Girona,

E-17007, Spain Ramón Buxó Authors * José L. Araus View author publications You can also search for this author inPubMed Google Scholar * Juan P. Ferrio View author publications You can also

search for this author inPubMed Google Scholar * Jordi Voltas View author publications You can also search for this author inPubMed Google Scholar * Mònica Aguilera View author publications

You can also search for this author inPubMed Google Scholar * Ramón Buxó View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS Study idea by

J.L.A., J.P.F. and J.V.; J.L.A., J.P.F., J.V. and R.B. designed the research; all authors analysed the data, interpreted the results and wrote the paper. CORRESPONDING AUTHORS Correspondence

to José L. Araus, Juan P. Ferrio or Jordi Voltas. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. SUPPLEMENTARY INFORMATION SUPPLEMENTARY

INFORMATION AND DATA Supplementary Figures 1-5, Supplementary Notes 1-8 and Supplementary References (PDF 1014 kb) SUPPLEMENTARY DATA 1 data of individual charred kernels: site location,

taxon, dating, dimensions of charred kernels and inferred kernel weight, carbon isotope composition of samples, carbon isotope composition of the air at the time grains were grown, estimated

carbon isotope discrimination of the grains, nitrogen concentration and nitrogen isotope, estimated water input during grain filling and grain yield calculated for each of the fossil kernel

samples used in this study. (XLS 1547 kb) SUPPLEMENTARY DATA 2 data of individual charcoal samples: site location, taxon, dating and carbon isotope composition of samples, composition of

the air at the time wood was produced and estimated carbon isotope discrimination of each of the individual wood charcoal samples used in this study. (XLS 73 kb) RIGHTS AND PERMISSIONS

Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Araus, J., Ferrio, J., Voltas, J. _et al._ Agronomic conditions and crop evolution in ancient Near East agriculture. _Nat

Commun_ 5, 3953 (2014). https://doi.org/10.1038/ncomms4953 Download citation * Received: 24 December 2013 * Accepted: 24 April 2014 * Published: 23 May 2014 * DOI:

https://doi.org/10.1038/ncomms4953 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently

available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
