Reversible thermal unfolding of a yfdx protein with chaperone-like activity

ABSTRACT yfdX proteins are ubiquitously present in a large number of virulent bacteria. A member of this family of protein in _E. coli_ is known to be up-regulated by the multidrug response

regulator. Their abundance in such bacteria suggests some important yet unidentified functional role of this protein. Here, we study the thermal response and stability of yfdX protein

STY3178 from _Salmonella_ Typhi using circular dichroism, steady state fluorescence, dynamic light scattering and nuclear magnetic resonance experiments. We observe the protein to be stable

up to a temperature of 45 °C. It folds back to the native conformation from unfolded state at temperature as high as 80 °C. The kinetic measurements of unfolding and refolding show Arrhenius

behavior where the refolding involves less activation energy barrier than that of unfolding. We propose a homology model to understand the stability of the protein. Our molecular dynamic

simulation studies on this model structure at high temperature show that the structure of this protein is quite stable. Finally, we report a possible functional role of this protein as a

chaperone, capable of preventing DTT induced aggregation of insulin. Our studies will have broader implication in understanding the role of yfdX proteins in bacterial function and virulence.

SIMILAR CONTENT BEING VIEWED BY OTHERS THE ANATOMY OF UNFOLDING OF YFH1 IS REVEALED BY SITE-SPECIFIC FOLD STABILITY ANALYSIS MEASURED BY 2D NMR SPECTROSCOPY Article Open access 06 September

2021 FOLDING PATHWAY OF A DISCONTINUOUS TWO-DOMAIN PROTEIN Article Open access 23 January 2024 THE ROLE OF MEMBRANE DESTABILISATION AND PROTEIN DYNAMICS IN BAM CATALYSED OMP FOLDING Article

Open access 07 July 2021 INTRODUCTION Complete genome sequencing of several organisms have resulted in new proteins1 many of which are neither functionally nor structurally characterized.

Among such proteins, yfdX proteins are ubiquitously present in virulent gram negative bacteria2. Although yfdX protein is identified many years back3,4, detailed characterization of both

function and structure is lacking. The only structural information (PDB 3DZA) on this protein is from _K. pneumoniae_ where no function is reported. An earlier study on yfdX protein from _E.

coli_ reports its up-regulation and co-expression with a regulatory protein evgA, involved in multidrug resistance3,4,5. Our earlier study2 on yfdX protein SYY3178 from _Salmonella_ Typhi

reports its interaction with antibiotics namely ciprofloxacin, rifampin and ampicillin. This indicates that yfdX protein might be playing functional role in bacteria. The stability of

protein structure could throw light towards understanding its functionality. The structural stability gets affected by temperature shocks, pH jumps, denaturing agents such as chaotropes,

alcohols or acids and results in unfolding6,7,8,9,10 of the protein. The thermal response for different proteins is diverse. There are many which can tolerate high temperatures, many of

which unfold at elevated temperatures but refolds back to the native structure upon cooling11,12,13,14,15,16,17,18,19,20 and other form irreversible aggregates upon heating. For example,

polymerases like Taq21 or pfu22 from thermophillic bacteria show very high temperature stability. Another class of protein, known as the heat shock proteins (Hsp), like IbpB23 from _E.

coli_, plant cytosolic small Hsp of class I and II24, GroES25, to name only a few, are produced at elevated temperatures. They not only possess chaperone activity but also show thermal

reversibility in unfolding. Likewise, reversibility in thermal unfolding is shown in by other chaperones, like Skp26 from periplasm or SlyD27 and SecB28 from cytosol of _E. coli_. Here, we

study the thermal responses of the yfdX family protein STY3178. The primary objective of this work is to shed light on its function by characterizing thermal unfolding-folding and stability.

Our experimental studies unravel reversible thermal unfolding of this protein. We show the thermal stability of the protein at elevated temperatures from circular dichroism (CD), steady

state fluorescence and nuclear magnetic resonance (NMR), whereas the state of oligomerization remains invariant as observed from DLS. We also measure the kinetics of thermal unfolding and

refolding from CD. A model of STY3178 based on the homology and molecular dynamics (MD) simulation is proposed to understand the observed thermal stability. Finally, we identify the

capability of STY3178 to act as chaperone _in vitro_. RESULTS Circular dichroism (CD) spectrum indicates that STY3178 is an α-helical protein containing two minima around 209 and 222 nm

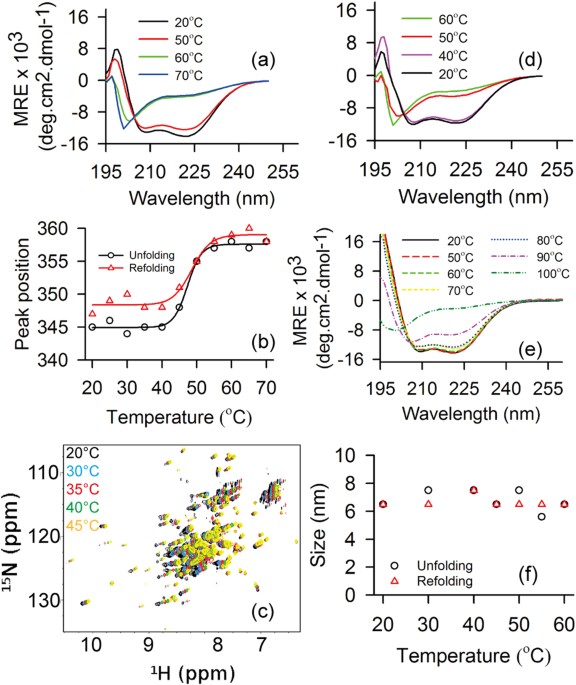

(Fig. 1a, black). The steady state fluorescence emission maximum of this protein is around 342 nm for excitation wavelengths of 275, 280 and 295 nm. This is in agreement to our earlier

observation2. We probe the thermal unfolding, refolding upon cooling and conformational stability of STY3178 using CD, fluorescence, DLS and NMR. TEMPERATURE INDUCED UNFOLDING AND

CONFORMATIONAL STABILITY The α-helical secondary structure remains stable and nearly unchanged up to 50 °C when heated gradually in steps of 10 °C starting from 20 °C (Fig. 1a). The

structural signature significantly changes beyond 50 °C. The two minima at 209 and 222 nm disappear completely at 60 °C (Fig. 1a) indicating total loss of secondary structure. No further

change in the CD spectrum is observed at 70 °C (Fig. 1a) when compared to 60 °C spectrum (Fig. 1a). Thus we find the protein to unfold completely at 60 °C. Next we monitor the emission

maxima position for excitation at 280 nm in steady state fluorescence. The emission peak position of the protein remains unaltered till 45 °C (Fig. 1b), beyond which the maxima starts

shifting towards higher wavelength. A jump of nearly 10 nm in the emission peak position is observed between 45 °C to 55 °C. This shift towards higher wavelength is an indication of protein

unfolding. Beyond 55 °C, the emission peak position does not change any further. We observe a decrease in fluorescence emission intensity with increase in temperature. These observations are

qualitatively similar to those from CD measurement. HSQC spectrum of 15N-labelled protein shows well dispersed peaks between 6–10.5 ppm at 25 °C (Fig. 1c). We observe large number of peaks

clustered around 7.5–8.5 ppm region as found for α-helical proteins in the HSQC spectrum (Fig. 1c). The spectrum also contains well dispersed peaks other than the clusters observed. This

indicates presence of some β-sheet elements in STY3178. The dispersion of the HSQC spectrum changes marginally when we increase temperature from 25 °C to 45 °C. This suggests that the

tertiary structural fold is indeed stable at 45 °C, in agreement with CD and fluorescence data. There are only a few peaks in the HSQC spectra which show sensitivity upon increasing

temperature (Fig. 1c). Interestingly most of the peaks showing sensitivity to higher temperature belong to the well dispersed regions and not the core helical region. REVERSIBILITY IN

UNFOLDING We check the reversibility in unfolding by monitoring the refolding using CD by cooling down the protein from an elevated temperature. The thermally unfolded protein at 70 °C is

gradually cooled to 20 °C by decreasing temperature in step of 10 °C. We observe the protein remains unfolded up to 50 °C (Fig. 1d). We observe refolding of the protein where the α-helical

secondary structure is regained upon further cooling down to 40 °C (Fig. 1d). The CD spectrum after cooling down to 20 °C (Fig. 1d) is very similar to the native protein spectrum (Fig. 1a)

prior to thermal unfolding. This observation demonstrates reversibility in thermal unfolding of STY3178. We observe a blue shift ~8 nm compared to the unfolded state in the fluorescence

emission peak position upon cooling (Fig. 1b). This again indicates protein refolding where a native-like structure is formed which results in blue shift compared to the unfolded protein. We

also observe an increase in fluorescence intensity upon refolding in contrast to the decrease during unfolding. However, the final emission peak intensity is less and the position is red

shifted by 2–3 nm in the refolded protein compared to the native, suggesting slight rearrangement in side chains conformations. Overall both steady state fluorescence and CD results are in

agreement indicating reversibility in thermal unfolding of this protein. The conformational stability under equilibrium condition is probed by heating the protein for a longer period of

time. We heat the protein at different high temperature water baths (50 °C to 100 °C) for 30 minutes and cool down it to room temperature after that. The CD spectra of the cooled proteins

are then compared with the native one. We find that protein when heated within the range 50 °C to 80 °C, refolds completely as native-like structure, shown in Fig. 1e. There is a slight

decrease in ellipticity of the refolded protein when it is treated at 90 °C, indicating partial loss of structure (Fig. 1e). We further observe that no refolding could be achieved when the

protein is heated at 100 °C (Fig. 1e). Thus, the reversibility of folding is maintained in STY3178 fully when treated at 80 °C. We measure the hydrodynamic size of STY3178 in the temperature

range 20 °C to 60 °C (Fig. 1f) using DLS. The folded protein in solution at 20 °C has a hydrodynamic diameter around 6.5 nm as reported earlier2. The variation of this size with temperature

is only around 1 nm which is within the fluctuation limit. This indicates that the oligomerization state of the protein does not change upon heating and remains stable. When we cool the

same protein from 60 °C to 20 °C, we again observe similar hydrodynamic sizes (Fig. 1f). HEATING OR COOLING RATE DEPENDENCE We perform ellipticity measurements for different heating rates.

The fraction of folded protein (_f__N_) is estimated from the ellipticity at 222 nm [θ222] for each temperature (as described in method section). For none of the heating rates below 50 °C,

protein unfolds and _f__N_ remains constant. Above 50 °C, _f__N_ decreases for various rates (Fig. 2a). We observe a difference in half denaturation temperature (Tm) that is at _f__N_ = 0.5

for the different heating rates. Tm is low for slower heating rates and increases for faster heating rate as tabulated in Table 1. In other words, longer the protein remains at elevated

temperature above 50 °C, faster is the unfolding. We also monitor the refolding of the protein using different cooling rates. The plot of _f__N_ versus temperature for different cooling

rates (Fig. 2b) show refolding of the protein starts when the temperature is below 50 °C. The half renaturation temperature (Tm’) of the protein is thus lower than the half denaturation

temperature (Tm) (Table 1), indicating hysteresis in the unfolding and refolding. These observations indicate that the insufficient time during faster scan in temperature hinders the protein

to come to equilibrium at a given temperature causing the hysteresis. This is also indicative of kinetically controlled process29,30,31. The hysteresis decreases with decreasing rates of

heating and cooling. KINETICS OF UNFOLDING AND REFOLDING The kinetics of unfolding of STY3178 is measured from _f__N_ at a given temperature with time in the temperature range 53 °C to 65 °C

(see methods) where the _f__N_ values tend to zero after sufficiently long time (Fig. 3a). _f__N_ decreases below 50% within approximately 50 minutes when the protein is heated in this

temperature range. The plot of _f__N_ with time follows single exponential decay. We obtain the rate of unfolding (_k__u_) from the exponential fit of _f__N_ versus time (few representative

cases shown in Fig. 3b). We observe that _k__u_ values follow the Arrhenius behavior as can be seen from ln_k__u_ versus 1/T plot, where T is the absolute temperature (Fig. 3c). The

activation energy of unfolding () is calculated from the slope of the plot. Here ~ 246.9 kJ/mol obtained for STY3178 is comparable to the activation of energy of unfolding reported in

literature32,33,34. In the temperature range below 53 °C the protein does not reach complete unfolded state despite long measurement time. Hence this region has not been considered for

estimating . We monitor the refolding kinetics of the protein from the change in ellipticity at 222 nm [θ222] starting from the thermally unfolded state at 70 °C. The unfolded protein is

then directly cooled down to different temperatures in the range of 40 °C to 30 °C. There is a time lag (tL) of about 100 seconds after which _f__N_ increases rapidly to reach the folded

state (_f__N_ ≈ 0.95) within approximately 300 seconds. The data for the entire time of measurement (0 to 600 seconds), averaged over repeated set of experiments, are shown in Fig. 3d for

different temperatures. The finite tL is probably due to stabilization after temperature quenching and depends slightly on temperature. We calculate Δ_f__N_ = _f__N_ − _f__R_, where _f__R_

is the folded fraction at _t_ = _t__L_. The _f__R_ values are typically small but non zero for different temperatures. Similarly, we define the rise time Δ_t_ = _t_ − _t__L_. The plot of

Δ_f__N_ versus Δt show single exponential rise, few of which are shown in Fig. 3e. We calculate the rate of refolding (_k__f_), from the fitted curves. Figure 3f shows ln_k__f_ versus 1/T

plot confirming the Arrhenius behavior upon refolding. The activation energy () of refolding is ~−58.66 kJ/mol. The quality of linear fit in refolding kinetics (Fig. 3f) is somewhat poorer

than that in unfolding (Fig. 3c). This is reflected in the R2 values of the fits (0.97 for unfolding and 0.85 for refolding). This leads us to check the dependences of ln(_k__u_/T) and

ln(_k__f_/T) on 1/T as suggested in ref. 20. The plots, shown in the Supplementary Fig. S1, confirm linear dependences for both the cases. This suggests that the activation heat capacities20

for both unfolding and refolding are negligible. MOLECULAR MODELING In the absence of a molecular structure, we propose a homology model of STY3178 to understand the stability of the

protein, based on the template yfdX protein structure (PDB 3DZA) from _K. pneumoniae_. The sequence similarity of STY3178 with 3DZA protein is nearly 40%. The homology model contains

residues A11-Q183 excluding 21 N-terminal residues of the construct. At the C-terminal end of STY3178, there are 16 residues, for which no homology is obtained from the template. Thus, we

add all these residues de-novo using Swiss-PdbViewer and minimize homology model for refinement. We perform MD simulation of this minimized homology model for 300 ns at 310 K. The MD

simulated monomer is primarily helical containing total ten helices along with a two stranded antiparallel β-sheet as shown in Fig. 4a. The helices present in the structure are primarily

forming two helix bundles where helices H2, H3, H7 and H8 form one bundle and helices H5, H6 and H10 forming the other. MOLECULAR DYNAMIC SIMULATIONS AT ELEVATED TEMPERATURES Our

experimental data show that this protein unfolds at elevated temperature without change in its assembly. This leads to test the thermal stability of the monomer model from MD simulations. We

simulate structures at 310 K, 350 K and 400 K. We find that the root means square fluctuation (RMSF) increases with temperature (Fig. 4b). In particular there are two regions which show

enhanced RMSF with temperature. The first region is part of H3 and H4 along with the adjacent loop residues and the other region comprises of E1, H7 and the adjacent loops. The backbone

dihedral (ϕ and ψ) distribution for majority of residues do not show change with increase in temperature (Figs 4c and S2). Only a handful of residues show sensitivity in the ϕ and ψ

distribution, which includes N14, D17, N18 from H1; D69, W70 and N71 from H4; A132 from H6; S182, Q183, S184 and V185 from H9; V193, H195, A197 and A198 of H10. An example of such change is

shown for residue W70 in Fig. 4d and S184 in Supplementary Fig. S3. The Ramachandran plots for these residues indicate structural changes from helix to loop and β-sheet (Supplementary Fig.

S4). The relative standard deviations at 350 K and 400 K with respect to those at 310 K, given by r350 = σ350/σ310 and r400 = σ400/σ310 respectively, are shown in Fig. 4e,f for different

residues, colour coded according to their values. Residues showing r350, r400 ≤ 1 for both ϕ and ψ are shown in green in Fig. 4e,f. Majority of residues belong to the region 1 < r350,

r400 < 4 with moderate fluctuations in either ϕ or ψ or both at 350 K and 400 K as shown in orange in Fig. 4e,f. The residues, having r350, r400 > 4 are marked in red which belong to

the terminal helices H1, H9 and H10. Despite enhancement in fluctuations, the overall structure of STY3178 remains stable. To the contrary, we observe enhanced RMSF and loss of secondary

structural element for lysozyme at 400 K from our simulation using the same force field as shown in Supplementary Fig. S5, in agreement with earlier report35. DISCUSSION We predict the

function of STY3178 using bioinformatics tool MODexplorer36. The output results from MODexplorer server indicates nearly 50 proteins which show structural similarity >50% with STY3178.

Among these 50 proteins most of the proteins have helices similar to STY3178. While some of the proteins with similar structures have no reported function, majority of them are either

chaperones or assist chaperone activity. Our observations indicate that STY3178 may have chaperone activity. To verify such possibility, we monitor DTT induced aggregation of insulin B-chain

in presence of STY3178. At 42 °C, we observe a steep rise in absorbance at 360 nm (A360) with time followed by a saturation platue (Fig. 5) as reported earlier37. In presence of STY3178 at

same temperature, we find lower absorbance at 360 nm with time, indicating less aggregation of insulin B-chain in presence of DTT. This prevention of aggregation is dependent on the net

amount of STY3178 present in the reaction mixture. Figure 5 shows the plot of absorbance at 360 nm (A360) versus reaction time (30 minutes) in absence (black) and presence of various STY3178

molar concentration ratios 0.1 (red), 0.25 (green) and 0.5 (blue) to insulin concentration. A systematic lowering of absorbance at 360 nm (A360) with increasing concentration of STY3178

demonstrates its capability to prevent insulin aggregation. Thus, _in vitro_ we indeed observe that STY3178 is capable of showing chaperone activity. STY3178 sequence from Gene bank (gene ID

gi|16758993:c3049965-3049366) is used in signalP 4.1 server38 to identify any possible signal peptide sequence. The construct of STY3178 used in experiments do not contain 9 N-terminal

residues. SignalP server predicts the first 12 residues in the N-terminal region of this protein as a signal peptide. Experimentally we observe that STY3178 is soluble in aqueous medium.

This indicates that STY3178 cannot be a membrane embedded protein. Thus presence of predicted signal peptide in the N-terminus indicates a possibility of its localization in the periplasm.

Exact cellular localization of this protein is not yet established. However, servers like Cello39,40 and LocTree341 predicts its sub-cellular localization in the periplasm. There are many

chaperones identified in the periplasm of bacteria like peptidyl-prolyl isomerases, disulphide bond isomerases etc42,43,44. Since ATP is absent in periplasm42, the chaperones from periplasm

are capable of performing their activity without ATP assistance. The predicted sub cellular localization as well as ATP independent chaperone activity of STY3178 both suggests its

localization in the periplasm. CONCLUSION To summarize, our experimental studies reveal a reversible thermal unfolding and structural stability at elevated temperature for STY3178. The CD,

steady state fluorescence and NMR data show that the protein is stable up to 45 °C and folds back even after heating at 80 °C. Further the time dependent CD measurements between 20 °C–70 °C

show reversibility in unfolding with hysteresis. The kinetics of unfolding and refolding both follows the Arrhenius behavior with an activation energy barrier of ~246.9 kJ/mol and −58.66 

kJ/mol, respectively. Our molecular dynamics simulation studies on the proposed model monomeric structure of the protein show stability at high temperature. Most importantly, we find an ATP

independent chaperone activity capability of STY3178. This observation matches well with the bioinformatically predicted periplasmic localization of the protein. Our studies indicate that

STY3178 may be an important protein through its chaperone activity for the bacterial cellular functions. Hence yfdX proteins need to be fully characterized to understand bacterial virulence.

METHODS Plasmid pET28a carrying the desired gene _sty3178_ is overexpressed in _E. coli_ using 0.2 mM isopropyl-β-D-thiogalactoside for 4 hours in a shaker (Innova 42 New Brunswick

Scientific) as reported earlier2. Protein extraction and purification are done following the earlier reported protocol2. All the reported measurements are carried out in a buffer containing

50 mM phosphate (pH 7), 250 mM NaCl and 1 mM PMSF. In all the experiments, the protein concentration is calculated in terms of monomer molecular weight (MW = 23107.7 Da). CIRCULAR DICHROISM

All the circular dichroism (CD) measurements are carried out in Jasco J-815 CD spectrometer equipped with peltier temperature control unit (Jasco). The sample concentration and path length

for all the experiments are 10 μM and 3 mm, respectively. Every CD spectrum is acquired in the far UV-region (200–250 nm). Unfolding of the protein is monitored in the temperature range of

20 °C to 70 °C upon increasing temperature with increments of 10 °C and equilibration of 10 minutes at each (30 °C, 40 °C, 50 °C, 60 °C and 70 °C) temperature. Similar to unfolding

experiments, refolding of the protein is achieved by decreasing temperature from 70 °C with decrements of 10 °C till 20 °C (60 °C, 50 °C, 40 °C, 30 °C and 20 °C). Background correction is

done by subtracting the ellipticity value of buffer in the far UV-region for each experiment at that temperature. The transition from folded state to unfolded state is monitored by measuring

the ellipticity values at 222 nm [θ222] upon gradually heating from 20 °C to 70 °C. The fraction of the folded protein (_f__N_) at each temperature is calculated using the expression29

_f__N_ = (θ_D_ − θ_T_)/(θ_D_ − θ_N_), where θ_N_ and θ_D_ are the measured ellipticity of the folded and the unfolded protein respectively. θ_T_ is the ellipticity at each temperature.

Heating rates 0.5 °C/min, 1 °C/min, 2 °C/min, 3 °C/min, 4 °C/min and 5 °C/min are used in CD experiments for probing the transition from folded to unfolded state. Similarly we use six

different cooling rates (0.5 °C/min, 1 °C/min, 2 °C/min, 3 °C/min, 4 °C/min and 5 °C/min) for refolding the protein. DYNAMIC LIGHT SCATTERING (DLS) DLS data is acquired for the temperatures

20 °C, 30 °C, 40 °C, 50 °C and 60 °C using Nano-S Malvern instrument equipped with thermostat cell holder using methodology as described earlier2. Protein is equilibrated for 10 minutes at

each temperature prior to acquiring data. UNFOLDING KINETICS Thermal unfolding kinetics is followed from the change in ellipticity [θ222] upon heating the protein for 4 hours at temperatures

53 °C, 55 °C, 57 °C, 59 °C, 60 °C, 63 °C and 65 °C. The buffer is pre-equilibrated at each temperature prior to mixing with protein. The dead time of the whole process is less than 15 sec.

_f__N_ is calculated at different times and the time dependence has been fitted using single exponential decay equation, , where _k__u_ is rate of unfolding and _t_ is time. The activation

energy () of unfolding has been estimated using Arrhenius equation, , where R is the universal gas constant and T is the absolute temperature. REFOLDING KINETICS The kinetics of refolding is

calculated from the ellipticity change [θ222] of the unfolded protein at 222 nm. 10 μM protein is unfolded by heating at 70 °C for 10 minutes. The temperatures of the cell holder is set to

six different temperatures (30 °C, 32 °C, 34 °C, 36 °C, 38 °C and 40 °C) allowing cooling of the unfolded protein and subsequent refolding. The time between the start of the experiment and

rise of _f__N_ is the lag time required for initiation of refolding. The lag time is primarily governed by the machine accuracy (99.5 sec-30 °C, 99.5 sec-32 °C, 99.5 sec-34 °C, 101 sec-36 

°C, 99.5 sec-38 °C and 101 sec-40 °C). The entire set of data is collected for three repeated sets of experiments. We calculate the Δ_f__N_ = _f__N_ − _f__R_, where _f__R_ is the folded

fraction from which the rise in _f__N_ starts. The _f__R_ values are typically small but non zero for different temperatures. Similarly, we define the rise time Δt by subtracting out the lag

time. The plot of Δ_f__N_ versus Δt show single exponential rise, fitted with from which we estimate the rate of refolding (_k__f_). The activation energy of refolding () is obtained

following Arrhenius equation by linear fitting of ln_k__f_ with 1/T. STEADY STATE FLUORESCENCE Fluorescence experiments are performed in Jobin Yvon Horiba Fluorolog attached with a peltier

unit (Wavelength Electronics). Sample concentration of 10 μM and slit width of 2 nm is used for excitation at 280 nm. Sample is heated gradually at different temperatures starting from 20 °C

to 70 °C with increments of 5 °C and equilibration of 10 minutes at each temperature (25 °C, 30 °C, 35 °C, 40 °C, 45 °C, 50 °C, 55 °C, 60 °C, 65 °C and 70 °C). Similarly, the same sample is

allowed to cool back gradually from 70 °C to the starting temperature (20 °C) to monitor its refolding. The final emission spectra are obtained by subtracting the corresponding buffer

spectrum (blank) from that of the sample. NUCLEAR MAGNETIC RESONANCE SPECTROSCOPY The uniformly 15N-labeled protein sample is prepared by growing _E. coli_ cells in M9 minimal media

containing 15NH4Cl as the only source for nitrogen2. Extraction and purification protocols are same as done earlier2. NMR experiments are performed in a 600 MHz Varian spectrometer equipped

with room temperature probe. 1H-15N heteronuclear single quantum coherence (HSQC) experiments are carried out for temperatures 25 °C, 30 °C, 35 °C, 40 °C and 45 °C. Sample concentration used

is 400 μM. The buffer condition used is 30 mM phosphate buffer (pH 7), 150 mM NaCl and 10% D2O. All HSQC experiments are performed with 64 scans and 128 number of points. Data processing

and analysis are done using NMRPIPE45 and NMRVIEW46. MOLECULAR MODEL Homology model of the tertiary structure of STY3178 is generated using the servers Phyre247 and RaptorX48,49,50,51.

Template used for the model generation is a yfdX protein from _K. pneumoniae_ (PDB 3DZA) which is a homotetramer and contains four identical chains (A, B, C and D). Phyre2 used chain B and

RaptorX used chain A of the template protein and generated identical models for STY3178. The homology model contains residues A11-Q183 only. There is no homology obtained for residues

S184-H199. We generate a model for this region (S184-H199) using Swiss-PdbViewer52 by adding one residue at a time and minimizing thereafter. Hydrogen atoms are added to the final model

containing residues A11-H199. The model is solvated using explicit solvent model in a rectangular parallelepiped water box with dimension 69.4 × 62.2 × 73 Å3 and minimized using NAMD53 for

refinement after neutralizing with counter ions. MOLECULAR DYNAMICS SIMULATION OF PROTEIN MODEL NAMD53 is used for the molecular dynamics (MD) simulation of the minimized structure.

CHARMM2754 force field and TIP3P55 water model is used for MD simulation performed at 1 atm pressure in isothermal-isobaric (NPT) ensemble following the standard protocol, with periodic

boundary condition and 1 femtosecond (fs) time-step. Particle-mesh Ewald method is applied to deal with electrostatic interactions. Energy minimization of 10,000 steps is performed prior to

300 nanosecond (ns) simulation time with 29848 total number of atoms. The initial MD simulation is performed at 310 K temperature. An equilibrated structure from the 310 K ensemble is used

for 350 K and 400 K temperature simulations. The root mean square deviation (RMSD) at all the temperatures is calculated with respect to the Cα-atoms over all the trajectories up to 300 ns.

We then estimate the root means square fluctuation (RMSF) of Cα-atoms of each residue at temperatures 310 K, 350 K and 400 K over the equilibrated trajectories. The histogram distribution,

Ramachandran plot and standard deviation (σ) of backbone dihedral angles ϕ and ψ of each residue is calculated over the trajectories 150–300 ns. The relative change in σ for each residue at

350 K (r350 = σ350/σ310) and 400 K (r400 = σ400/σ310) is then estimated with respect to that at 310 K. MD simulation for the protein lysozyme (PDB 193L) is performed for 100 ns using the

total number of 21002 atoms at 310 K and 400 K following the protocols mentioned above. CHAPERONE ACTIVITY ASSAY Thermal aggregation of 50 μM insulin in presence of 20 mM DTT is monitored

from the absorbance at 360 nm (A360). A 10 mm path length cell is used in BioSpectrometer (Eppendorf) for A360 measurement at 42 °C as described in earlier protocol37. The experiment is

performed both in absence and in the presence of pure STY3178. Molar ratio of STY3178 used in the assay is 0.1:1, 0.25:1 and 0.5:1 with respect to insulin. The buffer used in the experiment

is 50 mM phosphate (pH 7), 250 mM NaCl and 1 mM PMSF. Both the proteins are equilibrated at 42 °C for 10 minutes prior to addition of DTT. ADDITIONAL INFORMATION HOW TO CITE THIS ARTICLE:

Saha, P. _et al_. Reversible thermal unfolding of a yfdX protein with chaperone-like activity. _Sci. Rep._ 6, 29541; doi: 10.1038/srep29541 (2016). REFERENCES * Bateman, A., Coggill, P.

& Finn, R. D. DUFs: families in search of function. Acta Crystallogr, Sect F: Struct Biol Cryst Commun 66, 1148–1152 (2010). CAS  Google Scholar  * Saha, P., Manna, C., Das, S. &

Ghosh, M. Antibiotic binding of STY3178, a yfdX protein from Salmonella Typhi. Nature Scientific Reports 6, 21305 (2016). ADS  CAS  Google Scholar  * Nishino, K. & Yamaguchi, A.

Overexpression of the response regulator evgA of the two-component signal transduction system modulates multidrug resistance conferred by multidrug resistance transporters. J Bacteriol 183,

1455–1458 (2001). CAS  PubMed  PubMed Central  Google Scholar  * Nishino, K., Inazumi, Y. & Yamaguchi, A. Global analysis of genes regulated by EvgA of the two-component regulatory

system in Escherichia coli. J Bacteriol 185, 2667–2672 (2003). CAS  PubMed  PubMed Central  Google Scholar  * Ma, D. et al. Genes acrA and acrB encode a stress-induced efflux system of

Escherichia coli. Mol Microbiol 16, 45–55 (1995). CAS  PubMed  Google Scholar  * England, J. L. & Haran, G. Role of solvation effects in protein denaturation: from thermodynamics to

single molecules and back. Annu Rev Phys Chem 62, 257–277 (2011). ADS  CAS  PubMed  PubMed Central  Google Scholar  * Kishore, D., Kundu, S. & Kayastha, A. M. Thermal, chemical and pH

induced denaturation of a multimeric beta-galactosidase reveals multiple unfolding pathways. PLoS One 7, e50380 (2012). ADS  CAS  PubMed  PubMed Central  Google Scholar  * Strucksberg, K.

H., Rosenkranz, T. & Fitter, J. Reversible and irreversible unfolding of multi-domain proteins. Biochim Biophys Acta 1774, 1591–1603 (2007). CAS  PubMed  Google Scholar  * Duy, C. &

Fitter, J. Thermostability of irreversible unfolding alpha-amylases analyzed by unfolding kinetics. J Biol Chem 280, 37360–37365 (2005). CAS  PubMed  Google Scholar  * Findlay, H. E.,

Rutherford, N. G., Henderson, P. J. & Booth, P. J. Unfolding free energy of a two-domain transmembrane sugar transport protein. Proc Natl Acad Sci USA 107, 18451–18456 (2010). ADS  CAS

PubMed  PubMed Central  Google Scholar  * Meersman, F. et al. Consistent picture of the reversible thermal unfolding of hen egg-white lysozyme from experiment and molecular dynamics. Biophys

J 99, 2255–2263 (2010). CAS  PubMed  PubMed Central  Google Scholar  * Blumlein, A. & McManus, J. J. Reversible and non-reversible thermal denaturation of lysozyme with varying pH at

low ionic strength. Bba-Proteins Proteom 1834, 2064–2070 (2013). CAS  Google Scholar  * Eisenberg, M. A. & Schwert, G. W. The reversible heat denaturation of chymotrypsinogen. J Gen

Physiol 34, 583–606 (1951). CAS  PubMed  PubMed Central  Google Scholar  * Yu, M. H., Weissman, J. S. & Kim, P. S. Contribution of Individual Side-Chains to the Stability of Bpti

Examined by Alanine-Scanning Mutagenesis. Journal of Molecular Biology 249, 388–397 (1995). CAS  PubMed  Google Scholar  * Roychaudhuri, R., Sarath, G., Zeece, M. & Markwell, J.

Reversible denaturation of the soybean Kunitz trypsin inhibitor. Arch Biochem Biophys 412, 20–26 (2003). CAS  PubMed  Google Scholar  * Wu, Y. V. & Scheraga, H. A. Studies of soybean

trypsin inhibitor. II. Conformational properties. Biochemistry 1, 905–911 (1962). CAS  PubMed  Google Scholar  * Garcia, A. F., Garcia, W., Nonato, M. C. & Araujo, A. P. Structural

stability and reversible unfolding of recombinant porcine S100A12. Biophys Chem 134, 246–253 (2008). CAS  PubMed  Google Scholar  * Wallevik, K. Reversible denaturation of human serum

albumin by pH, temperature and guanidine hydrochloride followed by optical rotation. J Biol Chem 248, 2650–2655 (1973). CAS  PubMed  Google Scholar  * Pico, G. A. Thermodynamic features of

the thermal unfolding of human serum albumin. Int J Biol Macromol 20, 63–73 (1997). CAS  PubMed  Google Scholar  * Benitez-Cardoza, C. G., Rojo-Dominguez, A. & Hernandez-Arana, A.

Temperature-induced denaturation and renaturation of triosephosphate isomerase from Saccharomyces cerevisiae: evidence of dimerization coupled to refolding of the thermally unfolded protein.

Biochemistry 40, 9049–9058 (2001). CAS  PubMed  Google Scholar  * Chien, A., Edgar, D. B. & Trela, J. M. Deoxyribonucleic acid polymerase from the extreme thermophile Thermus aquaticus.

J Bacteriol 127, 1550–1557 (1976). CAS  PubMed  PubMed Central  Google Scholar  * Ishino, S. & Ishino, Y. DNA polymerases as useful reagents for biotechnology-the history of

developmental research in the field. Frontiers in microbiology 5, 465 (2014). PubMed  PubMed Central  Google Scholar  * Shearstone, J. R. & Baneyx, F. Biochemical characterization of the

small heat shock protein IbpB from Escherichia coli. J Biol Chem 274, 9937–9945 (1999). CAS  PubMed  Google Scholar  * Basha, E., Jones, C., Wysocki, V. & Vierling, E. Mechanistic

Differences between Two Conserved Classes of Small Heat Shock Proteins Found in the Plant Cytosol. Journal of Biological Chemistry 285, 11489–11497 (2010). CAS  Google Scholar  * Boudker,

O., Todd, M. J. & Freire, E. The structural stability of the co-chaperonin GroES. Journal of Molecular Biology 272, 770–779 (1997). CAS  PubMed  Google Scholar  * Schlapschy, M. et al.

The periplasmic _E. coli_ chaperone Skp is a trimer in solution: biophysical and preliminary crystallographic characterization. Biological chemistry 385, 137–143 (2004). CAS  PubMed  Google

Scholar  * Scholz, C. et al. SlyD proteins from different species exhibit high prolyl isomerase and chaperone activities. Biochemistry 45, 20–33 (2006). CAS  PubMed  Google Scholar  * Panse,

V. G., Swaminathan, C. P., Aloor, J. J., Surolia, A. & Varadarajan, R. Unfolding thermodynamics of the tetrameric chaperone, SecB. Biochemistry 39, 2362–2369 (2000). CAS  PubMed  Google

Scholar  * Camarillo-Cadena, M., Garza-Ramos, G., Peimbert, M., Perez-Hernandez, G. & Zubillaga, R. A. Thermal denaturation of beta-glucosidase B from Paenibacillus polymyxa proceeds

through a Lumry-Eyring mechanism. Protein J 30, 318–323 (2011). CAS  PubMed  Google Scholar  * Freire, E., van Osdol, W. W., Mayorga, O. L. & Sanchez-Ruiz, J. M. Calorimetrically

determined dynamics of complex unfolding transitions in proteins. Annu Rev Biophys Biophys Chem 19, 159–188 (1990). CAS  PubMed  Google Scholar  * Tello-Solis, S. R. & Hernandez-Arana,

A. Effect of irreversibility on the thermodynamic characterization of the thermal denaturation of Aspergillus saitoi acid proteinase. Biochem J 311, 969–974 (1995). CAS  PubMed  PubMed

Central  Google Scholar  * Kajitani, S., Fukuoka, M. & Sakai, N. Kinetics of thermal denaturation of protein in cured pork meat. Japan Journal of Food Engineering 12, 19–26 (2011).

Google Scholar  * Zoldak, G., Zubrik, A., Musatov, A., Stupak, M. & Sedlak, E. Irreversible thermal denaturation of glucose oxidase from Aspergillus niger is the transition to the

denatured state with residual structure. Journal of Biological Chemistry 279, 47601–47609 (2004). CAS  Google Scholar  * Banerjee, T. & Kishore, N. A differential scanning calorimetric

study on the irreversible thermal unfolding of concanavalin A. Thermochim Acta 411, 195–201 (2004). CAS  Google Scholar  * Eleftheriou, M., Germain, R. S., Royyuru, A. K. & Zhou, R. H.

Thermal denaturing of mutant lysozyme with both the OPLSAA and the CHARMM force fields. Journal of the American Chemical Society 128, 13388–13395 (2006). CAS  PubMed  Google Scholar  *

Kosinski, J., Barbato, A. & Tramontano, A. MODexplorer: an integrated tool for exploring protein sequence, structure and function relationships. Bioinformatics 29, 953–954 (2013). CAS

PubMed  PubMed Central  Google Scholar  * Weinreb, O., van Boekel, M. A., Dovrat, A. & Bloemendal, H. Effect of UV-A light on the chaperone-like properties of young and old lens

alpha-crystallin. Investigative ophthalmology & visual science 41, 191–198 (2000). CAS  Google Scholar  * Petersen, T. N., Brunak, S., von Heijne, G. & Nielsen, H. SignalP 4.0:

discriminating signal peptides from transmembrane regions. Nature methods 8, 785–786 (2011). CAS  PubMed  Google Scholar  * Yu, C. S., Lin, C. J. & Hwang, J. K. Predicting subcellular

localization of proteins for Gram-negative bacteria by support vector machines based on n-peptide compositions. Protein Sci 13, 1402–1406 (2004). CAS  PubMed  PubMed Central  Google Scholar

  * Yu, C. S., Chen, Y. C., Lu, C. H. & Hwang, J. K. Prediction of protein subcellular localization. Proteins 64, 643–651 (2006). CAS  PubMed  Google Scholar  * Goldberg, T. et al.

LocTree3 prediction of localization. Nucleic Acids Res 42, W350–W355 (2014). CAS  PubMed  PubMed Central  Google Scholar  * Wulfing, C. & Pluckthun, A. Protein folding in the periplasm

of Escherichia coli. Mol Microbiol 12, 685–692 (1994). CAS  PubMed  Google Scholar  * Bodelon, G., Marin, E. & Fernandez, L. A. Role of periplasmic chaperones and BamA (YaeT/Omp85) in

folding and secretion of intimin from enteropathogenic Escherichia coli strains. J Bacteriol 191, 5169–5179 (2009). CAS  PubMed  PubMed Central  Google Scholar  * Sklar, J. G., Wu, T.,

Kahne, D. & Silhavy, T. J. Defining the roles of the periplasmic chaperones SurA, Skp and DegP in Escherichia coli. Genes Dev 21, 2473–2484 (2007). CAS  PubMed  PubMed Central  Google

Scholar  * Delaglio, F. et al. NMRPipe: a multidimensional spectral processing system based on UNIX pipes. J Biomol NMR 6, 277–293 (1995). CAS  PubMed  Google Scholar  * Johnson, B. A. &

Blevins, R. A. NMR View: A computer program for the visualization and analysis of NMR data. J Biomol NMR 4, 603–614 (1994). CAS  PubMed  Google Scholar  * Kelley, L. A. & Sternberg, M.

J. E. Protein structure prediction on the Web: a case study using the Phyre server. Nat Protoc 4, 363–371 (2009). CAS  PubMed  Google Scholar  * Peng, J. & Xu, J. B. RaptorX: Exploiting

structure information for protein alignment by statistical inference. Proteins 79, 161–171 (2011). CAS  PubMed  PubMed Central  Google Scholar  * Kallberg, M. et al. Template-based protein

structure modeling using the RaptorX web server. Nat Protoc 7, 1511–1522 (2012). CAS  PubMed  PubMed Central  Google Scholar  * Ma, J. Z., Wang, S., Zhao, F. & Xu, J. B. Protein

threading using context-specific alignment potential. Bioinformatics 29, 257–265 (2013). Google Scholar  * Peng, J. & Xu, J. A multiple-template approach to protein threading. Proteins

79, 1930–1939 (2011). CAS  PubMed  PubMed Central  Google Scholar  * Guex, N. & Peitsch, M. C. SWISS-MODEL and the Swiss-PdbViewer: an environment for comparative protein modeling.

Electrophoresis 18, 2714–2723 (1997). CAS  PubMed  Google Scholar  * Phillips, J. C. et al. Scalable molecular dynamics with NAMD. J Comput Chem 26, 1781–1802 (2005). CAS  PubMed  PubMed

Central  Google Scholar  * Brooks, B. R. et al. CHARMM: the biomolecular simulation program. J Comput Chem 30, 1545–1614 (2009). CAS  PubMed  PubMed Central  Google Scholar  * Mahoney, M. W.

& Jorgensen, W. L. A five-site model for liquid water and the reproduction of the density anomaly by rigid, nonpolarizable potential functions. Journal of Chemical Physics 112,

8910–8922 (2000). ADS  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS P.S. thanks Samapan Sikdar for his assistance in computation. M.G. and P.S. thank the high field NMR

facility, TIFR, Mumbai. C.M., M.G. and J.C. thank the DST for funding. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Department of Chemical, Biological And Macromolecular Sciences, S. N.

Bose National Centre for Basic Sciences, Block JD, Sector III, Salt lake, 700106, Kolkata, India Paramita Saha, Camelia Manna, Jaydeb Chakrabarti & Mahua Ghosh Authors * Paramita Saha

View author publications You can also search for this author inPubMed Google Scholar * Camelia Manna View author publications You can also search for this author inPubMed Google Scholar *

Jaydeb Chakrabarti View author publications You can also search for this author inPubMed Google Scholar * Mahua Ghosh View author publications You can also search for this author inPubMed

Google Scholar CONTRIBUTIONS M.G. and J.C. planned the research. P.S. and C.M. carried out the experiments. P.S. performed the simulations. J.C. provided the support for computational work.

M.G., J.C. and P.S. analyzed the results and wrote the paper. All authors reviewed the manuscript. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial

interests. ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY INFORMATION RIGHTS AND PERMISSIONS This work is licensed under a Creative Commons Attribution 4.0 International License. The images

or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in the credit line; if the material is not included under

the Creative Commons license, users will need to obtain permission from the license holder to reproduce the material. To view a copy of this license, visit

http://creativecommons.org/licenses/by/4.0/ Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Saha, P., Manna, C., Chakrabarti, J. _et al._ Reversible thermal unfolding of a yfdX

protein with chaperone-like activity. _Sci Rep_ 6, 29541 (2016). https://doi.org/10.1038/srep29541 Download citation * Received: 09 February 2016 * Accepted: 20 June 2016 * Published: 11

July 2016 * DOI: https://doi.org/10.1038/srep29541 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link

is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
