Super-luminescent jet light generated by femtosecond laser pulses

ABSTRACT Phenomena of nonlinear light-matter interaction that occur during the propagation of intense ultrashort laser pulses in continuous media have been extensively studied in ultrafast

optical science. In this vibrant research field, conversion of the input laser beam into optical filament(s) is commonly encountered. Here, we demonstrate generation of distinctive single or

double super-luminescent optical jet beams as a result of strong spatial-temporal nonlinear interaction between focused 50 fs millijoule laser pulses and their induced micro air plasma.

Such jet-like optical beams, being slightly divergent and coexisting with severely distorted conical emission of colored speckles, are largely different from optical filaments and obtainable

when the focal lens of proper f-number is slightly tilted or shifted. Once being collimated, the jet beams can propagate over a long distance in air. These beams not only reveal a

potentially useful approach to coherent optical wave generation, but also may find applications in remote sensing. SIMILAR CONTENT BEING VIEWED BY OTHERS PUMP-PROBE X-RAY HOLOGRAPHIC IMAGING

OF LASER-INDUCED CAVITATION BUBBLES WITH FEMTOSECOND FEL PULSES Article Open access 08 June 2021 HIGH-ENERGY TUNABLE ULTRAVIOLET PULSES GENERATED BY OPTICAL LEAKY WAVE IN FILAMENTATION

Article Open access 20 December 2024 TERAWATT-SCALE ATTOSECOND X-RAY PULSES FROM A CASCADED SUPERRADIANT FREE-ELECTRON LASER Article 13 May 2024 INTRODUCTION Propagation of intense

ultrashort laser pulses has encompassed many important nonlinear optical phenomena such as self-focusing1,2, supercontinuum generation3, conical emission4 etc. In particular, as a generic

phenomenon, optical filaments have been extensively studied over the last three decades5,6,7,8. While the spatial and temporal aspects of Kerr effect and plasma related refractive index

changes, interplaying with the linear dispersion and diffraction, are regarded as the primary mechanisms for light filament formation, other nonlinear effects including modulation

instability9, self-steepening10, four-wave mixing11, third harmonic generation12 and stimulated Raman scattering13 can also contribute to various characteristics of optical filaments. One of

the key parameters in characterizing a great majority of nonlinear interactions between an ultrashort laser pulse and the medium is the amount of overall nonlinear phase shift experienced

by the propagating laser pulse. This nonlinear phase shift is normally compounded by the light-matter interaction strength and the effective interaction length. In practice, it is possible

that the same amount of nonlinear phase shift can be resulted from either smaller refractive index change but a longer interaction length or a more significant refractive index change with a

shorter interaction length. Optical filaments fall into the first category where both beam guiding and intensity clamping are present because of the delicate dynamic balance between Kerr

lensing effect and defocusing effect of laser-induced plasma. In this regime initial laser beams are not or only weakly focused for most cases and hence the nonlinear refractive index change

is limited to a relatively smaller value14. For tighter focusing, however, strong ionization at the focus can take place and this may effectively hinder the formation of optical filaments.

Therefore, this leads to the second category of nonlinear interaction, namely, stronger nonlinear interaction but also shorter interaction length. For liquid or solid materials this regime

of nonlinear interaction is often accompanied by optical breakdown and/or severe material damage15,16. In this study, we report the observation of a novel phenomenon of the generation of

brilliant jet light beams emanating from the micro air plasma induced by a relatively tight focused near-infrared femtosecond laser pulses17,18. The single or double super-luminescent jet

beam(s) (SJBs) that occur at the specific outskirt position of the severely distorted conical emission (CE) are obtained when the plano-convex focal lens of 100 mm focal length is properly

shifted or tilted (See Methods). It is found that four-wave mixing (FWM) accompanied by beam symmetry breakup in CE is responsible for the formation of single and double SJBs. RESULTS

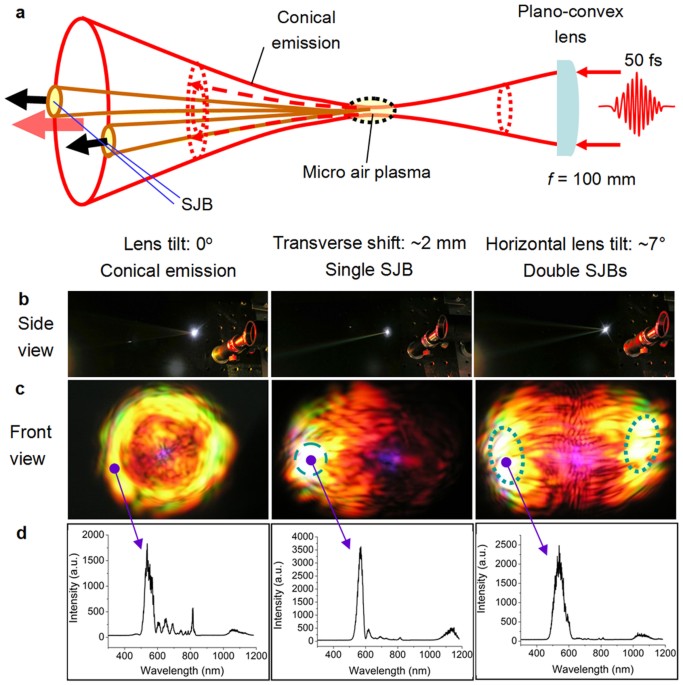

GENERATION OF SUPER-LUMINESCENT JET BEAMS Fig. 1a shows the schematic diagram for SJBs generation, in which 1 kHz, 50 fs laser pulses with ~2.3 mJ pulse energy propagate right to left. (The

two dashed arrow lines in Fig. 1a mark the usual diffraction if the incident pulse energy is low enough so that no air plasma is produced at the lens focus). In the case of ordinary air

ionization, the focal lens on the right is placed normal, as well as centered, to the incident beam (namely there is neither lens tilt nor transverse shift) and a fairy circular conical

emission beam will thus be expected. From this reference point a small transverse shift of the lens leads to the generation of a single jet beam and a slight and proper lens tilt can result

in the double jet beams which are as indicated by the two narrow cone beams on the left of Fig. 1a. Note that in our experiments the central axis of the focal lens is tilted always

horizontally and correspondingly the observed double super-luminescent jet beams also appear in the horizontal plane. Nevertheless, it is verified that the two jet beams will occur in the

vertical plane if the direction of the lens axis tilt is made in the vertical direction. It is found that the SJBs can be observed for 50 fs laser pulses only when the incident excitation

power (measured right before the focal lens) is above 0.8 W. The split angle of the double SJBs (Fig. 1b right) increases from 15° to 16° when the pump power is raised from 0.8 W to 2.3 W.

In addition to the laser power, pulse duration also affects the SJBs generation. For example, at 2 W average power, when the laser pulses are frequency-chirped and close to 0.5 ps, the jet

beams are no longer observed. Compared with relatively stronger/weaker focusing lens with 50 mm/150 mm focal length, the lens of 100 mm focal length leads to the best results in terms of

brightness and clearness of SJBs observed. All the results given in this paper are obtained with the focal lens of 100 mm focal length. CHARACTERISTICS OF SUPER-LUMINESCENT JET BEAMS The

SJBs ejected from the micro air plasma are clearly shown in the side view pictures of SJBs in Fig. 1b, which are captured by an ordinary color digital camera (C5050Z, Olympus) (For enlarged

single and double SJBs see Supplementary Fig. S1). The cross sections of the transmitted beam patterns for CE and SJBs after passing through the focal point are compared in Fig. 1c. These

three pictures are obtained by intercepting the transmitted laser beams with a piece of white paper placed 1 meter away from the focal region. It can be seen that for 0° lens tilt, the

recorded beam cross section is approximately circular with strong glowing yellowish area around its perimeter. (In this case when a piece of white paper is used to intercept sideways the

transmitting light, the typical cone-shaped light emission is captured (Supplementary Fig. S2d)). Presence of the single/double jet beams is also evidenced by the corresponding single/double

bright spots marked with the closed dot lines in the middle and right pictures of Fig. 1c. In the case of single SJB, the position of the bright and yellowish spot is always determined by

the direction of the focal lens shift. In particular, if the lens shifts towards left/right by approximately 2 mm, the single jet beam will appear on the left/right side of the disrupted

conical emission. For the double jet beams, however, they always appear nearly symmetrically distributed in relative to the central axis when the angle of lens tilt is near 7 degree. The

“cerebral sulci and gyri” like beam profiles associated with single/double SJBs shown in the middle/right pictures in Fig. 1c are dramatically different from that of corresponding normal

conical emission (the left picture in Fig. 1c) in terms of the shape regularity and the spatial distribution of intensity profile. Respective spectra measured at the indicated locations of

CE and jet beams are reproduced in Fig. 1d. Distinctive spectral features at ~520 nm and ~1040 nm are present in the all three traces, which imply that an intrinsic connection exists between

the CE and SJBs. As it will be discussed later, four-wave mixing is most likely the primary nonlinear process that contributes to the specific color of CE and SJBs. As it is depicted in

Fig. 1a the jet beams themselves have a diverging angle, which is determined to be 1.5 degrees. Such divergence may be controlled or corrected with a suitable collimation lens placed after

the air plasma. In the case of double SJBs (see the right picture of Fig. 1b) approximately 16 degree separation angle exists between the two SJBs centers and after proper collimation two

narrow and parallel yellowish light beams with little divergence can propagate for a long distance (Supplementary Fig. S2e). It is also worth mentioning that when looking from sideways the

visibility of SJBs either collimated or not is in fact dependent on the viewing angle in reference with the polarization direction of the linearly polarized femtosecond laser beam. The

highest visibility occurs when the plane formed by the viewing direction and the SJBs is normal to the input laser polarization direction, whereas the lowest visibility exists when the

viewing direction is parallel to the polarization direction. Experimentally, when rotating a half-wave plate inserted in the incident laser beam path, the visibility of SJBs varies

periodically with ~80% contrast ratio for a fixed observation angle (Supplementary Fig. S3). It should be stressed that these jet-like beams of light are not optical filaments (OFs). In

addition to the significant differences between SJBs and the conventional optical filaments in terms of overall nonlinear interaction strength and interaction length, they also differ at

least in the following three aspects: firstly, OFs normally do not exist beyond the plasma ball of higher electron density if both optical filament and plasma ball are present19 and also as

implied by their names OFs do not diverge for a relatively long distance, whereas SJBs diverge from their starting points; secondly, a single OF is essentially a self-trapped pump beam

accompanied by a large area of energy reservoir and a low density plasma channel, but SJBs originate from the surface of the high density plasma ball (See details in Discussion in the

following) and thus deviate from the input excitation beam at the very beginning; thirdly, viewed sideways, OFs always appear whitish while the SJBs after collimation are more like colored

beams. A more detailed comparison of major characteristics of SJBs and OFs can be found in Supplementary Table S1. SPECTRAL MEASUREMENTS To help understand the key characteristics of the

SJBs, spectral measurements are performed at four different locations along the propagating light beam(s) as marked by the letters A, B, C and D in Fig. 2a and the measured corresponding

spectra are shown in Fig. 2b. Here, the double SJBs generated with 50 fs pulses at 2 W average power are collimated with a double-convex lens of 75 mm focal length. In Fig. 2b, trace A

represents the spectrum of the scattered femtosecond pump laser pulses. The emission spectrum of the micro plasma at the focus is shown by trace B, whose characteristics have been studied

elsewhere20,21. Trace C shown in purpose in the same plot with trace A presents the typical sideways emission (See Methods) spectrum of the collimated jet beam. This blue-shifted spectrum

(up to approximately 550 nm) implies the existence of certain degree of air ionization along the collimated SJB path. The spectrum of the collimated SJB that has a brilliant yellowish color

is shown by trace D, where two distinctive spectral bands with the respective central wavelengths of approximately 547 nm and 1064 nm are clearly observed. Such a spectral distribution

provides us with a good evidence of degenerate four-wave mixing22 while experimental recording of the Stokes waves (around 1064 nm) has not been reported in the previous studies in this

regard23. It is pictured that the initial excitation laser beam with a central wavelength around 800 nm strongly ionizes the air molecules in the focal region and in the meantime generates

large amount of blue-shifted supercontinuum because of strong self-steepening effect24. (For more spectral examples taken at various locations across the nonlinearly diffracted laser beams,

see Supplementary Fig. S4). It is such blue shifted spectral component that functions as the pump for four-wave mixing under the right phase-matching condition. This result is in a good

analogy with the so-called self-phase modulation (SPM) initiated four-wave mixing observed inside optical fibers in previous experiments25. Two dimensional contour plots of far-field angular

spectra may be constructed from the spectral traces measured along the central horizontal line of the diffracted beams that encompass single or double super-luminescent jet beams, as well

as many colored speckles (Supplementary Fig. S5). Such angular spectra plots can show not only the existence of distinct Stokes wave in a more dramatic way, but also their great difference

from the reported X-waves26. DISCUSSION For the relatively tight focusing adopted in our experiments, intensity clamping14 as a result of dynamic balance between self-focusing and plasma

defocusing does not apply. According to the following numerical simulations and our experimental conditions, the super-bright micro plasma ball near the focal point implies that the actual

peak intensity of the light beam must be extremely high such that the air ionization may reach saturation. Thus, in contrast to the situations of filament formation where relatively lower

intensity (1013–1014 W/cm2) and longer interaction length exist, in our case substantially higher peak intensity (1015–1016 W/cm2) and very short interaction length are present. The

evolution of free electron density inside the laser-induced air plasma is simulated following the method used peviously27,28 and the simulation results pertinent to our experiments are shown

in Fig. 3. Note that in obtaining the results given in Fig. 3, multiphoton/tunneling ionization is considered for intensity below/above 6 × 1013 W/cm2 respectively. (The red star in Fig. 3a

marks the beginning of tunneling ionization). We have also assumed that the ionization process is halted as soon as the electron density reaches the neutral molecule density in air (ρ_eo_ =

2.69 × 1019 cm−3). (Although double charge ionization is possible in practice, this will not affect the electron density in an order of magnitude). As shown in Fig. 3a, for the given pulse

intensity the electron density reaches saturation at the time well before the arrival of the pulse peak and remains saturated for the rest majority part of the pulse. Fig. 3b shows the

calculated spatial distribution of the refractive index of air plasma associated with the same set of input laser parameters as those used above. Apparently, there exists a saturation region

in the central focal area where the refractive index of plasma becomes constant. The longitudinal length of this saturation region is close to 1.2 mm, which is about ten times the Rayleigh

range. And the maximum lateral length of this region is about 27 μm, nearly four times the radius of the beam waist. With the properties of air plasma known, we can now better understand the

nonlinear divergence of conical emission. Compared with the case of linear diffraction (without plasma generation), the observed conical emission has a much larger divergence angle

(Supplementary Fig. S6) and this phenomenon may be qualitatively explained by the refraction at the plasma-air interface of the saturated plasma zone, namely, the so-called surface model of

conical emission29. For example, assuming an incident ray at the plasma-air interface with an oblique angle θ_d_, the corresponding refractive ray leaving the plasma shell into the air will

have an oblique angle θ_n_ that can be estimated from the simple relation of _n__p_ cosθ_d_ = _n__a_ cosθ_n_ (_n__a_, _n__p_ are the refractive indices of air and plasma, respectively). From

our simulation, we have _n__p_ ≈ 0.9923, _n__a_ = 1.00027 and with these values we obtain θ_n_ ≈ 7.9° for θ_d_ ≈ 3.2° (at 1/e2), which appears in reasonably good agreement with the

experimental observation. However, in this rather simplified model we have not taken account of the dispersion effect, which will attribute to a substantial color separation. Understandably,

to analyze four-wave mixing that occurs at the periphery of the air plasma zone, an effective refractive index _n_(λ) needs to be considered, which should be a mixture of refractive indices

of ambient air and air plasma. (For air, Kerr-effect specified by the product of nonlinear refractive index coefficient _n_2 and the peak intensity _I_ should also be included). We thus

have the following approximate expression: The first and the second items on the right hand side of Eq. (1) represent the corresponding contributions from air and plasma. From Eq. (1), it is

clear that the ionization ratio ρ_e_/ρ_eo_ plays a critical role in the determination of _n_(λ). If ρ_e_/ρ_eo_ = 1, it is 100% ionized, we have _n_(λ) = _n__p_. If ρ_e_/ρ_eo_ = 0, no air

ionization exists and thus _n_(λ) = _n__a_ + _n_2_I_. It should be noted that the electron density ρ_e_ is also a nonlinear function of light intensity30. The dispersion feature of _n_(λ)

can be found out by the individual dispersion property of air and plasma, which may be described by _n__a_(λ) = 1 + 77.6(1 + 7.52 × 10−3/λ2)(_P__a_/_T_) × 10−6 and _n__p_(λ) = (1 −

ρ_e_(_r_,_z_,_t_)/ρ_cr_)1/2 respectively. Here _P__a_ is the air pressure, _T_ the temperature, ρ_cr_ the critical electron density. Both ρ_e_ and ρ_cr_ are wavelength dependent. In our

case, while air ionization inside the air plasma zone mostly reaches saturation as evidenced in Fig. 3b, around the plasma-air border, however, air is very likely only partially ionized. In

Fig. 4a the predicted group velocity dispersion of the micro air plasma for ρ_e_/ρ_eo_ = 0.04 is obtained on the basis of Eq. (1). It is known that for degenerate four-wave mixing the

following energy and momentum conservation conditions hold22,31: where ω_i_ and _k__i_ (_i_ = _p_, _s_, _as_) denote respectively the angular frequencies and propagation constants of the

pump, Stokes and anti-Stokes waves and _k__i_ = (2π/λ_i_)_n_(λ_i_) with _n_(λ_i_) governed by Eq. (1). As the pump, Stokes and anti-Stokes waves' wave vectors are all assumed to be

parallel to each other, the momentum conservation in Eq. (2) is expressed by an algebraic equation. For a given ionization ratio, Eq. (2) can be solved for different pump wavelengths,

resulting in the so-called phase-matching curves. In Fig. 4b a pair of such curves are obtained for ρ_e_/ρ_eo_ = 0.04. It can be found that the data points of 547 nm and 1064 nm wavelengths

are in good agreement with the experimentally recorded FWM spectrum in Fig. 2b. Corresponding to these predicted Stokes and anti-Stokes waves, a pump wavelength of 722 nm is derived.

Experimentally the pump wavelength transformation from 800 nm to 722 nm must be caused by the other nonlinear effect(s). At this point we also cannot derive and thus explain why the

ionization ratio is 4%. Instead, the ionization ratio is used as an adjustable parameter in our calculation so that phase-matching can be achieved at the wavelengths consistent with the

experimental observation. Now let us discuss briefly how the lens shift or lens tilt leads to SJBs generation. In the case of normal incidence, the entire air ionization process is

circularly symmetrical along the propagation axis, so does the effective refractive index given in Eq. (1). In other words, phase-matching condition by the second expression of Eq. (2) is

met everywhere on the surface of conical emission cone. This conforms to the measured circular yellowish color band of FWM in the CE cross section. When the focal lens is transversely

shifted, however, the cylindrical symmetry of the focused beam intensity is then broken and thus the phase-matching condition is met only at the specific direction. Particularly, when the

focal lens shifts towards one side, the direction of higher intensity ray also deflects towards the same side where the single SJB appears. When the lens is properly tilted, say in the

horizontal plane around its central axis, the astigmatism is introduced in the focused beam, i.e., the focus in the tangential plane (also the horizontal plane) becomes shorter than that in

sagittal plane and in the meantime, the rays in tangential plane will arrive at their focal positions ahead of the sagittal plane rays which is confirmed experimentally using a time-resolved

shadowgraphic apparatus15. This means that air plasma is generated by the tangential plane rays before the sagittal rays reach their focus. And spatially, this results in relatively

stronger air ionization in the horizontal plane than those in the sagittal plane and so the intensity dependent phase-matching can be only achieved in the tangential or the horizontal plane.

In summary, colored super-luminescent jet beams (SJBs) are experimentally observed emanating from the micro air plasma ignited by focused 50 femtosecond laser pulses of millijoule-level

pulse energy. Such jet-like light beam(s) of slight divergence, being formed at the cone surface of substantially distorted conical emission, differ from the conventional white light

filaments. Sufficiently but not too tight focusing and proper shift or tilt of the focal lens are critical in generating single or double SJBs. Short pulse duration is also important in

terms of having high enough peak intensity so that strong nonlinear effect like self-steepening and photo-ionization saturation can coexist for a relatively short interaction length.

Spectral measurements show that four-wave mixing at specific diffraction angle(s) at the cone surface of disrupted conical emission is responsible for the observed phenomenon. Once being

collimated, these brilliantly-colored jet beams with better coherence than the white light from optical filaments can propagate over a long distance in air and very likely they may find some

applications in remote sensing in future. METHODS EXPERIMENTAL SETUP A commercial 1 kHz Ti: sapphire femtosecond laser amplifier system (Integra-HE, Quantronix Inc.) is employed in our

experiments to produce the 800 nm laser pulses with pulse duration tunable from 50 fs to 16 ps which may be conveniently obtained by misaligning the grating separation in pulse compressor

within the femtosecond laser amplifier system and single pulse energy up to 6 mJ. The femtosecond laser pulses from the amplifier system is vertically polarized and focused directly in air

after being reflected by two 45° broadband HR dielectric mirrors. The focal lens of 100 mm focal length is an AR-coated single plano-convex lens, having one-inch diameter and always with its

curved surface facing the incident beam. To generate the super-luminescent jet beams (SJBs) the femtosecond laser pulses is first aligned passing through the focal lens at normal incidence,

by which the brightest micro air plasma is obtained. Single/double SJB(s) (such as those shown in Fig. 1b) can be then routinely produced by properly shifting/tilting the focal lens. Slight

tilting of the lens is made always through gently rotating the lens mount in the horizontal plane. ANALYSES OF SPATIAL BEAM PROFILES To examine the spatial features of SJBs, a piece of

carton paper is used to partially intercept sideways the propagating beam after the focal point so that side view pictures like that in Supplementary Fig. S2d can be obtained. To find out

the spatial power distribution of the nonlinearly diffracted beam, a chessboard-like mask of alternative square holes is placed in front of the largely diffracted beam spot and right before

the detector head of an optical power meter. Optical power at each hole is then measured with the power meter (NOVA II, Ophir Inc.). From these measurements, an approximate power conversion

ratio of 8.8% (or 13.3%) for the single (or double) SJB(s) is determined. Although the transmitted pump beam in the near infrared (around 800 nm) still dominates the overall power

distribution especially in the central area of the beam profile, SJBs are more pronounced in the visible spectral region. In other words, SJBs occupy a significant portion among the laser

produced supercontinuum. Such a feature is verified by inserting in front of the power meter a short-pass filter (650FL07-25, Andover) that rejects the pump wavelength and has high

transmission for the visible spectrum below 700 nm. SPECTRAL MEASUREMENTS In spectral measurements, at location C in Fig. 2a the scattered light from one section of the collimated double jet

beams (or the sideways emission) is coupled into a Shamrock spectrometer (Shamrock SR-750, Andor) equipped with an ICCD detector (DH740i-18U-03, iStar, Andor). In this case, in addition to

the imaging lens, a couple of steering mirrors (not shown in Fig. 2a) are employed for rotating the sampled source section by 90-degree so that the image becomes parallel to the entrance

slit of the spectrometer and so improved light coupling efficiency is achieved. Spectral measurements at the other three locations labeled by A, B and D respectively are made with a

miniature fiber-pigtailed spectrometer (Model S2000, Ocean Optics) of lower sensitivity but more convenience of operation. In measuring the spectrum of the collimated jet beams (not the

scattered light) at location D, three optical wedges are utilized to reflect off the beam three times and thus significantly reduce the optical power entering the spectrometer. It should be

noted that for all the spectral traces given in this paper the spectral response of the detection system has not been corrected and thus the relative heights of the spectral peaks,

especially those in Fig. 1d, trace D in Fig. 2b do not present the real signal strength. REFERENCES * Marburger, J. H. Self-focusing: theory. Prog. Quantum Electron. 4, 35–110 (1975).

Article  ADS  Google Scholar  * Brodeur, A. & Chin, S. L. Ultrafast white-light continuum generation and self-focusing in transparent condensed media. J. Opt. Soc. Am. B 16, 637–650

(1999). Article  CAS  ADS  Google Scholar  * Chin, S. L., Brodeur, A., Petit, S., Kosareva, O. G. & Kandidov, V. P. Filamentation and supercontinuum generation during the propagation of

powerful ultrashort laser pulses in optical media (white light laser). J. Nonlinear Opt. Phys. Mat. 8, 121–146 (1999). Article  ADS  Google Scholar  * Nibbering, E. T. et al. Conical

emission from self guided femtosecond pulses in air. Opt. Lett. 21, 62–64 (1996). Article  CAS  ADS  Google Scholar  * Kelley, P. L. Self-focusing of optical beams. Phys. Rev. Lett. 15,

1005–1008 (1965). Article  ADS  Google Scholar  * Braun, A. et al. Self-channeling of high-peak-power femtosecond laser pulses in air. Opt. Lett. 20, 73–75 (1995). Article  CAS  ADS  Google

Scholar  * Couairon, A. & Mysyrowicz, A. Femtosecond filamentation in transparent media. Phys. Rep. 441, 47–189 (2007). Article  CAS  ADS  Google Scholar  * Bergé, L., Skupin, S., Nuter,

R., Kasparian, J. & Wolf, J. P. Ultrashort filaments of light in weakly-ionized, optically-transparent media. Rep. Prog. Phys. 70, 1633–1713 (2007). Article  ADS  Google Scholar  *

Tzortzakis, S. et al. Breakup and fusion of self-guided femtosecond light pulses in air. Phys. Rev. Lett. 86, 5470–5473 (2001). Article  CAS  ADS  Google Scholar  * Gaeta, A. L. Catastrophic

collapse of ultrashort pulses. Phys. Rev. Lett. 84, 3582–3585 (2000). Article  CAS  ADS  Google Scholar  * Théberge, F., Aközbek, N., Liu, W. W., Becker, A. & Chin, S. L. Tunable

Ultrashort Laser Pulses Generated through Filamentation in Gases. Phys. Rev. Lett. 97, 023904 (2006). Article  ADS  Google Scholar  * Aközbek, N. et al. Third-harmonic generation and

self-channeling in air using high-power femtosecond laser pulses. Phys. Rev. Lett. 89, 143901 (2002). Article  ADS  Google Scholar  * Liu, C. S. & Tripathi, V. K. Stimulated Raman

scattering in a plasma channel. Phys. Plasmas 3, 3410 (1996). Article  CAS  ADS  Google Scholar  * Kasparian, J., Sauerbrey, R. & Chin, S. L. The critical laser intensity of self-guided

light filaments in air. Appl. Phys. B 71, 877–879 (2000). Article  CAS  ADS  Google Scholar  * Zhang, N., Zhu, X. N., Yang, J. J., Wang, X. L. & Wang, M. W. Time-resolved shadowgraphs of

material ejection in intense femtosecond laser ablation of aluminum. Phys. Rev. Lett. 99, 167602 (2007). Article  ADS  Google Scholar  * Gattass, R. R. & Mazur, E. Femtosecond laser

micromachining in transparent materials. Nature Photon. 2, 219–225 (2008). Article  CAS  ADS  Google Scholar  * Xu, Z. J., Yu, Y., Zhang, N., Zhao, J. F. & Zhu, X. N. Generation of

Super-luminescent Jet Light through Disrupted Conical Emission. CLEO: 2013: Laser Filamentation (QW1E), San Jose. 10.1364/CLEO_QELS.2013.QW1E.5 (2013 June 9–14). * Xu, Z. J., Zhu, X. N.,

Zhang, N. & Yu, Y. Observation of super-luminescent jet beam from femtosecond laser-induced air plasma. CLEO-PR _&_ OECC/PS 2013 Kyoto. 10.1109/CLEOPR.2013.6600495 (2013 JuneJuly

304). * Liu, W. W., Luo, Q. & Chin, S. L. Competition between multiphoton/tunnel ionization and filamentation induced by powerful femtosecond laser pulses in air. Chin. Opt. Lett. 1,

56–59 (2003). ADS  Google Scholar  * Talebpour, A., Abdel-Fattah, M., Bandrauk, A. D. & Chin, S. L. Spectroscopy of the gases interacting with intense femtosecond laser pulses. Laser

Phys. 11, 68–76 (2001). CAS  Google Scholar  * Zhu, X. N. & Fu, R. L. Emission spectra of microplasma generated by femtosecond laser pulses. Proc. SPIE 4914: High-Power Lasers and

Applications II, Shanghai. 10.1117/12.481796 (2002, September 6). * Nodop, D. et al. Efficient high-power generation of visible and mid-infrared light by degenerate four-wave mixing in a

large-mode-area photonic-crystal fiber. Opt. Lett. 22, 3499–3501 (2009). Article  ADS  Google Scholar  * Kandidov, V. P. et al. Self-transformation of a powerful femtosecond laser pulse into

a white-light laser pulse in bulk optical media (or supercontinuum generation). Appl. Phys. B 77, 149–165 (2003). Article  CAS  ADS  Google Scholar  * Yang, G. Z. & Shen, Y. R. Spectral

broadening of ultrashort pulses in a nonlinear medium. Opt. Lett. 9, 510–512 (1984). Article  CAS  ADS  Google Scholar  * Zhu, X. N. & Sibbett, W. Propagation characteristics of

femtosecond pulses in erbium-doped monomode optical fibers. IEEE J. Quantum Electron. QE– 27, 101 (1991). Article  CAS  ADS  Google Scholar  * Faccio, D. et al. Conical emission, pulse

splitting and X-wave parametric amplification in nonlinear dynamics of ultrashort light pulses. Phys. Rev. Lett. 96, 193901 (2006). Article  ADS  Google Scholar  * Vogel, A., Noack, J.,

Hüttman, G. & Paltauf, G. Mechanisms of femtosecond laser surgery of cells and tissues. Appl. Phys. B 81, 1015–1047 (2005). Article  CAS  ADS  Google Scholar  * Yu, Y., Xu, Z. J., Zhang,

N. & Zhu, X. N. Characteristics of electron density in air plasma produced by tightly-focused 50 fs laser pulses. CLEO-PR _&_ OECC/PS 2013, Kyoto. 10.1109/CLEOPR.2013.6600496 (2013

JuneJuly 304). * Golub, I. Optical characteristics of supercontinuum generation. Opt. Lett. 15, 305–307 (1990). Article  CAS  ADS  Google Scholar  * Feng, Q. et al. Theory and simulation on

the threshold of water breakdown induced by focused ultrashort laser pulses. IEEE J. Quantum Electron. QE– 33, 127 (1997). Article  CAS  ADS  Google Scholar  * Agrawal, G. P. [Ch. 10

Parametric Processes] Nonlinear Fiber Optics [Kelley P. L., et al. (ed.)] [389–408] (Academic Press, San Diego, 2001). Download references ACKNOWLEDGEMENTS The authors acknowledge financial

supports from the National Natural Science Foundation of China under Grant Nos. 11274185, 61137001 and 11004111. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Institute of Modern Optics,

Nankai University, Key Laboratory of Optical Information Science and Technology, Education Ministry of China, Tianjin, 300071, P.R. China Zhijun Xu, Xiaonong Zhu, Yang Yu, Nan Zhang &

Jiefeng Zhao Authors * Zhijun Xu View author publications You can also search for this author inPubMed Google Scholar * Xiaonong Zhu View author publications You can also search for this

author inPubMed Google Scholar * Yang Yu View author publications You can also search for this author inPubMed Google Scholar * Nan Zhang View author publications You can also search for

this author inPubMed Google Scholar * Jiefeng Zhao View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS Z.J.X. designed and implemented the

experiments. X.N.Z. conceived the idea and the theoretical model for explaining the observed phenomena. Y.Y. carried out all the numerical analysis. N.Z. helped to clarify the dynamic

characteristics of laser-induced plasma. J.F.Z. took part in the initial experiments. Z.J.X. and X.N.Z. wrote the main manuscript text and Z.J.X. prepared figures 1–4. All authors reviewed

the manuscript and contributed to the paper. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing financial interests. ELECTRONIC SUPPLEMENTARY MATERIAL SUPPLEMENTARY

INFORMATION Supplementary Information for: Super-luminescent jet light generated by femtosecond laser pulses RIGHTS AND PERMISSIONS This work is licensed under a Creative Commons

Attribution-NonCommercial-NoDerivs 3.0 Unported License. To view a copy of this license, visit http://creativecommons.org/licenses/by-nc-nd/3.0/ Reprints and permissions ABOUT THIS ARTICLE

CITE THIS ARTICLE Xu, Z., Zhu, X., Yu, Y. _et al._ Super-luminescent jet light generated by femtosecond laser pulses. _Sci Rep_ 4, 3892 (2014). https://doi.org/10.1038/srep03892 Download

citation * Received: 23 September 2013 * Accepted: 07 January 2014 * Published: 27 January 2014 * DOI: https://doi.org/10.1038/srep03892 SHARE THIS ARTICLE Anyone you share the following

link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature

SharedIt content-sharing initiative
