ABSTRACT Supercapacitors, as one of alternative energy devices, have been characterized by the rapid rate of charging and discharging and high power density. But they are now challenged to


achieve their potential energy density that is related to specific capacitance. Thus it is extremely important to make such materials with high specific capacitances. In this report, we have


gained homogenous Ni(OH)2 on graphene by efficiently using of a facile and effective electrostatic induced stretch growth method. The electrostatic interaction triggers advantageous change


in morphology and the ordered stacking of Ni(OH)2 nanosheets on graphene also enhances the crystallization of Ni(OH)2. When the as-prepared Ni(OH)2/graphene composite is applied to


supercapacitors, they show superior electrochemical properties including high specific capacitance (1503 F g−1 at 2 mV s−1) and excellent cycling stability up to 6000 cycles even at a high


scan rate of 50 mV s−1. SIMILAR CONTENT BEING VIEWED BY OTHERS FACILE SYNTHESIS OF PEDOT-RGO/HKUST-1 FOR HIGH PERFORMANCE SYMMETRICAL SUPERCAPACITOR DEVICE Article Open access 03 June 2021


SUPERCAPACITORS BASED ON TI3C2TX MXENE EXTRACTED FROM SUPERNATANT AND CURRENT COLLECTORS PASSIVATED BY CVD-GRAPHENE Article Open access 12 January 2021 TUNING THE HIERARCHICAL PORE STRUCTURE


OF GRAPHENE OXIDE THROUGH DUAL THERMAL ACTIVATION FOR HIGH-PERFORMANCE SUPERCAPACITOR Article Open access 22 January 2021 INTRODUCTION Supercapacitors (SCs), also known as ultracapacitors


or electrochemical capacitors, have attracted numerous attentions for energy storage due to their high power performance, long cycle life and low maintenance cost1,2,3. In general, SCs can


be classified into electrical double layer capacitors (EDLCs) and pseudocapacitors based on their energy storage mechanisms4,5,6. EDLCs store the charge using reversible adsorption and


desorption of the electrolyte ions onto the surface of active materials. EDLCs, mainly based on carbon materials, that are electrochemically stable and physical processes, hence they can


perform ultrahigh power density and excellent cycle life, yet their further applications are confined by the limited energy density7,8,9,10. On the contrary, pseudocapacitors based on fast


reversible surface redox reactions hold the potential of much higher energy density11,12,13,14. Although extensive studies have been made, there is still an urgent demand for


pseudocapacitors that allow for fast charging and discharging with high stability for the storage of electrical energy in practical application15,16,17,18,19. Recently, two-dimensional


nanomaterials, which possess nanoscale dimension in thickness and infinite length in the plane, have attracted tremendous attention owing to their unique properties and potential


applications in the areas of energy storage and conversion such as supercapacitors20,21,22. Ni(OH)2, with unique layer structure has been developed for pseudocapacitive


applications23,24,25,26. However, its practical application in SCs is still hindered by the poor conductivity of Ni(OH)2. To address this problem, downsizing it to nanoscale and constructing


hybrid materials with highly electrical conductive, flexible and chemically stable conductive substrates have been investigated to be promising approaches27,28,29,30. Graphene, emerging as


a 2D single layer of carbon atoms with a hexagonal packed structure, has attracted considerable attention in scientific researches as conductive substrate due to its ultrahigh surface area


(~2630 m2 g−1 for single-layer graphene), low cost and high electrical conductivity (103–104 S m−1)31,32,33,34,35,36. Graphene can be obtained through reduction of graphene oxide (GO)


obtained by modified Hummer's methods. It is an inexpensive processes, which is currently used for large-scale production of graphene37,38. Typically, GO contains carboxylic acid, epoxy


and hydroxyl groups and these unique features make it an excellent 2D support to load Ni(OH)2 and then improving the electrochemical properties of Ni(OH)239,40,41,42,43. However, there is


still a great challenge to reduce aggregation-derived degradation in capacitance especially at a high scan rate associated with untight contact between graphene nanosheets and metal

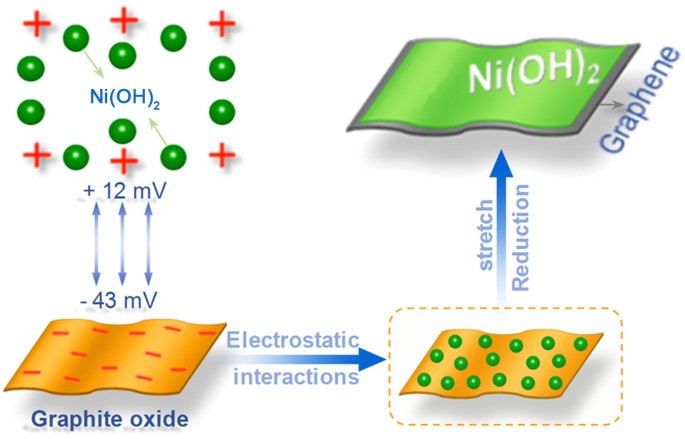

hydroxide. Herein, we report a facile electrostatic induced stretch growth method to achieve homogenous coating of Ni(OH)2 nanosheets on graphene under mild reflux condition. The


electrostatic interaction triggers advantageous change in morphology and the ordered stacking of Ni(OH)2 nanosheets on graphene and also enhances the crystallization of Ni(OH)2. Functional


groups of GO (hydroxyl, epoxy, carboxyl and carbonyl groups) act as anchor sites for in-situ growth. The combined advantages of unique structure, high conductivity and structural stability


endow the as-prepared composite (Ni(OH)2/GS) with superior performances including high specific capacitance (1503 F g−1 at 2 mV s−1) and excellent cycling stability up to 6000 cycles even at


a high scan rate of 50 mV s−1. RESULTS MORPHOLOGY AND STRUCTURE ANALYSIS Figure 1 shows the formation procedure of homogenous coating of precursor Ni(OH)2 on graphene under mild reflux


condition. First, precursor Ni(OH)2 is obtained by facile precipitation reaction. Then, precursors are deposited onto the surface of GO. The Zeta potential of precursor Ni(OH)2 and GO are


measured under reaction condition by dynamic light scattering. The precursor Ni(OH)2 is positively charged (+12 mV) and GO are negatively charged (−43 mV). With the help of electrostatic


interacting between reverse charged reactants, Ni(OH)2 is anchored onto the surface of GO nanosheets. Thereafter, Ni(OH)2/GS composites are obtained after reflux in DMF at 95°C for 16 h.


Different Ni(OH)2/GS composites are prepared by control the mass ratio of GO to Ni(OH)2 as 1:20, 1:5 and 1:2 and the corresponding composites are denoted as Ni(OH)2/GS-20, Ni(OH)2/GS-5 and


Ni(OH)2/GS-2, respectively. For comparison, pure Ni(OH)2 is also synthesized under the similar conditions except for the absence of graphene. The crystal structures of the obtained samples


are characterized by X-ray diffraction (XRD) pattern. As shown in Figure 2a, all the diffraction peaks of the precursor Ni(OH)2, pure Ni(OH)2 and Ni(OH)2/GS composites can be indexed to


beta-Ni(OH)2 (JCPDS: 14-0117). The 2θ degrees for diffractions of (001), (100), (101), (102), (110) and (111) planes are at 19.258, 33.064, 38.541, 52.100, 59.052 and 62.726°, respectively.


For precursor Ni(OH)2 and pure Ni(OH)2, the XRD diffraction peaks are low and broad, revealing the poor crystallinity and small size of crystallite. Interestingly, with the presence of


graphene, the diffraction peaks become obviously stronger, indicating the enhanced crystallization of the Ni(OH)2/GS. To further confirm the contribution of graphene, we also investigated


other composites with different mass ratio of GO to Ni(OH)2. With the addition of GO, it can be found that the crystallization can be optimized with increasing amount of GO, as is displayed


by the XRD patterns of Ni(OH)2/GS-20, Ni(OH)2/GS-5 and Ni(OH)2/GS-2 in Figure 2b. These results show the existence of graphene can enhance the crystallization of Ni(OH)2. The morphology and


structure of precursor Ni(OH)2, pure Ni(OH)2 and Ni(OH)2/GS composites are studied by field emission scanning electron microscopy (FESEM) and transmission electron microscopy (TEM). As shown


in Figure S1, precursor Ni(OH)2 is stacked particle and the obtained pure Ni(OH)2 is observed as aggregated nanoplate. Figure 3a and b display the morphology and structure of Ni(OH)2/GS-20


composite, we can also observe stacked particles of Ni(OH)2 with low mass ratio of graphene substrates. The morphology and structure of Ni(OH)2/GS-5 and Ni(OH)2/GS-2 composites are shown in


Figure 3c–f, respectively. Interestingly, it is found that Ni(OH)2 and graphene are so much alike that it is impossible to discriminate one from the other, which indicates that Ni(OH)2 and


graphene are homogenously contacted and intercalated with each other (vide infra). Moreover, the graphene sheets overlap with each other and thus result in a three-dimensional and porous


network. Combined with the results from XRD patterns, it can be speculated that the functional groups between graphene sheets chelate Ni(OH)2 disordered stacks with the help of electrostatic


interaction. And then these groups can act as anchoring sites, enabling Ni(OH)2 stretch on graphene sheets and forming ordered stack on interfaces of graphene sheets, which is depicted in


Figure S2. The high-resolution TEM image of Ni(OH)2/GS-5 in Figure 4a shows lattice fringes of 0.27 and 0.23 nm, which are consistent to the _d_ spacing of the (100) and (101) planes of


Ni(OH)2, confirming its crystalline nature in accordance with the XRD results. Furthermore, the distribution of graphene and Ni(OH)2 in the Ni(OH)2/GS-5 composite is then analyzed using


energy dispersive X-ray (EDX) spectroscopy mapping technique (Figure 4b–e). The region of nickel (Ni), oxygen (O) and carbon (C) is similar to the selected area in Figure 4b. These results


clearly show that the elements of Ni, O and C are distributed homogeneously, further indicating that the coating of Ni(OH)2 on graphene is uniform and complete. X-ray photoelectron


spectroscopy (XPS) technique is employed to analyze the chemical state of all elements in Ni(OH)2/GS-5 composite (Figure 5a–d). As shown in Figure 5a, the survey spectrum of Ni(OH)2/GS-5


also certify the presence of Ni, O and C in the composite, which is consistent with the above FESEM and EDX results. Figure 5b shows the deconvolution of C 1 s spectrum with different oxygen


containing functional groups, including the non-oxygenated C in C-C at 284.5 eV, the carbon in C-O at 286.4 eV and the carbon in C = O at 288.8 eV. These hydrophilic functional groups in


Ni(OH)2/GS-5 are believed to play dual roles here. On the one hand, these hydrophilic groups can enhance the wettability of the electrode and further improve the compatibility between the


electrode and the electrolyte. On the other hand, these groups can act as anchoring sites to interact with precursors, enabling Ni(OH)2 to directly grow on graphene sheets. The peaks of the


Ni 2p spectrum in Figure 5c can be assigned to the Ni 2p3/2 (850–865 eV) and Ni 2p1/2 (870–885 eV) spin orbit levels, which show Ni ion is +2 valence state. Figure 5d shows the deconvolution


of O 1 s spectrum with three peaks. The peak at 530.2 eV is ascribed to C-O-Ni bond. The peak at 531.2 eV is assigned to C = O groups or shoulder peak of O 1 s in Ni(OH)2 and the peak at


533.1 eV is ascribed to C-OH and/or C-O-C groups (hydroxyl and/or epoxy). Raman spectra of the Ni(OH)2/GS-5 composites before and after reduction are shown in Figure 5e and f. There are two


prominent peaks at 1357 and 1595 cm−1, which correspond to the D and G bands of carbon in the Ni(OH)2/GS-5 composite before reflux treatment. For Ni(OH)2/GS-5 composite, the peaks for D and


G bands are 1356 and 1600 cm−1,respectively. The G band shifts in carbon-based composites relate to the charge transfer between the carbon and other compounds. Therefore, the observed shift


by 6 cm−1 indicates the presence of a charge transfer from graphene to Ni(OH)2. These intimate bindings afford facile electron transports through Ni(OH)2 to graphene and further facilitates


electrons to the current collectors, leading to low electrical resistances. In addition, the N2-adsorption-desorption isotherm and the pore-size distribution of Ni(OH)2/GS-5 composite and


pure Ni(OH)2 are collected in Figure S3a and b. The actual mass ratio of graphene in Ni(OH)2/GS-5 composite after reflux treatment is determined by thermogravimetric analysis in Figure S3c


to be 10 wt%. ELECTROCHEMICAL MEASUREMENTS Cyclic voltammetry (CV) is then employed to investigate the capacitance mechanism and the specific capacitances at various scan rates. Figure 6a


and b show CV curves of Ni(OH)2/GS-5 and pure Ni(OH)2 electrodes from 2 to 200 mV s−1, respectively. The two strong peaks indicate that the capacitive behavior mainly results from


pseudocapacitive capacitance based on redox mechanism. The positive peak observed at 0.42 V (vs Hg/HgO) could be reasonably attributed to the following reaction: Ni(II) → Ni(III), indicating


an oxidation process. And the corresponding negative peak occurs at 0.30 V (vs Hg/HgO), indicating a reduction process: Ni(III) → Ni(II). The specific capacitances can be calculated by


integrating the area under the CV curves (see supplementary information for details). The average specific capacitances of Ni(OH)2/GS-5 and pure Ni(OH)2 electrodes are calculated to be 1503


and 1064 F g−1 at the scan rate of 2 mV s−1, which are shown in Figure 6c. For Ni(OH)2/GS-5 electrodes, interestingly, CV curves are found to retain a similar shape to that of a scan rate of


2 mV s−1 even at 200 mV s−1. Although the specific capacitances decrease with the increasing scan rates, a high value of 299 F g−1 can still be obtained at 200 mV s−1. However, a lower


value of 142 F g−1 is obtained at 200 mV s−1 for pure Ni(OH)2 electrodes. In addition to CV curves, galvanostatic discharge curves (GC) (Figure S4) are also employed to estimate the specific


capacitance, which are shown in supplementary information. The enhanced performance of Ni(OH)2/GS-5 can be attributed to the improved electrical conductivity and facilitated ion transport


and diffusion rate. It can be explained according to Figure 6d, where illustrates the relationship between anodic peak current and square root of scan rates for Ni(OH)2/GS-5 and pure Ni(OH)2


electrode. Note that the anodic peak current (_i_) increase linearly with square root of scan rates (_v_1/2), which satisfies Cottrell equation and indicates a diffusion-controlled process.


According to Cottrell equation, _i_ = _nFACD_1/2/(π_t_)1/2, where _n_ is the number of electrons transferred during the redox reaction, _F_ is a faradic constant, _A_ is the effective


surface area of the working electrode, _C_ is the concentration of the electrolyte, _D_ is the diffusion coefficient and Cottrell equation can be simplified as _i_ = a ν1/243 We can conclude


that the anodic peak current (_i_) increases with square root of the diffusion coefficient (_D_) in the certain situation. From Figure 6d, we can find that the Ni(OH)2/GS-5 composite


represents fast diffusion velocity. For comparison, the electrochemical properties of other composites with different mass ratios of GO to Ni(OH)2 are also measured by galvanostatic


discharge curves (GC) and CV curves, as shown in Figure S5. Table S1 and S2 summarize the specific capacitances of Ni(OH)2/GS-20, Ni(OH)2/GS-5, Ni(OH)2/GS-2 composites and pure Ni(OH)2


calculated from CV curves and galvanostatic discharge curves. Graphene prevents the aggregation of Ni(OH)2 nanosheets, which enables an effective redox reaction at the interface of Ni(OH)2


and electrolyte. Besides, the oxygen-containing functional groups enhance the wettability of the electrode and thereby the electroactive species, Ni(OH)2, can be easily infiltrated by


electrolyte ions for charge-transfer reactions. It can be noted that insufficient and excess graphene are harmful for the improved performance. For Ni(OH)2/GS-20, excess Ni2+ ions around GO


prevent themself from dispersing on GO nanosheets well thus resulting in low capacitance with a capacitance of 1052 F g−1 at 2 mV s−1. On the other hand, too many graphene in Ni(OH)2/GS-2


induce the aggregation of graphene sheets and the lower capacitance of graphene ascribe to EDLC behavior compromise the capacitance based on the total mass of the composite. The highest


capacitance of Ni(OH)2/GS-2 is 1334 F g−1 at 2 mV s−1. The optimal ratio of GO to Ni(OH)2 is 1:5 by mass. DISCUSSION Figure 7a shows CV curves of Ni(OH)2/GS-5, pure Ni(OH)2 and Ni foam at a


scan rate of 50 mV s−1. Note that the background signal deriving from Ni foam is negligible. The average specific capacitance of the Ni(OH)2/GS-5 at a scan rate of 50 mV s−1 is 515 F g−1, a


factor of ~1.7 higher than that of pure Ni(OH)2 at the same scan rate. For practical application, cyclic stability is crucial for an electrode material in electrochemical capacitors. As


shown in Figure 7b, the loss in capacity for Ni(OH)2/GS-5 is only 3.5% within 6000 cycles (from 515 to 497 F g−1). In general, the excellent cycling stability is attributed the intimate


bindings of Ni(OH)2 nanosheets and graphene nanosheets affording facile electron transports through Ni(OH)2 to graphene and further facilitating electrons to the current collectors, which


can improve their electronic and ionic conductivities. Besides, it should be noted that a decrease can be found before 2000 cycles and there is a slight increase with the cycles ranging from


2000 to 4000 cycles and then the tendency holds nearly stable after 4000 cycles. Taking the properties of the composite into account, the slight increase may be attributed to the


improvement of ion accessibility owing to the functional groups on graphene which have been confirmed by previous XPS results (Figure 5). To further analyze the reason that Ni(OH)2/GS-5


composite performs more excellent capacitive behavior than pure Ni(OH)2, the transport characteristics of the charge carriers within electrode are investigated using electrochemical


impedance spectroscopy (EIS) as shown in Figure 7c. Nyquist plots are composed by two distinct parts, a semicircle at high frequency and a linear line at low frequency. The high frequency


semicircle intercepts the real axis at _R_s and (_R_s + _R_ct), while _R_s means a bulk solution resistance and _R_ct means a charge-transfer resistance, respectively. _R_s is related with


several parts including the electrolyte resistance, the collector/electrode contact resistance and the electrode/electrolyte interface resistance. But the morphological difference has little


effect on the ohmic resistance of the supercapacitor device, as shown in the zoom-in of the intersection part. We can note that there is no obvious distinction between Ni(OH)2/GS-5 and pure


Ni(OH)2 electrode with regard to _R_s. In terms of _R_ct, the radius of the semicircle is about 0.5 ohm, which is smaller than that of pure Ni(OH)2 (about 1 ohm), suggesting the lower


charge-transfer resistance. We can assume that synergistic effects between Ni(OH)2 and graphene are favorable to the penetration of electrolytes into the whole electrode matrix and then


reduce electrical resistance at the interface between the electrode material and the current collector. The inclined portion of the curve (about 45°) in the low frequency is ascribed to the


Warburg impedance, which is related to ion diffusion/transport in the electrolyte. The more vertical shape at low frequency for Ni(OH)2/GS-5 indicates a more capacitive behavior of the


electrode. Figure 7d shows the EIS data of Ni(OH)2/GS-5 composite before and after 6000 cycles. In terms of _R_ct, the value after 6000 cycles is about 0.2 ohm, a lower resistance than the


previous result. It may be attributed to the improvement of ion accessibility resulting from the increased wettability during the cycling process, which provides an evidence for the trend of


cycling stability in Figure 6b. However, we can find that there is a little deviation from a vertical line in terms of the inclined portion of the curve in the low frequency after 6000


cycles, indicating the lack of good ion diffusion/transport in the electrolyte to the electrode surface. In summary, we have developed a facile and effective stretch growth technique for


homogenous coating Ni(OH)2 on graphene to tackle the challenges of pseudocapacitor materials in SCs. The electrostatic interaction triggers advantageous change in morphology and the ordered


stacking of Ni(OH)2 nanosheets on graphene and also enhances the crystallization of Ni(OH)2. Many functional groups of GO (hydroxyl, epoxy, carboxyl and carbonyl groups) act as anchor sites


for growth. This novel Ni(OH)2/graphene composite inherits the advantages of graphene nanosheets and two-dimensional Ni(OH)2 materials thus exhibit higher specific capacitance, better rate


capability and cycling stability compared to pure Ni(OH)2. The obtained novel Ni(OH)2/GS hybrid with optimization ratio holds high specific capacitance and excellent cycling stability up to


6000 cycles even at a high scan rate of 50 mV s−1. The significant improvement is rarely reported in previous literatures and is attributed to its tailored properties, which are vital to the


operation of SCs, including the intimate bindings, high conductivity, structural stability and good wettability. It is concluded that the synergetic effect between graphene and


two-dimensional Ni(OH)2 structure benefits the improvement of the electrochemical properties of the hybrid composites. This facile method may offer an attractive alternative approach for


preparation of the graphene based two-dimensional composites as high performance electrodes for supercapacitors. METHODS SYNTHESIS OF GRAPHENE OXIDE Graphene oxide was prepared by the


oxidation of natural graphite powder via an improved Hummers method42. Briefly, a 9:1 mixture of concentrated H2SO4/H3PO4 (45:5 mL) was added to a mixture of graphite flakes (0.375 g) and


KMnO4 (2.25 g). The reaction was then heated to 50°C and stirred for 24 h. The reaction was cooled to room temperature and poured onto ice (200 mL) with 30% H2O2 (3 mL). Then, the mixture


was centrifuged (10000 rpm for 5 min). The remaining solid material was then washed in succession with 200 mL of 30% HCl for twice and 400 mL of water for three times. For each wash, the


mixture was centrifuged (12000 rpm for 10 min) and graphite oxide was obtained. The as-prepared graphite oxide was dispersed into deionized water to form a homogenous solution (about 1 mg


mL−1). SYNTHESIS OF PRECURSOR NI(OH)2 NiSO4·7H2O (2.5759 g) and NaOH (0.132 g) was dissolved in 100 mL deionized water and stirred for 30 min. Then we obtained precursor Ni(OH)2


precipitation by centrifuging and washing the mixture with copious deionized water for several times. SYNTHESIS OF PURE NI(OH)2 The as-obtained Ni(OH)2 precursor particles were dispersed


into 150 mL DMF and sonicated for 60 min to separate stacked precursors and thereafter are used for refluxing at 95°C for 16 h. SYNTHESIS OF NI(OH)2/GS COMPOSITES The as-obtained Ni(OH)2


precursors were dispersed into deionized water and then different amount of GO was added. The ratio of GO to Ni(OH)2 is 1:20, 1:5 and 1:2 by mass. After stirring and sonicating for 60 min to


separate stacked precursors, the precursor was first deposited on GO uniformly in aqueous solution. And then the intermediate products were centrifuged with deionized water and dispersed


into 150 mL DMF for refluxing at 95°C for 16 h. Ni(OH)2/GS composites were obtained by centrifuging and washing the mixture with copious de-ionized water and ethanol for several times and


then collected by lyophilization. MATERIALS CHARACTERIZATION X-ray diffraction (XRD) patterns were collected on Bruker D8 Focus Powder X-ray diffractometer using Cu Kα radiation (40 kV, 40 


mA). The scanning electron microscopy was performed by using a field emission scanning electron microscopy (FESEM, HITACHI, S-4800). Transmission electron microscopy (TEM), high-resolution


transmission electron microscopy (HTEM), scanning transmission electron microscopy (STEM) and energy dispersive X-ray spectroscopy mapping technique were taken on a FEI Tacnai G2 electron


microscope operated at 200 kV. X-Ray photoelectron spectrometry data was acquired using an ESCALAB X-ray photoelectron spectrometer with monochromatic Al Kα X-rays. Zeta potential (ζ,


effective surface charge) was measured by dynamic light scattering (Malvern Nano-ZS, UK). Raman spectra were collected with a Renishaw 1000 model confocal microscopy Raman spectrometer with


a CCD detector and a holographic notch filter at ambient conditions. The specific surface area and porosity were determined by nitrogen sorption using a Micrometritics ASAP 2020 analyzer.


Specific surface areas were calculated by the Brunaure-Emmert-Teller (BET) method. Pore volumes and sizes were estimated from pore size distribution curves from the adsorption isotherms


using the Barrett-Joyner-Halenda (BJH) method. Thermogravimetric analysis (TGA) was performed at a heating rate of 5°C/min in flowing air (NETZSCH STA 449 F3, Germany). PREPARATION OF THE


ELECTRODES To evaluate the electrochemical properties of pure Ni(OH)2 and Ni(OH)2/GS composites, working electrodes were prepared by mixing the as-obtained powder (80 wt%) as active material


with acetylene black (10 wt%) and PTFE (10 wt%). The mixtures were grounded in alcohol and the obtained slurries were pasted and pressed onto a nickel foam substrate at 10 MPa and then


dried at 80°C overnight. The mass of the active materials was about 1.5 mg. Before testing, the electrode materials should be activated for abundant cycles until they can stabilizes at a


certain condition. ELECTROCHEMICAL EVALUATION The electrochemical measurements were carried out using a three-electrode mode in 6 M KOH aqueous solution. Hg/HgO electrode filled with 1 M KOH


was used as reference electrode and a platinum plate was used as counter electrode. Electrochemical studies including cyclic voltammetry (CV), galvanostatic charge-discharge (GC) and


electrochemical impedance spectroscopy (EIS) were carried out using VMP3 electrochemical workstation (Bio-logic Inc.). All tests were performed at room temperature. Typical CV curves were


measured at different scan rates from 2 to 200 mV s−1 between 0.1 and 0.6 V. GC measurements were conducted under various current densities from 1 to 100 A g−1 between 0.0 and 0.5 V. EIS


tests were performed for the working electrode in a frequency range of 100 kHz–0.01 Hz with ac perturbation of 5 mV. The EIS data were analyzed using Nyquist plots, which represent the


imaginary part (Z″) and real part (Z′) of impedance. REFERENCES * Chmiola, J. et al. Anomalous increase in carbon capacitance at pore sizes less than 1 nanometer. Science 313, 1760–1763


(2006). Article  CAS  ADS  Google Scholar  * Miller, J. R. & Simon, P. Electrochemical capacitors for energy management. Science 321, 651–652 (2008). Article  CAS  Google Scholar  *


Chmiola, J., Largeot, C., Taberna, P. L., Simon, P. & Gogotsi, Y. Monolithic carbide-derived carbon films for micro-supercapacitors. Science 328, 480–483 (2010). Article  CAS  ADS


Google Scholar  * Simon, P. & Gogotsi, Y. Materials for electrochemical capacitors. Nat. Mater. 7, 845–854 (2008). CAS  ADS  Google Scholar  * Stoller, M. D. & Ruoff, R. S. Best


practice methods for determining an electrode material's performance for ultracapacitors. Energy Environ. Sci. 3, 1294–1310 (2010). Article  CAS  Google Scholar  * Zhu, H., Wang, X.,


Liu, X. & Yang, X. Integrated synthesis of poly(o-phenylenediamine)-derived carbon materials for high performance supercapacitors. Adv. Mater. 24, 6524–6529 (2012). Article  CAS  Google


Scholar  * Liu, C., Li, F., Ma, L. P. & Cheng, H. M. Advanced materials for energy storage. Adv. Mater. 22, E28–E62 (2010). Article  CAS  Google Scholar  * Guo, Y. G., Hu, J. S. &


Wan, L. J. Nanostructured materials for electrochemical energy conversion and storage devices. Adv. Mater. 20, 2878–2887 (2008). Article  CAS  Google Scholar  * Jiang, H., Lee, P. S. &


Li, C. 3D carbon based nanostructures for advanced supercapacitors. Energy Environ. Sci. 6, 41–53 (2013). Article  CAS  Google Scholar  * Choi, N. S. et al. Challenges facing lithium


batteries and electrical double-layer capacitors. Angew. Chem. Int. Ed. 51, 9994–10024 (2012). Article  CAS  Google Scholar  * Zhao, X., Sanchez, B. M., Dobson, P. J. & Grant, P. S. The


role of nanomaterials in redox-based supercapacitors for next generation energy storage devices. Nanoscale 3, 839–855 (2011). Article  CAS  ADS  Google Scholar  * Wang, G., Zhang, L. &


Zhang, J. A review of electrode materials for electrochemical supercapacitors. Chem. Soc. Rev. 41, 797–828 (2012). Article  CAS  Google Scholar  * Yuan, C. et al. Ultrathin mesoporous


NiCo2O4 nanosheets supported on Ni foam as advanced electrodes for supercapacitors. Adv. Funct. Mater. 22, 4592–4597 (2012). Article  CAS  Google Scholar  * Jiang, J. et al. Large-scale


uniform alpha-Co(OH)2 long nanowire arrays grown on graphite as pseudocapacitor electrodes. ACS Appl. Mater. Interfaces 3, 99–103 (2011). Article  CAS  Google Scholar  * Zhang, G. & Lou,


X. W. Controlled growth of NiCo2O4 nanorods and ultrathin nanosheets on carbon nanofibers for high-performance supercapacitors. Sci. Rep. 3, 1470–1475 (2013). Article  Google Scholar  *
