Interactions between atomically dispersed copper and phosphorous species are key for the hydrochlorination of acetylene

ABSTRACT Vinyl chloride, the monomer of polyvinyl chloride (PVC), is industrially synthesized via acetylene hydrochlorination. Thereby, easy to sublimate but toxic mercury chloride catalysts

are widely used. It is imperative to find environmentally friendly non-mercury catalysts to promote the green production of PVC. Low-cost copper-based catalysts are promising candidates. In

this study, phosphorus-doped Cu-based catalysts are prepared. It is shown that the type of phosphorus configuration and the distribution on the surface of the carrier can be adjusted by

changing the calcination temperature. Among the different phosphorus species, the formed P-C bond plays a key role. The coordination structure formed by the interaction between P-C bonds and

atomically dispersed Cu2+ species results in effective and stable active sites. Insights on how P-C bonds activate the substrate may provide ideas for the design and optimization of

phosphorus-doped catalysts for acetylene hydrochlorination. SIMILAR CONTENT BEING VIEWED BY OTHERS IN-SITU PREPARATION OF SULFONATED CARBONACEOUS COPPER OXIDE-ZIRCONIA NANOCOMPOSITE AS A

NOVEL AND RECYCLABLE SOLID ACID CATALYST FOR REDUCTION OF 4-NITROPHENOL Article Open access 22 June 2023 PHOTOINDUCED LOADING OF ELECTRON-RICH CU SINGLE ATOMS BY MODERATE COORDINATION FOR

HYDROGEN EVOLUTION Article Open access 20 September 2022 SELECTIVE FORMALDEHYDE CONDENSATION ON PHOSPHORUS-RICH COPPER CATALYST TO PRODUCE LIQUID C3+ CHEMICALS IN ELECTROCATALYTIC CO2

REDUCTION Article Open access 22 May 2025 INTRODUCTION The vinyl chloride monomer (VCM) used in the production of polyvinyl chloride (PVC) in China is mainly produced through the

hydrochlorination of acetylene. At present, the development of low-cost and environmentally friendly non-precious metal catalysts is still attractive. Cu-based catalysts were widely studied

at the beginning because of their high activity in vapor-phase hydrogenation reactions1. Similarly, the use of Cu-based catalysts in the hydrochlorination of acetylene has also been found to

have good activity. Cu-based catalysts are now being widely investigated, but their conversion is lower than that of precious metal catalysts, and their activity and stability need to be

enhanced due to the accumulation of metal active centers and the reduction of metal high valence states2,3,4,5,6,7,8. At present, its catalytic performance can be improved by means of

carrier modification and the addition of other metals. It is known that the support can be modified by the doping of non-metallic elements such as nitrogen, boron, and phosphorus on carbon

materials to improve the catalytic performance of certain reactions9,10,11,12. In recent years, people are more and more interested in phosphorus-doped carbon materials. Chen13 et al. found

that electrocatalytic oxygen reduction reaction (ORR) activity can be improved because more structural defects are formed after the introduction of heteroatom phosphorus. Liu14,15 and

partners found that the prepared phosphorus-doped carbon nanotubes and graphite layers changed the electronic structure of the carbon material due to phosphorus doping, thus exhibiting high

ORR performance and electrocatalytic activity. In order to be applied to acetylene hydrochlorination, there are also related studies have appeared. The support of the gold catalyst prepared

by Wang16 et al. was phosphorus-doped carbon with triphenylphosphine as the phosphorus source, which improves the conversion of acetylene and selectivity to vinyl chloride

monomer17,18,19,20,21,22,23. Various characterization results show that the phosphorus group on the support can improve the dispersion of catalytic active sites, prevent the active gold

species Au3+ and Au+ from reducing to Au0, and can also delay the coking deposition on the catalyst surface24,25,26,27. Li2 et al. prepared a phosphorus-doped copper catalyst supported on

spherical activated carbon (SAC) with high activity and good stability. Phosphorus doping promotes the dispersion of copper species, enhances the interaction between metal and support, and

inhibits the agglomeration of copper species during the acetylene hydrochlorination process. Wang28,29,30 et al. reported that the introduction of phosphorus can inhibit the reduction of

Cu2+ during the reaction and promote the dispersion of active ingredients on the activated carbon support. Although there have been many studies on phosphorus doping, it has not been

investigated which of the different phosphorus species produced during the preparation process can be the most suitable anchoring sites31,32,33,34,35,36 to play a key role in acetylene

hydrochlorination and how it interacts with copper species. In order to solve this problem, in this study, non-toxic and low-cost 1-hydroxyethylidene-1,1-diphosphonic acid (HEDP, Fig. S1) is

used as a phosphorus source to prepare copper catalysts supported on P-doped activated carbon calcined at different temperatures. The proportion and distribution of phosphorus species on

the surface of the carrier can be adjusted at different calcination temperatures. Combined with acetylene conversion and characterization analysis, we found that the P-C bond plays a crucial

role in the hydrochlorination of acetylene, and the coordination structure formed by the interaction between atomically dispersed Cu2+ species and P-C bond is the reason for the better

catalytic performance of the catalyst. Meanwhile, density functional theory (DFT) is used to further determine the optimal structure of the active site and reveal the detailed reaction path

and evolution of C2H2 and HCl on the active site. RESULTS AND DISCUSSION CATALYST CHARACTERIZATION Phosphorus is easily doped into the carbon framework during the calcination process after

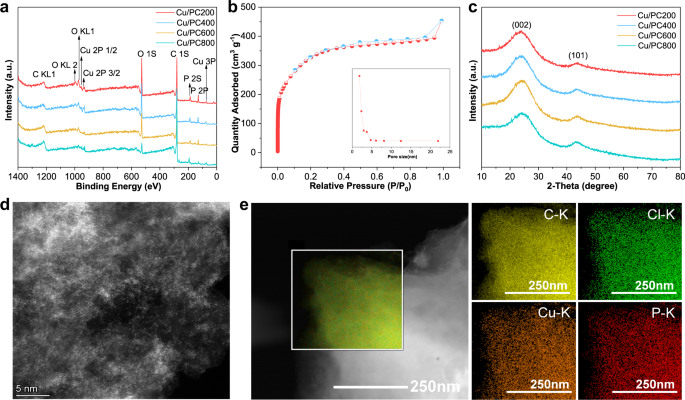

impregnation. The XPS and EDS results listed in Supplementary Table 1, Fig. 1a show that there are a certain amount of copper and phosphorus in this batch of catalysts, indicating that

copper is well loaded on the support, and phosphorus is successfully doped in the carbon framework. The copper content in ICP-AES data is similar to XPS and EDS data, which confirms the

reliability of the data (Supplementary Table 2). In addition, nitrogen adsorption and desorption isotherms are used to measure P-doped activated carbons. Supplementary Table 3 lists the

specific surface area and pore structure parameters of P-doped activated carbons calcined at different temperatures. The BET surface areas of Cu/PC200, Cu/PC400, Cu/PC600, and Cu/PC800 are

203, 420, 910, 1005 m2g−1, respectively. Compared with the specific surface area of activated carbon of 1204 m2g−1, both the specific surface area and pore volume of activated carbon after

phosphorus doping treatment are smaller. The addition of phosphorus elements may fill and block part of the pore of the carrier and occupy some available space. The larger specific surface

area and pore volume of the catalysts calcined at 600 and 800 °C may be caused by the thermal decomposition of phosphorus ligand at high temperatures and the reduction of blocked pores. The

pore size of phosphorus-doped activated carbon is similar, and it is also relatively close to activated carbon. Previous reports generally agree that a higher specific surface area can

expose more active sites to promote the transfer of the substrate, which is conducive to improving the activity. The results of this study are also the same. The carbon carrier calcined at

800 °C has the largest specific surface area, and the corresponding acetylene conversion rate is also the highest among several catalysts. As shown in Fig. 1b, the N2 adsorption-desorption

isotherm of PC800 with the best effect is a typical IV-type curve with obvious hysteresis loop characteristics of a mesoporous structure. Supplementary Fig. 2 shows that several other

catalysts also have hysteresis loop characteristics. Figure 1c shows the XRD patterns of each fresh Cu-based catalyst. The amorphous diffraction peaks of the carbon carrier at 25° and 43°

correspond to the plane of (002) and (101), respectively37. In addition, no other discernible diffraction peaks are detected in the Cu-based catalyst, which means that the copper particle

size is below the detection limit of the XRD instrument, or the copper species on the activated carbon support is in an amorphous form38,39. It can be speculated that the copper species may

be well dispersed on the P-doped carbon support. Supplementary Fig. 3 shows the morphology of each fresh phosphorus-doped catalyst. There are almost no obvious copper nanoparticles on the

surface of the catalyst, indicating that the copper species are well dispersed on the support. The result is consistent with the previous XRD spectra analysis. In addition, further analysis

of HAADF-STEM image (Fig. 1d and Supplementary Fig. 4a, c, e) revealed the presence of predominantly highly dispersed isolated Cu species, and it is almost difficult to detect copper

nanoparticles. The single-center copper species supported on the carbon support is confirmed to be the active center of acetylene hydrochlorination reaction, indicating that the active

component of the catalyst is mostly composed of atomically dispersed copper40,41,42. The element mapping of the catalyst Cu/PC800 (Fig. 1e) reveals that C, P, and Cu elements are uniformly

distributed on the surface of the catalyst, verifying the successful doping of phosphorus in the carbon support, as well as the other catalysts (Supplementary Fig. 4b, d, f). CATALYTIC

PERFORMANCE OF CU-BASED CATALYSTS The catalyst shown in Fig. 2a has the same copper load and phosphorus doping amount in the preparation process. Under the test conditions of T = 150 °C,

GHSV(C2H2) = 90 h−1 and V(HCl): V(C2H2) = 1.2, the initial conversion of acetylene is significantly different due to the different calcination temperatures of phosphorous doped carbon

carriers. The initial conversion of acetylene increases with the increase of calcination temperature. These catalysts don’t deactivate within 10 h, and Cu/PC800 shows a better catalytic

performance with the highest conversion reaching 83.1%. As we can see, Supplementary Fig. 5 clearly shows that the VCM selectivity of all catalysts has reached more than 99%. Obviously, all

the P-doped Cu-based catalysts in Fig. 2a show a higher initial conversion than pure Cu/AC (the initial conversion is 35.46%). However, the activity of several phosphorus-doped carbon

supports without the active component copper is very low, indicating that the enhanced activity of the copper-based catalyst is due to the interaction and synergistic effect between the

active copper species and the phosphorus-doped activated carbon, rather than simply the sum of the parts. In addition, through experiments at different temperatures, the Arrhenius equation

is used to plot and the experimental activation energy (Ea) is obtained through linear fitting (Fig. 2b). At this time, the internal and external diffusion of the reaction have been

eliminated, and the reaction is under kinetic control. The apparent activation energy of the Cu/PC800 catalyst with the best catalytic performance in the figure is calculated to be 23 kJ 

mol−1. The activation energy of the classic Cu-based catalyst Cu/AC is 34 kJ mol−1, and the calculated result of the P-doped Cu-based catalyst is lower than this value, indicating that

acetylene is more likely to react with hydrogen chloride on the P-doped Cu-based catalyst than the classic copper catalyst. In order to demonstrate the excellent performance of P-doped

Cu-based catalysts, the Cu/PC800 catalyst is compared with some copper-based catalysts published in the literature (note that the experimental conditions are not necessarily the same). The

productivity at the beginning of the experiment is plotted versus GHSV and is shown in Fig. 2c and Supplementary Table 4. Various copper catalysts from the

literature3,7,43,44,45,46,47,48,49,50,51 is used for this comparison, and it is obvious that the Cu/PC800 catalyst is one of the better catalysts that can provide higher yields of vinyl

chloride under the harsher conditions of relatively high space velocities (colored areas in Fig. 2c). IDENTIFICATION OF THE CATALYTIC ACTIVE SITES As shown in Fig. 3a, Raman spectroscopy

shows that all samples have two characteristic peaks near 1350 and 1590 cm−1, which are attributed to the absorption peaks of the D band and G band in the carbon material respectively7,47.

The G band is generated by the vibration of sp2 hybridized graphite-type carbon atoms, indicating the degree of graphitization of carbon materials, while the D band is usually caused by sp3

hybridized carbon atoms and structural defects, indicating the disordered structure and defect. The doping of phosphorus atoms destroys the hexagonal symmetry of the graphene plane, which

increases the number of defect sites in the activated carbon framework. The higher the temperature, the lower the regularity and order of the sample. XPS spectroscopy can be used to analyze

the chemical state of copper on the catalyst surface, and the relative content of different copper species can be calculated according to the relative deconvolution peak area. Figure 3d

shows that in each P-doped Cu-based catalyst, the main peak with a binding energy of about 934.5 eV belongs to Cu2+, and the peak with a binding energy of about 932.3 eV belongs to Cu+ and

Cu039,49. It’s worth noting that Cu2+ here refers to CuCl2 (around 934.6 eV), rather than CuO whose binding energy position is around 933.6 eV52,53,54,55. The XAES spectrum can be used to

distinguish Cu+ from Cu0. In the XAES spectrum shown in Fig. 3e, the peak of Cu+ can be observed at 916.6 eV, and the peak of Cu0 can be observed at about 918.6 eV7,47. The binding energy

positions and the relative content of different copper species Cu2+, Cu+, and Cu0 are listed (Supplementary Tables 5, 6 and Supplementary Fig. 6). It can be found that metal copper ions are

the active component of p-doped Cu-based catalysts, but as the calcination temperature increases, especially when it reaches 800 °C, the ratio of Cu2+ increases significantly, and the amount

of Cu+ and Cu0 decreases, combined with the result of acetylene conversion (Fig. 4a–c), the activity of the catalyst calcined at 800 °C is the best, so the presence of Cu2+ is more

conducive to the improvement of catalyst activity. The P 2p spectrum shown in Fig. 3c can be deconvolved into three peaks to determine the relative content and species of phosphorus. The

peaks with binding energies around 135.1, 134.2, and 133.0 eV correspond to three different phosphorus species, P=O, P-O, and P-C respectively47,50,56, which is also confirmed by FT-IR (Fig.

 3b). The strong broadband of the four samples in the range of 3500–3200 cm−1 corresponds to the -OH stretching vibration, and the broadband around 1300 cm−1 can be attributed to the C-O

stretching vibration47. The spectrum clearly shows that the peaks at about 1100 cm−1 and about 1000 cm−1 are attributed to the stretching vibration of P=O and P-O, respectively, and some

weaker peaks appearing at 750–660 cm−1 are attributed to P-C38,50,57. The P-O bond represents all phosphorus-containing functional groups related to oxygen. The P-C bond indicates that the

phosphorus atom is indeed successfully incorporated into the carbon lattice. The binding energy and the relative amount of each phosphorus species in the p-doped Cu-based catalysts are

listed in Supplementary Table 7. Although the P-O bond occupies the highest proportion in each catalyst, only the relative contents of the P-C bond increase significantly with the increase

of roasting temperature, while the relative contents of the P=O bond and the P-O bond decrease. Combined with the catalytic activity of Cu-based catalysts (Fig. 4d–f), the P-C bond has the

largest proportion (41.6%) in the catalysts calcined at 800 °C, indicating that the higher the content of the P-C bond, the more phosphorus atoms enter the carbon skeleton, the more

favorable the catalyst to obtain higher catalytic activity. In order to further analyze the chemical bond configuration of phosphorus in the catalyst, the O 1 s peak is deconvolved into two

components. As shown in Fig. 3f, the peak at about 531.4 eV of all catalysts is attributed to non-bridging oxygen (P = O)50,58, and the peak at about 532.5 eV of binding energy is attributed

to P-O-C bond and accounts for a large proportion7, which is consistent with the result of P 2p spectrum. It further indicates that the P-O-C bond is included in the oxygen-related

phosphorus-containing functional group represented by the P-O bond. In addition, combined with the results of the Supplementary Table 8 and the acetylene conversion (Supplementary Fig. 7),

as the calcination temperature increases, the relative content of P=O bond decreases slightly, and the relative content of the P-O-C bond increases slightly, but the change range of both is

very small, indicating that the variation of calcination temperature has little effect on the proportion of P=O bond and P-O-C bond and they have no significant positive effect on the

activity of the catalyst. It should be noted that although the oxygen-related phosphorus-containing functional groups represented by the P-O bond will decrease with the increase of the

calcination temperature, the change of the P-O-C bond contained in it is negligible. In general, the distribution of phosphorus species on the surface of the support can be adjusted by

changing the roasting temperature. For the P-doped Cu-based catalyst in this study, the increase of the calcination temperature only leads to a significant increase in the relative content

of the P-C bond, which has a positive impact on the catalytic activity. Combined with the results of P 2p and Cu 2p XPS spectra, it can be inferred that Cu2+ species and P-C bond can play a

positive role in the hydrochlorination of acetylene, and the coordination structure formed by the interaction between phosphorus species (P-C) and isolated single-atomic Cu2+ species is the

main active site of the Cu-based catalyst. It has been reported that experimentally, many phosphorus doping methods, including high-temperature firing in an inert environment, are often

accompanied by oxygen doping, so that different types of phosphorus and oxygen-containing functional groups can be formed59,60. Referring to the XPS results, P-O bonds, P=O bonds, and P-C

bonds may constitute various phosphorus and oxygen-containing groups and the bonding configuration of phosphorus entering the carbon matrix (Fig. 5a). The TPR curves of each catalyst are

shown in Fig. 5b. Two main reduction peaks can be detected in all catalysts. The first hydrogen consumption peak appears in the range of 230 to 330 °C, and the second peak appears in the

temperature range of 470 to 570 °C, these two reduction peaks are attributed to the reduction of Cu2+ species to Cu+ species and the change of Cu+ species to metallic copper, respectively61.

The reduction peaks of Cu2+ and Cu+ move to higher temperatures with the increase of the calcination temperature of the phosphorus-doped carbon support. The temperatures of the two

reduction peaks of Cu/PC800 have increased to different degrees compared with other catalysts. It shows that compared with other catalysts calcined at other temperatures, there is a stronger

interaction between copper and phosphorus-doped carbon support in Cu/PC800 catalyst, which effectively improves the anti-reduction ability of Cu2+ and Cu+ species. In addition, the

reduction peak area of Cu2+ in the Cu/PC800 catalyst is significantly larger than other catalysts, indicating that the coordination structure formed by Cu and P atoms stabilizes the

high-valent copper, and to a certain extent delays the reduction of the oxidation state Cu2+ species during the preparation process. This is the same as the result of XPS spectra. The

relatively excellent catalytic performance of the Cu/PC800 catalyst comes from the interaction between the Cu2+ species with high valence and the P-C bond. TPD characterization can analyze

the adsorption of the catalyst to the reactants, but the phosphorus ligand will be thermally decomposed at a higher temperature. In order to avoid interference to the acetylene signal from

the sample desorption, the TPD-MS experiment is used to study the adsorption of acetylene by the active site of the catalyst. Before the TPD-MS analysis, the samples were dried overnight in

an oven at 120 °C, and the samples were purged for nearly half an hour before the analysis. The results are shown in Fig. 5c. Each catalyst has two desorption peaks, indicating that there

are two active sites capable of adsorbing substrates, which may be Cu2+ active centers and Cu+ active centers, respectively. It has been reported that in the Cu(II)/AC catalyst, the

adsorption energy of acetylene on the copper center is less than that of the Cu(I)/AC catalyst, and the smaller adsorption energy is usually desorbed first49. Therefore, the desorption peak

at lower temperature and the desorption peak at higher temperature are likely to be attributed to the active center of Cu2+ and Cu+ respectively. The Cu2+ active species is the main active

center. By comparing the different catalysts, it can be found that with the increase of calcination temperature, the peak area and desorption temperature of the desorption peak related to

Cu2+ increase, especially for the catalyst with the calcination temperature of 800 °C. The peak area of desorption peak is widely considered to represent the adsorption capacity. The larger

the area is, the more active sites exist and the more acetylene is adsorbed on the corresponding active sites. The desorption temperature represents the strength of adsorption, and a high

temperature indicates a stronger adsorption capacity for acetylene. Therefore, more Cu2+ active sites are conducive to the improvement of the catalytic performance of our series of

phosphorus-doped copper-based catalysts. Some results of TPD-MS are the same as those of XPS and TPR above. Compared with weak adsorption, the relatively strong adsorption of acetylene by

the relevant active sites is more beneficial to improve the activity and stability of the catalyst. Nitrogen adsorption and desorption isotherms are used to measure the used Cu/PC800

catalyst. According to the nitrogen adsorption and desorption isotherms, the specific surface area of the catalyst is 986 m2 g−1, and the pore volume and pore size are 0.57 cm−3 g−1 and 2.14

 nm, respectively. The result shows the specific surface area and pore structure parameters of the used catalyst are similar to those of the fresh catalyst during the reaction period of 10 

h, and the relatively strong acetylene adsorption does not lead to significant carbon deposition. Supplementary Fig. 8a shows the XRD pattern of the used sample, which is similar to the

fresh catalyst. The two main diffraction peaks at ~25° and 43° correspond to the (002) and (101) crystal planes of carbon, respectively. Except for the two diffraction peaks, no other

characteristic peaks were found. The used Cu/PC800 catalyst with the highest catalytic activity was further characterized. The HAADF-STEM image (Supplementary Fig. 8b) shows the presence of

highly dispersed isolated copper species. The Cu 2p XPS spectrum (Supplementary Fig. 8c) shows that the peak representing Cu2+ at 934.7 eV dominates the spectrum, accounting for 70%. As

mentioned above, according to the nitrogen adsorption and desorption isotherms, the used Cu/PC800 does not have obvious carbon deposition. It can be seen that Cu/PC800 is relatively stable

during the reaction, active copper species is not easy to agglomerate and not easy to reduce, and the catalyst also has a certain ability to resist carbon deposition. X-ray absorption

spectroscopy (XAS) further confirms the oxidation state and precise coordination structure of the Cu element in Cu/PC800 (Fig. 6a and Supplementary Table 9). The white line height of each

sample is shown in Fig. 6a. The white line intensity value of the cationic Cu standard of Cu2+ is 1.18, which is close to the measured values in the literature61. The Cu/PC800 catalyst shows

similar spectral features to reference CuCl2, and its normalized white line intensity value is 1.17, which is close to the white line intensity of the cationic Cu2+ standard sample,

indicating that the isolated Cu atoms bear a positive charge of +2. This is consistent with the above XPS results. Although XANES analysis provides relevant information concerning Cu

speciation, the complexity of the spectra requires additional extended XAFS (EXAFS) analysis to clarify interpretation. Figure 6b shows EXAFS Fourier transforms (FTs) of Cu foil reference,

CuCl2 reference, and Cu/PC800. Fourier-transformed R-space curves of the Cu K-edge EXAFS spectra suggest that Cu is predominantly coordinated with Cl atom in Cu/PC800 centered at about 2.17 

Å, and the average coordination number is 3.8. What is important is that no Cu-Cu characteristic bonds are detected, indicating the atomic distribution of Cu elements in the catalyst, which

confirms the atomic dispersion of Cu shown by HAADF-STEM. Figure 6c indicates that the experimental data of the EXAFS spectrum are well fitted, as shown by the parameter R factor in

Supplementary Table 9. MECHANISTIC STUDIES In order to understand the activity of Cu2+ active sites supported on the phosphorus-doped carbon carrier, we create carbon substrate based on the

selected phosphorus source38, taking into account the five phosphorus species (C3P, P=O, (OH)2P=O, P(OH)2, (OH)P=O) mentioned in Fig. 5a, and then carry out a series of theoretical studies

aimed at exploring the potential reaction mechanism. Since (OH)2P=O is unstable, the higher calcination temperature in the preparation process makes it easy to decompose62, and we will not

consider this site in the following calculation process. We obtain the key role of the P-C bond by XPS spectra, indicating that the increase of phosphorus atoms in carbon lattice is more

conducive to the improvement of catalyst activity. It should be noted that each of the phosphorus species in the carbon substrate mentioned above, in which each phosphorus atom enters the

carbon skeleton, therefore the active site of several different phosphorus species contains the P-C bond. The overall calculation results are shown in Fig. 7 and Supplementary Fig. 9. As

shown in Supplementary Fig. 9, the adsorption energies of CuCl2 with similar configurations on C3P and P=O substrates are −240.5 and −86.38 kJ/mol, respectively. Cl atoms are located above P

in C3P and P=O, at distances of 2.59 and 2.31 Å, respectively. For the P(OH)2 adsorption geometry, the adsorption energy of CuCl2 on it is −182.21 kJ/mol, and the Cl ligand in the Cu center

seems to interact with the H atom of the hydroxyl group, and the corresponding H-Cl bond length of 2.02 Å. The adsorption energy of CuCl2 on (OH)P=O is −70.89 kJ/mol, and the Cu atom tends

to bond with the O atom in the P=O functional group. The active copper species have the highest adsorption energy on C3P, indicating a stronger interaction between the Cu center and the

substrate. It can be realized that the interaction between the P atom and its nearby Cl atom will affect the potential reaction mechanism of acetylene hydrochlorination. Therefore, the

reaction mechanism on the coordination structure formed by CuCl2 and C3P is studied. The mechanism details of acetylene hydrochlorination catalyzed by active copper species on C3P substrates

are presented in Fig. 7 through the DFT modeling. To make the figure clearer, we used simple lines instead of CPK modes to simulate graphene rings by VMD software63. The calculated energy

profile is shown in Fig. 7a, and corresponding optimized configurations involved are shown in Fig. 7b. In Fig. 7a, the reaction begins with the coordination of C2H2 with Cu, a metal atom of

CuCl2 in active catalyst A, forming intermediate B with an adsorption energy of −22.32 kJ/mol and a bond length of C≡C of 1.23 Å (the normal bond length of 1.21 Å). Meanwhile, the P-Cl bond

length is 2.44 Å, indicating that phosphorus atom in C3P will have strong electrostatic interaction with Cl atom in Cu-Cl bond, resulting in electron transfer, as evidenced by the Mayer bond

index, which will affect the electronic states around Cu atoms and thus affect the adsorption of substrates. The Cu 2p XPS and fitting parameters from the EXAFS spectra of Cu/PC800 all

indicate the coordination between Cu and Cl atom, which also verifies the indirect effect of P atoms on Cu. Then the formation of C2H2 and HCl co-adsorption configuration on catalyst support

in C shows the H-Cl bond length in HCl is stretched to 1.342 Å slightly longer than the normal bond length of 1.289 Å in free HCl. With acetylene following adsorbed at the Cl atom of CuCl2

due to the electrostatic attraction between H atom of C2H2 and Cl atom of CuCl2 to form a weakly less stable intermediate D, the distance between the Cl atom of HCl and Cu atom of CuCl2 is

3.14 Å and the Mayer bond index is 0.103. Hirshfeld charges of Cu atom and P atom changes from 0.267 to 0.181 and 0.364 to 0.355 apparently, respectively, which proved our speculation to

some extent. Then significantly, the H atom of HCl attacks a C atom of acetylene implied with a six-membered ring structure, which consists of HCl, C2H2, and CuCl2 in E. Visibly, the H-Cl

bond length in HCl tends to be broken (1.64 Å). Meanwhile, the bonding tendency of the H atom of HCl and C atom of acetylene is evidenced by the distance and the Mayer bond index, which is

1.30 Å and 0.438, respectively. The Cu center becomes a CuCl3 coordination structure because of the substitution of Cl in E, as evidenced by the change of Hirshefeld charge on the Cu center.

This step requires overall activation energy of 59.85 kJ/mol and leads to the product complex F. At last, desorption of the chloroethylene molecule from F regenerates the catalyst with weak

desorption energy. CONCLUSIONS We synthesized copper-based catalysts supported on phosphorus-doped carbon carriers calcined at different temperatures. Phosphorus atoms have a larger atomic

radius and lower electronegativity. Doping phosphorus atoms into the carbon framework is more likely to form a twisted configuration, which can provide a better electronic and geometric

coordination environment for single-center copper species64. The type and distribution of phosphorus configurations on the support can be adjusted by different calcination temperatures.

Combined with the characterization and activity, it was found that the coordination structure formed by the P-C bond and atomically dispersed Cu2+ species was the effective active site

leading to better performance of the catalyst65,66,67,68. Density functional theory (DFT) calculation confirms that the optimal active site structure is derived from the interaction between

C3P and atomically dispersed Cu2+ species, revealing the detailed reaction path and evolution of C2H2 and HCl at the active site, indicating that phosphorus atom in C3P will have strong

electrostatic interaction with Cl atoms in Cu-Cl bond, which will affect the electronic states around Cu atoms and thus affect the adsorption of substrates. This may provide some ideas for

the design and optimization of phosphorus doping catalysts in the future. METHODS PREPARATION OF CATALYSTS P-doped Cu-based catalysts supported on AC were synthesized by the impregnation

method with the solvent of deionized water. First, 3.325 g HEDP was dissolved in 10 mL deionized water and stirred intensely until a transparent and clear solution was achieved. About 5 g AC

was slowly poured into the above liquid with stirring under room temperature, standing it for 4 h. Then the obtained mixture was dried at 120 °C for 12 h and calcined at 800 °C for 1 h

under N2 atmosphere at a heating rate of 10 °C min−1 to synthesize carriers named PC800. Supports calcined at 200, 400, and 600 °C were prepared in the same way and named as PC200, PC400,

and PC600, respectively. Subsequently, 1.05 g CuCl2 was dissolved in 10 mL deionized water and stirred until a blue homogeneous solution formed. Pretreated carbon PC800 was added to a

solution of CuCl2 and maintained at room temperature for 4 h. Finally, the fresh catalyst was acquired after drying at 120 °C for 12 h, denoted as Cu/PC800. By the same method, catalysts

calcined at 200, 400, and 600 °C were prepared and named Cu/PC200, Cu/PC400, and Cu/PC600, respectively. In addition, the Cu/AC catalyst for comparison was synthesized by the impregnation

method. CATALYST CHARACTERIZATION Transmission electron microscopy (TEM) with a high-angle annular dark-field (HAADF) detector was acquired on an FEI Titan G2 60–300 microscope operating at

300 kV, which can be conducted to detect morphologies of catalysts and to observe the distribution and size of Cu particles. The loadings of Cu were measured using an IRIS (HR) inductively

coupled plasma atomic emission spectrometry (ICP-AES). Energy dispersive analysis of X-rays (EDX) was carried out on a Tecnai G2 F30 S transmission electron microscope operating at 300 keV.

Nitrogen adsorption/desorption isotherms (BET) were acquired from Micromeritics ASAP 2020 to test various structural parameters of the catalyst. X-ray diffraction (XRD) carried out on a

PANalytical-X’Pert PRO generator with Cu Kα radiation was performed to determine dispersity and crystallinity of the active component and crystal form of the support. X-ray photoelectron

spectroscopy (XPS) was conducted with a Kratos AXIS Ultra DLD spectrometer to distinguish chemical elements' valence states of the catalyst surface. Raman spectroscopy was carried out

in a WITec CRM 200 confocal Raman microscope. Fourier transform infrared spectroscopy (FT-IR) characterization was carried out on a Fourier transform infrared spectrophotometer (Nicolet

6700, Thermal Fisher Nicolet Corporation, Waltham, America). Temperature-programmed reduction (TPR) was conducted in a micro-flow reactor and recorded by a thermal conductivity detector

(TCD) to investigate the reduced ability of the catalysts. Temperature-programmed desorption (TPD) was performed in a tubular quartz reactor and recorded by a thermal conductivity detector

(TCD). Temperature-programmed desorption (TPD) of the sample and mass spectrometry (MS) analysis of the generated gas were measured on an Omnistar GSD320 mass spectrometer. The extended

X-Ray absorption fine structure (EXAFS) spectra was collected at the X-ray absorption spectroscopy (XAS) station of the Shanghai Synchrotron Radiation Facility. COMPUTATIONAL DETAILS All

structures were optimized using gradient-corrected density functional theory (DFT) with the hybrid B3LYP exchange-correlation functional, which were performed using Gaussian 09 software

package. A 6–31 G(d) basis set was used for all atoms except for Cu, which has been described with Lanl2dz pseudo-potential basis set. All charge and bond-order analyses reported were

performed using the NPA charges and Wiberg bond index, respectively. Intrinsic reaction coordinate (IRC) calculations were carried out to confirm the connection of TS to its corresponding

reactants and products. Eads followed represent the adsorption energy between the P-doped activated carbon and the catalyst. It was calculated using the following equation:

$${{{{{{{\mathrm{E}}}}}}}}_{{{{{{{{\mathrm{ads}}}}}}}}} = {{{{{{{\mathrm{E}}}}}}}}_{{{{{{{{\mathrm{adsorption}}}}}}}} - {{{{{{{\mathrm{state}}}}}}}}} - \big(

{{{{{{{{\mathrm{E}}}}}}}}_{{{{{{{{\mathrm{PC}}}}}}}}} + {{{{{{{\mathrm{E}}}}}}}}_{{{{{{{{\mathrm{catalyst}}}}}}}}}} \big)$$ CATALYST TESTS A fixed-bed glass reactor was used to evaluate the

performance of the catalysts. Two mL of the catalyst was added in the fixed position of the tubular reactor. The reactor was flushed with nitrogen for 30 min in order to remove water vapor

and air. Then turn on the reaction heating, when the reactor temperature reached 150 °C, N2 was closed and purified hydrogen chloride (HCl) was fed into the tube reactor to activate the

catalyst for 30 min. Finally, a reaction gas mixture of acetylene (C2H2) and hydrogen chloride (HCl) was passed through the reactor at a gas hourly space velocity of C2H2 (GHSV) of 200 h−1

with a C2H2: HCl ratio of 1:1.2. The effluent streams of the reactor were passed through sodium hydroxide (NaOH) aqueous solution in an absorption bottle to separate any unreacted HCl from

the gas products and was sent to be analyzed by an online gas chromatograph equipped with a flame ionization detector (FID) and a Porapak N packed column (6 ft × 1/800 stainless steel). DATA

AVAILABILITY Any relevant data are available from the authors upon reasonable request. REFERENCES * Kobayashi, H., Takezawa, N. & Minochi, C. Methanol-reforming reaction over

copper-containing catalysts — The effects of anions and copper loading in the preparation of the catalysts by kneading method. _J. Catal._ 69, 487–494 (1981). Article  CAS  Google Scholar  *

Ren, Y. et al. Chlorocuprate(I) ionic liquid as an efficient and stable Cu-based catalyst for hydrochlorination of acetylene. _Catal. Sci. Technol._ 9, 2868–2878 (2019). Article  CAS

Google Scholar  * Zhao, W., Zhu, M. & Dai, B. The preparation of Cu-g-C3N4/AC catalyst for acetylene hydrochlorination. _J. Catal._ 6, 193–203 (2016). Google Scholar  * Ma, J., Wang, S.

& Shen, B. Study on the effects of acetylene on an Au-Cu/C catalyst for acetylene hydrochlorination using Monte Carlo and DFT methods. _React. Kinet. Mech. Cat._ 110, 177–186 (2013).

Article  CAS  Google Scholar  * Zhang, X. et al. Highly dispersed copper over β‑Mo2C as an efficient and stable catalyst for the reverse water gas shift (RWGS) reaction. _ACS Catal._ 7,

912–918 (2017). Article  CAS  Google Scholar  * Sagar, G. V., Rao, P. V., Srikanth, C. S. & Chary, K. V. R. Dispersion and reactivity of copper catalysts supported on Al2O3-ZrO2. _J.

Phys. Chem. B_ 110, 13881–13888 (2006). Article  CAS  PubMed  Google Scholar  * Li, H., Wang, F., Cai, W., Zhang, J. & Zhang, X. Hydrochlorination of acetylene using supported

phosphorus-doped Cu-based catalysts. _Catal. Sci. Technol._ 5, 5174–5184 (2015). Article  Google Scholar  * Li, R. et al. Selective hydrogenation of acetylene over Pd-Sn catalyst:

identification of Pd2Sn intermetallic alloy and crystal plane-dependent performance. _Appl. Catal. B Environ._ 279, 119348–119358 (2020). Article  CAS  Google Scholar  * Wang, B. et al.

Synergistic effect of two action sites on a nitrogen-doped carbon catalyst towards acetylene hydrochlorination. _Phys. Chem. Chem. Phys._ 22, 20995–20999 (2020). Article  CAS  PubMed  Google

Scholar  * Li, R., Wei, Z., Gou, X. & Xu, W. Phosphorus-doped graphene nanosheets as efficient metal-free oxygen reduction electrocatalysts. _RSC Adv._ 3, 9978–9984 (2013). Article  CAS

  Google Scholar  * Wu, J. et al. Phosphorus-doped porous carbons as efficient electrocatalysts for oxygen reduction. _J. Mater. Chem. A_ 1, 9889–9896 (2013). Article  CAS  Google Scholar  *

Wang, X., Dai, B., Wang, Y. & Yu, F. Nitrogen-doped pitch-based spherical active carbon as a nonmetal catalyst for acetylene hydrochlorination. _ChemCatChem_ 6, 2339–2344 (2014).

Article  CAS  Google Scholar  * Chen, Z., Higgins, D., Tao, H., Hsu, R. S. & Chen, Z. Highly active nitrogen-doped carbon nanotubes for oxygen reduction reaction in fuel cell

applications. _J. Phys. Chem. C._ 113, 21008–21013 (2009). Article  CAS  Google Scholar  * Liu, Z. et al. Novel phosphorus-doped multiwalled nanotubes with high electrocatalytic activity for

O2 reduction in alkaline medium. _Catal. Commun._ 16, 35–38 (2011). Article  CAS  Google Scholar  * Liu, Z. et al. Phosphorus-doped graphite layers with high electrocatalytic activity for

the O2 reduction in an alkaline medium. _Angew. Chem. Int. Ed._ 50, 3257–3261 (2011). Article  Google Scholar  * Wang, B. et al. Phosphorus-doped carbon supports enhance gold-based catalysts

for acetylene hydrochlorination. _RSC Adv._ 4, 15877–15885 (2014). Article  CAS  Google Scholar  * Zhou, K. et al. Synergistic gold-bismuth catalysis for non-mercury hydrochlorination of

acetylene to vinyl chloride monomer. _ACS Catal._ 4, 3112–3116 (2014). Article  CAS  Google Scholar  * Zhao, J. et al. Alternative solvent to aqua regia to activate Au/AC catalysts for the

hydrochlorination of acetylene. _J. Catal._ 350, 149–158 (2017). Article  CAS  Google Scholar  * Conte, M. et al. Characterization of Au3+ species in Au/C catalysts for the hydrochlorination

reaction of acetylene. _Catal. Lett._ 144, 1–8 (2013). Article  Google Scholar  * Conte, M. et al. Aqua regia activated Au/C catalysts for the hydrochlorination of acetylene. _J. Catal._

297, 128–136 (2013). Article  CAS  Google Scholar  * Zhao, J. et al. Towards a greener approach for the preparation of highly active gold/carbon catalyst for the hydrochlorination of ethyne.

_J. Catal._ 365, 153–162 (2018). Article  CAS  Google Scholar  * Zhao, J. et al. Stabilizing Au (III) in supported-ionic-liquid-phase (SILP) catalyst using CuCl2 via a redox mechanism.

_Appl. Catal. B Environ._ 206, 175–183 (2017). Article  CAS  Google Scholar  * Hutchings, G. J. Au catalysts for acetylene hydrochlorination and carbon monoxide oxidation. _Top. Catal._ 57,

1265–1271 (2014). Article  CAS  Google Scholar  * Zhao, J. et al. Supported ionic-liquid-phase-stabilized Au (III) catalyst for acetylene hydrochlorination. _Catal. Sci. Technol._ 6,

3263–3270 (2016). Article  CAS  Google Scholar  * Liu, X. et al. Investigation of the active species in the carbon-supported gold catalyst for acetylene hydrochlorination. _Catal. Sci.

Technol._ 6, 5144–5153 (2016). Article  CAS  Google Scholar  * Zhao, J. et al. Enhancement of Au/AC acetylene hydrochlorination catalyst activity and stability via nitrogen-modified

activated carbon support. _Chem. Eng. J._ 262, 1152–1160 (2015). Article  CAS  Google Scholar  * Zhao, J. et al. Acetylene hydrochlorination over supported ionic liquid phase (SILP)

gold-based catalyst: stabilization of cationic Au species via chemical activation of hydrogen chloride and corresponding mechanisms. _Chin. J. Catal._ 42, 334–346 (2021). Article  CAS

Google Scholar  * Wang, B. et al. Stabilizing supported gold catalysts in acetylene hydrochlorination by constructing an acetylene-deficient reaction phase. _Green. Energy Environ._ 6, 9–14

(2021). Article  Google Scholar  * Conte, M., Carley, A. F. & Hutchings, G. J. Reactivation of a carbon-supported gold catalyst for the hydrochlorination of acetylene. _Catal. Lett._

124, 165–167 (2008). Article  CAS  Google Scholar  * Raskar, D., Rinke, M. T. & Eckert, H. The mixed-network former effect in phosphate glasses: NMR and XPS studies of the connectivity

distribution in the glass system (NaPO3)1-x(B2O3)x. _J. Phys. Chem. C._ 112, 12530–12539 (2008). Article  CAS  Google Scholar  * Wang, X. et al. Carbon-supported ruthenium catalysts prepared

by a coordination strategy for acetylene hydrochlorination. _Chin. J. Catal._ 41, 1683–1691 (2020). Article  CAS  Google Scholar  * Vilé, G. et al. A stable single-site palladium catalyst

for hydrogenations. _Angew. Chem. Int. Ed._ 54, 11265–11269 (2015). Article  Google Scholar  * Chen, Z. et al. Coordination-controlled single atom tungsten as a non-3d-metal oxygen reduction

reaction electrocatalyst with ultrahigh mass activity. _Nano Energy_ 60, 394–403 (2019). Article  CAS  Google Scholar  * Qian, H. et al. Non-catalytic CVD preparation of carbon spheres with

a specific size. _Carbon_ 42, 761–766 (2004). Article  CAS  Google Scholar  * Zhang, H. et al. Ru-Co (III)-Cu (II)/SAC catalyst for acetylene hydrochlorination. _Appl. Catal. B Environ._

189, 56–64 (2016). Article  CAS  Google Scholar  * Zhao, J. et al. Supported ionic liquid-palladium catalyst for the highly effective hydrochlorination of acetylene. _Chem. Eng. J._ 360,

38–46 (2019). Article  CAS  Google Scholar  * Zhao, J. et al. Nitrogen- and phosphorus-codoped carbon-based catalyst for acetylene hydrochlorination. _J. Catal._ 373, 240–249 (2019). Article

  CAS  Google Scholar  * Patel, M. A. et al. P-doped porous carbon as metal free catalysts for selective aerobic oxidation with an unexpected mechanism. _ACS Nano_ 10, 2305–2315 (2016).

Article  CAS  PubMed  Google Scholar  * Severino, F., Brito, J. L., Laine, J., Fierro, J. L. G. & Agudo, A. L. Nature of copper active sites in the carbon monoxide oxidation on CuAl2O4

and CuCr2O4 spinel type catalysts. _J. Catal._ 177, 82–95 (1998). Article  CAS  Google Scholar  * Hashmi, A. S. K. & Hutchings, G. J. Gold catalysis. _Angew. Chem. Int. Ed._ 45,

7896–7936 (2006). Article  Google Scholar  * Hutchings, G. J. & Kiely, C. J. Strategies for the synthesis of supported gold palladium nanoparticles with controlled morphology and

composition. _Acc. Chem. Res._ 46, 1759–1772 (2013). Article  CAS  PubMed  Google Scholar  * Tang, Z. et al. Nanocrystalline cerium oxide produced by supercritical antisolvent precipitation

as a support for high-activity gold catalysts. _J. Catal._ 249, 208–219 (2007). Article  CAS  Google Scholar  * Qin, G. et al. Gas-liquid acetylene hydrochlorination under nonmercuric

catalysis using ionic liquids as reaction media. _Green. Chem._ 13, 1495–1498 (2011). Article  CAS  Google Scholar  * Zhou, K. et al. Reactivity enhancement of N-CNTs in green catalysis of

C2H2 hydrochlorination by a Cu catalyst. _RSC Adv._ 4, 7766–7769 (2014). Article  CAS  Google Scholar  * Zhai, Y. et al. Carbon-supported perovskite-like CsCuCl3 nanoparticles: a highly

active and cost-effective heterogeneous catalyst for the hydrochlorination of acetylene to vinyl chloride. _Catal. Sci. Technol._ 8, 2901–2908 (2018). Article  CAS  Google Scholar  * Xu, H.,

Si, J. & Luo, G. The kinetics model and fixed bed reactor simulation of Cu catalyst for acetylene hydrochlorination. _Int. J. Chem. React. Eng._ 15, 20160165 (2017). CAS  Google Scholar

  * Wang, X., Zhu, M. & Dai, B. Effect of phosphorus ligand on Cu-based catalysts for acetylene hydrochlorination. _ACS Sustain. Chem. Eng._ 7, 6170–6177 (2019). Article  CAS  Google

Scholar  * Wang, Y., Nian, Y., Zhang, J., Li, W. & Han, Y. MOMTPPC improved Cu-based heterogeneous catalyst with high efficiency for acetylene hydrochlorination. _Mole. Catal._ 479,

110612 (2019). Article  Google Scholar  * Zhao, C., Zhang, X., He, Z., Guan, Q. & Li, W. Demystifying the mechanism of NMP ligands in promoting Cu-catalyzed acetylene hydrochlorination:

insights from a density functional theory study. _Inorg. Chem. Front._ 7, 3204–3216 (2020). Article  CAS  Google Scholar  * Hu, Y. et al. High performance of supported Cu-based catalysts

modulated via phosphamide coordination in acetylene hydrochlorination. _Appl. Catal. A Gen._ 591, 117408 (2020). Article  Google Scholar  * Han, Y. et al. Pyrrolidone ligand improved

Cu-based catalysts with high performance for acetylene hydrochlorination. _Appl. Organomet. Chem._ 35, e6066 (2020). Google Scholar  * Ghijsen, J. et al. Electronic structure of Cu2O and

CuO. _Phys. Rev. B_ 38, 11322–11330 (1988). Article  CAS  Google Scholar  * Tobin, J. P., Hirschwald, W. & Cunningham, J. XPS and XAES studies of transient enhancement of CuI at CuO

surfaces during vacuum outgassing. _Appl. Surf. Sci._ 16, 441–452 (1983). Article  CAS  Google Scholar  * Gaarenstroom, S. W. & Winograd, N. Initial and final state effects in the ESCA

spectra of cadmium and silver oxides. _J. Chem. Phys._ 67, 3500–3506 (1977). Article  CAS  Google Scholar  * Van Der Laan, G. et al. Satellite structure in photoelectron and Auger spectra of

copper dihalides. _Phys. Rev. B_ 23, 4369–4380 (1981). Article  Google Scholar  * Zhao, C. et al. Functions of phytic acid in fabricating metal-free carbon catalyst for the oxidative

coupling of benzylamines. _Chin. J. Chem._ 38, 1292–1298 (2020). Article  CAS  Google Scholar  * Wu, J. et al. An efficient cobalt phosphide electrocatalyst derived from cobalt phosphonate

complex for all-pH hydrogen evolution reaction and overall water splitting in alkaline solution. _Small_ 16, 1900550 (2019). Article  Google Scholar  * Liu, W. et al. Phosphorus-doped

graphite layers with high electrocatalytic activity for the O2 reduction in an alkaline medium. _Angew. Chem. Int. Ed._ 50, 3257–3261 (2011). Article  Google Scholar  * Latorre-Sánchez, M.,

Primo, A. & Garcia, H. P-doped graphene obtained by pyrolysis of modified alginate as a photocatalyst for hydrogen generation from water-methanol mixtures. _Angew. Chem. Int. Ed._ 52,

11813–11816 (2013). Article  Google Scholar  * Liu, Z. et al. Preparation of phosphorus-doped carbon nanospheres and their electrocatalytic performance for O2 reduction. _J. Nat. Gas. Chem._

21, 257–264 (2012). Article  CAS  Google Scholar  * Yang, D. et al. Revealing the reduction process of Cu(ii) by sodium bis(trimethylsilyl)amide. _Faraday Discuss_ 220, 105–112 (2019).

Article  CAS  PubMed  Google Scholar  * Bi, Z. et al. Structural evolution of phosphorus species on graphene with a stabilized electrochemical interface. _ACS Appl. Mater. Interfaces_ 11,

11421–11430 (2019). Article  CAS  PubMed  Google Scholar  * Humphrey, W., Dalke, A. & Schulten, K. VMD: visual molecular dynamics. _J. Mol. Graph._ 14, 33–38 (1996). Article  CAS  PubMed

  Google Scholar  * Long, X. et al. Graphitic phosphorus coordinated single Fe atoms for hydrogenative transformations. _Nat. Commun._ 11, 4074 (2020). Article  CAS  PubMed  PubMed Central

Google Scholar  * Lin, L. et al. Atomically dispersed Ni/α-MoC catalyst for hydrogen production from methanol/water. _J. Am. Chem. Soc._ 143, 309–317 (2021). Article  CAS  PubMed  Google

Scholar  * Li, S. et al. Impact of the coordination environment on atomically dispersed Pt catalysts for oxygen reduction reaction. _ACS Catal._ 10, 907–913 (2020). Article  CAS  Google

Scholar  * Lin, L. et al. A highly CO-tolerant atomically dispersed Pt catalyst for chemoselective hydrogenation. _Nat. Nanotechnol._ 14, 354–361 (2019). Article  CAS  PubMed  Google Scholar

  * Jin, R. et al. Low temperature oxidation of ethane to oxygenates by oxygen over iridium-cluster catalysts. _J. Am. Chem. Soc._ 141, 18921–18925 (2019). Article  CAS  PubMed  Google

Scholar  Download references ACKNOWLEDGEMENTS Financial support from the National Natural Science Foundation of China (NSFC; grant No. 21606199), the National Natural Science Foundation of

China (NSFC; grant No. 22078302), the Science and Technology Department of Zhejiang Province (LGG20B060004), the China Postdoctoral Science Foundation (2020M671791) and the National Key

Research and Development Program of China (2021YFA1501800) are gratefully acknowledged. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Industrial Catalysis Institute of Zhejiang University of

Technology, Hangzhou, 310014, People’s Republic of China Ting Wang, Zhao Jiang, Qi Tang, Saisai Wang, Mingde Yu, Yuxue Yue, Jia Zhao & Xiaonian Li * School of Chemical Engineering,

Northeast Electric Power University, Jilin, 132012, China Bolin Wang * Research Center of Analysis Measurement, Zhejiang University of Technology, Hangzhou, 310014, People’s Republic of

China Renqin Chang Authors * Ting Wang View author publications You can also search for this author inPubMed Google Scholar * Zhao Jiang View author publications You can also search for this

author inPubMed Google Scholar * Qi Tang View author publications You can also search for this author inPubMed Google Scholar * Bolin Wang View author publications You can also search for

this author inPubMed Google Scholar * Saisai Wang View author publications You can also search for this author inPubMed Google Scholar * Mingde Yu View author publications You can also

search for this author inPubMed Google Scholar * Renqin Chang View author publications You can also search for this author inPubMed Google Scholar * Yuxue Yue View author publications You

can also search for this author inPubMed Google Scholar * Jia Zhao View author publications You can also search for this author inPubMed Google Scholar * Xiaonian Li View author publications

You can also search for this author inPubMed Google Scholar CONTRIBUTIONS T.W. completed the synthesis, tests, and characterization of catalysts, analyzed and processed most of the

characterization data, and completed the article writing. Z.J. carried out the model construction and DFT calculation. Q.T. participated in the catalyst evaluation and completed the format

review of the full text. B.W. conceived the idea and conducted partial characterization analysis guidance. S.W. and M.Y. participated in the design and drawing of graphics and tables. R.C.

provides Fourier transform infrared spectroscopy (FT-IR) analysis results. Y.Y. helped polish the language of the manuscript. J.Z. and X.L. gave guidance on the full text and supervised the

project. CORRESPONDING AUTHORS Correspondence to Jia Zhao or Xiaonian Li. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW INFORMATION

_Communications Chemistry_ thanks Ding Ma and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. Peer reviewer reports are available. ADDITIONAL

INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY

INFORMATION PEER REVIEW FILE RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing,

adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons

license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a

credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted

use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT

THIS ARTICLE CITE THIS ARTICLE Wang, T., Jiang, Z., Tang, Q. _et al._ Interactions between atomically dispersed copper and phosphorous species are key for the hydrochlorination of acetylene.

_Commun Chem_ 5, 2 (2022). https://doi.org/10.1038/s42004-021-00619-7 Download citation * Received: 13 June 2021 * Accepted: 14 December 2021 * Published: 10 January 2022 * DOI:

https://doi.org/10.1038/s42004-021-00619-7 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
