Magnetic resonance microscopy at cellular resolution and localised spectroscopy of medicago truncatula at 22. 3 tesla

ABSTRACT Interactions between plants and the soil’s microbial & fungal flora are crucial for the health of soil ecosystems and food production. Microbe-plant interactions are difficult

to investigate _in situ_ due to their intertwined relationship involving morphology and metabolism. Here, we describe an approach to overcome this challenge by elucidating morphology and the

metabolic profile of _Medicago truncatula_ root nodules using Magnetic Resonance (MR) Microscopy, at the highest magnetic field strength (22.3 T) currently available for imaging. A

home-built solenoid RF coil with an inner diameter of 1.5 mm was used to study individual root nodules. A 3D imaging sequence with an isotropic resolution of (7 μm)3 was able to resolve

individual cells, and distinguish between cells infected with rhizobia and uninfected cells. Furthermore, we studied the metabolic profile of cells in different sections of the root nodule

using localised MR spectroscopy and showed that several metabolites, including betaine, asparagine/aspartate and choline, have different concentrations across nodule zones. The metabolite

spatial distribution was visualised using chemical shift imaging. Finally, we describe the technical challenges and outlook towards future _in vivo_ MR microscopy of nodules and the plant

root system. SIMILAR CONTENT BEING VIEWED BY OTHERS CHEMICAL IMAGING REVEALS DIVERSE FUNCTIONS OF TRICARBOXYLIC ACID METABOLITES IN ROOT GROWTH AND DEVELOPMENT Article Open access 04 May

2023 LABEL-FREE FUNCTIONAL ANALYSIS OF ROOT-ASSOCIATED MICROBES WITH DYNAMIC QUANTITATIVE OBLIQUE BACK-ILLUMINATION MICROSCOPY Article Open access 09 March 2024 PRECISE TRACKING OF

NANOPARTICLES IN PLANT ROOTS Article 05 September 2024 INTRODUCTION Interactions between plants and microbes are considered to be important for the health of the soil ecosystem as a whole1.

Understanding the metabolic interactions between plants and microbes, both commensal and parasitic, could help address many of the challenges we face today, related to agriculture and food

security. One such interaction is the microbiome-mediated uptake of nitrogen by plants. Availability of biologically-active forms of nitrogen in the soil is an important factor determining

crop yield. Current agricultural practice, therefore, relies strongly on nitrogen fertiliser to supplement soil nitrogen to ensure high crop yield2. The Haber-Bosch nitrogen fixation

process, used to produce the ammonia needed for these fertilisers, currently consumes 1% of the world energy sources; making it the most energy consuming process in the chemical industry3.

In contrast, alternative processes (_e.g_. symbiotic nitrogen fixation, SNF) achieve the same result of fixing nitrogen without the need for high pressure and temperature required by the

Haber-Bosch process. More precisely, plants have solved the problem of biological nitrogen fixation through commensal processes, involving bacterial infection of plant roots4. Mutualistic

infections are omnipresent in nature, with a wide range of nitrogen-fixing bacteria – such as those that are collectively named rhizobium – invading not just plants but also the phycosphere

of green algae5. The mutualistic symbiosis involves almost all parts of the plant cell machinery, including plastids and mitochondria. Of particular interest are the interactions between

rhizobial bacteria and leguminous plants, which form dedicated organs - root nodules - to accommodate the bacteria. _Medicago. truncatula_ infected with _Sinorhizobium meliloti_ (_S.

meliloti_) has long since been used as a model plant system to study plant-rhizobia interactions6. The root nodules facilitate intracellular hosting and nutrient exchange7. The result is the

efficient formation of fixed nitrogen (NH4+), which provides considerable growth advantages to leguminous plants8. Recently, a detailed fate map of root nodule formation at a genetic level

has been developed9. It has also been proposed that rhizobial metabolic activity may confer resistance to drought and salt stress10,11,12. More detailed understanding of key metabolites in

plant-nodule metabolism and importantly, their localisation within root nodule tissues could, therefore, shed light on the mechanism by which Symbiotic Nitrogen Fixation (SNF) confers

advantages to host plants. Tracking metabolite exchange non-invasively within intact nodule systems is difficult with most imaging modalities, since they require a form of sample fixation,

for example in the case of Matrix Assisted Laser Desorption/Ionisation Mass Spectrometry (MALDI-MS) imaging13. The current knowledge of the metabolic profile in the root nodules is based on

analysis with destructive extraction procedures. For example, Gas Chromatography and Liquid Chromatography in combination with Mass Spectrometry (GC/LC-MS) has provided rich metabolic

information but required destructive extraction procedures14. These _in vitro_ methods may not faithfully reflect the native structural and molecular information. Examining and mapping the

levels of metabolites directly in the intact root nodule would be important to understand the functional framework of metabolism in the native state. Magnetic resonance techniques may offer

advantages in terms of spatially resolved spectroscopic information on a single nodule, which is difficult to access with alternative techniques. Magnetic resonance imaging (MRI) has been

previously used to visualize belowground root structures15,16,17. Advances in magnetic resonance technology have resulted in steady increase in sensitivity, making Magnetic Resonance

Microscopy (MRM) a reality where resolution below 100 μM can be achieved18. A combination of advances in gradients strengths, magnetic field strengths and RF coil designs, have made it

possible to attain ever higher resolutions19. Specifically, microcoils have played an important role in increasing sensitivity, by optimally matching the RF coil to a sample of

interest20,21,22. The highest possible resolution on phantom has steadily increased over the years, and thus far maximum nominal resolutions of around 3 μm has been attained on

phantoms23,24,25,26. Biological applications have been diverse, including imaging of neuronal tissue, where cellular resolution were obtained on individual neurons27,28,29,30,31. Moreover,

highly resolved Nuclear Magnetic Resonance spectroscopy has also been demonstrated using the same type of hardware32. In this work, we applied state-of-the-art magnetic resonance microscopy

(MRM) in conjunction with localised spectroscopy at ultra-high magnetic field (22.3 T), using a home-built solenoid RF coil in order to image root nodules of _Medicago truncatula_. We

obtained not only cellular level structural information but also mapped some of the metabolic information in localised zones and how they vary across different tissues. Lastly, we describe

some of the technical challenges that were encountered and an outlook towards future _in vivo_ imaging of nodules and plant root systems. RESULTS ROOT NODULE MORPHOLOGY RESOLVED BY MR

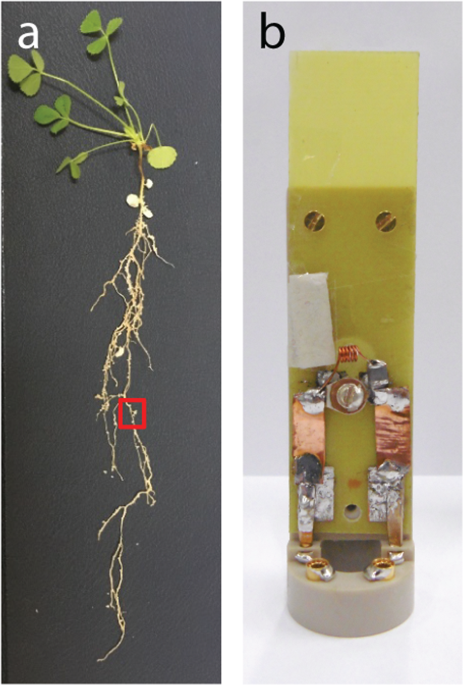

MICROSCOPY IN CELLULAR DETAIL A representative _M. truncatula_ specimen with a single root nodule shown in Fig. 1a, was imaged using a custom home-built 1.5 mm diameter solenoid coil as

depicted in Fig. 1b. Individual cells of a root nodule with two lobes and meristems (m) could be distinguished on the MRI scans. A high-resolution 3D Fast Low Angle SHot (FLASH) image of the

root nodule, fixed with formaldehyde and submerged in perfluorodecalin (PFD), is shown in Fig. 2a. All image slices through the entire root nodule are shown in the Supplementary Material

(Supplementary Video 1). Root nodule morphology in _M. truncatula_ nodules are of the indeterminate type, _i.e_., four distinct regions (zones) occur, from the apex of the root nodule to the

root attachment point4. Nodule tissue - from outward to inward - starting with the nodule cortex (nc), delineated as a high-intensity ring on the surface of the nodule, contrasted with the

darker region of the meristem (m). Cells in the meristem, responsible for the growth of the nodule, were significantly smaller than mature bacteroid containing cells. In the next region, the

rhizobial infection zone (if), young cells infected by rhizobia bacteria could be seen as a region of alternating high- and low-intensity patches. Not all cells in the rhizobial infection

zone were infected, which was apparent due to the presence of variation in image intensities, _i.e_., non-infected plant cells had a higher image intensity as compared to cells infected with

the bacterium. Lastly, in the active nitrogen fixation zone (fx), large cells (40 to 50 µm) could be distinguished by their grey rings, caused by the presence of bacteroids surrounding the

vacuole33. The fixation zone is where rhizobia make nitrogenase, the enzyme required for nitrogen fixation. In the same area, uninfected interstitial cells were visible, which did not

exhibit the rings. These interstitial cells perform an important role in the regulation of nitrogen fixation activity34. Lastly, connective tissues (vascular bundles) could be seen extending

from the root towards the periphery of the nodules, providing a route for nutrient exchange with the rest of the plant. Figure 2b shows a light microscopy image of a histological slice

stained with Toluidine blue, from the same root nodule at approximately the same plane as the MR image (co-registration). Toluidine blue stained the nuclei and lignin of the cell wall35.

Common features in Fig. 2a,b are seen, including the bacteroid ring as observed on the MR image, occurring in the staining of cells in the nitrogen fixation zone. Especially visible were the

vascular bundles extending from the central root, which due to their smaller cells appeared more densely stained in the optical microscopy image. In addition, air pockets could also be

imaged as they appeared as hypo-intense regions in the FLASH image (Fig. 2a, arrowhead). Air pockets also introduced differences in magnetic susceptibility within the sample, which

influenced image quality. Air pockets of different sizes could be seen within the fixation zone using multiple gradient echo (MGE) imaging with echoes acquired at increasing echo times

(Supplementary Fig. 1). Because of the abundance of air pockets in the apical zone, the susceptibility-induced hypointense regions also increased in size in the apical direction. To evaluate

the possibilities of high-resolution MR imaging of root nodule without any fixation or treatment, measurements were performed on freshly excised nodules (Fig. 2c). While the image contrast

and signal-to-noise ratio (SNR) was noticeably reduced, individual cells in the nitrogen fixation zone could still be distinguished. The uninfected cells appeared bright while infected cells

appeared dark in the active infection zone. Cells in the meristem appear slightly brighter in freshly excised nodule (_in situ_) than in the fixed nodule, possibly due to the native

contrast in freshly excised nodule, while in fixed nodule the contrast was possibly affected by formaldehyde fixation36,37. LOCALISED SPECTROSCOPY REVEALED THE SPATIAL DISTRIBUTION OF NODULE

METABOLITES Since the root nodule is an active plant organ whose primary function is to fix nitrogen and to facilitate nutrient exchange, SNF-linked metabolite distribution over the various

nodule zones is of interest. According to earlier literature, a nodule may be divided into four zones, based on SNF activity: (I) meristem zone, (II) infection zone, (III) nitrogen fixation

zone, and (IV) senescence zone, the latter observed mostly in older nodules. In the infection zone, bacteroids accumulate and mature, while in the fixation zone active SNF takes place38.

Localised Magnetic Resonance Spectroscopy (MRS) was utilised to distinguish metabolites in a freshly excised and PFD submerged root nodule, based on their frequency differences (chemical

shift) and location. Localised MR spectra were recorded from five different regions of interest (ROI), localised in the four different zones in an intact freshly excised root nodule, _in

situ_ (Fig. 3a). The presence of bacteroids was verified with optical microscopy after the MRI measurements (Fig. 3c). The first ROI was placed on the meristem (ROI 1) in Fig. 3a, where

little MR signal was recorded, possibly due to the small volumes of individual cells which may cause T2-shortening, reducing the SNR. The second voxel (ROI 2) was placed in the

infection/early fixation zone. The third (ROI 3) and fourth voxels (ROI 4) were placed in the largest zone: the active nitrogen fixation zone. The last voxel (ROI 5) was placed in the basal

region of the root nodule. The spectra obtained from ROIs 2–5 showed the presence of several metabolites including various amino acids, sugars, choline and betaine. Betaine was present in a

high amount in all four ROIs (Fig. 3b). The signal from sucrose and asparagine/aspartate was also clearly detected. Assignment of various metabolites was confirmed with solution-state NMR

performed on an extract obtained from the root nodules, using two-dimensional 1H-1H correlation spectroscopy (2D-COSY) (see Supplementary Fig. 2). It should be noted that, due to the

chemical shift displacement error, which increases with magnetic field strength, the regions of interest chosen for the localised spectra were shifted slightly for each metabolite, as the

spatial selection relied on the frequency of the metabolite relative to the chosen centre frequency of 4.0 ppm39. This shift meant that the indicated regions of interest in Fig. 3a were

correct for signals at δ = 4 ppm, while for example the strongest signal (at δ = 3.3 ppm) originated from an ROI which was shifted by 35 µm along x, 97 µm along y and 97 µm along z (see the

dotted region of interest in Fig. 3a). The strongest peak observed in all spectra was attributed to a resonance of glycine betaine (δ = 3.3 ppm) (Fig. 3b). A complementary spectroscopic

imaging method, Chemical shift imaging (CSI) confirmed the presence of betaine throughout the nodule (Supplementary Fig. 3). Betaine serves as an important osmoprotectant produced by _S.

meliloti_40. Furthermore choline – a precursor to glycine betaine in both plants and bacteria, was visible in ROI 3 as a shoulder on the low frequency side of the betaine peak, and was even

more pronounced in ROIs 4 and 541. In uninfected root tissue, choline, but not glycine betaine was detected as seen in solution NMR measurements (Supplementary Fig. 4). In root nodule,

another strong peak from asparagine and aspartate was seen primarily in ROIs 2–5 (Fig. 3b). Notably, glutamine - though present in ROI 4 - appeared much lower in concentration in all ROIs

than asparagine, suggesting a smaller pool or higher turnover rate in the nitrogen assimilation process. Intermediates from the tricarboxylic acid cycle such as acetate (δ = 1.9 ppm),

pyruvate (δ = 2.3 ppm) and succinic acid (δ = 2.4 ppm) were also seen in the nitrogen fixation zone (region 3 & 4). Lactate (δ = 1.3 ppm) was visible only in the active nitrogen fixation

zone (region 3 & 4). Alanine (δ = 1.5 ppm) has been suggested by metabolic network modelling to be the primary metabolite for the uptake of assimilated nitrogen by plants42. However,

our results indicated that the pool of alanine was small compared to asparagine. Sucrose, the most important resource for growth and root nodule activity, was present in all regions with a

concentration gradient towards the basal area, starting with the early fixation zone (Fig. 3b, ROI 2). Several peaks were assigned to sucrose (e.g., δ = 5.3 ppm), with some overlap with

choline (δ = 3.5 ppm) and fructose (δ = 3.8 ppm). In the basal region (region 5), the sucrose peak at δ = 5.3 ppm was hard to distinguish, possibly due to baseline distortions. Overall, the

metabolic pattern exhibited in regions 3–4 appeared to be maintained in the basal region (region 5), though attenuated and with a larger linewidth, possibly reflecting a more disorganised

structure of the tissue. At the same time active SNF still appeared to take place, indicating this region is not (yet) the senescent zone IV in which the activity would be reduced. OPTICAL

MICROSCOPIC DETECTION OF STARCH CORRELATES WITH MR BASED SUCROSE PROFILE Starch is a carbohydrate storage polymer that is unique to plants. Indeterminate root nodules are known to form

amyloplasts in certain cells, detectable by optical microscopy, especially in the youngest cells of the nitrogen-fixation zone of an actively growing nodule43. Accumulation of amyloplasts

has also been found in cells located behind the division zone in shoot meristems44. Zeeman _et al_. speculated that this might be caused by ‘a temporary imbalance between carbon import and

utilisation as cells move from division to expansion and differentiation’45. If correct, this marker for high metabolic activity should be reflected in changes to the metabolic profile of

bacteroid containing cells. Therefore, we aimed to detect pre- and post-starch granule formation zones in an intact root nodule, and correlate them with sugar metabolites as measured by

localised spectroscopy. Lugol’s solution was used to stain amyloplasts (Fig. 4a) on an optical section immediately adjacent to that of Fig. 3c, to relate the distribution of sucrose and

other metabolites to starch. Starch distribution was seen as dark spots, concentrated in a band located in the first layer of the nitrogen fixation zone as well as in smaller amyloplasts

throughout the fixation zone (Fig. 4b,d). In the nitrogen fixation zone, amyloplasts were small and dispersed over infected cells (black arrowhead) as well as uninfected interstitial cells

(white arrowhead)(Fig. 4d). In contrast, the cells present in the first layer on the border of the infection zone (II) and fixation zone (III) exhibited a different distribution of starch

(Fig. 4b). At higher magnification, large amyloplasts were visible at the periphery of the infected cells, which were almost completely filled with bacteroids (Fig. 4c). Thus, sucrose and

starch appear to co-localise with SNF activity. Taken together, starch distribution patterns could provide a possible biomarker for changes in cellular metabolism during nodule development.

DISCUSSION This paper showed the feasibility of attaining cellular resolution (7 × 7 × 7) µm3 in _M. truncatula_ root nodules over a relatively large volume (1.8 × 1.4 × 1.4 mm3), opening up

new applications for MR microscopy in plant studies (Fig. 2). Individual cells, especially young and mature bacteroids containing cells, were resolved with high contrast in fixed root

nodule, exhibiting a unique ‘grey ring’ pattern where _S. meliloti_ cells accumulated near the cell walls around a central vacuole. Smaller cells, such as those present in the meristem,

could not be resolved individually. A low signal to noise in meristem may be attributed to the shortening of T1 and T2 relaxation times as a result of formaldehyde-based fixation.

Formaldehyde is known to alter relaxation properties of tissues by cross-linking proteins, which may lead to a gel-like cytoplasm. This alters the rates of chemical exchange between water

protons and proteins, thus leading to a reduced T1 and T236,37,46. However, vacuoles are less affected by this, potentially contributing to the strong contrast between bacteroids and

vacuoles. Looking towards _in situ_ imaging in Fig. 2c, although nodules suffered from lower image contrast and SNR, the meristem appears brighter as compared to the fixed nodule (Fig. 2a).

These results also support the notion that lower signal in meristem in fixed nodule could be due to shortening of relaxation parameters. A possible reason for the overall lower image quality

in freshly excised nodule may be due to the abundance of air spaces, since no vacuum treatment was applied for _in situ_ imaging. More quantitative measurements are required to determine

the causes of reduced SNR and contrast. Although the hypo-intense regions caused by small and large air pockets can be detrimental to overall image quality (Supplementary Fig. 1), they also

contain useful information. Air pockets in root nodules of _M. truncatula_ are of particular interest, because of the delicate balance of oxygen levels required for the proper functioning of

the nitrogen fixation. The pockets may thus have a regulatory role, as nitrogenase is paradoxically both dependent on oxygen for carrying out its function but can also be poisoned by oxygen

under high concentrations47. Previous MR investigations into root nodules of soybean (_Glycine max_) have focused on investigating the oxygen diffusion barrier, believed to regulate nodule

functioning48,49. Furthermore, _Glycine max_ root nodules are known to be sensitive to changes in gas perfusion50. Thus, MRM could be a useful tool to study oxygen regulation mechanisms, due

to its ability to detect air spaces through enhanced signal loss. PRESS localised spectroscopy results show that betaine was distributed throughout the nodule (Fig. 3b). The relatively high

concentration of betaine could be due to maintaining a high degree of osmoregulation, an indicator of stress, or both41. High asparagine levels seen especially in the nitrogen fixation zone

indicate significant SNF activity. The presence of asparagine, as well as betaine, was also confirmed by high-resolution 2D correlation spectroscopy on extracts prepared from nodules

(Supplementary Fig. 2). Asparagine, together with glutamine, is known to be a major export product of assimilated nitrogen51. Our results show that asparagine accumulates mostly in active

SNF areas (regions 3–5). As such, asparagine was absent in normal root tissue (Supplementary Fig. 4). Metabolite levels of betaine and asparagine might therefore potentially provide useful

markers for stress and SNF activity, respectively. The sucrose concentration gradient, decreasing from the basal to the apical end of the nodule, may reflect either consumption rates or

limitations in transport through the nodule. In conjunction, starch granules appeared to be localised to two specific regions, a band in the transition from infection to fixation zone, and

the fixation zone (III) itself (Fig. 4). The band seemed to provide support for Zeeman’s prediction of amyloplast formation due to a ‘temporary metabolic imbalance’, though it is located at

some distance from the meristem (Fig. 4b)45. As for the fixation zone, it has been observed in the literature that starch amyloplast accumulation in uninfected cells is related to the

expression of SNF-related (_nif_) genes (Fig. 4d)52,53. Considering that sucrose was present throughout the nodule, albeit in a diminishing concentration gradient, it is likely that

cell-specific metabolism and environmental conditions determine whether and in what quantity starch amyloplasts are formed38,54. For instance, sucrose must be metabolised by the host cell in

order to provide carboxylic acids that are preferentially taken up by the bacteroids55,56. The observed distribution in size and location of amyloplasts could be affected in this way as

well. As an explorative study of ultra-high field MRM for plant imaging, several recommendations might be of interest to the reader. Sample handling and preparation are essential for

high-resolution imaging. More generally, special attention needs to be given to managing sample susceptibility at ultra-high fields, since the inclusion of even small air bubbles in the

vicinity of samples can distort image quality significantly, as well as cause line broadening in localised spectroscopic experiments. Perfluorodecalin (PFD) was useful as a submerging fluid

as its magnetic susceptibility is close to that of tissues and it gives no observable 1H signal. It is also efficient in displacing and dissolving air pockets, which are present in root

nodule tissue. The absence of extraneous signal allowed for a manual shimming strategy that was sufficient for imaging and provided a good starting point for shimming voxels of interest for

localised spectroscopy. Still, maximum shim currents on a particular system may prove to be a limiting factor for micro imaging applications. Another source of sample susceptibility could be

the presence of iron in the form of legheamogloblin which regulates oxygen levels. In bacteroids of mature nodules, up to 25% of the total soluble protein consists of legheamoglobin7. The

high concentrations of this iron-heme containing protein might have implications for the values of longitudinal relaxation (T1) and transverse relaxation (T2) and their interpretation, as

these properties may depend strongly on the physiological state of the root nodule when measured. Thus, with further characterisation, susceptibility-weighted imaging may provide a useful

method for evaluating the physiological state of root nodules. Although MRS was done on freshly excised root nodules, the use of PFD as a submerging fluid may have some influence on the

vitality of the nodule, since PFD displaces air pockets within the nodule thus, altering oxygen diffusion to the cells. Rather than a higher resolution per se, the future applications for

MRM at ultrahigh field for – _in vivo –_ imaging are also enticing, yet challenging. To achieve _in vivo_ imaging, novel coil-insert designs with the necessary life support systems would be

required. The solenoid coil type used here could be modified to allow for a relatively simple setup that would support whole plants. Vertical-bore MRI systems allow top access to supply

light and fresh medium. Additionally, controlled nutrient supply would be desirable, e.g. a continuous medium perfusion setup57. Overall, an imaging setup optimised for longitudinal studies

would allow testing of stress conditions for host-symbionts, non-destructively. In conclusion, our results demonstrate that MRM at ultra-high fields in conjunction with microcoils provides a

promising technique to determine physiology and metabolic profiling non-invasively in plant root nodules. Further research and development on coil design are required to exploit this

application to its full potential. METHODS GROWING CONDITIONS MEDICAGO TRUNCATULA _Medicago truncatula_ accession R108 was grown in perlite saturated with Färhaeus medium without nitrate in

a growth chamber at a temperature of 21 °C and 16/8-h light/dark cycle58. Plants were inoculated with _Sinorhizobium meliloti_ Rm41 (OD600 = 0.1, 2 mL per plant)59. Root nodules were

collected for analysis 21 days after inoculation. Perlite was used as a soil replacement to facilitate the extraction of intact root systems. SAMPLE PREPARATION For MRI measurements, a

single _M. truncatula_ plant was carefully extracted from the perlite substrate. Healthy nodules that exhibited a light-pinkish colour were selected and used for MRI imaging. For _in situ_

MRI and MRS measurements, a nodule was excised and was directly used for measurements without fixation. For _ex vivo_ MRI and optical microscopy, root nodules were fixed with

paraformaldehyde (4% w/v) and glutaraldehyde (5% v/v) in 50 mM phosphate buffer (pH 7.2) at 4 °C overnight, followed by vacuum treatment for 30 minutes. Samples were then stored at a

temperature of 4 °C until use. Using an SZ40 stereomicroscope (Olympus, Tokyo, Japan), individual nodules were selected that could fit within capillaries with an inner diameter of (1050 ± 

50) µm (Hilgenberg GmbH, Malsfeld, Germany). To avoid artefacts during MRI acquisition from air bubbles both within and outside the sample, a Perfluorochemical solution (Perfluorodecalin,

PFD) was used to submerge the sample. The use of a Perfluorochemical solution not only prevents sample dehydration but also minimizes susceptibility artefacts. PFD was chosen because it has

several advantageous properties, making it suitable as an infiltration agent. Importantly, it is a non-toxic compound, capable of dissolving both CO2 and O260. Furthermore, PFD exhibits a

low surface tension (1.9 × 10−2 N m−1), below the limit for stomatal penetration (2.5–3.5 × 10−2 N m−1) in _Arabidopsis thaliana_ leaves60,61, making it useful for reducing air bubbles

within the sample without entering the cells. Care was taken to minimise the required amount of PFD as it is known to function as a potent greenhouse gas62. During insertion of the nodule in

the centre position of the capillary, both nodule and capillary were kept submerged in PFD. Capillary wax (Hampton Research, California, USA) was then applied to both ends of the open

capillary with a MaxWax Pen (Hampton Research, California, USA). Considerable effort was spent on minimising the inclusion of air bubbles within the capillary. For solution NMR measurements,

metabolites were extracted from root and root nodules as described in detail by Kim _et al_. (2010)63. Key steps included manual excision of root and root nodule tissue and consequent

crushing with mortar and pestle in the presence of liquid nitrogen. Samples were then freeze-dried and lastly extracted with an extraction buffer consisting of 50% (v/v) deuterated methanol

and 50% D2O phosphate buffer (pH 6)63. MRI MEASUREMENTS A custom solenoid microcoil was built in order to achieve the necessary sensitivity required for high-resolution imaging. For the

microcoil assembly, a glass-fibre circuit board was used as a base to hold all the necessary components in place. The radiofrequency (RF) coil consisted of coated 28 AWG (Ø 0.4 mm) copper

wire, wound into a solenoid with six windings around a glass capillary with an outer diameter of (1500 ± 50) µm. A fixed 1.5 picoFarad (pF) capacitor was placed in series with the RF coil.

To complete the resonant circuit, a single 1.5–6 pF variable capacitor was placed parallel to the RF coil and 1.5 pF capacitor, which allowed for fine-tuning the resonant frequency to 950 

MHz. The circuit board was then attached to a Micro5 probe (Bruker Biospin, Ettlingen, Germany) compatible circuit holder. MRI measurements were performed on a Bruker 22.3 T (950 MHz)

spectrometer (Bruker Biospin, Ettlingen, Germany), at the uNMR-nl national facility (Utrecht, The Netherlands). The magnet had a vertical bore of 54 mm in diameter and was connected to an

Avance III HD console. A Bruker Micro5 probe with exchangeable RF inserts allowed operation of the 1500 µm custom-built solenoid resonator. The Micro5 probe contained a built-in 48 mT/m/A

(2.88 T/m at 60 A) triple axial gradient system coupled to GREAT 60 A amplifiers and cooled with a BCU 20 water cooler. Control of spectrometer operations was performed with Paravision 6.0.1

and Topspin 3.1PV running on a CentOS workstation. Sample temperature was maintained at (298 ± 1) K using a BCU II cooler. High-resolution 3D Fast Low Angle Shot (FLASH) images on _ex vivo_

and _in situ_ root nodules were acquired with the following parameters: matrix size 256 × 192 × 192; read direction along the largest matrix direction; the field of view was (1.8 × 1.4 × 

1.4) mm3. Resolution (7 × 7 × 7) µm3 isotropic, number of averages 28, acquisition time 34 h 24 m, repetition time 120 ms, flip angle 30° and echo time 2.9 ms. Receiver bandwidth was set to

100 kHz. To allow for co-registration with coupes from optical microscopy, the JIVE tool was utilised to generate oblique slices. LOCALISED SPECTROSCOPY Point Resolved Spectroscopy (PRESS)

was used for localised magnetic resonance spectroscopy (MRS) on root nodules64,65. PRESS employs 90°-180°-180° orthogonal pulses with concurrent slice selective gradients. The PRESS sequence

was preceded by a VAPOR (Variable Pulse Power and Optimized Relaxation Delays) sequence for global water suppression, which consists of seven variable power RF pulses with an optimised

relaxation delay66. Prior to MRS, a reference FLASH image was acquired with the following parameters: echo time 3.3 ms; repetition time 80 ms; matrix 192 × 128; field of view 1.8 × 1.2 mm

and receiver bandwidth 50 kHz; in plane resolution 9 × 9 µm; slice thickness 52 µm; number of averages 256; and acquisition time 43 m. Appropriate volumes of interest (voxel) for PRESS were

selected from the reference FLASH image. Correct positioning of the voxel was also verified after all spectroscopic measurements, by high-resolution 2D FLASH. Five individual MRS voxel (200 

× 350 × 350 µm3) were localised covering various zones in the nodule. The local field homogeneity was optimised over the voxel by MAPSHIM. The field homogeneity was further improved by

manual shimming of up to second order shims (Z-Z2-Z-X-Y-Z-Z2-Z-XY-XZ-YZ-Z). The time needed for shimming varied between 5–10 min. The field homogeneity resulted in a water line width of 10 

Hz. For PRESS measurement, repetition time was set to 1000 ms, echo time was 7.2 ms, and 2048 averages were acquired for a total acquisition time of 34 m 8 s. Spectra were manually phased

and automatically baseline corrected with a 3rd or 6th order Bernstein-polynomial fit. Chemical shift alignment was adjusted to the largest peak (3.3 ppm). CHEMICAL SHIFT IMAGING Chemical

Shift Imaging (CSI) was used to acquire a multi-voxel spatial map of metabolic distribution. A large volume of interest was selected using a PRESS approach, consisting of three mutually

orthogonal slice selective pulses. Then phase encoding occurred in two directions by applying incremental pulse gradients in each direction, resulting in a matrix of spectroscopic spin

echoes. The following basic parameters were used: Repetition time = 760 ms; echo time = 3 ms; Matrix = 24 × 16; FOV = 1.8 × 1.2 mm2; slice thickness = 400 µm; resolution = 150 × 150 × 400

µm3; number of averages = 1024. Spectra were acquired with 2048 points; dwell time 26.4 µs; spectral width 19.93 ppm (18,939 Hz). Magnetic field homogeneity in the selected volume was

optimized by shimming the water resonance. A VAPOR suppression scheme was applied for efficient water signal saturation before CSI acquisition. Reference FLASH images were acquired with the

following parameters: matrix size was 96 × 64; Read direction along the largest matrix direction; field of view was 1.8 × 1.2 mm2. Slice thickness was 0.1 mm; resolution (19 × 19 × 100) µm3

isotropic. Number of slices 4; number of averages 128; acquisition time 28 m 40 s. Repetition time was 210 ms; flip angle 30° and echo time 3.26 ms. Receiver bandwidth was set to 50 kHz. For

the processing of the CSI data, the integration of selected signal of specific metabolite areas in magnitude mode was overlaid on reference FLASH images using the Bruker CSI Visualisation

Tool. NMR MEASUREMENTS NMR measurements were performed on a Bruker 20.0 T (850 MHz) spectrometer with a vertical bore 54 mm in diameter connected to an Avance III HD console. A triple-tuned

broadband cryoprobe was used. Topspin 3.2 was used to control the spectrometer and for processing of the acquired data. The sample temperature was maintained at 298 K. 1H NMR spectra were

collected using a zgpr30 sequence with pre-saturation to suppress water efficiently. Data was acquired into 65k points; dwell time 29.3 µs, spectral width 20 ppm or 17,045 Hz; number of

averages, 512; dummy scans 4; pre-scan delay 10 µs. 2D homonuclear 1H-1H experiments were performed using chemical shift correlated spectroscopic sequence (COSY). The following parameters

were used: 3400 points in the direct dimension, 400 points in the indirect dimension in Digital Quadrature Mode. Both dimensions zero-filled to 4096 points. Number of averages, 96; dummy

scans, 16; Spectral width 12.0 ppm, 10,000 Hz; Temperature 298 K. Assignments were cross-checked against metabolite databases and fitting was performed using Chenomx deconvolution software

(Chenomx, Edmonton, Canada)67,68. 1D reference spectra were acquired with parameters as follows: data was acquired into 65k points; dwell time 41.6 µs, spectral width 20 ppm or 12,019 Hz;

number of averages, 64; dummy scans 4; pre-scan delay 10 µs. COSY reference spectra were acquired with the following parameters: 4096 points in the direct dimension, 256 points in the

indirect dimension in Digital Quadrature Mode. Indirect dimension zero-filled to 4096 points. Number of averages, 4; dummy scans, 16; Spectral width 12.3 ppm, 7200 Hz; Temperature 298 K. All

experimental data were acquired and processed using Paravision 6.0.1 (Bruker Biospin, Ettlingen, Germany) and Topspin 3.1 running on Linux. The default bi-cubic interpolation was applied to

enhance the details of the image prior to exporting images. Figures were prepared in Adobe Photoshop CC 2019 and Adobe Illustrator CC 2019 (Adobe Systems Incorporated, Mountain View,

California, USA). Stacked spectra were produced in MestReNova (MestreLab Research S.L., Santiago de Compostela, Spain). LIGHT MICROSCOPY After MR imaging, the sample material was dehydrated

in an ethanol series and subsequently embedded in Technovit 7100 resin (Heraeus Kulzer, Hanau, Germany) according to the manufacturer’s protocol. Sections (5 µm) were made by using a

microtome (Reichert-Jung, Leica Microsystems, Netherlands), stained with 0.05% Toluidine blue O for 1 min and additionally with Lugol’s iodine solution for a few seconds (if applicable).

Sections were analysed by using a DM5500B microscope equipped with a DFC425C camera (Leica Microsystems, Wetzlar, Germany). REFERENCES * Doran, J. W. & Zeiss, M. R. Soil health and

sustainability: managing the biotic component of soil quality. _Appl. Soil Ecol._ 15, 3–11 (2000). Article  Google Scholar  * Smil, V. Nitrogen cycle and world food production. _World

Agric_. 9–13 (2001). * Smith, B. E. Nitrogenase reveals its inner secrets. _Science_ 297, 1654–1655 (2002). Article  CAS  PubMed  Google Scholar  * Suzaki, T., Yoro, E. & Kawaguchi, M.

_Leguminous Plants: Inventors of Root Nodules to Accommodate Symbiotic Bacteria_. _International Review of Cell and Molecular Biology_ 316, (Elsevier Ltd, 2015). * Kim, B. H., Ramanan, R.,

Cho, D. H., Oh, H. M. & Kim, H. S. Role of Rhizobium, a plant growth promoting bacterium, in enhancing algal biomass through mutualistic interaction. _Biomass and Bioenergy_ 69, 95–105

(2014). Article  CAS  Google Scholar  * Barker, D. G. _et al_. Medicago truncatula, a model plant for studying the molecular genetics of the Rhizobium-legume symbiosis. _Plant Mol. Biol.

Report._ 8, 40–49 (1990). Article  CAS  Google Scholar  * Nap, J. P. & Bisseling, T. Developmental biology of a plant-prokaryote symbiosis: The legume root nodule. _Science_ 250, 948–954

(1990). Article  ADS  CAS  PubMed  Google Scholar  * Udvardi, M. K. & Day, D. A. Metabolite transport across symbiotic membranes of legume nodules. _Annu. Rev. Plant Physiol. Plant Mol.

Biol._ 48, 493–523 (1997). Article  CAS  PubMed  Google Scholar  * Xiao, T. T. _et al_. Fate map of Medicago truncatula root nodules. _Development_ 141, 3517–3528 (2014). Article  CAS

PubMed  Google Scholar  * Kunert, K. J. _et al_. Drought Stress Responses in Soybean Roots and Nodules. _Front. Plant Sci._ 7, 1–7 (2016). Article  ADS  Google Scholar  * Staudinger, C. _et

al_. Evidence for a rhizobia-induced drought stress response strategy in Medicago truncatula. _J. Proteomics_ 136, 202–213 (2016). Article  CAS  PubMed  Google Scholar  * López, M., Tejera,

N. A. & Lluch, C. Validamycin A improves the response of Medicago truncatula plants to salt stress by inducing trehalose accumulation in the root nodules. _J. Plant Physiol._ 166,

1218–1222 (2009). Article  CAS  PubMed  Google Scholar  * Ye, H. _et al_. MALDI mass spectrometry-assisted molecular imaging of metabolites during nitrogen fixation in the Medicago

truncatula-Sinorhizobium meliloti symbiosis. _Plant J._ 75, 130–145 (2013). Article  CAS  PubMed  Google Scholar  * Ogden, A. J., Gargouri, M., Park, J. J., Gang, D. R. & Kahn, M. L.

Integrated analysis of zone-specific protein and metabolite profiles within nitrogen-fixing Medicago truncatula-Sinorhizobium medicae nodules. _PLoS One_ 12, 1–17 (2017). Google Scholar  *

Schmittgen, S. _et al_. Magnetic resonance imaging of sugar beet taproots in soil reveals growth reduction and morphological changes during foliar Cercospora beticola infestation. _J. Exp.

Bot._ 66, 5543–5553 (2015). Article  CAS  PubMed  PubMed Central  Google Scholar  * van Dusschoten, D. _et al_. Quantitative 3D analysis of plant roots growing in soil using magnetic

resonance imaging. _Plant Physiol._ 170, 01388.2015 (2016). Google Scholar  * Metzner, R., van Dusschoten, D., Bühler, J., Schurr, U. & Jahnke, S. Belowground plant development measured

with magnetic resonance imaging (MRI): exploiting the potential for non-invasive trait quantification using sugar beet as a proxy. _Front. Plant Sci._ 5, 469 (2014). Article  PubMed  PubMed

Central  Google Scholar  * Glover, P. & Mansfield, S. P. Limits to magnetic resonance microscopy. _Reports Prog. Phys._ 65, 1489–1511 (2002). Article  ADS  Google Scholar  * Vegh, V.,

Gläser, P., Maillet, D., Cowin, G. J. & Reutens, D. C. High-field magnetic resonance imaging using solenoid radiofrequency coils. _Magn. Reson. Imaging_ 30, 1177–85 (2012). Article

PubMed  Google Scholar  * Peck, T. L., Magin, R. L. & Lauterbur, P. C. Design and analysis of microcoils for NMR microscopy. _Journal of magnetic resonance. Series B_ 108, 114–124

(1995). Article  ADS  CAS  PubMed  Google Scholar  * Minard, K. R. & Wind, R. A. Solenoidal microcoil design. Part I: Optimizing RF homogeneity and coil dimensions. _Concepts Magn.

Reson._ 13, 128–142 (2001). Article  CAS  Google Scholar  * Minard, K. R. & Wind, R. A. Solenoidal microcoil design Part II: Optimizing winding parameters for maximum signal-to-noise

performance. _Concepts Magn. Reson._ 13, 190–210 (2001). Article  Google Scholar  * Chen, H.-Y. & Tycko, R. Low-temperature magnetic resonance imaging with 2.8 μm isotropic resolution.

_J. Magn. Reson._ 287, 47–55 (2018). Article  ADS  CAS  PubMed  Google Scholar  * Weiger, M. _et al_. NMR microscopy with isotropic resolution of 3.0 μm using dedicated hardware and

optimized methods. _Concepts Magn. Reson. Part B Magn. Reson. Eng._ 33B, 84–93 (2008). Article  CAS  Google Scholar  * Mattle, E., Weiger, M., Schmidig, D., Boesiger, P. & Fey, M. MRI of

human hair. _Magn. Reson. Mater. Physics, Biol. Med._ 22, 181–186 (2009). Article  Google Scholar  * Ciobanu, L., Seeber, D. A. & Pennington, C. H. 3D MR microscopy with resolution 3. 7

µm by 3.3 µm by 3.3 µm. _J. Magn. Reson._ 158, 178–182 (2002). Article  ADS  CAS  PubMed  Google Scholar  * Lee, C. H., Flint, J. J., Hansen, B. & Blackband, S. J. Investigation of the

subcellular architecture of L7 neurons of Aplysia californica using magnetic resonance microscopy (MRM) at 7.8 microns. _Sci. Rep._ 5, 11147 (2015). Article  ADS  PubMed  PubMed Central

Google Scholar  * Flint, J. J. _et al_. Magnetic resonance microscopy of mammalian neurons. _Neuroimage_ 46, 1037–40 (2009). Article  PubMed  Google Scholar  * Lee, C. H. _et al_. Magnetic

Resonance Microscopy (MRM) of Single Mammalian Myofibers and Myonuclei. _Nat. Publ. Gr_. 1–9, https://doi.org/10.1038/srep39496 (2016). * Grant, S. C., Buckley, D. L., Gibbs, S., Webb, A. G.

& Blackband, S. J. MR microscopy of multicomponent diffusion in single neurons. _Magn. Reson. Med._ 46, 1107–1112 (2001). Article  CAS  PubMed  Google Scholar  * Ciobanu, L. &

Pennington, C. H. 3D micron-scale MRI of single biological cells. _Solid State Nucl. Magn. Reson._ 25, 138–141 (2004). Article  CAS  PubMed  Google Scholar  * Olson, D. L. _et al_.

High-Resolution Microcoil 1H-NMR for Mass-Limited, Nanoliter-Volume Samples. _Science (80-.)._ 270, 1967–1970 (1995). Article  ADS  CAS  Google Scholar  * Gavrin, A. _et al_. Adjustment of

Host Cells for Accommodation of Symbiotic Bacteria: Vacuole Defunctionalization, HOPS Suppression, and TIP1g Retargeting in Medicago. _Plant Cell_ 26, 3809–3822 (2014). Article  CAS  PubMed

  PubMed Central  Google Scholar  * Dakora, F. D. & Atkins, C. A. Adaptation of Nodulated Soybean (Glycine max L. Merr.) to Growth in Rhizospheres Containing Nonambient pO2. _PLANT

Physiol._ 96, 728–736 (1991). Article  CAS  PubMed  PubMed Central  Google Scholar  * O’Brien, T. P., Feder, N. & McCully, M. E. Polychromatic staining of plant cell walls by toluidine

blue O. _Protoplasma_ 59, 368–373 (1964). Article  Google Scholar  * Rivlin, M., Eliav, U. & Navon, G. NMR studies of proton exchange kinetics in aqueous formaldehyde solutions. _J.

Magn. Reson._ 242, 107–112 (2014). Article  ADS  CAS  PubMed  Google Scholar  * Rivlin, M., Eliav, U. & Navon, G. NMR studies of the equilibria and reaction rates in aqueous solutions of

formaldehyde. _J. Phys. Chem. B_ 119, 4479–4487 (2015). Article  CAS  PubMed  Google Scholar  * Dupont, L. _et al_. The Legume Root Nodule: From Symbiotic Nitrogen Fixation to Senescence.

In _Senescence_ 2, 64 (InTech, 2012). * van der Graaf, M. _In vivo_ magnetic resonance spectroscopy: basic methodology and clinical applications. _Eur. Biophys. J._ 39, 527–40 (2010).

Article  CAS  PubMed  Google Scholar  * Smith, L. T., Pocard, J. A., Bernard, T. & Le Rudulier, D. Osmotic control of glycine betaine biosynthesis and degradation in Rhizobium meliloti.

_J. Bacteriol._ 170, 3142–9 (1988). Article  CAS  PubMed  PubMed Central  Google Scholar  * Ashraf, M. & Foolad, M. R. Roles of glycine betaine and proline in improving plant abiotic

stress resistance. _Environ. Exp. Bot._ 59, 206–216 (2007). Article  CAS  Google Scholar  * Pfau, T. _et al_. The intertwined metabolism of Medicago truncatula and its nitrogen fixing

symbiont Sinorhizobium meliloti elucidated by genome-scale metabolic models. _bioRxiv_, https://doi.org/10.1101/067348 (2016). * López, M., Herrera-Cervera, J. A., Iribarne, C., Tejera, N.

A. & Lluch, C. Growth and nitrogen fixation in Lotus japonicus and Medicago truncatula under NaCl stress: Nodule carbon metabolism. _J. Plant Physiol._ 165, 641–650 (2008). Article  CAS

  PubMed  Google Scholar  * Jordy, M. N. Seasonal variation of organogenetic activity and reserves allocation in the shoot apex of Pinus pinaster ait. _Ann. Bot._ 93, 25–37 (2004). Article

PubMed  PubMed Central  Google Scholar  * Zeeman, S. C., Kossmann, J. & Smith, A. M. Starch: Its Metabolism, Evolution, and Biotechnological Modification in Plants. _Annu. Rev. Plant

Biol._ 61, 209–234 (2010). Article  CAS  PubMed  Google Scholar  * Thavarajah, R., Mudimbaimannar, V., Rao, U., Ranganathan, K. & Elizabeth, J. Chemical and physical basics of routine

formaldehyde fixation. _J. Oral Maxillofac. Pathol._ 16, 400 (2012). Article  PubMed  PubMed Central  Google Scholar  * Lundquist, P. O. Nitrogenase activity in Alnus incana root nodules.

Responses to O(2) and short-term N(2) deprivation. _Plant Physiol._ 122, 553–562 (2000). Article  CAS  PubMed  PubMed Central  Google Scholar  * Chudek, J. A., Hunter, G., Sprent, J. I.

& Wurz, G. An application of NMR microimaging to investigate nitrogen fixing root nodules. _Magn. Reson. Imaging_ 15, 361–368 (1997). Article  CAS  PubMed  Google Scholar  * Brown, S. M.

_et al_. Proton density and apoplastic domains within soybean nodules in relation to the oxygen diffusion barrier. _Plant, Cell Environ._ 20, 1019–1029 (1997). Article  CAS  Google Scholar

  * Macfall, J. S., Pfeffer, P. E., Rolin, D. B., Macfall, J. R. & Johnson, G. A. Observation of the Oxygen Diffusion Barrier in Soybean (Glycine Max) Nodules with Magnetic-Resonance

Microscopy. _Plant Physiol._ 100, 1691–1697 (1992). Article  CAS  PubMed  PubMed Central  Google Scholar  * Sulieman, S. & Tran, L. S. P. Asparagine: An amide of particular distinction

in the regulation of symbiotic nitrogen fixation of legumes. _Crit. Rev. Biotechnol._ 33, 309–327 (2013). Article  CAS  PubMed  Google Scholar  * Hirsch, A. M. & Smith, C. A. Effects of

Rhizobium meliloti nif and fix mutants on alfalfa root nodule development. _J. Bacteriol._ 169, 1137–1146 (1987). Article  CAS  PubMed  PubMed Central  Google Scholar  * Hirsch, A. M., Bang,

M. & Ausubel, F. M. Ultrastructural analysis of ineffective alfalfa nodules formed by nif::Tn5 mutants of Rhizobium meliloti. _J. Bacteriol._ 155, 367–380 (1983). Article  CAS  PubMed

PubMed Central  Google Scholar  * Prell, J. & Poole, P. Metabolic changes of rhizobia in legume nodules. _Trends Microbiol._ 14, 161–168 (2006). Article  CAS  PubMed  Google Scholar  *

Hohnjec, N., Perlick, A. M., Pühler, A. & Küster, H. The Medicago truncatula Sucrose Synthase Gene MtSucS1 Is Activated Both in the Infected Region of Root Nodules and in the Cortex of

Roots Colonized by Arbuscular Mycorrhizal Fungi. _Mol. Plant-Microbe Interact._ 16, 903–915 (2007). Article  Google Scholar  * Yang, L. O., Udvardi, M. K. & Day, D. A. Specificity and

regulation of the dicarboxylate carrier on the peribacteroid membrane of soybean nodules. _Planta_ 182, 437–444 (1990). * Flint, J. J., Menon, K., Hansen, B., Forder, J. & Blackband, S.

J. Metabolic support of excised, living brain tissues during magnetic resonance microscopy acquisition. _J. Vis. Exp._ 2017, 1–10 (2017). Google Scholar  * Limpens, E. _et al_. RNA

interference in Agrobacterium rhizogenes-transformed roots of Arabidopsis and Medicago truncatula. _J. Exp. Bot._ 55, 983–992 (2004). Article  CAS  PubMed  Google Scholar  * Weidner, S. _et

al_. Genome Sequence of Sinorhizobium meliloti Rm41. _Genome Announc._ 1, 12–13 (2013). Article  Google Scholar  * Littlejohn, G. R. & Love, J. A simple method for imaging Arabidopsis

leaves using perfluorodecalin as an infiltrative imaging medium. _J. Vis. Exp._ 2, 3–6 (2012). Google Scholar  * Schönherr, J. & Bukovac, M. J. Penetration of Stomata by Liquids. _Plant

Physiol._ 49, 813–819 (1972). Article  PubMed  PubMed Central  Google Scholar  * Tsai, W. T. Environmental property modelling of perfluorodecalin and its implications for environmental fate

and hazards. _Aerosol Air Qual. Res._ 11, 903–907 (2011). Article  CAS  Google Scholar  * Kim, H. K., Choi, Y. H. & Verpoorte, R. NMR-based metabolomic analysis of plants. _Nat. Protoc._

5, 536–549 (2010). Article  CAS  PubMed  Google Scholar  * Bottomley, P. A. Spatial Localization in NMR Spectroscopy _in Vivo_. _Ann. N. Y. Acad. Sci._ 508, 333–348 (1987). Article  ADS

CAS  PubMed  Google Scholar  * Bottomley, P. A. Point resolved spectroscopy (PRESS). _US Pat._ 4, 228 (1984). Google Scholar  * Tkác, I., Starcuk, Z., Choi, I. Y. & Gruetter, R. _In

vivo_ 1H NMR spectroscopy of rat brain at 1 ms echo time. _Magn. Reson. Med._ 41, 649–56 (1999). Article  PubMed  Google Scholar  * Wishart, D. S. _et al_. HMDB: a knowledgebase for the

human metabolome. _Nucleic Acids Res._ 37, D603–10 (2009). Article  CAS  PubMed  Google Scholar  * Cui, Q. _et al_. Metabolite identification via the Madison Metabolomics Consortium

Database. _Nat. Biotechnol._ 26, 162–4 (2008). Article  CAS  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS Experiments at the 950 MHz instrument were supported by uNMR-NL, an

NWO-funded National Roadmap Large-Scale Facility of the Netherlands (project 184.032.207). R.S. was supported by the BioSolarCells consortium project U2.3. J.R.K. was supported by the

NWO-funded graduate school Netherlands’ Magnetic Resonance Research School (NMARRS) graduate school [022.005.029]. D.S was supported by China Scholarship Council (201306040120). A.G.W. was

partially supported by European Research Grant 670629 NOMA MRI. We thank Klaartje Houben, Marie Renault and Johan van der Zwan for technical support at the uNMR-NL facility. We would further

like to thank Volker Lehmann, Henny Janssen and Pieter de Waard for help in troubleshooting. AUTHOR INFORMATION AUTHORS AND AFFILIATIONS * Solid-state NMR, Leiden Institute of Chemistry,

Faculty of Science, Leiden University, Einsteinweg 55, Leiden, 2333 CC, The Netherlands Remco van Schadewijk, Karthick B. S. Sankar Gupta, Huub J. M. de Groot & A. Alia * Laboratory of

Biophysics, Wageningen University & Research, Stippeneng 4, Wageningen, 6708 WE, The Netherlands Julia R. Krug, Frank J. Vergeldt & Henk Van As * Laboratory of BioNanoTechnology,

Wageningen University & Research, Bornse Weilanden 9, Wageningen, 6708 WG, The Netherlands Julia R. Krug & Aldrik H. Velders * Laboratory of Molecular Biology, Wageningen University

& Research, Droevendaalsesteeg 1, Wageningen, 6708 PB, The Netherlands Defeng Shen & Ton Bisseling * C.J. Gorter Center for High Field MRI, Radiology department, Leiden University

Medical Centre, Leiden University, Leiden, Albinusdreef 2, 2333 ZA, Leiden, The Netherlands Andrew G. Webb * Institute for Medical Physics and Biophysics, Leipzig University, Härtelstraße

16/18, Leipzig, 04107, Germany A. Alia Authors * Remco van Schadewijk View author publications You can also search for this author inPubMed Google Scholar * Julia R. Krug View author

publications You can also search for this author inPubMed Google Scholar * Defeng Shen View author publications You can also search for this author inPubMed Google Scholar * Karthick B. S.

Sankar Gupta View author publications You can also search for this author inPubMed Google Scholar * Frank J. Vergeldt View author publications You can also search for this author inPubMed

Google Scholar * Ton Bisseling View author publications You can also search for this author inPubMed Google Scholar * Andrew G. Webb View author publications You can also search for this

author inPubMed Google Scholar * Henk Van As View author publications You can also search for this author inPubMed Google Scholar * Aldrik H. Velders View author publications You can also

search for this author inPubMed Google Scholar * Huub J. M. de Groot View author publications You can also search for this author inPubMed Google Scholar * A. Alia View author publications

You can also search for this author inPubMed Google Scholar CONTRIBUTIONS R.S., J.R.K., A.H.V., T.B., A.A. designed the experiments. R.S. and J.R.K. conducted MRI experiments. D.S. performed

microscopy measurements. K.B.S.S.G. performed NMR measurements. R.S., J.R.K., K.B.S.S.G., F.J.V., A.A. analysed the results. H.J.M.G., A.G.W., H.V.A., A.H.V., A.A. supervised the project.

R.S., J.R.K., A.A. wrote the manuscript. All authors reviewed the manuscript. CORRESPONDING AUTHOR Correspondence to A. Alia. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no

competing interests. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION. SUPPLEMENTARY VIDEO 1. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International

License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source,

provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons

license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and your intended use is not permitted by

statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this license, visit

http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE van Schadewijk, R., Krug, J.R., Shen, D. _et al._ Magnetic Resonance Microscopy at

Cellular Resolution and Localised Spectroscopy of _Medicago truncatula_ at 22.3 Tesla. _Sci Rep_ 10, 971 (2020). https://doi.org/10.1038/s41598-020-57861-7 Download citation * Received: 12

July 2019 * Accepted: 18 December 2019 * Published: 22 January 2020 * DOI: https://doi.org/10.1038/s41598-020-57861-7 SHARE THIS ARTICLE Anyone you share the following link with will be able

to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing

initiative
