The characteristics of absorbency under load (aul) for superabsorbent and soil mixtures

ABSTRACT Various applications of superabsorbent polymers (SAP) include the use of these materials in agriculture and environmental engineering to increase soil water retention. Under such

conditions, there is water absorption of the SAP in soil under load. This paper presents the results of absorbency under load (AUL) of a cross-linked copolymer of acrylamide and potassium

acrylate mixed at ratios of 0.3%, 0.5% and 1.0% with coarse sand and sandy loam. The mixtures were subjected to loads equivalent to 10, 20 and 40 cm of soil. The highest differences in AUL

values for both soils, compared to the control sample, were obtained after 24 hours and at a maximum load of 5.9 kPa, which corresponds to a load of a 40 cm thick topsoil layer. The AUL was

71.4 g∙g−1 for coarse sand and 52.7 g∙g−1 for sandy loam with a 1.0% SAP addition, which corresponded to 24.0% and 18.0%, respectively, of the absorption in the control sample. All the

conducted tests revealed a significantly low rate of water absorbency, which is especially important for capturing the water that infiltrates into the soil profile. The results demonstrate

that water absorption by SAPs decreased with the increase in SAP addition. SIMILAR CONTENT BEING VIEWED BY OTHERS ENHANCEMENT OF SANDY SOIL WATER RETENTION USING SUPERABSORBENT CARBOXYMETHYL

CELLULOSE GRAFTED WITH POLYACRYLAMIDE AND POLYACRYLAMIDOMETHYL PROPANESULFONIC ACID COPOLYMER Article Open access 13 May 2025 DESIGN AND MANUFACTURING OF SUPERABSORBENT POLYMERS (SAPS) FOR

AGRICULTURE IN ARID AREAS Article Open access 09 May 2025 EXPERIMENTAL INVESTIGATION OF BINDER BASED ON RICE HUSK ASH AND EGGSHELL LIME ON SOIL STABILIZATION UNDER ACIDIC ATTACK Article Open

access 09 May 2022 INTRODUCTION SAPs are crosslinked polymer networks with strong hydrophilic groups that can be tailored to meet specific parameters of water absorption, depending on the

composition1,2. The loosely cross-linked structure of SAPs and their capability to absorb water and its solutions in amounts several hundred times higher than their dry mass have attracted

much attention in recent years3,4,5,6. Because the absorption capacity of SAPs exceeds that of conventional products, SAPs are widely used in medicine, the manufacturing of personal care

products, water treatment, food storage, environmental engineering, forestry, and a variety of agricultural and urban greenery applications as soil conditioning agents7,8,9,10,11,12,13,14.

The function of SAPs in the soil is to absorb water from rainfall or irrigation systems and then gradually release it to plants to support their growth and enhance their quality15. Chemical

crosslinks prevent the dissolution of SAPs in water during the swelling process16,17. Because they do not become hydrophobic during droughts, these materials may support water retention and

improve the water retention capacity (WRC) of sandy soils and permeable soils much more efficiently than can humic substances18. As a result, SAPs are characterized by properties that enable

them to support vegetation growth and reduce evaporation and leaching of fertilizers and protective agents in areas with limited irrigation opportunities, where irrigation is necessary to

support plant development and reduce water stress19,20,21. The water absorbed by SAPs may be supplied to plants by suction forces of the roots, so even up to 95% of the water can be used22.

Water absorption by SAPs in soil depends on several factors, including soil structure, saline content, temperature, pH, moisture content, and presence of microorganisms, as well as soil

wetting and drying cycles23. On the other hand, in terms of surface performance characteristics, the amendment type does have a significant effect on certain soil parameters, e.g., shear

strength, soil structure and total soil porosity24,25,26,27,28. Considering the target application of SAPs, the swelling kinetics of the absorption process is very important. When the SAPs

are submerged in water, the water diffuses into the polymer matrix, and the material starts swelling. The water continues to migrate to the dynamically emerging spaces between macromolecular

chains until the equilibrium state is achieved29. The water transport in SAPs is Fickian in nature30. As far as SAPs are concerned, the spring and dashpot Voight-based viscoelastic model is

best known and most often applied for use in modeling creep and relaxation31,32,33. The most commonly used way of introducing SAPs into soil is mechanical mixing with soil at the required

depth34. Regardless of the manner of introduction to the soil, the SAP will swell under loading and in a limited space. The topsoil layer load directly influences the reduced absorption

capacity35,36. However, so far, few studies have been conducted that describe the characteristics of the interactions between SAPs and soil. The external load and the swelling capability of

SAPs in porous regions of the soil have a direct influence on the SAP’s water absorption capacity. The described results of absorbency under load (AUL) either include the basic parameters of

synthesized SAPs or refer to their applications in personal care products31,32,33,37. The results of these studies do not reflect the characteristics of SAP swelling in soil and thus cannot

be representative of applications in environmental engineering and agriculture. The main objective of the present research project is to provide an analysis of the SAP liquid absorption in

soil mixtures under loads corresponding to various topsoil layer thicknesses. The authors prepared mixtures of SAPs and soils of various densities and at various ratios. The mixtures were

subjected to additional loads with solid weights that simulated upper soil layers of various thicknesses. The objective of the study was to describe the process of SAP swelling in time in

conditions similar to the actual applications in environmental engineering and agriculture. MATERIALS AND METHODS MATERIALS A cross-linked copolymer of acrylamide and potassium acrylate –

Aquasorb 3005 KL (SNF FLOERGER, Andrézieux, France) was used in this study. The SAP used in the experiments was in the form of dry, irregularly shaped granules. The SAP-soil mixture was

prepared using two types of soil: coarse sand and sandy loam. The samples were collected from the upper soil horizon (0–30 cm) at the Experimental Field Station of the Wrocław University of

Environmental and Life Sciences in Swojec (51°06′58″N 17°08′26″E). SAPS AND PHYSICAL CHARACTERISTICS OF THE SOILS The grain size distribution of the SAPs and soils used was determined by the

sieving method. A total of 500 g of dry material was sieved by pouring onto a sequence of 6 sieves with mesh widths of 0.10, 0.25, 0.50, 1.00, 2.00, and 5.00 mm. Soils that contained finer

particles were subjected to hydrometer analysis. The tests were repeated 3 times for each material, and the results were averaged. Soil bulk densities were determined by the bulk density

test, in which the weight and volume of the soil sample were measured after being dried in the oven. Soil organic matter (SOM) was determined as percentage weight loss before and after

burning in a 400 °C furnace. As a result, grain size distribution curves with a range of grains were created. The soil parameters are presented in Table 1. The tested soils were classified

according to the USDA classification. AUL MEASUREMENT PROCEDURE The tests were based on the measurement concept developed by Ramazani- Harandi _et al_.38 and were modified by Lejcuś _et

al_.35. Tests of AUL were conducted in a Multitest 2.5-xt apparatus manufactured by Mecmesin. A mixture of dry soil (200 g) with SAP in predefined proportions (0.30%, 0.50%, 1.00%) was

prepared separately for each test. The SAP was manually mixed with the soil in a container using a mixer until a homogeneous mixture was obtained. A set of Plexiglas cylinders was prepared

for the tests. The SAP-soil mixture was placed in the internal cylinder with a porous bottom (d = 70.00 mm) and subjected to the cylindrical solid load (d = 68.00 mm) of a weight

corresponding to the upper soil layer thickness. The whole set was then placed in the external cylinder (d = 80.00 mm) on the tray of the apparatus. Afterwards, distilled water at a

temperature of 23 °C was added to the external cylinder through a droplet system. The water level in the external cylinder was regulated to reach the height of the sample to ensure full

saturation for the duration of the experiment. The amount of water during the tests was also controlled to prevent the hydraulic pressure from influencing the sensor device. In the

experiment, the SAP-soil mixture was placed under a cylindrical solid load with a weight corresponding to layers of soil with a bulk density of 1.50 g/cm3 and heights of 10.00, 20.00, and

40.00 cm. The weights were converted into kPa. These heights correspond to the typical layers of covers of earth structures or to those layers used when planting trees and bushes. The

experiment was repeated three times for each SAP-soil mixture-load configuration. The results were averaged. The load caused by the soil layer was calculated using the following equation:

$${\rm{\upsilon }}={\rm{\rho }}\cdot {\rm{g}}\cdot {\rm{h}}[P{\rm{a}}]$$ (1) where υ is the soil load [Pa], ρ is the bulk density of the overlying soil [kg∙ m−3], g is the acceleration due

to gravity [m∙s−2], and h is the soil layer height [m]. The changes in sample height were measured by an apparatus sensor for 24 hours and plotted as displacement over time. To simulate the

soil load, the cylindrical metal weights were placed on top of the SAP-soil mixture so as to prevent rubbing against the walls of the cylinder. Measurements were taken with the use of a

force sensor (ICL) with an accuracy of ±0.10%. During swelling under load, the sample put pressure on the ICL force sensor. When the force measured by the sensor reached 0.20N, the sensor

moved up until the force was reduced to 0.00N. The displacement of the sensor and increase in force were measured at a frequency of 10 Hz by the controlling software Emperor™ (version

1.18-305, Mecmesin Ltd., Slinfold, United Kingdom). This procedure allowed us to measure the increase in sample height and the time of swelling of the SAP. Additional tests were conducted

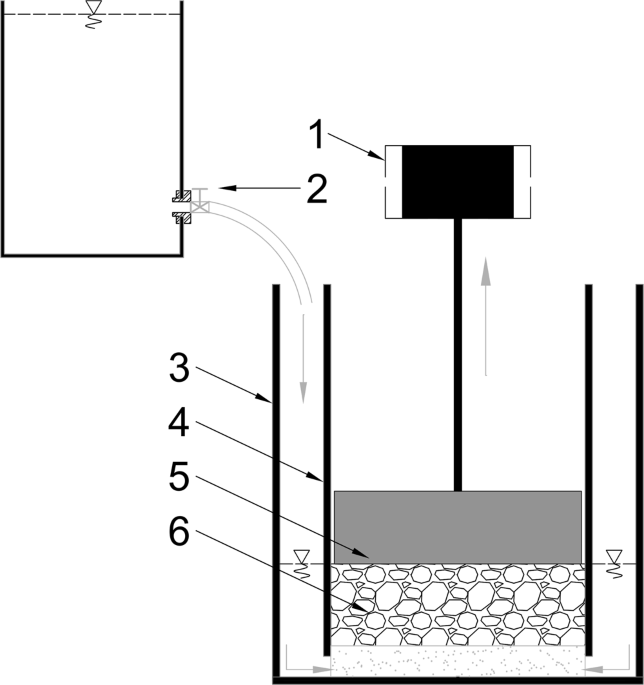

using pure SAP without load as a control sample. The drawing of the apparatus with the experimental setup is presented in Fig. 1. The measured increase in sample height was converted into

swelling value [g∙g−1]. The test series were conducted in the same way. AUL was calculated according to the following formula (2)38: $${\rm{AUL}}=\frac{{\rm{W}}2-{\rm{W}}1}{{\rm{W}}1}$$ (2)

where AUL [g∙g−1] is absorbency under load, and W1 [g] and W2 [g] are the weights of the swollen SAP and dry SAP, respectively. The data were processed using the Voight-based model, and the

swelling rate of the SAP was described by the following Eq. (3)32,33: $${{\rm{S}}}_{{\rm{t}}}={{\rm{S}}}_{{\rm{e}}}(1-{e}^{-\frac{t}{\tau }})$$ (3) where St [g∙g−1] is the swelling at time

t, Se [g∙g−1] is the equilibrium swelling (power parameter, absorption capacity), t [min] is the time of swelling, and τ [min] is the time parameter (time required to reach 63% of the

maximum absorption capacity). Using the Voight-based model, the rate parameter (τ) and equilibrium swelling (Se) were calculated for each load-ratio configuration. Statistical analyses were

conducted to determine the statistical significance of the obtained swelling results of SAP-soil mixtures under load. The equality of variances was calculated using the Levene test. The

statistical groups (different loads and SAP-soil proportions) for both soils used were compared with the control group (without load or soil) by performing Dunnett’s C test (post hoc group

comparison). The level of significance was set at 0.05 for each group (n = 9). Data analysis and curve fitting were conducted using Statistica software (version 13.0, StatSoft, Kraków,

Poland) and Microsoft Excel (version 2007, Microsoft Corporation, Redmont, USA). RESULTS PHYSICAL CHARACTERISTICS OF SOILS AND SAPS The characteristics of grain size distribution need to be

evaluated to determine the correct methods for swelling capacity characterization. The most important property of SAPs, i.e., their absorption capacity, is directly linked to particle size

and degree of cross-linking39. The grain size distribution of soils is also important from the point of view of preparing SAP-soil mixtures. The grain size distributions of the analyzed

soils and SAP is presented in Fig. 2. For Aquasorb 3005 KL, particles from the 0.50–1.00 mm range account for the highest share (over 36%), followed by the 1.00–2.00 mm particles (35.00%).

For coarse sand, the highest share was noted for the 1.00–2.00 mm particles (over 62.00%), while particles in the 0.50–1.00 mm range accounted for more than 35%. Sandy loam was characterized

by the most differentiated particle sizes. The ranges of 0.50–1.00 mm, 0.25–050 mm and 0.10–0.25 accounted for 21.00%, 19.00% and 18.00%, respectively. AUL AND SWELLING KINETICS The

obtained values of the rate parameter (τ) and equilibrium swelling (Se) for the tested SAP-soil mixtures under various loads are presented in Table 2, and the curves fitted to the swelling

process are shown in Figs. 3 and 4. The analysis of results demonstrated that the assumptions for parametric tests (variance equality and normal distribution) were not fulfilled. The

non-parametric Dunnett’s C test was conducted to compare individual groups with the control group. The results revealed that all variants of the experiment (different loads and SAP-soil

proportions) differed substantially from the control samples. The results prove that load has a noticeable influence on the reduction in swelling of SAP-soil mixtures. Regardless of the

applied load and the proportion in which the SAP was mixed with soil, the differences in water absorption compared to those in free swelling are significant (Table 2; Figs. 3 and 4). The

highest differences in the AUL values compared to the control samples after 1440 min, for both coarse sand and sandy loam, were obtained for the pressure of 5.89 kPa, which corresponds to a

load of topsoil layer thickness of 40.00 cm (bulk density of 1.50 g∙cm−3) (Figs. 3 and 4). In this variant, the obtained AUL values were 71.40 g∙g−1 for coarse sand and 52.70 g∙g −1 for

sandy loam (1.00% SAP), which account for over 24.00% and nearly 18.00%, respectively, in comparison to the control group. The load affects not only the AUL but also the swelling kinetics. A

sample of SAP-coarse-sand mixture (1.00%) subjected to a load of 5.89 kPa reached an AUL of 16.30 g∙g−1 after the first 30 min of the experiment, while it took the control sample only 3 min

to reach this value. For the same load and the proportion of 0.50% in the SAP-sandy-loam mixture, the AUL after 30 min was 11.70 g∙g−1, while the control sample achieved this value after

only 2 min. The highest AUL values were noted for samples loaded with a 10 cm soil layer (1.47 kPa), where the share of SAP in the mixture was the lowest (0.30%) (Figs. 3 and 4). The maximum

AUL values in this configuration were 100.30 g∙g −1 for coarse sand and 96.50 g∙g −1 for sandy loam. Although the AUL results for both soils were similar, the swelling rates differed. The

SAP-sandy-loam sample took 220 min to reach 90.00% of the total AUL, while the SAP-coarse-sand mixture sample needed only 130 min. Regardless of the type of soil, the proportions of SAP in

the mixture and of the external load, the amount of retained water and the absorption rate were significantly lower than those in the control group. The difference in absorption under load

between the SAP-sandy-loam mixture (0.50%) subjected to a load of 5.89 kPa and the control sample without load exceeds 1200.00%. The lowest variability of the differences in absorption was

noted for the smallest load of the coarse sand sample (0.30%), which equaled approx. 300.00% for the entire duration of the experiment. To obtain the maximum efficiency of water absorption

by the SAP-soil mixture, one should take into account the share of SAP in the mixture and the thickness of the layer with which it will be loaded. DISCUSSION The tests of SAP in terms of

their capacity to absorb water and its solutions are based on various methodological approaches and usually consist of two main types: water absorbency tests, where the SAP is directly mixed

with soil, and tests of absorbency under load, where the SAP is subjected to additional load. The present study combines both these approaches and focuses on analyzing the absorbency under

load for SAP-soil mixtures at various proportions to obtain the actual values of water absorption by the given SAP under a specific load. The comparison of experiments conducted on SAP-soil

mixtures in various proportions reveals that the water absorption by the SAPs decreased with the increase in SAP addition20,40,41,42. In cases where this correlation is not true, the

differences in water absorbency are low and reach only approx. 5.00%43. On the other hand, experiments conducted on SAP samples subjected to direct load confirm the influence of load on the

absorption value. However, in this approach, the type of absorbed substance is an important factor. The results of the present experiment and of others conducted with use of DI water

demonstrate that the AUL decreases significantly with the increase in load35, while tests on the absorption of saline solutions yielded less varied results, although the differences in the

load of the sample were three times higher36,44. Although numerous studies on various SAP polymers have been conducted, the comparison of results still poses a problem. Due to the

differences in the methodologies used by the authors, the conditions of the experiments and the use of various types of SAPs in various doses, the differences in the results are often

significant and prevent a direct comparison of the obtained results. Table 3 presents the results obtained by other authors that take into account the SAP addition in SAP-soil mixtures.

Table 4 presents the results obtained by other authors that take into account the absorbency under load. The values of load, SAP addition, and water absorbency have been converted to the

same units. In spite of the differences mentioned before, the results obtained by the authors of this study are similar to those obtained by other authors. The addition of SAPs to soils

improves the retention of water, which may be used by plants. However, the water absorbency values decrease with the increase in the SAP-soil ratio, which should be considered when choosing

the dosage of SAP. Another important parameter is the influence of the external load, which directly limits the absorption volume. The conducted research confirmed that tests of SAP-soil

mixtures result in higher AUL values than tests of SAP without subjecting the soil to load. This difference results from the swelling of single grains of SAP in soil pores. In this way, the

conducted research reflected the interaction between SAP and soil with which the material is mixed and additionally loaded with an external layer. The obtained results also illustrate the

necessity to consider the influence of soil load on the SAP and the resulting water absorbency reduction and rate if SAPs are used as a means to improve soil water retention. This problem

may be solved by enabling the SAPs to absorb water in the soil medium without the influence of the load of a layer of soil, e.g., in the form of water-absorbing geocomposites, whose

structure provides the SAPs with sufficient space to swell freely45. CONCLUSIONS The conducted research confirmed that both AUL and SAP content are important parameters that determine water

absorbency by SAPs in soil medium, which in turn is reflected in the efficiency of their use in environmental engineering and agriculture. The main factors that affect water absorbency by

SAPs are the depth of application and soil bulk density, which determine the influence of load on the SAP and the amount of its addition to soil. The obtained results show that the

effectiveness of SAP application into soil may be estimated based on the results of water absorbency of SAP-soil mixtures. In the conducted tests, the differences in the amount of water

retained (absorbed) by the SAP mixed with soil, for the analyzed maximum load 5.89 kPa, exceed 1200% in comparison to the control sample. Soil load not only limits water absorption by the

SAP, but it also delays swelling time, which is important if the superabsorbent is applied as an additive to improve soil water retention. The obtained results confirm the need to reconsider

the manner of introducing SAPs into the soil. These results also indicate the need to specify the depth of application and the manner of introducing SAPs to soil in the descriptions of
