ABSTRACT Timely detection of outbreaks is needed for poliovirus eradication, but gold standard detection in the Democratic Republic of the Congo takes 30 days (median). Direct molecular


detection and nanopore sequencing (DDNS) of poliovirus in stool samples is a promising fast method. Here we report prospective testing of stool samples from suspected polio cases, and their


contacts, in the Democratic Republic of the Congo between 10 August 2021 and 4 February 2022. DDNS detected polioviruses in 62/2,339 (2.7%) of samples, while gold standard combination of


cell culture, quantitative PCR and Sanger sequencing detected polioviruses in 51/2,339 (2.2%) of the same samples. DDNS provided case confirmation in 7 days (median) in routine surveillance


conditions. DDNS enabled confirmation of three serotype 2 circulating vaccine-derived poliovirus outbreaks 23 days (mean) earlier (range 6–30 days) than the gold standard method. The mean


sequence similarity between sequences obtained by the two methods was 99.98%. Our data confirm the feasibility of implementing DDNS in a national poliovirus laboratory. SIMILAR CONTENT BEING


VIEWED BY OTHERS SPORADIC DETECTION OF VACCINE-DERIVED POLIOVIRUS TYPE 2 USING NEXT-GENERATION SEQUENCING IN CANADIAN WASTEWATER IN AUGUST OF 2022 Article Open access 15 April 2025


DEVELOPMENT OF NUCLEIC ACID LATERAL FLOW IMMUNOASSAY FOR MOLECULAR DETECTION OF _ENTAMOEBA MOSHKOVSKII_ AND_ ENTAMOEBA DISPAR_ IN STOOL SAMPLES Article Open access 19 March 2024 EVALUATION


OF TWO MOLECULAR DETECTION PLATFORMS FOR GASTROENTERITIS PATHOGENS IN TREATED SEWAGE WATER IN THE EASTERN PROVINCE OF SAUDI ARABIA Article Open access 16 December 2022 MAIN Despite


substantial progress made by the Global Polio Eradication Initiative (GPEI), since inception in 1988, poliomyelitis remains a major public health problem in countries with low vaccination


coverage. Mass vaccination campaigns with oral poliovirus vaccine (OPV) are used during poliovirus outbreaks to stop transmission. However, a combination of slow shipping of stool samples,


time-consuming virus isolation using cell culture and insufficient sequencing capacity delay outbreak responses and reduce the impact of mass vaccination campaigns1,2,3. In August 2020, the


African Region was declared to have interrupted the transmission of wild poliovirus (WPV)4. Vaccination with OPV has resulted in outbreaks of circulating vaccine-derived poliovirus (cVDPV),


which occurs by reversion of attenuating mutations in the live-vaccine strain. Live-vaccine strains are shed in faeces following vaccination and can spread in under-immunized populations,


with the attenuating mutations being lost over time5,6. Serotype 2 cVDPV (cVDPV2) epidemics in young children plague Africa, and Western Asia, in this post-WPV era. In 2020, 959 cases of


paralysis caused by cVDPV2 were reported in 27 countries, including 21 countries in Africa7; in 2021, 692 cases caused by cVDPV2 and 20 cases by serotype 1 cVDPV were reported globally,


mainly in Africa including Nigeria and the Democratic Republic of the Congo (DRC)8. In 2022 at least 843 cases of VDPV were reported, 502 of which were in the DRC8. In DRC, 10 years after


the last case of WPV, there has been almost continual circulation of cVDPV2 as a result of emergence of cVDPV2 following the use of serotype 2 OPV in response to existing outbreaks.


Responses are hampered by inadequate surveillance and lengthy times before outbreaks are confirmed. Poliovirus surveillance is based on the collection of stool samples from children with


acute flaccid paralysis (AFP) and their contacts, and on environmental (sewage) sampling. Effective poliovirus surveillance relies on high-quality sample collection and laboratory testing.


Stool collected from an AFP case is considered adequate for testing if two stools are collected 48 h apart, within 2 weeks of onset of paralysis, and arrive by cold chain with proper


documentation. In DRC, the proportion of AFP cases with inadequate stool sample collection was 23% in 2018 (ref. 8). Additionally, logistical challenges in sample shipment to the laboratory,


in laboratory testing of the samples and in international shipment (to South Africa) for sequencing cause delayed detection of poliovirus outbreaks. Case numbers from an outbreak have been


estimated to increase by approximately 12% (95% credible interval 5–21%) per additional week9 (average of data for the African Region) owing to these logistical problems. The World Health


Organization (WHO) identified delays in detection as one of the major challenges facing the polio eradication programme10. The DRC comprises 2,345,000 km² but has just one WHO-accredited


laboratory, at the Institut National de Recherche Biomédicale (INRB) in Kinshasa, that is responsible for country-wide biological diagnosis of poliovirus. The INRB uses a sensitive and


standardized WHO detection protocol that combines cell culture with intratypic differentiation (ITD) quantitative PCR (qPCR). Sequencing of the poliovirus VP1 capsid region is carried out at


a separate laboratory in the Republic of South Africa, with a VP1 sequence required to both confirm poliovirus detection, or cases and to distinguish cVDPV from vaccine strains. The GPEI is


currently considering which approaches to use to achieve polio eradication in the last two WPV-endemic countries, Afghanistan and Pakistan, and to combat outbreaks of cVDPV in four of WHO’s


six geographical regions3. The WHO Polio Eradication Strategy 2022–2026 (ref. 3) committed to improvements in detection and response. This includes direct detection of poliovirus in stool


samples, thereby removing the need for the cell-culture-based detection algorithm according to the worldwide poliovirus containment aims11, and shifting of poliovirus testing and sequence


analysis to country level. These improvements in detection and response could be achieved by implementation of a direct molecular detection and nanopore sequencing (DDNS) method12. DDNS


combines fast, direct detection from stool samples with on-site sequencing, avoiding international transport of samples and enabling quick response to outbreaks9. It could be implemented in


any laboratory already using PCR, including INRB, in which Illumina and nanopore sequencing have been used for Ebolavirus, measles, monkeypox and severe acute respiratory syndrome


coronavirus 2 (refs. 13,14). In this Article, to validate DDNS implementation so that it can be considered as a recommended method by the WHO Global Polio Laboratory Network (GPLN)15, we


undertook a prospective study in the DRC to evaluate application of the DDNS protocol and compared it with gold standard cell-culture methods for poliovirus surveillance. Here we report the


sensitivity and specificity of DDNS compared with cell culture, sequencing accuracy, time taken in the lab and associated cost data. COMPARISON OF DDNS WITH GOLD STANDARD POLIOVIRUS


DIAGNOSTIC Stool samples were tested in parallel using both the DDNS and the gold standard assay. A total of 2,339 prospective stool samples, from 1,159 AFP cases (each yielding 1 or 2


samples) and 62 case contacts or community samples (each 1 sample), were processed using 26 nanopore sequencing runs in a 141 day period, averaging one sequencing run every 5.4 days. DDNS


identified 62 samples (2.7% of total samples) as positive for poliovirus, with 36 cVDPV2 (1.58%), 5 Sabin serotype 1 (0.30%), 19 Sabin serotype 3 (0.90%) and 2 that contained serotypes 1 and


3 Sabin poliovirus (0.09 %) (Table 1). The gold standard assay identified polioviruses in 51 samples, of which 31 samples were serotype 2 VDPV (1.33%), 4 were Sabin serotype 1 (0.17%) and


16 were Sabin serotype 3 (0.68%). The sensitivity and specificity of detection for each poliovirus type for DDNS or the current gold standard assay is presented in Table 2. cVDPV2 detected


by either method were not contamination because sequences differed from those of other samples (as shown in Supplementary Fig. 1). The sensitivity and specificity of the two methods did not


differ significantly (Fisher’s exact test). Two stool samples were available for 1,118 AFP cases, with 37 cases positive for poliovirus by either method. Eighteen cases had full concordance


between both methods with both samples testing positive (Supplementary Table 1). There were no cases where both samples tested positive by the gold standard assay and yielded no positive


DDNS result, whereas in nine cases with positive DDNS results no poliovirus was detected by the gold standard assay. A single sample or pair of samples were available for 1,159 AFP cases.


The sensitivity and specificity of detection were calculated for each AFP case (Table 3), and for only AFP cases where two stools were available (_n_ = 1,118 cases; Supplementary Table 2).

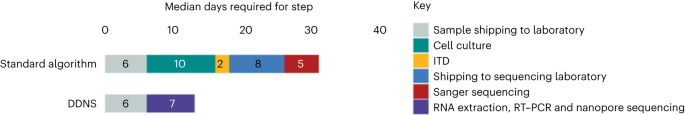

TIME TAKEN TO CONFIRM POLIOVIRUS BY VP1 SEQUENCING During this study period, 27 samples containing VDPV2 had the VP1 region sequenced using both diagnostic methods. Only samples of


programmatic importance (where vaccination response may be required; all serotype 2 viruses and any suspected vaccine-derived and wild-type polioviruses) are sequenced following cell culture


whereas DDNS produces a sequence for positive samples without requiring additional sequencing elsewhere. For these 27 samples a median of 6 days was required between case onset and sample


collection (range 2–21 days) and a further median 6 days was required between sample collection and arrival of samples at the sequencing laboratory (range 2–27 days). The time from receipt


in the sequencing laboratory to a VP1 sequence took a median of 30 days (range 21–41 days) via the standard algorithm, including a median of 8 days (range 4–22 days) required for shipment


between the virus isolation and sequencing lab, while DDNS was significantly quicker (_P_ < 0.001, Mann–Whitney _U_ test) requiring a median of 7 days (range 4–23 days) (Fig. 1). CVDPV2


OUTBREAKS DURING THE STUDY PERIOD During the study period, four cVDPV2 outbreaks occurred in the Province of Maniema in the DRC and confirmed through the routine gold standard algorithm. For


two of the linages (RDC-MAN-3 and RDC-MAN-4) the sample confirming circulation (second case) was collected during the study period, while for RDC-MAN-2 the confirming sample was collected


42 days before the study period and processed during training. The gold standard detection algorithm required 27, 35 and 64 days, respectively (mean 42 days), to process these samples from


collection to Sanger sequencing. These same samples were processed in 6, 20 and 30 days, respectively, by DDNS, despite the samples for RDC-MAN-2 being collected before the study period, a


mean of 23 days quicker. The fourth outbreak lineage, RDC-MAN-5, only had the first positive sample collected during the study period, but this sample similarly yielded a VP1 sequence 29 


days earlier by DDNS. The geographic spread of cases identified by DDNS for the four outbreaks and relatedness of RDC-MAN-3 outbreak lineage is shown in Fig. 2. Based on the poliovirus VP1


molecular clock and these DDNS-derived VP1 sequences we estimate that the RDC-MAN-3 lineage emerged from a OPV2 vaccination campaign performed in the first quarter of 2020 (mean date 26


January 2020, 95% highest posterior density 4 April 2019 to 16 September 2020). COMPARISON OF SEQUENCES USING DDNS AND SANGER SEQUENCING Where consensus cVDPV2 VP1 sequences were available


from both DDNS and Sanger sequencing of culture isolate for the same sample, the similarity of the sequences was determined. The mean VP1 sequence identity comparing DDNS and the gold


standard algorithm (including Sanger sequencing) for the 27 cVDPV2 with results for both methods was 99.98% (range 99.60–100%). The absolute number of differences between sequences is


presented in Table 4. COST AND STAFFING FOR DDNS AND GOLD STANDARD ASSAY The DDNS assay consumable costs are approximately US$20 per sample when performing multiplexed sequencing runs of 96


samples or $25 per sample when performing runs of 45 samples in lower-throughput laboratories (Supplementary Table 3). These figures include chloroform treatment, RNA extraction, nested PCR


and nanopore sequencing. For chloroform treatment, cell culture and qPCR alone, the cell-culture-based detection algorithm costs approximately $31 (Supplementary Table 3), in addition to the


cost of Sanger sequencing and shipping to the National Institute for Communicable Diseases (NICD) in South Africa where the sequencing is performed. While some large items of equipment are


required by both methods, DDNS avoids the requirements of microscopes, incubators, cell counters and tissue culture cabinets, while only needing the addition of a MinION or GridION sequencer


(with MinIONs typically costing $1,000, including a sequencing reagents kit and a flow cell). Staff and facilities costs have not been included in the figures, yet the performance of DDNS


at INRB required only five staff members; three laboratory scientists for RNA extraction, nested reverse transcription (RT)–PCR and nanopore sequencing and two bioinformaticians/data


managers to perform data quality control and match the sequences to case data. Comparable steps from the cell-culture-based algorithm requires four laboratory scientists for cell culture and


qPCR, two support staff for maintaining the facilities and the support of additional sequencing staff and bioinformaticians at the NICD. DISCUSSION Here we report a prospective validation


study that compared DDNS with the gold standard assay for detection of poliovirus in stool samples in DRC. Our data confirm that DDNS can be applied as a rapid, sensitive and cost-effective


tool for surveillance in the DRC. Our results demonstrate that it is feasible to implement DDNS in a national poliovirus laboratory. Although not statistically powered for a direct


comparison with the gold standard assay, our study indicates that DDNS is at least as sensitive as culture for the detection of poliovirus. Implementation of DDNS in this study shows that it


detects poliovirus faster than cell culture. DDNS VP1 sequences for VDPV2 positive samples were on average generated a median 14 days after stool collection. This is similar to, but


slightly slower than, the 12 days we predicted when estimating the performance of DDNS based on stool sample collections from 2016 to 2020 (ref. 9). Our earlier estimates did not account for


sample batching to maximize efficiency and minimize costs. Further improvements in speed could be achieved by automated RNA extraction, or by decreasing sample delivery time to the


laboratory, perhaps by drones given poor road conditions16, or through the establishment of additional regional laboratories within DRC. For samples required to confirm three of the four


cVDPV2 lineages, DDNS generated the VP1 sequence required to initiate a response a mean of 23 days (range 6–30 days) quicker than culture. Earlier detection and response to outbreaks leads


to few cases and a higher probability of truncating ongoing transmission2,9. Despite the lower raw read sequencing accuracy of nanopore compared with Sanger sequencing, the generation of


consensus sequences gave a mean similarity of 99.98%. The sequence identity was <100% for just 2/27 samples. Where a relatively large difference was observed (the sample with four


nucleotide differences between consensus sequences from DDNS and Sanger sequencing) this may represent different viral populations within the gut of the AFP case. This case had a pair of


stool samples collected a day apart, and the Sanger sequences for the pair also differed by one nucleotide. Through removal of competitive viral cell culture and with the use of


next-generation sequencing, DDNS does however allow the identification of multiple viral templates from a single sample, as demonstrated by the detection of both Sabin 1 and Sabin 3 in two


of the samples. Improved calling of haplotypes could even allow the resolution of very closely related viral populations (differing by only one or two nucleotides) from within a single


sample. The additional poliovirus detections by DDNS were not likely to be due to contamination, given that they tended to occur either in sample pairs from the same AFP case, or in sample


pairs where culture tested positive for one of the pair. Furthermore, DDNS enables rapid identification of contamination with viruses of programmatic importance (wild type and VDPVs) because


of the low likelihood of identical VP1 sequences apart from for those samples collected from the same case or their contact. A quality assurance programme for DDNS has been developed,


including the use of a lyophilized virus positive control, and quality control flags built into bespoke software now developed for DDNS (PIRANHA17). Implementation of the method does not


require a cell-culture facility or the transfer of samples to an overseas laboratory for Sanger sequencing if local capacity is not available, allowing all steps to be performed at one site


in a single streamlined workflow. The per sample cost is at least $10 lower for high-throughput laboratories that can maximize the benefit of sample multiplexing during sequencing. This


excludes further savings from international shipment of samples and sequencing at a centralized hub. While staff salaries and facilities costs were not included in these calculations (and


will vary greatly between countries), routine DDNS at INRB was implemented with contributions from five staff, compared to six for the cell-culture method. Moreover, it supported a workforce


trained in molecular techniques including the preparation of sequencing libraries, performance of sequencing and the analysis of sequencing data. The skills and facilities required for DDNS


can be rapidly redeployed to other pathogens during public health emergencies. With the global expansion of sequencing capacity there are increasing opportunities to foster the development


of these skills and facilitate their contribution to disease surveillance and pathogen genomics, potentially through centralized bioinformatic support from either the GPLN, from sub-regional


labs with expertise (for example INRB) or from other regional bodies (for example Africa CDC’s Pathogen Genomics Initiative). One advantage of DDNS is the potential to completely replace


cell culture in most polio laboratories, which is both costly and undesirable as poliovirus goes in to global containment18. For DDNS to be sustained, challenges with supply chains must be


overcome, as countries likely to benefit most from rapid detection are also likely to be more difficult to supply with reagents for nanopore sequencing. A full economic costing for


implementation across the GPLN would also be necessary before implementation. For laboratories that also test environmental surveillance (ES) samples, DDNS can be used for these samples,


providing sequencing reads for multiple virus templates, as may occur in sewage12. However, direct detection methods typically only allow relatively small sampling volumes (hundreds of


microlitres for an RNA extraction as opposed to 4 mL for the eight cell-culture flasks now employed); hence, greater concentration of ES samples and/or large volume RNA extractions will be


required to allow achieving a similar or greater degree of detection sensitivity. We are currently optimising these methods for ES samples, which show considerable promise19. During this


research study, sequences were not used to inform outbreak response because the method has not yet been accepted or recommended by the GPLN15. We are now working to meet the requirements for


GPLN recommendation, including pilot implementation of DDNS in additional laboratories worldwide. An additional method of direct detection by qPCR20 (without sequencing) is being evaluated


by the GPEI, and a comparison between this method and DDNS has not yet been made. Further evaluation will be required to compare accuracy of detection and the speed at which a VP1 sequence


can be generated by the two methods, along with consideration of ease of implementation and staff training requirements. METHODS SAMPLE COLLECTION Stool samples were collected during routine


AFP surveillance in DRC between 10 August 2021 and 4 February 2022. These diagnostic specimens were collected as part of the DRC Ministry of Health’s routine public health disease


surveillance and polio eradication programme, and therefore consent for sample collection was waived. All preparation of samples for sequencing, genomic analysis and data analysis was


performed on anonymized samples identifiable only by their laboratory or the epidemiological identifier. All relevant ethical regulations were followed. All 2,339 samples received at the


national polio laboratory (INRB) from AFP cases, the community and contacts were processed in this study. It is recommended that two stool samples are collected from children aged 0–14 years


old with AFP, within 14 days of onset of paralysis and at least 24 h apart. Single stool samples from healthy contacts of children with AFP are additionally typically collected from


children aged <5 years old and occasionally from the wider community. SAMPLE PROCESSING FOR CELL CULTURE Chloroform-treated stool supernatant was prepared and processed as described in


ref. 21 as part of routine poliovirus stool surveillance. Briefly, 0.8 ml of chloroform-treated stool supernatant was inoculated into two culture flasks containing L20b cells and two flasks


containing RD cells. After two passages, 1 μl of the supernatant of culture flasks where the cells had shown suspected poliovirus cytotoxic effects on L20B was used for intertypic qPCR


differentiation using the Poliovirus rRT-PCR ITD v5.2 kit following the manufacturer’s protocol with routine further investigation of VDPVs. Where sequencing was required, the isolate


culture was dried on Flinders Technology Associates cards and shipped to NICD in South Africa for Sanger sequencing. RNA EXTRACTION FOR DDNS Chloroform-treated stool supernatant underwent


RNA extraction using either QIAamp Viral RNA Mini Kits (#51106, used for samples processed August 2021 to September 2021) or Roche High Pure Viral RNA Kits (#11858882001, used for samples


processed October 2021 to February 2022) according to manufacturers’ protocols using a volume of 140 µl and 200 µl of supernatant, respectively. RNA extraction kit selection was determined


by kit availability, but both kits have been validated for the DDNS method22. Extracted RNA was stored at +4 °C during the preparation of the nested PCR if performed on the same day or −80 


°C if delayed more than 24 h. DDNS DDNS based on a nested, barcoded PCR and amplicon sequencing on nanopore sequencers was performed as described in ref. 12. In brief, a nested PCR was


performed using 5 µl of extracted RNA and pan-Enterovirus primers23 with the product used for a poliovirus specific VP1 PCR using barcoded primers12. Two microlitres of each PCR product was


pooled before cleaning with AMPure XP beads (Beckman Coulter, #A63880) and the sequencing library prepared with Oxford Nanopore Technologies LSK-110 ligation sequencing kits. The complete


protocol can be found in ref. 24. Libraries were sequenced on the Oxford Nanopore Technologies GridION, MK1c or MinION sequencers for between 4 h and 12 h using R9.4 flow cells. Sequencing


runs were performed between 29 September 2021 and 17 February 2022. The study team performing DDNS were unaware of results from the gold standard algorithm while samples were processed.


BIOINFORMATICS Sequence basecalling was performed using guppy with demultiplexing and mapping of the reads performed using RAMPART25,26 and the realtime-polio analysis module25. VP1


consensus sequences were generated by four iterative rounds of mapping using the mafft algorithm27 and polishing with racon28 before consensus calling with medaka29. The dated


maximum-likelihood tree for the RDC-MAN-3 outbreak was created in R version 4.1.3 using the Analyses of Phylogenetics and Evolution (ape) package30, Phylogenetic Reconstruction and Analysis


(phangorn) package31 and the treedater package32. A molecular clock rate of 0.01 substitutions per site per year was assumed on the basis of ref. 33. STATISTICAL ANALYSIS Time taken between


case onset and a sequence being generated via DDNS and the standard algorithm were compared using a two-sided Mann–Whitney _U_ test. Exact binomial confidence intervals were calculated for


the sensitivity and specificity of the two methods and comparison made using a two-sided Fisher’s exact test. REPORTING SUMMARY Further information on research design is available in the


Nature Portfolio Reporting Summary linked to this article. DATA AVAILABILITY Sequences generated during this study are available at the European Nucleotide Archive under accession number


PRJEB61181. Sample metadata are shown in Source Data Fig. 2. Source data are provided with this paper. CODE AVAILABILITY The current version of the analytical software for analysing DDNS


data can be found at https://github.com/polio-nanopore/piranha. REFERENCES * Greene, S. A. et al. Progress toward polio eradication—worldwide, January 2017–March 2019. _Morb. Mortal. Wkly


Rep._ 68, 458–462 (2019). Article  Google Scholar  * Blake, I. M. et al. The role of older children and adults in wild poliovirus transmission. _Proc. Natl Acad. Sci. USA_ 111, 10604–10609


(2014). Article  CAS  PubMed  PubMed Central  Google Scholar  * Polio Eradication Strategy 2022–2026. _World Health Organization_


https://polioeradication.org/wp-content/uploads/2021/10/9789240031937-eng.pdf (2021). * Africa Regional Commission for the Certification of Poliomyelitis Eradication. Certifying the


interruption of wild poliovirus transmission in the WHO African region on the turbulent journey to a polio-free world. _Lancet Glob. Health_ 8, e1345–e1351 (2020). Article  Google Scholar  *


Stern, A. et al. The evolutionary pathway to virulence of an RNA virus. _Cell_ https://doi.org/10.1016/j.cell.2017.03.013 (2017). * Macklin, G. R. et al. Evolving epidemiology of poliovirus


serotype 2 following withdrawal of the serotype 2 oral poliovirus vaccine. _Science_ 368, 401–405 (2020). Article  CAS  PubMed  Google Scholar  * Circulating vaccine-derived poliovirus type


2—global update. _World Health Organization_ https://www.who.int/emergencies/disease-outbreak-news/item/circulating-vaccine-derived-poliovirus-type-2-global-update (2021). * Polio


information system. _World Health Organization_ https://extranet.who.int/polis/ (2023). * Shaw, A. G. et al. Time taken to detect and respond to polio outbreaks in Africa and the potential


impact of direct molecular detection and nanopore sequencing. _J. Infect. Dis._ 226, 453–462 (2022). Article  CAS  PubMed  Google Scholar  * Global Polio Surveillance Action Plan 2022–2024.


_World Health Organization_ https://polioeradication.org/wp-content/uploads/2022/05/GPSAP-2022-2024-EN.pdf (2022). * WHO Global Action Plan to minimize poliovirus facility-associated risk


after type-specific eradication of wild polioviruses and sequential cessation of oral polio vaccine use. _World Health Organization_


http://polioeradication.org/wp-content/uploads/2016/12/GAPIII_2014.pdf (2014). * Shaw, A. G. et al. Rapid and sensitive direct detection and identification of poliovirus from stool and


environmental surveillance samples by use of nanopore sequencing. _J. Clin. Microbiol._ 58, e00920-20 (2020). Article  PubMed  PubMed Central  Google Scholar  * Mbala-Kingebeni, P. et al.


Medical countermeasures during the 2018 Ebola virus disease outbreak in the North Kivu and Ituri Provinces of the Democratic Republic of the Congo: a rapid genomic assessment. _Lancet


Infect. Dis._ 19, 648–657 (2019). Article  PubMed  Google Scholar  * Kinganda-Lusamaki, E. et al. Integration of genomic sequencing into the response to the Ebola virus outbreak in Nord


Kivu, Democratic Republic of the Congo. _Nat. Med._ 27, 710–716 (2021). Article  CAS  PubMed  PubMed Central  Google Scholar  * Global Polio Laboratory Network: guidance paper 7, evaluation


and adoption of new polio diagnostic methods and procedures. _World Health Organization_


https://polioeradication.org/wp-content/uploads/2021/06/GP7-Evaluation-and-Adoption-of-diagnostic-methods-in-the-GPLN.Vs1_.pdf (2021). * Poljak, M. & Sterbenc, A. Use of drones in


clinical microbiology and infectious diseases: current status, challenges and barriers. _Clin. Microbiol. Infect._ 26, 425–430 (2020). Article  CAS  PubMed  Google Scholar  * PIRANHA.


_GitHub_ https://github.com/polio-nanopore/piranha (2023). * WHO Global Action Plan for Poliovirus Containment, GAPIV. _World Health Organization_


https://polioeradication.org/wp-content/uploads/2022/07/WHO-Global-Action-Plan-for-Poliovirus-Containment-GAPIV.pdf (2022). * Klapsa, D. et al. Sustained detection of type 2 poliovirus in


London sewage between February and July, 2022, by enhanced environmental surveillance. _Lancet_ 400, 1531–1538 (2022). Article  PubMed  PubMed Central  Google Scholar  * Harrington, C. et


al. Culture-independent detection of poliovirus in stool samples by direct RNA extraction. _Microbiol. Spectr._ 9, e0066821 (2021). Article  PubMed  Google Scholar  * Polio Laboboratory


Handbook. _World Health Organization_ https://apps.who.int/iris/bitstream/handle/10665/68762/WHO_IVB_04.10.pdf (2004). * Akello, J. O. et al. Comparison of eleven RNA extraction methods for


poliovirus direct molecular detection in stool samples. _Microbiol. Spectr._ 11, e0425222 (2023). Article  PubMed  Google Scholar  * Arita, M. et al. Development of an efficient


entire-capsid-coding-region amplification method for direct detection of poliovirus from stool extracts. _J. Clin. Microbiol._ 53, 73–78 (2015). Article  CAS  PubMed  Google Scholar  *


Poliovirus Sequencing Consortium. _protocols.io_ https://www.protocols.io/workspaces/poliovirus-sequencing-consortium (2023). * RAMPART. _GitHub_ https://github.com/artic-network/rampart


(2022). * Read assignment, mapping and phylogenetic analysis in real time (RAMPART). _ARTIC Network_ https://artic.network/rampart (2020). * Katoh, K. & Standley, D. M. MAFFT multiple


sequence alignment software version 7: improvements in performance and usability. _Mol. Biol. Evol._ 30, 772–780 (2013). Article  CAS  PubMed  PubMed Central  Google Scholar  * Vaser, R.,


Sovic, I., Nagarajan, N. & Sikic, M. Fast and accurate de novo genome assembly from long uncorrected reads. _Genome Res._ 27, 737–746 (2017). Article  CAS  PubMed  PubMed Central  Google


Scholar  * medaka. _GitHub_ https://github.com/nanoporetech/medaka (2018). * Paradis, E. & Schliep, K. ape 5.0: an environment for modern phylogenetics and evolutionary analyses in R.


_Bioinformatics_ 35, 526–528 (2019). Article  CAS  PubMed  Google Scholar  * Schliep, K. P. phangorn: phylogenetic analysis in R. _Bioinformatics_ 27, 592–593 (2011). Article  CAS  PubMed


Google Scholar  * Volz, E. M. & Frost, S. D. W. Scalable relaxed clock phylogenetic dating. _Virus Evol._ 3, vex025 (2017). Article  Google Scholar  * Jorba, J., Campagnoli, R., De, L.


& Kew, O. Calibration of multiple poliovirus molecular clocks covering an extended evolutionary range. _J. Virol._ 82, 4429–4440 (2008). Article  CAS  PubMed  PubMed Central  Google


Scholar  Download references ACKNOWLEDGEMENTS We thank all members of the INRB Pathogen Genomics Laboratory for their support during in this work, especially P. Paku, R. Lumembe, G. Kabamba,


F. Muyembe, R. Ola and C. Musuamba. We also thank the polio virology laboratory data managers T. Changa Changa and J.-C. Changa Changa for their collaboration. This work was supported by


grants from the Bill and Melinda Gates Foundation (OPP1171890 and OPP1207299). A.S., C.T., J.A. and N.C.G. acknowledge funding from the MRC Centre for Global Infectious Disease Analysis


(reference MR/R015600/1), jointly funded by the UK Medical Research Council (MRC) and the UK Foreign, Commonwealth & Development Office (FCDO), under the MRC/FCDO Concordat agreement and


are also part of the EDCTP2 programme supported by the European Union; and acknowledge funding by Community Jameel. N.C.G. is funded by the WHO Polio Research Committee. C.P. and B.W.


acknowledge funding from the Bill and Melinda Gates Foundation (INV-025345). T.K.M., E.L.L., A.A.A., E.K.L., J.C.M.C., M.A., Y.L., B.N., E.P., Y.R. and P.M.-K. acknowledge support from the


Africa CDC Pathogen Genomics Initiative (Africa PGI). A.O. and A.R. acknowledge the support of the Wellcome Trust (Collaborators Award 206298/Z/17/Z–ARTIC). AUTHOR INFORMATION Author notes *


These authors contributed equally: Alexander G. Shaw, Tresor Kabeya Mampuela, Emmanuel Lokilo Lofiko, Catherine Pratt. * These authors jointly supervised this work: Javier Martin, Nicholas


C. Grassly, Placide Mbala-Kingebeni. AUTHORS AND AFFILIATIONS * MRC Centre for Global Infectious Disease Analysis, School of Public Health, Imperial College London, London, UK Alexander G.


Shaw, Catherine Troman, Joyce Odeke Akello, David Jorgensen & Nicholas C. Grassly * Service de Microbiologie, Departement de Biologie Médicale, Cliniques Universitaires de Kinshasa


(CUK), Université de Kinshasa (UNIKIN), Kinshasa, Democratic Republic of the Congo Tresor Kabeya Mampuela, Eddy Kinganda Lusamaki, Jean Claude Makangara, Steve Ahuka-Mundeke, Jean-Jacques


Muyembe & Placide Mbala-Kingebeni * Institut National de Recherche Biomédicale, Kinshasa, Democratic Republic of the Congo Tresor Kabeya Mampuela, Emmanuel Lokilo Lofiko, Adrienne Amuri


Aziza, Eddy Kinganda Lusamaki, Jean Claude Makangara, Marceline Akonga, Yvonne Lay, Bibiche Nsunda, Elizabeth Pukuta, Yogolelo Riziki, Steve Ahuka-Mundeke, Jean-Jacques Muyembe & Placide


Mbala-Kingebeni * College of Public Health, University of Nebraska Medical Center, Omaha, NE, USA Catherine Pratt & Bailey White * Department of Vaccines, National Institute for


Biological Standards and Control (NIBSC), Medicines and Healthcare products Regulatory Agency, Potters Bar, UK Erika Bujaki & Javier Martin * Institute of Ecology and Evolution,


University of Edinburgh, Ashworth Laboratories, Edinburgh, UK Áine O’Toole & Andrew Rambaut * TransVIHMI (Recherches Translationnelles sur le VIH et les Maladies Infectieuses endémiques


et émergentes), University of Montpellier (UM), French National Research Institute for Sustainable Development (IRD), INSERM, Montpellier, France Eddy Kinganda Lusamaki * Bill and Melinda


Gates Foundation, Seattle, WA, USA Kathleen E. Rankin Authors * Alexander G. Shaw View author publications You can also search for this author inPubMed Google Scholar * Tresor Kabeya


Mampuela View author publications You can also search for this author inPubMed Google Scholar * Emmanuel Lokilo Lofiko View author publications You can also search for this author inPubMed


Google Scholar * Catherine Pratt View author publications You can also search for this author inPubMed Google Scholar * Catherine Troman View author publications You can also search for this


author inPubMed Google Scholar * Erika Bujaki View author publications You can also search for this author inPubMed Google Scholar * Áine O’Toole View author publications You can also


search for this author inPubMed Google Scholar * Joyce Odeke Akello View author publications You can also search for this author inPubMed Google Scholar * Adrienne Amuri Aziza View author


publications You can also search for this author inPubMed Google Scholar * Eddy Kinganda Lusamaki View author publications You can also search for this author inPubMed Google Scholar * Jean


Claude Makangara View author publications You can also search for this author inPubMed Google Scholar * Marceline Akonga View author publications You can also search for this author inPubMed


 Google Scholar * Yvonne Lay View author publications You can also search for this author inPubMed Google Scholar * Bibiche Nsunda View author publications You can also search for this


author inPubMed Google Scholar * Bailey White View author publications You can also search for this author inPubMed Google Scholar * David Jorgensen View author publications You can also


search for this author inPubMed Google Scholar * Elizabeth Pukuta View author publications You can also search for this author inPubMed Google Scholar * Yogolelo Riziki View author


publications You can also search for this author inPubMed Google Scholar * Kathleen E. Rankin View author publications You can also search for this author inPubMed Google Scholar * Andrew


Rambaut View author publications You can also search for this author inPubMed Google Scholar * Steve Ahuka-Mundeke View author publications You can also search for this author inPubMed


Google Scholar * Jean-Jacques Muyembe View author publications You can also search for this author inPubMed Google Scholar * Javier Martin View author publications You can also search for


this author inPubMed Google Scholar * Nicholas C. Grassly View author publications You can also search for this author inPubMed Google Scholar * Placide Mbala-Kingebeni View author


publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS A.G.S., T.K.M., E.L.L., C.P., E.K.L., A.O., K.E.R., J.M., N.C.G. and P.M.-K. wrote the paper. A.G.S.,


T.K.M., C.P., C.T., E.B., J.O.A., A.A.A., J.C.M., M.A., Y.L., B.N., B.W. and E.P. performed the experimental work. A.O. and A.R. created and developed the software pipeline used for


processing of sequencing data. A.G.S., E.L.L., C.P., A.O., E.K.L., D.J., J.M. and N.C.G. performed the data analysis. Y.R., K.E.R., A.R., S.A.M., J.J.M., J.M., N.C.G. and P.M. established


the study. A.G.S., T.K.M., E.L.L., C.P. and A.A.A. oversaw the implementation of the study. All authors reviewed and approved the final paper. CORRESPONDING AUTHOR Correspondence to


Alexander G. Shaw. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW INFORMATION _Nature Microbiology_ thanks Steve Kroiss, Melinda


Suchard and the other, anonymous, reviewer(s) for their contribution to the peer review of this work. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to


jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION Supplementary Tables 1–3 and Fig. 1. REPORTING SUMMARY SOURCE DATA


SOURCE DATA FIG. 1 Table of time required for each step in each method. SOURCE DATA FIG. 2 Descriptors of DDNS sequences. RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a


Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit


to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or other third party material in this article are


included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons license and


your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this


license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Shaw, A.G., Mampuela, T.K., Lofiko, E.L. _et al._ Sensitive


poliovirus detection using nested PCR and nanopore sequencing: a prospective validation study. _Nat Microbiol_ 8, 1634–1640 (2023). https://doi.org/10.1038/s41564-023-01453-4 Download


citation * Received: 16 March 2023 * Accepted: 19 July 2023 * Published: 17 August 2023 * Issue Date: September 2023 * DOI: https://doi.org/10.1038/s41564-023-01453-4 SHARE THIS ARTICLE


Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided


by the Springer Nature SharedIt content-sharing initiative
