A subsolar oxygen abundance or a radiative region deep in Jupiter revealed by thermochemical modelling

Article Published: 30 March 2023 A subsolar oxygen abundance or a radiative region deep in Jupiter revealed by thermochemical modelling T. Cavalié  ORCID: orcid.org/0000-0002-0649-11921,2,

J. Lunine  ORCID: orcid.org/0000-0003-2279-41313 & O. Mousis  ORCID: orcid.org/0000-0001-5323-64534  Nature Astronomy volume 7, pages 678–683 (2023)Cite this article

699 Accesses

21 Citations

5 Altmetric

Metrics details

Jupiter’s deep abundances help to constrain the formation history of the planet and the environment of the protoplanetary nebula. Juno recently measured Jupiter’s deep oxygen abundance near

the equator to be \(2.2_{ - 2.1}^{ + 3.9}\) times the protosolar value (2σ uncertainties). Even if the nominal value is supersolar, subsolar abundances cannot be ruled out. Here we use a

state-of-the-art one-dimensional thermochemical and diffusion model with updated chemistry to constrain the deep oxygen abundance with upper tropospheric CO observations. We find a value of

\(0.3_{ - 0.2}^{ + 0.5}\) times the protosolar value. This result suggests that Jupiter could have a carbon-rich envelope that accreted in a region where the protosolar nebula was depleted

in water. However, our model can also reproduce a solar/supersolar water abundance if vertical mixing is reduced in a radiative layer where the deep oxygen abundance is obtained. More

precise measurements of the deep water abundance are needed to discriminate between these two scenarios and understand Jupiter’s internal structure and evolution.

Access through your institution Buy or subscribe This is a preview of subscription content, access via your institution

options: Log in Learn about institutional subscriptions Read our FAQs Contact customer support Fig. 1: Abundances and temperature profiles for Jupiter.Fig. 2: Kzz and oxygen dependence of

Jupiter’s upper tropospheric CO mole fraction.Fig. 3: Carbon and oxygen dependence of Jupiter’s upper tropospheric CO mole fraction. Similar content being viewed by others A supersolar

oxygen abundance supported by hydrodynamic modelling of Jupiter’s atmosphere Article Open access 20 November 2024 A solar C/O and sub-solar metallicity in a hot Jupiter atmosphere Article 27

October 2021 The 13CO-rich atmosphere of a young accreting super-Jupiter Article 14 July 2021 Data availability

Data that support the findings of this study are available upon request from the corresponding author.

Software used in this study is available upon reasonable request from the corresponding author.

References Helled, R. & Lunine, J. Measuring Jupiter’s water abundance by Juno: the link between interior and formation models. Mon. Not. R. Astron. Soc. 441, 2273–2279 (2014).

Article  ADS  Google Scholar

Bar-Nun, A., Kleinfeld, I. & Kochavi, E. Trapping of gas mixtures by amorphous water ice. Phys. Rev. B 38, 7749–7754 (1988).

Article  ADS  Google Scholar

Wong, M. H., Mahaffy, P. R., Atreya, S. K., Niemann, H. B. & Owen, T. C. Updated Galileo probe mass spectrometer measurements of carbon, oxygen, nitrogen, and sulfur on Jupiter. Icarus 171,

153–170 (2004).

Article  ADS  Google Scholar

Janssen, M. A. et al. Microwave remote sensing of Jupiter’s atmosphere from an orbiting spacecraft. Icarus 173, 447–453 (2005).

Article  ADS  Google Scholar

de Pater, I. Jupiter’s zone-belt structure at radio wavelengths. II. Comparison of observations with model atmosphere calculations. Icarus 68, 344–3645 (1986).

Article  ADS  Google Scholar

Li, C. et al. The distribution of ammonia on Jupiter from a preliminary inversion of Juno microwave radiometer data. Geophys. Res. Lett. 44, 5317–5325 (2017).

Article  ADS  Google Scholar

Li, C. et al. The water abundance in Jupiter’s equatorial zone. Nat. Astron. 4, 609–616 (2020).

Article  ADS  Google Scholar

Helled, R. et al. Revelations on Jupiter’s formation, evolution and interior: challenges from Juno results. Icarus 378, 114937 (2022).

Article  Google Scholar

Lodders, K. Relative atomic solar system abundances, mass fractions, and atomic masses of the elements and their isotopes, composition of the solar photosphere, and compositions of the major

chondritic meteorite groups. Space Sci. Rev. 217, 44 (2021).

Article  ADS  Google Scholar

Beer, R. Detection of carbon monoxide in Jupiter. Astrophys. J. 200, L167–L169 (1975).

Article  ADS  Google Scholar

Lunine, J. I. & Hunten, D. M. Moist convection and the abundance of water in the troposphere of Jupiter. Icarus 69, 566–570 (1987).

Article  ADS  Google Scholar

Fegley, B. & Prinn, G. P. Chemical constraints on the water and total oxygen abundances in the deep atmosphere of Jupiter. Astrophys. J. 324, 621–625 (1988).

Article  ADS  Google Scholar

Yung, Y. L., Drew, W. A., Pinto, J. P. & Friedl, R. R. Estimation of the reaction rate for for the formation of CH3OH from H + H2CO: implications for chemistry in the Solar System. Icarus

73, 516–526 (1988).

Article  ADS  Google Scholar

Visscher, C., Moses, J. I. & Saslow, S. A. Deep water abundance on Jupiter: new constraints from thermochemical kinetics and diffusion modeling. Icarus 209, 602–615 (2010).

Article  ADS  Google Scholar

Wang, D., Lunine, J. I. & Mousis, O. Modeling the disequilibrium species for Jupiter and Saturn: implications for Juno and Saturn entry probe. Icarus 276, 21–38 (2016).

Article  ADS  Google Scholar

Cavalié, T. et al. Thermochemistry and vertical mixing in the tropospheres of Uranus and Neptune: how convection inhibition can affect the derivation of deep oxygen abundances. Icarus 291,

1–16 (2017).

Article  ADS  Google Scholar

Bézard, B., Lellouch, E., Strobel, D., Maillard, J.-P. & Drossart, P. Carbon monoxide on Jupiter: evidence for both internal and external sources. Icarus 159, 95–111 (2002).

Bjoraker, G. L. et al. The gas composition and deep cloud structure of Jupiter’s Great Red Spot. Astron. J. 156, 101 (2018).

Moses, J. I. Chemical kinetics on extrasolar planets. Phil. Trans. R. Soc. A 372, 20130073 (2014).

Article  ADS  Google Scholar

Hidaka, Y., Oki, T., Kawano, H. & Higashihara, T. Thermal decomposition of methanol in shock waves. J. Phys. Chem. 93, 7134–7139 (1989).

Article  Google Scholar

Venot, O. et al. New chemical scheme for giant planet thermochemistry. Update of the methanol chemistry and new reduced chemical scheme. Astron. Astrophys. 634, A78 (2020).

Article  Google Scholar

Burke, U. et al. A detailed chemical kinetic modeling, ignition delay time and jet-stirred reactor study of methanol oxidation. Combust. Flame 165, 125–136 (2016).

Article  ADS  Google Scholar

Venot, O. et al. A chemical model for the atmosphere of hot Jupiters. Astron. Astrophys. 546, A43 (2012).

Article  Google Scholar

Wang, D., Gierasch, P. J., Lunine, J. I. & Mousis, O. New insights on Jupiter’s deep water abundance from disequilibrium species. Icarus 250, 154–164 (2015).

Article  ADS  Google Scholar

Grassi, D. et al. On the spatial distribution of minor species in Jupiter’s troposphere as inferred from Juno JIRAM data. J. Geophys. Res. Planets 125, e2019JE006206 (2020).

Article  ADS  Google Scholar

Owen, T. et al. A low-temperature origin for the planetesimals that formed Jupiter. Nature 402, 269–270 (1999).

Article  ADS  Google Scholar

Gautier, D., Hersant, F., Mousis, O. & Lunine, J. I. Enrichments in volatitles in Jupiter: a new interpretation of the Galileo measurements. Astrophys. J. 550, L227–L230 (2001).

Article  ADS  Google Scholar

Guillot, T. et al. Storms and the depletion of ammonia in Jupiter: II. Explaining the Juno observations. J. Geophys. Res. Planets 125, e2020JE006404 (2020).

Article  ADS  Google Scholar

Iñurrigarro, P., Hueso, R., Sánchez-Lavega, A. & Legarreta, J. Convective storms in closed cyclones in Jupiter: (II) numerical modeling. Icarus 386, 115169 (2022).

Article  Google Scholar

Hueso, R. & Sánchez-Lavega, A. A three-dimensional model of moist convection for the giant planets: the Jupiter case. Icarus 151, 257–274 (2001).

Aglyamov, Y. S. et al. Lightning generation in moist convective clouds and constraints on the water abundance in Jupiter. J. Geophys. Res. Planets 126, e2020JE006504 (2021).

Dyudina, U. A. et al. Monte Carlo radiative transfer modeling of lightning observed in Galileo images of Jupiter. Icarus 160, 336–349 (2002).

Article  ADS  Google Scholar

Ali-Dib, M., Mousis, O., Petit, J.-M. & Lunine, J. I. Measured compositions of Uranus and Neptune from their formation on the CO iceline. Astrophys. J. 793, 9 (2014).

Article  ADS  Google Scholar

Mousis, O., Lunine, J. I., Mdhusudhan, N. & Johnson, T. V. Nebular water depletion as the cause of Jupiter’s low oxygen abundance. Astrophys. J. 751, L7 (2012).

Article  ADS  Google Scholar

Lodders, K. Jupiter formed with more tar than ice. Astrophys. J. 11, 587–597 (2004).

Article  ADS  Google Scholar

Mousis, O., Ronnet, T. & Lunine, J. I. Jupiter’s formation in the vicinity of the amorphous ice snowline. Astrophys. J. 875, 9 (2019).

Article  ADS  Google Scholar

Mousis, O. et al. Cold traps of hypervolatiles in the protosolar nebula at the origin of the peculiar composition of comet C/2016 R2 (PanSTARRS). Planet. Sci. J. 2, 72 (2021).

Article  Google Scholar

Mousis, O., Lunine, J. I. & Aguichine, A. The nature and composition of Jupiter’s building blocks derived from the water abundance measurements by the Juno spacecraft. Astrophys. J. 918, L23

(2021).

Article  ADS  Google Scholar

Schneider, A. D. & Bitsch, B. How drifting and evaporating pebbles shape giant planets. II. Volatiles and refractories in atmospheres. Astron. Astrophys. 654, A72 (2021).

Article  ADS  Google Scholar

Guillot, T., Gautier, D., Chabrier, G. & Mosser, B. Are the giant planets fully convective? Icarus 112, 337–353 (1994).

Article  ADS  Google Scholar

Guillot, T., Stevenson, D. J., Hubbard, W. B. & Saumon, D. in Jupiter: The Planet, Satellites and Magnetosphere (eds Bagenal, F. et al.) 35–57 (Cambridge Univ. Press, 2004).

Bhattacharya, A. et al. Alkali metals in deep atmosphere of Jupiter. Bull. Am. Astron. Soc. 53, 2021n7i212p01 (2021).

Google Scholar

Mousis, O. et al. Scientific rationale for Saturn’s in situ exploration. Planet. Space Sci. 104, 29–47 (2014).

Article  ADS  Google Scholar

Mousis, O. et al. Scientific rationale for Uranus and Neptune in situ explorations. Planet. Space Sci. 155, 12–40 (2018).

Article  ADS  Google Scholar

Cavalié, T. et al. The deep composition of Uranus and Neptune from in situ exploration and thermochemical modeling. Space Sci. Rev. 216, 58 (2020).

Article  ADS  Google Scholar

Cavalié, T. et al. The first submillimeter observation of CO in the stratosphere of Uranus. Astron. Astrophys. 562, A33 (2014).

Article  Google Scholar

von Zahn, U., Hunten, D. M. & Lehmacher, G. Helium in Jupiter’s atmosphere: results from the Galileo probe Helium interferometer experiment. J. Geophys. Res. 103, 22815–22829 (1998).

Article  ADS  Google Scholar

Guillot, T., Stevenson, D. J., Atreya, S. K., Bolton, S. J. & Becker, H. N. Storms and the depletion of ammonia in Jupiter: I. The microphysics of “mushballs”. J. Geophys. Res. Planets 125,

e2020JE006403 (2020).

Article  ADS  Google Scholar

Seiff, A. et al. Thermal structure of Jupiter’s atmosphere near the edge of a 5-µm hot spot in the north equatorial belt. J. Geophys. Res. 103, 22857–22889 (1998).

Article  ADS  Google Scholar

Dobrijevic, M. et al. Key reactions in the photochemistry of hydrocarbons in Neptune’s stratosphere. Planet. Space Sci. 58, 1555–1566 (2010).

Article  ADS  Google Scholar

Download references

T.C. acknowledges funding from CNES and the Programme National de Planétologie (PNP) of CNRS/INSU. J.L. acknowledges support from the Juno mission through a subcontract from the Southwest

Research Institute.

Author informationAuthors and Affiliations Laboratoire d’Astrophysique de Bordeaux, Université de Bordeaux, CNRS, Pessac, France

T. Cavalié

LESIA, Observatoire de Paris, PSL Research University, CNRS, Sorbonne Universités, UPMC Université Paris 06, Université Paris Diderot, Sorbonne Paris Cité, Meudon, France

T. Cavalié

Cornell University, Ithaca, NY, USA

J. Lunine

Aix Marseille Université, Institut Origines, CNRS, CNES, LAM, Marseille, France

O. Mousis

AuthorsT. CavaliéView author publications You can also search for this author inPubMed Google Scholar

J. LunineView author publications You can also search for this author inPubMed Google Scholar

O. MousisView author publications You can also search for this author inPubMed Google Scholar

T.C. performed the modelling and data analysis. T.C., J.L. and O.M. discussed the results and commented on the manuscript.

Corresponding author Correspondence to T. Cavalié.

The authors declare no competing interests.

Nature Astronomy thanks Gordon Bjoraker, Tristan Guillot and the other, anonymous, reviewer(s) for their contribution to the peer review of this work.

Publisher’s note Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

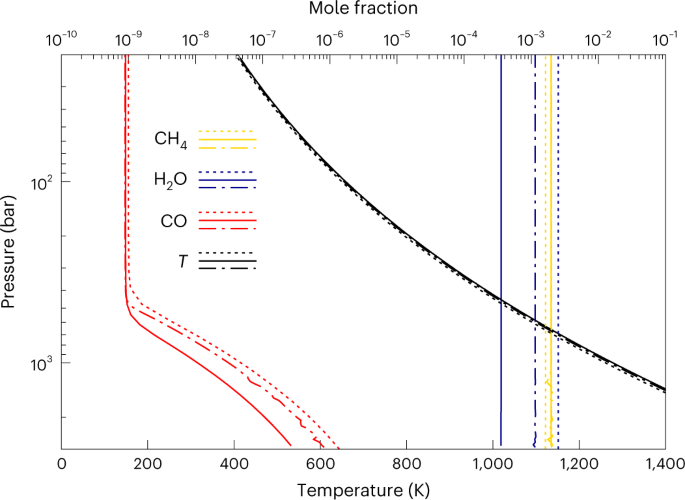

profile in Jupiter computed in the same conditions as in15 with our chemical scheme, that is, that of21 with revised methanol chemistry kinetics.
