Hierarchical li electrochemistry using alloy-type anode for high-energy-density li metal batteries

ABSTRACT Exploiting thin Li metal anode is essential for high-energy-density battery, but is severely plagued by the poor processability of Li, as well as the uncontrollable Li

plating/stripping behaviors and Li/electrolyte interface. Herein, a thickness/capacity-adjustable thin alloy-type Li/LiZn@Cu anode is fabricated for high-energy-density Li metal batteries.

The as-formed lithophilic LiZn alloy in Li/LiZn@Cu anode can effectively regulate Li plating/stripping and stabilize the Li/electrolyte interface to deliver the hierarchical Li

electrochemistry. Upon charging, the Li/LiZn@Cu anode firstly acts as Li source for homogeneous Li extraction. At the end of charging, the de-alloy of LiZn nanostructures further supplements

the Li extraction, actually playing the Li compensation role in battery cycling. While upon discharging, the LiZn alloy forms just at the beginning, thereby regulating the following Li

homogeneous deposition. The reversibility of such an interesting process is undoubtedly verified from the electrochemistry and in-situ XRD characterization. This work sheds light on the

facile fabrication of practical Li metal anodes and useful Li compensation materials for high-energy-density Li metal batteries. SIMILAR CONTENT BEING VIEWED BY OTHERS MECHANISM OF STABLE

LITHIUM PLATING AND STRIPPING IN A METAL-INTERLAYER-INSERTED ANODE-LESS SOLID-STATE LITHIUM METAL BATTERY Article Open access 27 January 2025 TAILORING SUPERSTRUCTURE UNITS FOR IMPROVED

OXYGEN REDOX ACTIVITY IN LI-RICH LAYERED OXIDE BATTERY’S POSITIVE ELECTRODES Article Open access 18 November 2024 MACROSCOPICALLY UNIFORM INTERFACE LAYER WITH LI+ CONDUCTIVE CHANNELS FOR

HIGH-PERFORMANCE LI METAL BATTERIES Article Open access 20 November 2024 INTRODUCTION Since their first commercialization in the 1990s, lithium-ion batteries (LIBs) with high safety endowed

by the unique Li+ extraction/insertion mechanism, have established the dominant role in the energy storage market for more than 30 years1,2,3. However, although significant optimization has

been put into practice, a grand gap still exists between the energy density of “rocking-chair”-type LIBs and the requirement of emerging industries4,5,6. Regarding the ultimate choice for a

new-generation high-energy-density system, the metallic lithium (Li) is remarkable for its high capacity (10 times higher than the graphite anode), the lowest redox potential (−3.04 V vs.

SHE), and light mass density (0.534 g cm−3)7,8. While, the Li-based battery chemistry involves repeatedly Li plating and stripping processes, where the Li metal anode (LMA) will inevitably

trigger the dendrite-like deposition and uncontrollable volume change due to the imperfect substrate and “frameless” nature, forestalling its further progress from the laboratory to the

commercialization9,10. To date, several effective strategies have been proposed to develop the practical LMA or LMA-based composites for high-energy-density LIBs. For example, encapsulating

metallic Li into three-dimensional (3D) hosts with high specific surface area and enough pores is a feasible way to reinforce the Li plating/stripping reversibility and volume

stability11,12,13. Moreover, rationally designing electrolyte composition (e.g. the high-concentration Li salts and novel additives) or introducing artificial solid electrolyte interphase

(SEI) can upgrade the robustness of the Li/electrolyte interface as an indirect strategy to confine the LMA and Li dendrite growth14,15,16,17. Nevertheless, almost all modifications of LMAs

are based on thick Li foils (>100 μm, corresponding to an areal capacity of >20.5 mAh cm−2) or thick 3D hosts18. Despite the better cycling performance they have achieved, the

overstock LMAs can not reasonably match the capacity of the current commercial cathodes (e.g. 3 mAh cm−2) in a low N/P ratio (<3), resulting in a waste of most Li sources with

compromising the energy density19. Furthermore, the thick modified LMAs, as infinite Li sources, can not reflect the effectiveness of the improvement strategies actually due to the constant

replenishment of the Li loss during cycling. Therefore, of special importance is how to fabricate the thin LMAs (e.g. <50 μm) to better match the commercial cathodes with appropriate N/P

ratios18,20,21. Generally, the Li foils (50 to hundreds of microns) are fabricated by mechanical rolling in industry, but some problems are deep-rooted in the metallic Li when it withstands

mechanical deformation. Whereby the strong influence of diffusion creep caused by high homologous temperature, the metallic Li becomes highly sticky and poor mechanical processibility,

posing great challenge in producing thin LMAs22,23. In addition, it is easy to generate mechanical scratches on the soft Li surface during the rolling process, resulting in the Li+ ions

tending to deposit at these uneven protrusions. Thus, when preparing Li anode with a thickness of less than 50 μm, the requirements for the accuracy of the rolling machine and preparation

cost and difficulty will increase sharply. As a matter of fact, reprocessing Li metal upon its liquid state is a promising orientation to prepare Li composite anodes, such as infusing molten

Li into 3D hosts to reshape the Li morphology24,25. At this point, the thickness of the Li composite anode is closely related to that of the 3D host. By controlling the thicknesses of the

3D hosts, the thin carbon nanotube-based Li-MnOx/CNT (10 μm) and reduced graphene oxide-based Li@eGF (0.5–20 μm) with the limited Li sources can be readily prepared26,27. However, the

preparation for the thin 3D hosts is complex and high-cost. Another feasible and cost-effective way is directly reshaping the thickness of Li at liquid state. Unfortunately, the high surface

tension of molten Li hampers the Li spreading away on the substrate (i.e. bad Li wettability) and makes it difficult to keep the thickness of the molten Li. Once the external force is lost,

the flattened molten Li will be spherical again, which is the shape with minimum surface energy under high surface tension18. To lower the surface tension and improve the Li wettability, a

viable strategy is weakening the interior atomic interaction by doping heteroatoms to form the Li-M alloy phases (M: Ag, Sn, Mg, Al, In, etc.)28,29. These as-formed Li-M alloy phases possess

a high affinity with metallic Li and rapid Li+ ion diffusion coefficients, which could provide fast charge transfer kinetics and effectively regulate Li nucleation/deposition behaviors to

promote electrochemical performance15,30,31,32,33. For instance, by adding Sn, In, or Mg into molten Li, the formed Li-M alloys with thin thicknesses could firmly adhere to many substrates

(Cu foil, stainless steel, Ti foil, glass, Kapton film, Garnet solid-state electrolyte, and so on) via the direct contact between the alloy and these substrates24,29,34,35. While, the

resultant thin Li-M alloy anodes can still not achieve good uniformity and variable thickness, not to mention the scale-up production. Accordingly, it is highly essential for

high-energy-density LMAs or Li-M alloy anodes with adjustable thickness, well-guided Li deposition behaviors, and optimized electrochemical performance. In terms of Li-M alloys, the Zn

equips with unique traits, such as chemical stability in the ambient environment (_vs_. Na, Ca, Mg, etc.), nontoxicity, environmental friendliness (_vs_. Hg, Cd, etc.), low cost (_vs_. n,

Ag, Sn, Ga, Au, etc.), and lower melting temperature of ~161 °C when the Zn atom concentration is 4.5% (>180 °C of similar Li-Al alloy)36,37, which corresponds to a decreased safety

concern during the processing of Li-Zn alloy. In addition, the as-formed LiZn alloy can also provide a relatively high Li+ diffusion coefficient to ensure excellent charge transfer

kinetics31. In this work, the spontaneously formed LiZn and Li2ZnCu3 alloying composites are fabricated by introducing the Zn into the molten Li on the Cu substrate (Li/LiZn@Cu) as LMA for

LIBs. The results demonstrate that the molten Li-Zn mixture can consecutively spread away over 100 cm2 on the Cu substrate and its thickness is adjustable (5–48 μm, corresponding to 0.89–8.7

 mAh cm−2) via the doctor-blade assistance at 200 °C. Such excellent wettability is attributed to the spontaneous formation of LiZn and Li2ZnCu3 alloys, giving a thermodynamically-favored

driven force for Li diffusion. Moreover, electrochemical tests indicate that the Li stripping/plating behaviors are significantly improved by the as-formed LiZn alloys due to the fine Li

affinity, low barrier energy for Li diffusion, and hierarchical Li electrochemistry, which substantively contributes to the dendrite-free morphology and stabilizes the Li/electrolyte

interface. The resultant double-layer pouch cell delivers a high energy density (284.0 Wh kg−1, expecting a rise to 366.5 Wh kg−1 at 10 stacked layers) under lean electrolyte (1.83 g Ah−1)

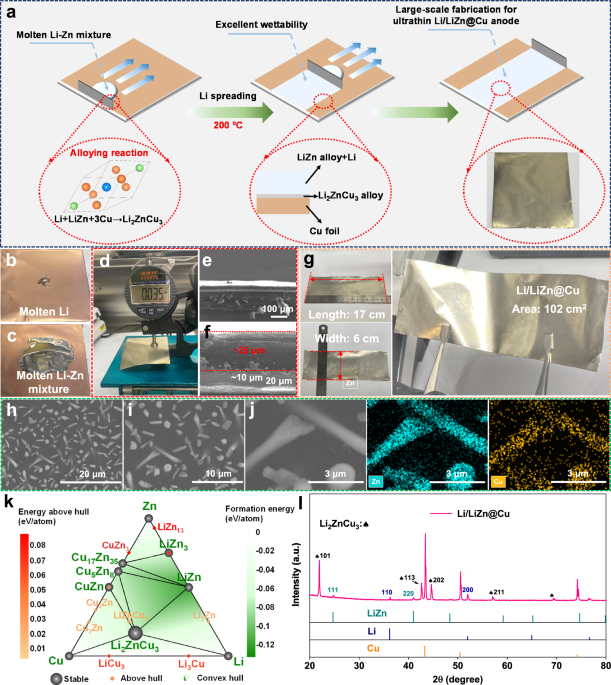

and low N/P ratio (1.35) conditions. RESULTS FABRICATION OF LI/LIZN@CU ANODE The fabrication routine for the thin Li/LiZn@Cu anode is illustrated in Fig. 1a. Firstly, the precursor of the

molten Li-Zn mixture (Li/LiZn) is fabricated by co-heating the mixed Li and Zn foils (mass ratio: 4:1) under 250 °C in a glovebox. After a thoroughly stirring process, the precursor is

transferred onto a Cu foil surface under 200 °C. It is found that with regard to the strong surface tension in the molten Li (difficulty to expand), the molten Li-Zn mixture can spread

easily on the Cu foil, where the additive of the metallic Zn seems to be improving the multiple interface contacts among the Li|Li-Zn|Cu system as shown in Fig. 1b, c. Therefore, it is

effortless to reshape the thickness of the molten Li-Zn layer on the Cu substrate using a doctor blade. As shown in Fig. 1d, the average thickness of the as-obtained Li/LiZn@Cu anode is

around 35 μm (Li/LiZn layer: ~25 μm; Cu substrate: ~10 μm) with a dense Li/LiZn and Cu interface structure as are confirmed by scanning electron microscope (SEM) images in Fig. 1e, f and

Supplementary Fig. 1. As shown in Supplementary Fig. 2, such a thin Li/LiZn@Cu anode delivers an appropriate specific capacity of 4.4 mAh cm−2, corresponding to the volumetric and

gravimetric energy densities of ~ 3100 mAh g−1 and 1760 mAh cm−3, which are _ca_. 8 and 2 times higher than the commercial graphite anode as shown in Supplementary Table 1, respectively18.

What is more, the thickness of the cast Li/LiZn layer is adjustable (ranging from 5 to 48 μm, corresponding to the capacity from 0.89 to 8.7 mAh cm−2), the available capacities of which are

compatible with most of the cathodes as shown in Supplementary Figs. 3–5. On the other hand, even using the 6 μm Cu foil, the fabrication of the thin Li/LiZn@Cu anode is also successful,

which sheds new light on further reducing the inactive mass and thereupon increasing both volumetric and gravimetric energy densities as shown in Supplementary Figs. 6–8. Moreover, this thin

Li/LiZn@Cu anode is more flexible with respect to the Li foil that can be steadily extended to the flexible energy storage devices as shown in Supplementary Fig. 9. Of special interest is

that as shown in Fig. 1g, it is easy to cast a thin Li/LiZn@Cu anode with an of 17 × 6 cm−2 in area to demonstrate the potential scale-up for LIBs industrialization application. Regarding

the bare Cu surface as shown in Supplementary Fig. 10, the island-like morphology of the Li/LiZn@Cu anode is displayed where numerous nanorod-like and nanodot-like structures are distributed

randomly onto the flat Li/LiZn@Cu substrate as shown in Fig. 1h, i. Actually, the interaction between Li and Zn is the reconstitution alloying reaction, which means that the Li/LiZn can be

regarded as a mixture of the intermetallic compound LiZn and metallic Li at a concentration range of Li atoms from 50% to 99%38. Here, the atomic concentration of Li in Li/LiZn is ~97.3%.

Thus, the nanorod- and nanodot-like structures mainly correspond to the LiZn alloy skeletons as shown in Fig. 1j, which is verified by the energy dispersive X-ray spectroscopy (EDS)

measurement of the Li/LiZn@Cu surface, presenting the concentrative distribution of the Zn element around the nanostructures. As shown in Supplementary Fig. 11, such nanostructures are

buried by the metallic Li, forming a 3D composite Li anode supported by the alloy skeletons. Interestingly, the Cu element also exists on the nanostructures, where the atomic concentration

is 10.91% as listed in Supplementary Table 2. As shown in Fig. 1k and Supplementary Figs. 12–14, the simulated ternary phase diagram and chemical potentials of the Li-Zn-Cu system forecast

that the LiZn alloy, Li, and Cu substrate would re-alloy and convert into the rarely reported Li2ZnCu3 alloy, which is an energy-favorable phase at a wide temperature range. Thus, these

nanostructures contain LiZn and a small amount of Li2ZnCu3 (~4.1%). As shown in Fig. 1l and Supplementary Figs. 15 and 16, the X-ray diffraction (XRD) peaks indicate the coexistence of LiZn

alloy (PDF#03-0954), metallic Li (PDF#15-0401), Cu (PDF#04-0836) substrate and the newly formed Li2ZnCu3 alloy in the Li/LiZn@Cu anode. Excepting these peaks, no obvious metallic Zn peaks

are detected to indicate the thorough Li and Zn alloying process. Of special importance is that the Li2ZnCu3 alloy mainly exists at the interface between the Li/LiZn layer and Cu substrate

as shown in Supplementary Fig. 17. Such an existent Li2ZnCu3 alloy can further help the fast spreading of the molten Li-Zn mixture on the Cu substrate. This multicomponent mixed Li/LiZn@Cu

film shows a unique composite structure, functioning not only as the Li nondirectional disposition and nucleation sites to minimize the influence from the notorious dendrites, also as the Li

replenishment and framework to contribute the chemical/electrochemical stability upon cycling. ECONOMIC LI COMPOSITE ANODE BY ALLOYING Figure 2 and Supplementary Table 4 display the

possible waste of Li source at the increased thickness, and the design strategy of Li alloy-based anodes for Li metal batteries. As a matter of fact, the energy density of the resultant

pouch cell decreases as well if the excessive Li can not reasonably match the capacity of the current commercial cathodes as shown in Fig. 2a. Hence, developing the thin Li-based anodes

contributes not only to the highly anticipated high energy density, but also to the economic Li utilization for LIBs. To this end, the thin Li-Zn alloys, not the pure Li metal due to the

frameless of Li itself are proposed here as a practical anode at a prerequisite of well understanding the Li wettability and alloying mechanisms. Substantially, the wettability of liquid

towards the substrate mainly involves two factors, including the surface tension of molten Li and the surface texture of the substrate. Firstly, the aforementioned LiZn alloys can

effectively reduce the surface tension of the molten Li due to the weaker interaction of Li-Zn with regard to the Li-Li bonds, visibly augmenting the Li wettability on the substrate. The

alloying reaction between Li and Zn at 250 °C is as follows: $${{{{{\rm{Li}}}}}}+{{{{{\rm{Zn}}}}}}\to {{{{{\rm{LiZn}}}}}},\,

\Delta{G}_{r}=-23.6\,{kJ}\,{mo}{l}^{-1}\,(-0.246{{{{{\rm{eV}}}}}}/{{{{{\rm{f}}}}}}.{{{{{\rm{u}}}}}}.)$$ (1) Note that the released Gibbs free energy (\(\Delta {G}_{r}\)) at high temperatures

is estimated using the machine learning model SISSO (sure independence screening and sparsifying operator) approach39. Compared with the Li-Li bond, the bonding force of Li-Zn is smaller,

resulting in the reduction of the interior atomic interactions and surface tension for molten Li to effectively improve the Li wettability on the substrate, consistent with the reported

results28. Therefore, upon preparation, the molten Li could in-situ react with Zn to form the desired LiZn alloy, which in turn accelerates the homogeneous spread of excessive Li on the

surface of Cu foil. Then, the partial binary LiZn alloy further reacts with the Cu and excessive Li to generate the ternary Li-Zn-Cu alloy. As shown in Fig. 2b, c, f, the formation energies

of Cu|Li and Cu|Li-Zn interfaces are determined to be _ca_. −1.63 and −1.81 J m−2, respectively, indicating the enhanced chemical contacts between Cu and Li-Zn with respect to that between

Cu and Li40. As shown in Fig. 2d, this improved Cu|Li-Zn interface contact helps the subsequent alloying process of LiZn, Cu, and excessive Li at 200 °C to generate the ternary Li2ZnCu3

phase as follows: $${{{{{\rm{Li}}}}}}+{{{{{\rm{LiZn}}}}}}+3{{{{{\rm{Cu}}}}}}\to

{{{{{\rm{L}}}}}}{{{{{{\rm{i}}}}}}}_{2}{{{{{\rm{ZnC}}}}}}{{{{{{\rm{u}}}}}}}_{3},\;\;\;\;{\Delta}{G}_{r}=-16.4\,{kj}\,{mol}^{-1}\,(-0.171{{{{{\rm{eV}}}}}}/{{{{{\rm{f}}}}}}.{{{{{\rm{u}}}}}}.)$$

(2) In fact, this exothermal reaction among the molten Li, LiZn alloy, and Cu is conducive to further improving the Li wettability on the substrate upon the alloying process. From a

thermodynamic point of view, the Li wettability can be determined by the contact angle using the following formula41,42: $$\cos {\theta }^{1}=\cos {\theta }^{0}-\Delta {\gamma

}_{{{{{{\rm{sl}}}}}}}/{\gamma }_{{{{{{\rm{g}}}}}}l}-\Delta {G}_{r}/{\gamma }_{{{{{{\rm{gl}}}}}}}$$ (3) in which the _θ_1 and _θ_0 denote the contact angle after or before the reaction, the

_∆γ_sl is a change in solid-liquid interfacial energy by the reaction, and the _γ_gl is the gas-liquid interfacial energy. The smaller the _θ_, the better the wettability43. Thus, the

exothermal alloying (negative \(\Delta {G}_{r}\)) of Li-Zn and Li2ZnCu3 could decrease the _θ_ to enhance the Li wettability on Cu foil, providing an extra driven force for the molten Li

spreading, in line with previous reports29,43. More significantly, the formation of the Li2ZnCu3 alloy can transform the morphology of Cu foil and significantly improve its roughness as

shown in Fig. 2e. The contact between the molten Li-Zn mixture and Cu substrate can be regarded as a Wenzel state due to the compact interface within the Li/LiZn layer and Cu in Li/LiZn@Cu,

which can further improve the lithiophilic surface wettability by the roughness increasing44. Such a pyramidal-shape morphology of Li2ZnCu3 alloy demonstrates the abundant nano-structures to

form the effective capillary effect, which also contributes to the Li wettability by Laplace pressure (∆P; \(\Delta {{{{{\rm{P}}}}}}=2{{{{{\rm{\sigma }}}}}}/{{{{{\rm{r}}}}}}\), where the Σ

is the surface tension of molten Li and the _R_ refers to the capillary radius), as shown in Fig. 2e, f45. Under the above synergetic effects, the contact angle of ~62° between molten Li-Zn

mixture and Cu substrate is much smaller than that of ~110° between molten Li and Cu substrate as shown in Supplementary Fig. 18. After all, the Li wettability process of the Li-Zn mixture

towards the Cu substrate is, to our best, much different from the other reported Li-M mixtures23,29,38. Excepting for the reduced surface tension by Li-M bond formation, the improved Li

wettability of the Li-Zn mixture also involves the formation of ternary Li2ZnCu3 alloy via a re-alloying reaction to further facilitate Li spreading on Cu substrate, where the accompanied

exothermal reaction and unique morphology will synergistically contribute to Li wettability as shown in Fig. 2f. This wettability process offers a probability to ensure a uniform and

thickness-adjustable Li/LiZn layer on Cu substrate for the desired Li deposition/stripping process. CHARACTERIZATIONS ON LI PLATING/STRIPPING The lower Li adsorption energy and diffusion

barrier on the substrate are essential for homogeneous Li deposition and subsequent Li dissolution. When the substrate/electrode surface has more negative adsorption energy towards Li+ ion

(i.e. excellent lithiophilicity), the Li nuclei sites will be more easily formed to promote the Li deposition. Otherwise, the Li may be dissolved again into the electrolyte, resulting in the

heterogeneous Li nucleation/deposition morphology46. Therefore, uniform Li deposition behaviors could be expected if the surface lithiophilic sites are distributed homogeneously. The

intrinsic Li diffusion behaviors of the Li/LiZn@Cu anode are first visited through DFT calculations, where the stabilized Li (100) and LiZn (110) surfaces are established to comprehend the

Li plating behaviors on Li and LiZn47,48,49,50. The possible adsorption sites on the Li(100) and LiZn (110) surfaces are demonstrated in Supplementary Figs. 19 and 20 (the atomic coordinates

of one Li+ ion absorbed at the LiZn(110) and Li(100) surfaces are provided in Supplementary Data 1 and 2). As shown in Fig. 3a, k, the Li absorption energy of the LiZn (110) surface is

−2.07 eV, much lower than the −1.50 eV of Li(100) surface, indicating the Li+ ions would preferentially nucleate on the LiZn alloy. In detail, the absorption of Li atoms around the Zn sites

exhibits much lower adsorption energies, which probably dominate the Li plating process on the LiZn (110) surface. As the deposition proceeds, the randomly distributed lithiophilic LiZn

alloy particles as shown in Fig. 1h–j provide a chance of Li homogeneous deposition to suppress the oriented growth of Li dendrites. Moreover, the Li diffusion barrier along the LiZn (110)

surface is ~0.03 eV, only half of that along the Li(100) surface as shown in Fig. 3b, c, k, although such diffusion barriers imply the fluid-like Li diffusion behavior. But, a lower Li

diffusion barrier can facilitate the lateral Li transportation to deposit the Li in the vicinity of the substrate rather than the protuberances, mitigating the dendrite growth46.

Additionally, given that the presence of a small amount of Li2ZnCu3 alloy in the Li/LiZn layer and its superior lithiophilicity, it will also exert positive influences on Li plating

behaviors as shown in Supplementary Table 5 and Fig. 21. As shown in Fig. 3d–i, k, from the SEM images of Li/LiZn@Cu after quantitative Li plating, at a Li deposition of 0.5 mAh cm−2, the

homogeneous Li nuclei appear on the LiZn alloy surface and further at 1 and 3 mAh cm−2, a dense and smooth Li layer is planted on the Li/LiZn@Cu anode without obvious dendrite growth, in

sharp contrast to the Li@Cu anode as shown in Supplementary Fig. 22a, b. Furthermore, the in-situ XRD characterization furnishes an in-depth understanding of the Li stripping/plating

behaviors in the Li/LiZn@Cu anode. Due to the excellent electrochemical stability of Li2ZnCu3 alloy and to prevent interference of Cu substrate on XRD signals as shown in Supplementary Figs.

 23, 24, the working electrode is set to be the Li/LiZn anode for simplification. As shown in Fig. 3j, upon the initial Li stripping (voltage <0.15 V), there are no apparent peak shifts

or new peak generation to demonstrate the electrochemical stability of LiZn alloy, while the metallic Li is continuously dissolved into the electrolyte as shown by the gradual intensity

decrease of Li (110) and (200) peaks. At the end of Li stripping, the XRD peak intensity of LiZn alloy fades and it decomposes partially into Zn and Li-deficient Li-Zn alloys such as Li2Zn5

component (black XRD pattern) at a voltage higher than 0.15 V after 4.5 h as shown in Fig. 3j. This implies that due to a higher oxidization potential of LiZn alloy with respect to the

metallic Li, the LiZn alloy will maintain its composition and crystal structure before the complete stripping of the surrounding Li ions to act firstly as a framework as shown in

Supplementary Fig. 11, and then as a Li source, but leaving abundant nucleation sites (such as Zn, LiZn, and Li-deficient Li-Zn alloys) for the subsequent Li nondirectional deposition. As

shown in Fig. 3k, such a hierarchical Li stripping process in Li/LiZn@Cu anode establishes the perfect Li stripping process, the necessary Li supplement as well as the upcoming Li plating

process, similar to the retained alloy-type framework35,51,52. Then upon Li plating, the LiZn alloy is regenerated once the Li begins to deposit as shown in Fig. 3j. Of special importance is

that the deposition surface of Li changes to the (110) plane rather than the starting (200) plane, which is conducive to the formation of planar Li morphology53,54,55. ELECTROCHEMICAL

PERFORMANCE OF LI/LIZN@CU ANODE Figure 4 displays the electrochemical performance of thin Li/LiZn@Cu and Li@Cu anodes using symmetric cells. The cycled capacity is fixed at 1 mAh cm−2,

corresponding to a discharge of depth of 22.7%, which is greater than that of the reported works as listed in Supplementary Table 6. As shown in Fig. 4a, both of the two cells exhibit stable

voltage profiles, while the visible difference is that the overpotential of Li/LiZn@Cu is lower than that of the Li@Cu anodes in the initial 90 cycles at 0.5 mA cm−2/1 mAh cm−2. This can be

attributed to a higher Li nucleation/deposition barrier on the Li@Cu surface caused by a poor interface process as shown by the electrochemical impedance spectroscopy (EIS) spectra in

Supplementary Figs. 25,26 and Supplementary Table 7, where the dendrite-like and nonuniform-thickness Li@Cu anode has an initial unstable Li/electrolyte interface with the higher SEI (RSEI)

and charge-transfer (RCT) resistances than that of the Li/LiZn@Cu anode. Moreover, the voltage polarization of Li@Cu anode increases at approx. 192 h and the failure of the symmetric cell

happens after ~380 h as shown in Fig. 4a, b. In sharp contrast, the symmetric cell of Li/LiZn@Cu anode delivers a stable cycling performance over 1200 h in response to the aforementioned

homogeneous Li plating/stripping process and robust Li/electrolyte interface endowed by the excellent lithiophilicity, low Li+ ion diffusion energy barrier, and framework-like function of

LiZn alloy. Even at a higher current density of 1 mA cm−2, the Li/LiZn@Cu anode still delivers a similar electrochemical performance without voltage fluctuations over 690 h as shown in Fig.

4c, d. Note that such exceptional performance of the thin Li/LiZn@Cu anode (35 μm, ~4.4 mAh cm−2) is even better than the commercial Li foil (450 μm, ~90 mAh cm−2) as shown in Supplementary

Figs. 27, 28. The rate capability of the Li/LiZn@Cu and Li@Cu symmetric cells is then carried out under different current densities of 0.5, 1, 2, 3, and 5 mA cm−2 with a stationary cycling

capacity (1 mAh cm−2). As shown in Fig. 4e, the Li/LiZn@Cu cell displays overwhelmingly more stable voltage profiles and lower overpotentials than those of the Li@Cu cell throughout the

whole cycling process. After the rate test, the overpotential of the Li/LiZn@Cu symmetric cell can also correspondingly return to its initial state of ~9 mV, totally different from the Li@Cu

symmetric cell at the same 0.5 mA cm−2. Furthermore, Fig. 4f demonstrates the average Coulombic efficiency (ACE) tests to appraise the reversibility of repetitive Li plating and stripping

behaviors in the symmetric cells. Compared with the low ACE of 96.8% for the Li@Cu cell, the Li/LiZn@Cu cell delivers a high ACE of 99.2% after 50 cycles at 1 mA cm−2/1 mAh cm−2, indicating

a high Li utilization with a low accumulation of “dead Li”. To understand the excellent Li deposition and stripping behaviors, the Ar+ ion etched in-depth X-ray photoelectron spectroscopy

(XPS) analysis is carried out on the cycled Li/LiZn@Cu and Li@Cu electrodes. As shown in Fig. 5a, the pristine Li _1s_ XPS spectrum of the cycled Li/LiZn@Cu can be deconvoluted into the LiF,

Li2CO3, and Li2O, which is similar to that of the cycled Li@Cu electrode as shown in Fig. 5b. While, the content of LiF in Li/LiZn@Cu is higher than the Li@Cu, probably giving a profitable

effect for uniform Li+ flux distribution and electron insulation7,56, which is also verified in the spectra of F _1s_ as shown in Fig. 5f. Of special interest is that at the etching time of

120 s, a new peak at 52.0 eV is assigned to the metallic Li in Li/LiZn@Cu, while it does not show up in Li@Cu, which plausibly indicates the thinner SEI growth of Li/LiZn@Cu with respect to

that of Li@Cu electrodes. Alongside the etching, the metallic Li appears in both electrodes, but the amount of the parasitic Li2CO3 by side reactions is obviously higher in Li@Cu than that

in Li/LiZn@Cu electrodes. Figure 5c–e demonstrates the characteristic C _1s_ peaks at 284.8, 286.4, 288.6, 289.7, and 292.8 eV that are identified as the C-C, COR (R: radicals), HCO2Li/COOR,

Li2CO3, and C-F3, respectively57,58. Especially, the C _1s_ peaks higher than 286 eV almost disappear at 480 s in Li/LiZn@Cu, while visibly present in Li@Cu throughout the etching process,

which corresponds to the carbonaceous species (COR, HCO2Li/COOR, Li2CO3, C-F3, etc.) mainly from the irreversible side reactions. This reveals that the Zn-based alloys influence the SEI

formation as well as the building of Li/LiZn@Cu/electrolyte interface to effectively protect the Li against electrolyte corrosion and provide reversible Li plating/stripping behaviors for a

prolonged cycling lifespan as demonstrated in Fig. 4. In addition, there are no XPS peaks in Zn _2p_ spectra of Li/LiZn@Cu even after 960 s etching, indicating the uniform Li deposition

layer guided by the LiZn alloy substrate due to the excellent lithiophilicity as shown in Supplementary Fig. 29. Figure 5g–j and Supplementary Fig. 30 show the surface morphology evolution

of Li@Cu and Li/LiZn@Cu electrodes after repeated Li plating/stripping. As shown in Supplementary Fig. 30a, b, a thick SEI layer with huge cracks is observed on the Li@Cu surface after 50

cycles at 1 mA cm−2 and 1 mAh cm−2. This thick and exfoliated SEI is composed of the stacked “dead Li”, arising probably from the undesired Li dendrite and the repeated rupture of SEI.

Moreover, the cross-section SEM images of Li@Cu exhibit a completely deteriorated interface morphology, which would hamper the mass transfer process for the ion/electron transportations as

shown in Supplementary Fig. 30c, d. In contrast, a homogeneous deposition layer (~34 μm) consisting of numerously compact Li grains is formed on the Li/LiZn@Cu surface as shown in Fig. 5g–j.

This signifies that the multi-functionalized LiZn alloy can well regulate the homogeneous Li deposition and restrict the uncontrollable volume expansion to promote the electrochemical

performance. It can be further seen from the EIS analysis that as shown in Supplementary Fig. 31, the semicircle at high frequency corresponds to the Li-ion transport inside the SEI (RSEI),

which decreases and almost stabilizes in Li/LiZn@Cu electrode, while it gets smaller first and then bigger from the 1st cycle to the 50th cycle, reflecting the deterioration of interface

dynamic process in Li@Cu. Figure 6 displays the full cell performance with the thin Li/LiZn@Cu anode, where the cathode is LiFePO4 (LFP) with an average active mass loading of 8.7 mg cm−2

(corresponding to ~1.3 mAh cm−2) and the capacity ratio between the anode and cathode (N/P ratio) is set to be ~3.4, a low value than most of the reported ones as shown in Supplementary

Table 6. As shown in Fig. 6a and Supplementary Fig. 32, the Li/LiZn@Cu||LFP cell delivers not only a stable Coulombic efficiency of ~100% and negligible capacity decay throughout the total

cycle, but also a prolonged lifespan over 230 cycles with the improved capacity retention of 98%. In sharp contrast, the Li@Cu anode-based full cell can normally operate for only 70 cycles,

then quickly fades to 113.1 mAh g−1 after 80 cycles. Such an inferior cycling performance of Li@Cu||LFP cell is directly ascribed to the overgrown dendrite-induced interface failure, whereas

the morphology of Li/LiZn@Cu is still smooth and undamaged during cycling as shown in Fig. 6b, c and Supplementary Fig. 33. Additionally, considering that the inevitable introduction of the

rugged Li morphology and “dead Li” in Li@Cu anode during electrochemical preparation, which will exert innate disadvantages in full cell tests, the mechanical rolling-based thin Li@Cu

(M-Li@Cu, ~24 μm-thick Li) anode is further set to be the control group as shown in Supplementary Fig. 34. When paired with the high-loading LFP (13.1 mg cm−2, corresponding to ~2 mAh cm−2,

N/P = 2.2), the prominent performance of Li/LiZn@Cu||LFP full cell is also inherited, where it displays enhanced capacity retention of 90.1% and a prolonged lifespan with respect to those of

the Li@Cu||LFP and M-Li@Cu||LFP cells as shown in Supplementary Fig. 34o. Subsequently, the rate performance of Li/LiZn@Cu||LFP is implemented as shown in Fig. 6d, where the Li/LiZn@Cu||LFP

delivers the high discharging capacities of ~148.7, 144.3, 137.2, 117.4, and 99.1 mAh g−1 at 0.2, 0.5, 1, 3, and 5 C, respectively, higher than that of the Li@Cu||LFP full cell as shown in

Supplementary Fig. 35. Moreover, highly demanding operation conditions are exerted on Li/LiZn@Cu anodes. By replacing the 25 μm-thick Li/LiZn layer with 10 or 5-μm-thick Li/LiZn layers, the

N/P ratios of the as-assembled Li/LiZn@Cu||LFP cells can be further reduced to ~1.4 or 0.7. Typically, the Li/LiZn@Cu||LFP cells with lower N/P ratios can still maintain high average

capacities of 144 and 145 mAh g−1 over 80 and 60 cycles at 0.5 C as shown in Supplementary Figs. 36, 37. In the meantime, the full cell with LiCoO2 cathode (LCO, 1.8 mAh cm−2) is cycled

under a voltage window of 2.8–4.5 V (N/P = ~2.5), which also exhibits a high initial capacity of 1.79 mAh cm−2 and good capacity retention as shown in Supplementary Fig. 38. As shown in Fig.

 6e, the full cell with the Li/LiZn@Cu anode possesses enhanced cycling stability and capacity retention of ~74% after 125 cycles at 0.5 C (1 C = 274 mA g−1). While with the Li@Cu anode, the

Li@Cu||LCO full cell shows a similar specific capacity in the first 50 cycles but accompanies a continuous capacity loss in the subsequent cycles. The degradation of Li@Cu||LCO cell is

mainly induced by the finite Li depletion and inactive SEI accumulation, which exerts a large barrier for Li+ transportation across the SEI and gradually increases the voltage hysteresis as

shown in Fig. 6f, g. To further optimize the energy density, the electrolyte is decreased down to 12 μL per cell. As shown in Fig. 6h, i and Supplementary Table 8, the as-prepared

Li/LiZn@Cu||LCO full cell delivers a high discharging capacity of 201.6 mAh g−1 at 0.1 C, corresponding to a gravimetric energy of 283.7 Wh kg−1 (~700 Wh kg−1 if only considering the active

mass of cathode and anode), which is much higher than the commercial LIBs. Furthermore, a 0.16 Ah-level Li/LiZn@Cu||LCO pouch cell is packaged to validate the cycling superiority in real

conditions as shown in Supplementary Fig. 39, Fig. 6j, k, and Supplementary Table 9. The pouch cell consists of two single-sided Li/LiZn@Cu (4.4 mAh cm−2) anodes and one double-sided LCO

cathode (active mass loading: 35.3 mg cm−2), in which the N/P ratio is ~1.35 and the amount of electrolyte is 1.83 g Ah−1. Such a stacked cell with only two layers could achieve a high

energy density of 284.0 Wh kg−1, surpassing most of the available practical LIBs as indicated in Supplementary Table 9. As a matter of fact, taking the performance of this pouch cell as a

reference, the energy density can be further increased to ~366.5 Wh kg−1 at about 10 staked double-sided LiCoO2 cathodes as shown in Supplementary Table 10. The finally well-regulated

Li/LiZn@Cu anode demonstrates the hierarchical Li electrochemistry to be well compatible with the high-performance LIBs. Upon charging, the Li/LiZn@Cu anode firstly acts as the Li source to

establish the even Li stripping. Then, at the end of charging, the de-alloy of LiZn particle further supplements the Li extraction, actually playing the Li compensation role in battery

cycling, which has a profound influence on the practical application of available high energy density materials, such as the Si or SiOx based anodes and NCM-based high energy density layered

cathodes. Furthermore, upon discharging, the LiZn alloy will form just at the beginning, and then the LiZn alloy-regulated Li homogeneous deposition follows along with the cycling. The

reversibility of such an interesting process has been undoubtedly verified from the aforementioned electrochemistry and in-situ XRD characterization. These results provide a rewarding avenue

toward the utilization of Li metal anode, the Li supplementary strategy, and the prevailing high-energy-density Li metal batteries DISCUSSION In conclusion, the thin Li/LiZn@Cu anodes with

large sizes (>100 cm−2) and adjustable thicknesses/capacities (5–48 μm of Li/LiZn, 0.89–8.7 mAh cm−2) are successfully fabricated by a facile and low-cost approach for high-energy-density

LIBs. Benefiting from the LiZn alloy, the thin Li/LiZn@Cu anode demonstrates the homogeneous and abundant surface functional sites to intrigue the Li stripping/plating and delivers the

hierarchical Li electrochemistry to regulate the dendrite-free morphology and robust Li/electrolyte interface. As expected, the Li/LiZn@Cu anode not only exhibits excellent cycling stability

over 1200 h at 0.5 mA cm−2/1 mAh cm−2 in the symmetric cell, but also realizes a prolonged lifespan of 230 cycles under a suitable N/P ratio when paired with the LFP cathode. Moreover, a

high energy density battery of 284.0 Wh kg−1 (366.5 Wh kg−1 when containing 10 stacked layers) is obtained in LCO-based pouch cell, consisting of the lean electrolyte (1.83 g Ah−1), low N/P

ratio (1.35), thinner Cu foil-based Li/LiZn@Cu anode, and double-sided LCO cathode (36.6 mg cm−2). Such a promising alloy-type technology for thin Li metal anodes sheds a practicable and

up-and-coming routine for future high-performance and high-energy-density Li metal batteries. METHODS PREPARATION OF THE THIN LI ANODE Thin Li/LiZn@Cu anode was fabricated via a doctor-blade

casting process and all steps were performed in the glovebox (MBRAUN, contents of H2O and O2 were less than 0.1 ppm). First, the polished Li and Zn foil were mixed together (mass ratio:

4:1) and heated to 250 °C in a stainless-steel container. Then, the molten Li would alloy with the Zn foil to form the Li-Zn mixture (Li+LiZn alloy). After full stirring, the molten mixture

was transferred to the Cu foil surface (temperature: 200 °C). Due to the further alloying reaction (Li, LiZn, and Cu) and reduced surface tension of formed LiZn, the quantitatively thin

Li/LiZn@Cu anode could be readily fabricated with the assistance of the doctor-blade method on Cu foil. In addition, the e-Li/LiZn@Cu electrode can be obtained after etching off the Li/LiZn

layer with alcohol. To acquire the thin Li@Cu anode, a half cell using Cu foil as the working electrode and Li foil as the counter electrode was assembled, and then 4.5 mAh cm−2 Li was

electroplated on the Cu surface at 0.5 mA cm−2. The electrolyte was 1 M lithium bis(trifluoromethanesulphonyl) imide (LiTFSI) in 1,3-dioxolane (DOL)/1,2-dimethoxyethane (DME) (v/v = 1:1)

with 1 wt% LiNO3. After disassembling the half cell and rinsing the Li-plated Cu foil with DOL, the preparation of the Li@Cu anode was completed. The thin M-Li@Cu anode (thickness:

~24μm-thick Li+10 μm-thick Cu foil) was purchased from China Energy Lithium Co., Ltd. MATERIALS CHARACTERIZATION SEM images were obtained using HITACHI SU5000 field emission scanning

electron microscopes. To observe the top-view or cross-section morphologies of the cycled electrodes, they were rinsed with DOL to remove the residual electrolyte in advance and dried in the

glovebox. XRD measurements were conducted via Rigaku SmartLab and Bruker D8 Advance X-ray diffractometers with Cu Kα radiation. To reduce the air influence on highly reactive Li, the

surface of Li/LiZn@Cu samples was covered with Kapton tape before XRD measurements. In-depth XPS spectra were explored through Thermofisher Scientific ESCALAB Xi+ with monochromatic Al Kα

radiation. All samples were processed in glove box and transferred to the XPS chamber using a transfer box. IN-SITU XRD MEASUREMENT The in-situ XRD diffraction was carried out on a Bruker D8

Advance X-ray diffractometer (Cu Kα radiation) with the successive scanning mode (2θ range: 20° to 80°). The cathode and anode were the same and prepared by cooling down the molten Li-Zn

mixture and then pressing it into thin foil (Li/LiZn). Then the shaped Li/LiZn foils were assembled into a symmetric cell in a homemade in-situ cell with a beryllium window for further XRD

characterization. In the in-situ Li||e-Li/LiZn@Cu cell, the cathode was e-Li/LiZn@Cu (Cu thickness: 6 μm) and the anode was Li foil. The electrolyte was 1M LiTFSI in DOL/DME (v/v = 1:1) with

1 wt% LiNO3. ELECTROCHEMICAL MEASUREMENTS All the electrochemical measurements were investigated using CR2025-type coin cells and conducted on the LANHE battery testing system (CT 3002A).

In symmetric cell tests, two identical electrodes (Li@Cu or Li/LiZn@Cu) were used as the counter and working electrode. In average Coulombic efficiency (ACE) tests, the symmetric cells with

different electrodes were firstly cycled 50 cycles under 1 mA cm−2/1 mAh cm−2, and then stripping all residual Li at 1 mA cm−2 until the voltage reached 1 V. The value of ACE can be

calculated as the following formula59: $${{{{{\rm{ACE}}}}}}=({n{C}_{{{{{{\rm{F}}}}}}}+C}_{{{{{{\rm{S}}}}}}})/(n{C}_{{{{{{\rm{F}}}}}}}+{C}_{{{{{{\rm{P}}}}}}})$$ (4) where _n_ is the cycle

number, _C_p is the pristine areal capacity of the tested electrode, _C_F is the fixed areal capacity used in cycles, and _C_S is the final stripping areal capacity of the tested electrode.

EIS tests of symmetric cells were conducted on an electrochemical workstation (Princeton Applied Research, PARSTAT MC) with a frequency range from 200 kHz to 0.1 Hz. The involved electrolyte

in the above tests was 1M LiTFSI in DOL/DME (v/v = 1:1) with 1 wt% LiNO3. In full cell tests, all cathodes were prepared by the blade-casting approach. For the LFP cathode with ~10.9 mg 

cm−2, the mass ratio of LFP, carbon black, and polyvinylidene fluoride (PVDF) was 8:1:1. The LFP cathode with a higher mass loading of ~14 mg cm−2 was provided by Kejing (mass ratio of LFP:

93.4%). For the LCO cathode, the mass loading was ~10 mg cm−2 (mass ratio of LCO: 90%). All full cells were first cycled 5 cycles at 0.2 or 0.1 C for activation before further tests. The

electrolyte for full cells was 1 M lithium hexafluorophosphate (LiPF6) in ethylene carbonate (EC)/dimethyl carbonate (DMC)/ethyl methyl carbonate (EMC) (v/v/v = 1:1:1) with 5% fluoroethylene

carbonate (FEC). Unless otherwise specified, the amount of electrolyte for coin-type cells was 35 µL. In the pouch cell test, the used double-sided LCO cathode possessed a higher mass

loading of ~38.8 mg cm−2 (mass ratio of LCO: 91%), and the applied size was 5 × 5 cm2. The operating voltage window and rate were set as 2.8–4.5 V and 0.1 C. Notably, the charging operation

contained two processes: the first step was a galvanostatic charging process at 0.1 C until the voltage reached 4.5 V, while the next step was a constant-voltage charging process until the

charging rate reduced to 0.03 C. The detailed information is displayed in Supplementary Tables 9, 10. The energy densities (Wh kg−1) of the coin-type cell and pouch cell were calculated by

the following formula: $${E}_{{{{{{\rm{g}}}}}}}=\frac{{E}_{{{{{{\rm{D}}}}}}}}{{m}_{{{{{{\rm{T}}}}}}}}$$ (5) where _E_g is the specific energy of the cell (Wh kg−1), _E_D is the discharging

energy per unit area given by the data processing software of the LANHE battery testing system, and the _m_T is the total weight per unit area based on the sum of pouch cell bag, separator,

electrolyte, current collector, cathode, and anode. All the electrochemical measurements were conducted in the incubator at 27 °C. THEORETICAL CALCULATIONS The Vienna Ab Initio Simulation

Package60,61 (vasp.5.4.4) based on the projected augmented wave62 (PAW) potentials was utilized for first-principles calculations. The generalized gradient approximation63 (GGA) in the

parameterization of Perdew, Burke, and Ernzerhof (PBE) functional was adapted to describe the electronic exchange-correlation interaction. The cut-off energy of 450 eV and Γ-centered 4 × 4 ×

 1 k-point mesh was applied, respectively. Geometry optimizations were performed until the convergence criteria of energy and force reached 1 × 10−6 eV and 0.01 eV/Å, respectively. The

vacuum thickness of 15 Å for all slab structures was implemented to prevent the interaction between the periodic images. The Li-ion migration barriers were calculated by climbing image

nudged elastic band (CINEB)64,65 method with 4 images as the intermediate states, where the CINEB simulation is considered complete when the magnitude of force per atom is smaller than 0.03 

eV/Å. The optimized 8-layer slab was utilized for the calculation of the Li-ion migration barriers, where the four bottom layers were fixed at bulk positions while all other layers were

allowed to relax. The crystal structures were built using VESTA software66. The compositional phase diagrams were built using the _phase_diagram module_ of Pymatgen67. The Gibbs free energy

G(T) of the formation of solids at high temperatures (200 or 250 °C) can be estimated using the machine learning model SISSO (sure independence screening and sparsifying operator)

approach39. And the Gibbs free energy per atom (∆G) between reactants and products can be calculated as follows: $$\Delta G=({G}_{{products}}-{G}_{{reactants}})$$ (6) The Li adsorption

energy Eadsorb is described as follows: $${E}_{{{{{{\rm{adsorb}}}}}}}={E}_{{{{{{\rm{slab}}}}}}+{{{{{\rm{Li}}}}}}}-({E}_{{{{{{\rm{slab}}}}}}}+{E}_{{{{{{\rm{Li}}}}}}})$$ (7) Where the

_E_slab+Li is the total energy of the slab structure with one Li adsorbed on the surface, _E_slab is the total energy of the surface structure, and ELi is the total energy of one Li. The

interface formation energies of Cu(001)|Li(001) and Cu(001)|LiZn(110) interfaces systems can be calculated as follows:

$${E}_{{{{{{\rm{f}}}}}}}=({E}_{{{{\mbox{a}}}}{{{\mbox{b}}}}}-{E}_{{{\mbox{a}}}}-{E}_{{{\mbox{b}}}})/S$$ (8) Where the _E_ab is the complete system containing the interface, _E_a and _E_b

denote the separated slabs (Cu(001), Li(001), and LiZn(110) slab), and _S_ refers to the interfacial area. The surface energy σ of Li2ZnCu3 can be obtained as follows:

$$\sigma=\frac{1}{2A}[{E}_{{{{{\rm{slab}}}}}}-n{E}_{{{{{\rm{bulk}}}}}}]$$ (9) where the _E_slab is the energy of relaxed slab models with no restriction of the atomic position, the _E_bulk

is the total energy of the bulk structure, and the A is the area surface. DATA AVAILABILITY The authors declare that all data supporting the finding of this study are available within the

paper and its supplementary information files. All raw data generated during the current study are available from the corresponding authors upon request. Source data are provided with this

paper. REFERENCES * Chu, S., Cui, Y. & Liu, N. The path towards sustainable energy. _Nat. Mater._ 16, 16–22 (2017). Article  ADS  Google Scholar  * Liu, B., Zhang, J.-G. & Xu, W.

Advancing lithium metal batteries. _Joule_ 2, 833–845 (2018). Article  CAS  Google Scholar  * Du, G. et al. Low‐operating temperature, high‐rate and durable solid‐state sodium‐ion battery

based on polymer electrolyte and Prussian blue cathode. _Adv. Energy Mater._ 10, 1903351 (2020). Article  CAS  Google Scholar  * Albertus, P., Babinec, S., Litzelman, S. & Newman, A.

Status and challenges in enabling the lithium metal electrode for high-energy and low-cost rechargeable batteries. _Nat. Energy_ 3, 16–21 (2018). Article  CAS  ADS  Google Scholar  * Lin, D.

C., Liu, Y. Y. & Cui, Y. Reviving the lithium metal anode for high-energy batteries. _Nat. Nanotechnol._ 12, 194–206 (2017). Article  CAS  PubMed  ADS  Google Scholar  * Wang, Z. et al.

Insights into the deposition chemistry of Li ions in nonaqueous electrolyte for stable Li anodes. _Chem. Soc. Rev._ 50, 3178–3210 (2021). Article  CAS  PubMed  Google Scholar  * Wu, Z. et

al. Growing single-crystalline seeds on lithiophobic substrates to enable fast-charging lithium-metal batteries. _Nat. Energy_ 8, 340–350 (2023). Article  CAS  ADS  Google Scholar  * Xiao,

J. et al. Understanding and applying coulombic efficiency in lithium metal batteries. _Nat. Energy_ 5, 561–568 (2020). Article  CAS  ADS  Google Scholar  * Cao, X. et al. Stability of solid

electrolyte interphases and calendar life of lithium metal batteries. _Energy Environ. Sci._ 16, 1548–1559 (2023). Article  CAS  Google Scholar  * Fang, C. et al. Quantifying inactive

lithium in lithium metal batteries. _Nature_ 572, 511–515 (2019). Article  CAS  PubMed  ADS  Google Scholar  * Cao, J. et al. Achieving Uniform Li Plating/Stripping at Ultrahigh Currents and

Capacities by Optimizing 3D Nucleation Sites and Li2Se-Enriched SEI. _Adv. Sci._ 9, 2104689 (2022). Article  CAS  Google Scholar  * Cao, J. et al. Rationally optimized carbon fiber cloth as

lithiophilic host for highly stable Li metal anodes. _Mater. Today Energy_ 20, 100663 (2021). Article  CAS  Google Scholar  * Niu, C. et al. Self-smoothing anode for achieving high-energy

lithium metal batteries under realistic conditions. _Nat. Nanotechnol._ 14, 594–601 (2019). Article  CAS  PubMed  ADS  Google Scholar  * Liu, Y. et al. Self-assembled monolayers direct a

LiF-rich interphase toward long-life lithium metal batteries. _Science_ 375, 739–745 (2022). Article  CAS  PubMed  ADS  Google Scholar  * Tu, Z. et al. Fast ion transport at solid-solid

interfaces in hybrid battery anodes. _Nat. Energy_ 3, 310–316 (2018). Article  CAS  ADS  Google Scholar  * Holoubek, J. et al. Electrolyte design implications of ion-pairing in

low-temperature Li metal batteries. _Energy Environ. Sci._ 15, 1647–1658 (2022). Article  CAS  Google Scholar  * Niu, C. et al. Balancing interfacial reactions to achieve long cycle life in

high-energy lithium metal batteries. _Nat. Energy_ 6, 723–732 (2021). Article  CAS  ADS  Google Scholar  * Cao, J., Qian, G., Lu, X. & Lu, X. Advanced Composite Lithium Metal Anodes with

3D Frameworks: Preloading Strategies, Interfacial Optimization, and Perspectives. _Small_ 19, 2205653 (2023). Article  CAS  Google Scholar  * Luo, C. et al. Roll‐To‐Roll Fabrication of

Zero‐Volume‐Expansion Lithium‐Composite Anodes to Realize High‐Energy‐Density Flexible and Stable Lithium‐Metal Batteries. _Adv. Mater._ 34, 2205677 (2022). Article  CAS  Google Scholar  *

Cheng, Y. et al. Lithium Host: Advanced Architecture Components for Lithium Metal Anode. _Energy Storage Mater._ 38, 276–298 (2021). Article  Google Scholar  * Wu, W. et al. Magnetic

actuation enables programmable lithium metal engineering. _Adv. Energy Mater._ 12, 2200999 (2022). Article  CAS  Google Scholar  * Hu, M., Tong, Z., Cui, C., Zhai, T. & Li, H. Facile,

Atom-Economic, Chemical Thinning Strategy for Ultrathin Lithium Foils. _Nano Lett._ 22, 3047–3053 (2022). Article  CAS  PubMed  ADS  Google Scholar  * Du, J. et al. Doctor‐Blade Casting

Fabrication of Ultrathin Li Metal Electrode for High‐Energy‐Density Batteries. _Adv. Energy Mater._ 11, 2102259 (2021). Article  CAS  Google Scholar  * Gao, J. et al. Stamping Flexible Li

Alloy Anodes. _Adv. Mater._ 33, 2005305 (2021). Article  CAS  ADS  Google Scholar  * Xu, Q. et al. High energy density lithium metal batteries enabled by a porous graphene/MgF2 framework.

_Energy Storage Mater._ 26, 73–82 (2020). Article  Google Scholar  * Chen, H. et al. Free-standing ultrathin lithium metal-graphene oxide host foils with controllable thickness for lithium

batteries. _Nat. Energy_ 6, 790–798 (2021). Article  CAS  ADS  Google Scholar  * Zhang, G. et al. A 10-μm Ultrathin Lithium Metal Composite Anodes with Superior Electrochemical Kinetics and

Cycling Stability. _Energy Environ. Mater._ 6, e12598 (2023). Article  CAS  Google Scholar  * Zheng, Z. J., Ye, H. & Guo, Z. P. Recent progress in designing stable composite lithium

anodes with improved wettability. _Adv. Sci._ 7, 2002212 (2020). Article  CAS  Google Scholar  * Wang, S.-H. et al. Tuning wettability of molten lithium via a chemical strategy for lithium

metal anodes. _Nat. Commun._ 10, 4930 (2019). Article  PubMed  PubMed Central  ADS  Google Scholar  * Wang, X. et al. Li plating on alloy with superior electro-mechanical stability for high

energy density anode-free batteries. _Energy Storage Mater._ 49, 135–143 (2022). Article  Google Scholar  * Hu, A. et al. An artificial hybrid interphase for an ultrahigh-rate and practical

lithium metal anode. _Energy Environ. Sci._ 14, 4115–4124 (2021). Article  CAS  Google Scholar  * Chen, Z. et al. Bulk/Interfacial Synergetic Approaches Enable the Stable Anode for High

Energy Density All-Solid-State Lithium-Sulfur Batteries. _ACS Energy Lett._ 7, 2761–2770 (2022). Article  CAS  Google Scholar  * He, G., Li, Q., Shen, Y. & Ding, Y. Flexible amalgam film

enables stable lithium metal anodes with high capacities. _Angew. Chem. Int Ed._ 131, 18637–18641 (2019). Article  ADS  Google Scholar  * Wang, C. et al. Universal soldering of lithium and

sodium alloys on various substrates for batteries. _Adv. Energy Mater._ 8, 1701963 (2018). Article  Google Scholar  * Yang, C. et al. An electron/ion dual‐conductive alloy framework for

high‐rate and high‐capacity solid‐state lithium‐metal batteries. _Adv. Mater._ 31, 1804815 (2019). Article  Google Scholar  * Hallstedt, B. & Kim, O. Thermodynamic assessment of the

Al-Li system. _Int J. Mater. Res_ 98, 961–969 (2007). Article  CAS  Google Scholar  * Pelton, A. The Li-Zn (lithium-zinc) system. _J. Phase Equilib._ 12, 42–45 (1991). Article  CAS  Google

Scholar  * Jin, S. et al. Solid-solution-based metal alloy phase for highly reversible lithium metal anode. _J. Am. Chem. Soc._ 142, 8818–8826 (2020). Article  PubMed  Google Scholar  *

Bartel, C. J. et al. Physical descriptor for the Gibbs energy of inorganic crystalline solids and temperature-dependent materials chemistry. _Nat. Commun._ 9, 4168 (2018). Article  PubMed

PubMed Central  ADS  Google Scholar  * Liu, Z. et al. Interfacial study on solid electrolyte interphase at Li metal anode: implication for Li dendrite growth. _J. Electrochem Soc._ 163, A592

(2016). Article  CAS  Google Scholar  * Kritsalis, P., Coudurier, L. & Eustathopoulos, N. Contribution to the study of reactive wetting in the CuTi/Al 2 O 3 system. _J. Mater. Sci._ 26,

3400–3408 (1991). Article  CAS  ADS  Google Scholar  * Dezellus, O. & Eustathopoulos, N. Fundamental issues of reactive wetting by liquid metals. _J. Mater. Sci._ 45, 4256–4264 (2010).

Article  CAS  ADS  Google Scholar  * Wang, J. et al. Fundamental study on the wetting property of liquid lithium. _Energy Storage Mater._ 14, 345–350 (2018). Article  Google Scholar  *

Wenzel, R. N. Resistance of solid surfaces to wetting by water. _Ind. Eng. Chem._ 28, 988–994 (1936). Article  CAS  Google Scholar  * Feng, Y.-Q. et al. A super-lithiophilic

nanocrystallization strategy for stable lithium metal anodes. _Nano Energy_ 73, 104731 (2020). Article  CAS  Google Scholar  * He, Y. et al. Regulation of Dendrite-Free Li Plating via

Lithiophilic Sites on Lithium-Alloy Surface. _ACS Appl Mater. Interfaces_ 14, 33952–33959 (2022). Article  CAS  Google Scholar  * Wang, R. et al. Insights into dendrite suppression by alloys

and the fabrication of a flexible alloy-polymer protected lithium metal anode. _Energy Storage Mater._ 32, 178–184 (2020). Article  CAS  Google Scholar  * Jäckle, M. & Groß, A.

Microscopic properties of lithium, sodium, and magnesium battery anode materials related to possible dendrite growth. _J. Chem. Phys._ 141, 174710 (2014). Article  PubMed  ADS  Google

Scholar  * Ren, Y. et al. Rational design of spontaneous reactions for protecting porous lithium electrodes in lithium-sulfur batteries. _Nat. Commun._ 10, 3249 (2019). Article  CAS  PubMed

  PubMed Central  ADS  Google Scholar  * Chen, Q. et al. Li-Zn overlayer to facilitate uniform lithium deposition for lithium metal batteries. _ACS Appl Mater. Interfaces_ 13, 9985–9993

(2021). Article  CAS  PubMed  Google Scholar  * Yao, Z. et al. Fast ion/electron conducting scaffold of Li-Zn dual-phase alloy enable uniform deposition of Li metal at high current

densities. _J. Energy Chem._ 51, 285–292 (2020). Article  Google Scholar  * Ouyang, Y. et al. In situ formed LiZn alloy skeleton for stable lithium anodes. _ACS Appl Mater. Interfaces_ 12,

25818–25825 (2020). Article  CAS  PubMed  Google Scholar  * Shi, F. et al. Strong texturing of lithium metal in batteries. _Proc. Natl Acad. Sci. USA_ 114, 12138–12143 (2017). Article  CAS

PubMed  PubMed Central  ADS  Google Scholar  * Zhao, Q. et al. On the crystallography and reversibility of lithium electrodeposits at ultrahigh capacity. _Nat. Commun._ 12, 6034 (2021).

Article  CAS  PubMed  PubMed Central  ADS  Google Scholar  * Li, N. et al. Reduced‐graphene‐oxide‐guided directional growth of planar lithium layers. _Adv. Mater._ 32, 1907079 (2020).

Article  CAS  Google Scholar  * Jiang, P. et al. LiF involved interphase layer enabling thousand cycles of LAGP-based solid-state Li metal batteries with 80% capacity retention. _Energy

Storage Mater._ 48, 145–154 (2022). Article  Google Scholar  * Ma, Y. et al. Insulative ion-conducting lithium selenide as the artificial solid-electrolyte interface enabling heavy-duty

lithium metal operations. _Nano Lett._ 21, 7354–7362 (2021). Article  CAS  PubMed  ADS  Google Scholar  * Ma, Q. et al. Impact of anionic structure of lithium salt on the cycling stability

of lithium-metal anode in Li-S batteries. _J. Electrochem Soc._ 163, A1776 (2016). Article  CAS  Google Scholar  * Adams, B. D., Zheng, J., Ren, X., Xu, W. & Zhang, J. G. Accurate

determination of coulombic efficiency for lithium metal anodes and lithium metal batteries. _Adv. Energy Mater._ 8, 1702097 (2018). Article  Google Scholar  * Kresse, G. & Furthmüller,

J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. _Comp. Mater. Sci._ 6, 15–50 (1996). Article  CAS  Google Scholar  * Kresse,

G. & Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. _Phys. Rev. B_ 54, 11169 (1996). Article  CAS  ADS  Google Scholar

  * Blöchl, P. E. Projector augmented-wave method. _Phys. Rev. B_ 50, 17953 (1994). Article  ADS  Google Scholar  * Perdew, J. P., Burke, K. & Ernzerhof, M. Generalized gradient

approximation made simple. _Phys. Rev. Lett._ 77, 3865 (1996). Article  CAS  PubMed  ADS  Google Scholar  * Henkelman, G. & Jónsson, H. Improved tangent estimate in the nudged elastic

band method for finding minimum energy paths and saddle points. _J. Chem. Phys._ 113, 9978–9985 (2000). Article  CAS  ADS  Google Scholar  * Henkelman, G., Uberuaga, B. P. & Jónsson, H.

A climbing image nudged elastic band method for finding saddle points and minimum energy paths. _J. Chem. Phys._ 113, 9901–9904 (2000). Article  CAS  ADS  Google Scholar  * Momma, K. &

Izumi, F. VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data. _J. Appl Crysyallogr_ 44, 1272–1276 (2011). Article  CAS  ADS  Google Scholar  * Ong, S. P.

et al. Python Materials Genomics (pymatgen): A robust, open-source python library for materials analysis. _Comp. Mater. Sci._ 68, 314–319 (2013). Article  CAS  Google Scholar  Download

references ACKNOWLEDGEMENTS This work was supported by National Key Research and Development Project (2019YFA0705702), National Natural Science Foundation of China (22075328, 22379168),

Guangdong Basic and Applied Basic Research Foundation (2021B1515120002), and the Natural Science Foundation of Guangdong Province (2022A1515010405). Computational resources were provided by

the Tianhe−2 National Supercomputer Center in Guangzhou. AUTHOR INFORMATION Author notes * These authors contributed equally: Jiaqi Cao, Yuansheng Shi. AUTHORS AND AFFILIATIONS * School of

Materials, Sun Yat-sen University, Shenzhen, 518107, PR China Jiaqi Cao, Yuansheng Shi, Guangyuan Du, Muhtar Dilxat, Yongfei Zhang, Mohang Cai, Guoyu Qian, Xueyi Lu, Yang Sun & Xia Lu *

Instrumental Analysis & Research Center, Sun Yat-sen University, Guangzhou, 510275, PR China Aosong Gao & Fangyan Xie Authors * Jiaqi Cao View author publications You can also search

for this author inPubMed Google Scholar * Yuansheng Shi View author publications You can also search for this author inPubMed Google Scholar * Aosong Gao View author publications You can

also search for this author inPubMed Google Scholar * Guangyuan Du View author publications You can also search for this author inPubMed Google Scholar * Muhtar Dilxat View author

publications You can also search for this author inPubMed Google Scholar * Yongfei Zhang View author publications You can also search for this author inPubMed Google Scholar * Mohang Cai

View author publications You can also search for this author inPubMed Google Scholar * Guoyu Qian View author publications You can also search for this author inPubMed Google Scholar * Xueyi

Lu View author publications You can also search for this author inPubMed Google Scholar * Fangyan Xie View author publications You can also search for this author inPubMed Google Scholar *

Yang Sun View author publications You can also search for this author inPubMed Google Scholar * Xia Lu View author publications You can also search for this author inPubMed Google Scholar

CONTRIBUTIONS J.Q.C. and X.L. conceived the project. J.Q.C. performed the materials synthesis and electrochemical testing. Y.S.S. performed the computational calculations. A.S.G collected

the XPS spectra. M.D. and Y.F.Z performed the in-situ XRD tests. J.Q.C., Y.S.S., G.Y.D., M.H.C., G.Y.Q., X.Y.L., F.Y.X., and Y.S. performed the characterizations. J.Q.C. and X.L. analyzed

the data and proposed the mechanisms. J.Q.C. wrote the draft that was revised and finalized by X.L. All authors discussed the results and commented on the manuscript. CORRESPONDING AUTHOR

Correspondence to Xia Lu. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. PEER REVIEW PEER REVIEW INFORMATION _Nature Communications_ thanks the anonymous

reviewer(s) for their contribution to the peer review of this work. A peer review file is available. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to

jurisdictional claims in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE DESCRIPTION OF ADDITIONAL SUPPLEMENTARY FILES

SUPPLEMENTARY DATA 1 SUPPLEMENTARY DATA 2 SOURCE DATA SOURCE DATA RIGHTS AND PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License,

which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link

to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article’s Creative Commons licence, unless

indicated otherwise in a credit line to the material. If material is not included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or

exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints

and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Cao, J., Shi, Y., Gao, A. _et al._ Hierarchical Li electrochemistry using alloy-type anode for high-energy-density Li metal batteries.

_Nat Commun_ 15, 1354 (2024). https://doi.org/10.1038/s41467-024-45613-4 Download citation * Received: 08 August 2023 * Accepted: 30 January 2024 * Published: 14 February 2024 * DOI:

https://doi.org/10.1038/s41467-024-45613-4 SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a shareable link is not

currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
