A raf-snrk2 kinase cascade mediates early osmotic stress signaling in higher plants

ABSTRACT Osmoregulation is important for plant growth, development and response to environmental changes. SNF1-related protein kinase 2s (SnRK2s) are quickly activated by osmotic stress and

are central components in osmotic stress and abscisic acid (ABA) signaling pathways; however, the upstream components required for SnRK2 activation and early osmotic stress signaling are

still unknown. Here, we report a critical role for B2, B3 and B4 subfamilies of Raf-like kinases (RAFs) in early osmotic stress as well as ABA signaling in _Arabidopsis thaliana_. B2, B3 and

B4 RAFs are quickly activated by osmotic stress and are required for phosphorylation and activation of SnRK2s. Analyses of high-order mutants of _RAFs_ reveal critical roles of the RAFs in

osmotic stress tolerance and ABA responses as well as in growth and development. Our findings uncover a kinase cascade mediating osmoregulation in higher plants. SIMILAR CONTENT BEING VIEWED

BY OTHERS ROLE OF RAF-LIKE KINASES IN SNRK2 ACTIVATION AND OSMOTIC STRESS RESPONSE IN PLANTS Article Open access 03 December 2020 A DUAL FUNCTION OF SNRK2 KINASES IN THE REGULATION OF SNRK1

AND PLANT GROWTH Article 19 October 2020 THE ABSCISIC ACID SIGNALING NEGATIVE REGULATOR _OSPP2C68_ CONFERS DROUGHT AND SALINITY TOLERANCE TO RICE Article Open access 25 February 2025

INTRODUCTION Drought, high salinity, and low temperatures cause osmotic stress to plants, greatly limiting plant productivity1,2,3. Osmoregulation is essential for plants to cope with

environmental challenges and is also required for plant growth and development. SNF1-related protein kinase 2s (SnRK2s) are critical for osmotic stress responses4,5. Three of the ten SnRK2

family members, SnRK2.2, SnRK2.3, and SnRK2.6, are core components in the signaling pathway of abscisic acid (ABA)6,7, a phytohormone that accumulates in plants subjected to osmotic

stress8,9,10,11. In the absence of ABA, SnRK2.2/3/6 are inhibited by clade A protein phosphatase 2Cs (PP2Cs) through dephosphorylation12,13,14. Upon hyperosmotic stress, ABA accumulates and

binds to its receptors, the PYRABACTIN RESISTANCE1 (PYR1)/PYR1-LIKE (PYL)/REGULATORY COMPONENTS OF ABA RECEPTORS (RCAR) family proteins, which subsequently inhibit PP2C activity, resulting

in the release of SnRK2s from inhibition. Current models suggest that SnRK2.6 is self-activated by autophosphorylation after release from PP2C-mediated inhibition15. The activated SnRK2s

phosphorylate downstream effectors to mediate stress responses16,17. All members of the SnRK2 family, except SnRK2.9, are also activated by osmotic stress4. The _snrk2.1/2/3/4/5/6/7/8/9/10_

decuple mutant, which lacks all ten members of the SnRK2 family, is hypersensitive to osmotic stress5. Neither the _snrk2.2/3/6_ triple nor _snrk2.1/4/5/7/8/9/10_ septuple mutant has an

obvious osmotic stress-sensitive phenotype, suggesting redundancy among SnRK2s in the osmotic stress response5. Osmotic stress-mediated SnRK2 activation is independent of the ABA signaling

pathway4,5,18,19. In _ABA insensitive 1_ (_abi1-1_), a dominant mutant where the ABI1 PP2C phosphatase cannot be inhibited by PYR/PYL/ACAR, or in high-order mutants of PYR/PYL/ACAR ABA

receptors, osmotic stress-induced SnRK2 activation is not reduced18,20, while ABA-induced SnRK2 activation is abolished20,21. How the SnRK2s are activated by osmotic stress is a major

unanswered question. Raf-like protein kinases (RAFs) have been classified as mitogen activated protein kinase kinase kinases (MAPKKKs) in plants22,23. According to sequence similarity,

Raf-like protein kinases are classified into four B and seven C subgroups22. In the moss _Physcomitrella patens_, ABA and abiotic stress-responsive Raf-like Kinase (ARK), a B3 subfamily

Raf-like kinase, participates in the regulation of both ABA and hyperosmotic stress responses by phosphorylating PpSnRK224. The _Arabidopsis thaliana_ genome contains 80 genes encoding

Raf-like protein kinases, including four members of the B1 subgroup, six members of the B2 subgroup, six members of the B3 subgroup, and seven members of the B4 subgroup. One B4 subfamily

member, Hydraulic Conductivity of Root 1 (HCR1), is involved in a potassium-dependent response to hypoxia25. In _Arabidopsis_, mutants of several members of the B2 and B3 families of

Raf-like protein kinases such as _ctr1_, _raf10_ and _raf11_, are insensitive to ABA26,27, and the _sis8_ mutant is hypersensitive to salt stress28. The phosphorylation of a B4 Raf-like

protein kinase, AT1G16270, is up-regulated by mannitol treatment in _Arabidopsis_29. However, whether Raf-like protein kinases function in SnRK2 activation, and in osmotic stress and/or ABA

signaling in higher plants remains unknown. Here, we report a critical role for some Raf-like kinases in early osmotic stress as well as ABA signaling in _Arabidopsis thaliana_. B2, B3 and

B4 RAFs are very quickly activated by osmotic stress and are required for phosphorylation and activation of SnRK2s. Analyses of high-order mutants of _RAFs_ reveal critical roles of these

RAFs in osmotic stress tolerance and ABA responses as well as in plant growth and development. Our findings uncover an upstream kinase cascade mediating osmoregulation and ABA signaling in

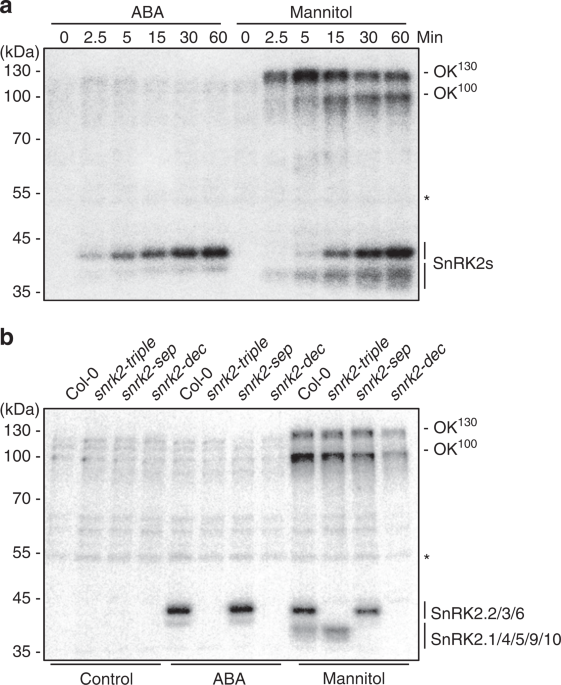

higher plants. RESULTS OSMOTIC STRESS ACTIVATES PROTEIN KINASE OKS To investigate the phosphorylation events in early osmotic stress signaling, we used in-gel kinase assays to measure kinase

activation upon hyperosmotic stress caused by mannitol treatment5,30. Four groups of protein kinases were activated by mannitol treatment and ABA (Fig. 1a). SnRK2.2/3/6 (approximately 40 to

42 kDa) were strongly activated by both ABA and osmotic stress, while the ABA-independent SnRK2.1/4/5/9/10 (37 to 40 kDa) were strongly activated only by osmotic stress (Fig. 1b). In

addition to the SnRK2s, we found two groups of protein kinases of approximately 130 and 100 kDa that were strongly activated by osmotic stress but not ABA (Fig. 1a). We termed these kinases

osmotic stress-activated protein kinases (OKs). Strong activation of the 130-kDa OKs (OK130) was observed at 2.5 min after mannitol treatment, peaking at 5 min (Fig. 1a). Activation of the

100-kDa OKs (OK100) was clearly detectable after 5 min of mannitol treatment (Fig. 1a). Rapid OK activation in response to osmotic stress suggests a role for these kinases in early osmotic

stress signaling. Activation of the OKs did not require SnRK2s and was independent of ABA signaling, since OK activation by mannitol treatment was still observed in the _snrk2.2/3/6_ triple

(_snrk2-triple_) mutant, which is deficient in ABA signaling, and in _snrk2.1/4/5/7/8/9/10_ septuple (_snrk2-sep_) and _snrk2.1/2/3/4/5/6/7/8/9/10_ decuple mutants (_snrk2-dec_)5 (Fig. 1b).

IDENTIFICATION OF OKS BY QUANTITATIVE PHOSPHOPROTEOMICS To determine the identity of the OKs, we used phosphoproteomic analysis to examine phosphoproteins in both the wild-type and

_snrk2-dec_ mutant plants after 30 min of mannitol treatment (Fig. 2a, Supplementary Fig. 1, Supplementary Data 1 to 5), since we expected that the OKs are autophosphorylated upon activation

and that the autophosphorylation would occur in plants of both genotypes. Twenty-one phosphosites in 18 protein kinases were found to be up-regulated by mannitol treatment in both the

wild-type and _snrk2-dec_ mutant (Fig. 2a, Supplementary Data 4 and 5). These included several phosphosites in Raf-like protein kinases. B4 Raf-like kinases (117 to 140 kDa, see Fig. 2b)

have an N-terminal PB1 domain and a C-terminal kinase domain22. Phosphopeptides from six of the seven B4 Raf-like kinases were significantly up-regulated by osmotic stress, in both the

wild-type and _snrk2-dec_ mutant (Fig. 2c, see also Supplementary Data 4 and 5). Several phosphosites in members of the B2 and B3 subfamilies of the Raf-like kinases, RAF4 (AT1G18160),

RAF5/Sugar Insensitive 8(SIS8), RAF2/Enhanced Disease Resistance 1(EDR1), RAF11, and RAF10, were also present in the list of mannitol-induced phosphoproteins (Fig. 2d, Supplementary Data 4).

Members of the B2 and B3 groups have molecular weights from 75 to 112 kDa. Some of the phosphosites from the RAFs were located in the activation loop of these kinases. Phosphorylation in

the activation loop is a conserved mechanism of protein kinase activation. Taking these results together, we hypothesized that members of the B4 Raf-like kinases may correspond to the OK130,

and that members of the B2 and B3 Raf-like kinases may be the OK100. MUTATIONAL ANALYSES IDENTIFY THE OKS AS RAF-LIKE KINASES To validate our hypothesis, we first determined the activation

of OKs and SnRK2s in single mutants of the B4 Raf-like kinases. The overall signals of OKs in the single mutants _raf16_, _raf40/hcr1_, _raf24_, _raf18_, _raf20_, _raf35_ and _raf42_, were

comparable to those in the wild-type (Supplementary Fig. 2a). Using Clusters of Regularly Interspaced Short Palindromic Repeats/CRISPR-associated 9 (CRISPR/Cas9)-mediated genome editing in a

T-DNA insertion mutant line _raf16_ (_salk_007884_), we generated a high-order mutant, _OK__130__-weak_, containing frameshift/early termination mutations in _raf40/hcr1_, _raf18_, _raf20_

and _raf35_, and 30 and 18 bp deletions in _raf24_ and _raf42_, respectively (Fig. 3a, Supplementary Fig. 2b, c). OK130 activation was strongly, although not completely, impaired in the

_OK__130__-weak_ mutant (Supplementary Fig. 2d, f), supporting our hypothesis that the B4 subfamily represents OK130. The mannitol-induced activation of SnRK2.1/4/5/9/10 was markedly, but

not completely abolished in _OK__130__-weak_ (Fig. 3c), suggesting that the activation of SnRK2.1/4/5/9/10 is dependent on OK130. OK100 activation was also weakened or delayed in the

_OK__130__-weak_ mutant, when compared to that in the wild-type (Supplementary Fig. 2d). To eliminate the remaining OK130 activity, we introduced additional mutations into _OK__130__-weak_

using a second CRISPR/Cas9 construct containing additional guide RNAs targeting the 5’ regions of _raf24_ and _raf42_ and isolated an _OK__130__-null_ mutant with frameshift/null mutations

in all seven members of the subfamily (Fig. 3a and Supplementary Fig. 2e). As expected, osmotic stress-activation of OK130 and SnRK2.1/4/5/9/10 was completely abolished in the

_OK__130__-null_ mutant (Supplementary Fig. 2f). These results further support that the B4 subfamily Raf-like kinases correspond to the OK130, and show that the OK130 genes redundantly

control the activation of SnRK2.1/4/5/9/10 upon osmotic stress. By contrast, the activation of SnRK2.2/3/6 by ABA and osmotic stress in the _OK__130__-null_ mutant was comparable to that in

the wild-type (Supplementary Fig. 2f), and the activation of the OK100 upon osmotic stress was only partially impaired in the _OK__130__-null_ mutant (Supplementary Fig. 2f). This suggests

that osmotic stress-induced activation of OK100 and SnRK2.2/3/6 is not dependent on OK130. To further identify the OK100 and study how osmotic stress activates SnRK2.2, SnRK2.3 and SnRK2.6,

we generated high-order mutants by introducing mutations into B2 and B3 subfamily members in wild-type and _OK__130_ mutant backgrounds (Fig. 3a). As _OK__130__-null_ plants produce few

seeds (Supplementary Fig. 2g, h), we had to use the _OK__130__-weak_ plants to generate higher order mutants. Gene editing in the wild-type background resulted in _OK__100__-quin_

(_raf2/edr1;raf4;raf5/sis8;raf10;raf11_) (Fig. 3a, Supplementary Fig. 3a, b). The phosphopeptides from the five protein kinases showed mannitol up-regulation (Fig. 2a). Gene editing in the

_OK__130__-weak_ background produced an _OK-quatdec_ mutant (_raf16;raf40;RAF24_\(^{{\it{\Delta 10}}}\)_;raf18;raf20;raf35;RAF42_\( ^{{\it{\Delta

6}}}\)_;raf3;raf4;raf5/sis8;raf7;raf8;raf9;raf10_) and an _OK-quindec_ mutant (_raf16;raf40;RAF24_\( ^{{\it{\Delta 10}}}\)_;raf18;raf20;raf35;RAF42_\( ^{{\it{\Delta 6}}}

\)_;raf2/edr1;raf3;raf4;raf5/sis8;raf7;raf8;raf9;raf10_) (Fig. 3a and Supplementary Fig. 3a, 3c, d). _OK__100__-quin_ showed strong growth inhibition phenotypes and _OK-quindec_ showed

extremely arrested growth (Fig. 3b, Supplementary Fig. 4a). _OK-quatdec_, which differed from _OK-quindec_ by having wild-type _RAF2/EDR1_, showed only a slightly inhibited growth (Fig. 3b).

The mannitol-triggered activation of the OK100 and SnRK2.2/3/6 was almost completely abolished in the _OK-quindec_ mutant (Fig. 3c). ABA still activated SnRK2.2/3/6 in the _OK-quindec_

seedlings, but the activation was much weaker than that in the wild type (Fig. 3c). Together, our results show that B4 RAFs correspond to the OK130, and that members of the B2 and B3

Raf-like kinases are the OK100. We examined the expression patterns of _RAFs_ in different tissues and stress conditions from an online eFP Browser database (http://bar.utoronto.ca/efp2).

The various _RAFs_ were expressed in different tissues and some _RAFs_ were highly expressed in dry seeds and mature pollens (Supplementary Fig. 4b), consistent with the observation that

_OK__130__-null_ produces fewer seeds than the wild type (Supplementary Fig. 2g, h). Interestingly, the expression of some _RAFs_, especially in the root, was highly induced by osmotic

stress caused by mannitol and high salt (Supplementary Fig. 4c). ABA also up-regulated the expression of _RAF35_, _RAF6_ and _RAF12_ (Supplementary Fig. 4d). By generating transgenic lines

expressing GFP fusions, we examined the subcellular localization of RAF proteins. GFP-RAF20, GFP-RAF12 and GFP-RAF7 were localized to the cytosol, while RAF11 was localized to small spots in

the cytosol (Supplementary Fig. 5). RAFS ARE REQUIRED FOR OSMOTIC STRESS TOLERANCE We examined the responses of high-order mutants of _RAFs_ to osmotic stress and found that

_OK__130__-null_ but not _OK__130__-weak_ was hypersensitive to osmotic stress caused by mannitol, NaCl, or polyethylene glycol (PEG) treatment, in assays of seed germination, seedling

growth, and electrolyte leakage (Fig. 4a–c and Supplementary Fig. 6c, d). _OK-quatdec_, containing weak alleles of _RAF24_ and _RAF42_, showed only mild hypersensitivity to osmotic stresses

(Fig. 4a–c and Supplementary Fig. 6a, b), consistent with the mild osmotic stress sensitivity of _OK__130__-weak_ (Supplementary Fig. 6c, d). Upon ABA treatment, the activation of SnRK2.6

depends on the inhibition of the A clade PP2C by ABA-PYLs12,21,31. Consistent with this notion, ABA-induced SnRK2.2, SnRK2.3 and SnRK2.6 activation was enhanced in the _abi1/abi2/pp2ca_

triple mutant, but strongly impaired in _abi1-1_ (Supplementary Fig. 7a). By contrast, the osmotic stress-induced activation of SnRK2s was not, or only slightly, affected by mutations in the

PP2Cs (Supplementary Fig. 7a). The notion that osmotic stress-triggered activation of SnRK2s does not require ABA signaling is supported by our previous work20, as well as studies from

other groups18,32. Interestingly, the activation of both OK130 and OK100 by osmotic stress is also not impaired in the _abi1-1_ mutant (Supplementary Fig. 7a), suggesting that the activation

is not due to inhibition of the clade A PP2Cs. RAFS INTERACT WITH AND PHOSPHORYLATE SNRK2S Our findings that B4 Raf-like kinases were activated earlier than SnRK2s and were required for the

SnRK2 activation suggested that the B4 Raf-like kinases may directly activate SnRK2s by phosphorylation. To test this hypothesis, we first used immunoprecipitation-mass spectrometry (IP-MS)

to detect possible interactions between SnRK2s and B4 Raf-like kinases in plants (Supplementary Fig. 7b). We found several peptides from SnRK2.1/2/4/5/9/10 in anti-GFP immunoprecipitates

from GFP-RAF40, GFP-RAF20, or GFP-RAF35, but not from empty GFP plants, implying that the B4 Raf-like kinases and SnRK2s are associated in vivo in plants. A split luciferase complementation

assay on RAF35 and several SnRK2s supported the association and suggested direct physical interactions between RAF35 and the tested SnRK2s (Supplementary Fig. 7c). We then tested whether

recombinant B4 Raf-like kinase proteins may phosphorylate SnRK2s. The recombinant kinase domains (KDs) of RAF40/HCR1 and RAF24 displayed detectable kinase activities in vitro. Recombinant

RAF24-KD strongly phosphorylated the full-length SnRK2.1K33R, SnRK2.4K33R, and SnRK2.10K33R, the “kinase-dead” mutant versions of the osmotic stress-activated SnRK2s lacking

autophosphorylation (Fig. 4d, lane 3, 5, and 7). The RAF24-KD also weakly phosphorylated SnRK2.6K50R, a “kinase-dead” mutant of the ABA-activated SnRK2.6 (Fig. 4d, lane 9). Similarly,

RAF40/HCR1-KD strongly phosphorylated SnRK2.4K33R and SnRK2.10K33R, and weakly phosphorylated SnRK2.6K50R (Supplementary Fig. 7d). To identify the RAF target sites in the SnRK2s, we used

mass spectrometry to identify phosphopeptides from the above in vitro kinase reactions. We identified 23 and 6 phosphopeptides from SnRK2.4K33R and SnRK2.6K50R, respectively, after in vitro

kinase reactions with different B4 Raf-like kinases using 18O-ATP as the phosphate donor (Supplementary Fig. 8, Supplementary Data 6). Six putative RAF target sites, Ser158, Ser162, Ser166,

Thr167, Thr170 and Ser180, were found in phosphopeptides coming from the activation loop of SnRK2.4 (Supplementary Fig. 8a–d, Supplementary Data 6), and two putative target sites, Ser171 and

Ser175, were found in the same region in SnRK2.6 (Supplementary Fig. 8e, Supplementary Data 6). The phosphorylation of a highly conserved site in SnRK2s, corresponding to Ser175 in SnRK2.6,

is essential for SnRK2.6 activation31. Another conserved site corresponding to Ser171 in SnRK2.6 is also crucial for osmotic stress- and ABA-mediated SnRK2 activation18. Ser to Ala

mutations of these sites partially reduced but did not abolish the phosphorylation signal in the in vitro kinase assay (Supplementary Fig. 8f), which is consistent with our mass spectrometry

results showing that multiple sites in addition to the activation loop residues in SnRK2.4 and SnRK2.6 are phosphorylated by Raf-like kinases (Supplementary Data 6). Since

phosphor-mimicking and non-phosphorylatable mutations in the activation loop render SnRK2 inactive28, we could not evaluate the contribution of these sites to SnRK2 activation by directly

mutating them. So, we performed an in vitro kinase assay with the phosphorylation of an ABA-responsive element-Binding Factor 2(ABF2) fragment, a well-defined SnRK2 substrate12,30, as an

indicator of SnRK2 activity. Recombinant RAF24-KD itself did not phosphorylate ABF2 (Fig. 4e, lane 2). Adding RAF24-KD did not enhance the existing activity of SnRK2.4 (Fig. 4e, lane 4),

which might be because the recombinant SnRK2.4 was already highly auto-phosphorylated and fully activated in _E. coli_. After being dephosphorylated by ABI1 in vitro, the full-length SnRK2.4

showed very weak kinase activity (Fig. 4e, lane 6). This suggests that dephosphorylated SnRK2.4 has no or only very weak self-activation activity, which contrasts with the previous

hypothesis that SnRK2s have strong auto-phosphorylation activity and self-activate when they are not inhibited by PP2C15,31. Interestingly, co-incubating with RAF24-KD, but not with the

“kinase-dead” form RAF24-KDK1001R, substantially increased the kinase activity of dephosphorylated-SnRK2.4 (Fig. 4e, lane 7 and 8). Finally, by immunoblotting using an anti-SnRK2.6-pS175

antibody20, which recognizes the phosphorylated serine residue in the activation loop of multiple SnRK2s corresponding to Ser175 in SnRK2.6, we found that the Ser175 phosphorylation

triggered by osmotic stress was abolished in _OK__130__-null_ seedlings (Fig. 4f). Together with the in-gel kinase assay result (Fig. 3c), our findings suggest that the phosphorylation of

SnRK2s, especially the conserved serine residue in the activation loop, by Raf-like kinases is required for osmotic stress-triggered SnRK2 activation. RAFS ARE REQUIRED FOR ABA-MEDIATED

SNRK2 ACTIVATION The strong reduction in ABA-triggered SnRK2 activation in _OK-quindec_ (Fig. 3c) suggested that Raf-like kinases may regulate ABA responses. Since the _OK-quindec_ plants

produced very few seeds for subsequent experiments, we tested ABA responses in _OK-quatdec_ mutant plants and found that the mutant was insensitive to ABA during seed germination and

post-germination seedling growth (Fig. 5a, b, and Supplementary Fig. 9a, b). In addition, _OK-quatdec_ mutant seedlings showed higher water loss than the wild type and the other tested RAF

high-order mutants, phenocopying the _snrk2-triple_ mutant (Fig. 5c). These results suggest that the RAFs also participate in ABA-triggered SnRK2.2/3/6 activation. This notion is supported

by the observation that all five tested kinase domains of B2 and B3 RAFs, RAF5/SIS8-KD, RAF2/EDR1-KD, RAF6-KD, RAF10-KD and RAF7-KD, could phosphorylate SnRK2.6K50R (Supplementary Fig. 9c).

Interestingly, RAF6-KD and RAF10-KD showed a stronger capability to phosphorylate ABA-dependent SnRK2s (SnRK2.6 and SnRK2.8 in our assay) than ABA-independent SnRK2s (SnRK2.1, SnRK2.4, and

SnRK2.10 in the assay) (Fig. 5d and Supplementary Fig. 9d). A yeast-two-hybrid assay showed that B2 and B3 subgroup RAFs interact with SnRK2.6 but not with SnRK2.4 (Supplementary Fig. 9e).

We also found that, like SnRK2.4, the dephosphorylated-SnRK2.6 (i.e., pretreated with ABI1) was incapable of self-activation (Fig. 5e, lane 7). However, adding RAF5-KD, RAF6-KD, or RAF10-KD

strongly increased the phosphorylation of the dephosphorylated SnRK2.6 and therefore increased the phosphorylation of ABF2 (Fig. 5e, lane 8–10). RAF40-KD and RAF24-KD had almost no effect on

the phosphorylation of dephosphorylated-SnRK2.6 and ABF2 (Fig. 5e, lane 11, 12), further indicating specificity between subgroups of RAF-like kinases and SnRK2s. Consistent with this, the

ABA-induced phosphorylation of Ser175 was only abolished in the _OK-quatdec_ mutant but not in the _OK__130__-weak_ or _OK__130__-null_ allele (Supplementary Fig. 9f). Consistent with the

strong ABA-insensitive phenotypes of _OK-quatdec_ mutant plants, the osmotic stress- and ABA-induced transcript accumulation of several ABA-responsive genes, like _Responsive to Desiccation

29B_ (_RD29B_), _Responsive to ABA 18_ (_RAB18_), and _Cold-Regulated 15_ _A (COR15A_), was dramatically impaired in the _OK-quatdec_ mutant (Fig. 5f). The expression of some ABA-responsive

transcription factors, e.g., _ABF2_ and _ABF4_, was also partially impaired in the _OK-quatdec_ mutant when compared to the wild type (Supplementary Fig. 9g). DISCUSSION Our results show

that the B2, B3, and B4 subfamilies of Raf-like protein kinases are upstream kinases that phosphorylate and activate SnRK2s and are critical in mediating osmotic stress and ABA responses.

The RAFs are likely also important for osmoregulation during growth and development, as the _OK__130__-null_ and _OK-quindec_ mutants show strong growth and developmental defects. The plant

RAFs are presumed to be MAPKKKs22, although their ability to phosphorylate MAPKKs in plants has not been characterized biochemically or genetically. Our results suggest that the 19 group B

Raf-like protein kinases together with 10 SnRK2s form a kinase cascade in early osmotic stress and ABA signaling. The OK130/B4 Raf-like kinases prefer to phosphorylate ABA-independent

SnRK2s, while OK100/B2&3 Raf-like kinases favor phosphorylation of ABA-dependent SnRK2s (Figs. 3c, 4d, 5d, Supplementary Figs. 7d, 9c, d). Our discovery of the group B Raf-like kinases

as the upstream kinases for osmotic stress-triggered activation of SnRK2s advances our understanding of osmoregulation in plants. In addition, our results suggest that transphosphorylation

of the ABA-dependent SnRK2s by group B2 and B3 Raf-like kinases is a pre-requisite for the activation of SnRK2s in ABA signaling, which provides an important update on our current

understanding of the ABA core signaling pathway. Since SnRK2.6 purified from _E. coli_ can autophosphorylate and can be activated in vitro by ABA in a test tube reconstitution of the core

ABA signaling pathway with PYR/PYL/ACAR and clade A PP2C12,15,30, it has been assumed that SnRK2.6 autophosphorylation is sufficient for its activation. Our results here with

dephosphorylated SnRK2.6 show that transphosphorylation by group B Raf-like kinases is necessary, suggesting that previous in vitro assay results were affected by some kinase(s) in _E. coli_

that can transphosphorylate SnRK2.6. Although group B2 and B3 Raf-like kinases are required for SnRK2.2/3/6 activation in both ABA and osmotic stress, the mechanisms of SnRK2 activation

might differ. ABA-induced SnRK2 activation is impaired in the _abi1-1_ mutant, whereas osmotic stress-induced SnRK2.2/3/6 activation is not affected (Supplementary Fig. 7a). We noticed that

RAFs phosphorylate SnRK2.6 on both Ser171 and Ser175 (Supplementary Fig. 8), which are known as direct target sites of the PP2C phosphatases31. Additional RAF phosphosites exist in SnRK2.6

besides Ser171 and Ser175 (Supplementary Data 6). The phosphorylation of these additional phosphosites may circumvent the PP2C-mediated inhibition to cause activation of the SnRK2s under

osmotic stress. Further studies are needed to determine the detailed biochemical mechanisms that differentiate the SnRK2 activation by ABA and osmotic stress in plants. Due to the large

number of kinases in the RAF-SnRK2 cascade and the functional redundancy between the members, it will be challenging to dissect the unique functions of each RAFs. Furthermore, we suspect

coordination between the RAFs and feedback regulation of the RAFs by their downstream SnRK2s in the cascade, given that subgroup I SnRK2 activation was enhanced in the _OK-quindec_ mutant

compared to the _OK__130__-weak_ mutant (Fig. 3c), and that OK130 and OK100 activation was reduced in _snrk2-dec_ (Fig. 1b). The upstream component(s) that senses hyperosmolarity and quickly

activates RAFs still needs to be identified. The activation of RAFs or SnRK2s by mannitol or sorbitol was not altered in a septuple mutant of reduced hyperosmolality induced [Ca2+]i

increase (_osca)_ (Supplementary Fig. 10). OSCA1 is a putative osmosensor required for sorbitol-induced Ca2+ signaling33. Our results suggest that activation of RAFs and SnRK2s is

independent of OSCA and OSCA-mediated Ca2+ signaling. The regulation of SnRK2s by the B3 subfamily of Raf-like kinases appears to be conserved in land plants. ARK, the sole B3 Raf-like

kinase in the moss _Physcomitrella patens_, also participates in regulation of ABA and hyperosmotic stress responses by phosphorylating PpSnRK224. The identification of the RAF-SnRK2 cascade

advances our understanding of osmotic stress and ABA signaling in higher plants, and provides potential molecular targets for engineering crops resilient to harsh environments. METHODS

GERMINATION OR GROWTH UNDER OSMOTIC STRESS TREATMENT Seeds were surface-sterilized for 10 min in 70% ethyl alcohol, and then rinsed four times in sterile-deionized water. For germination

assays, sterilized seeds were grown on medium containing 1/2 MS nutrients, pH 5.7, with or without the indicated concentration of ABA, mannitol, NaCl or PEG, and kept at 4 °C for 3 days.

Radicle emergence was analyzed 72 h after placing the plates at 23 °C under a 16 h light/8 h dark photoperiod. Photographs of seedlings were taken at indicated times after transfer to light.

For growth assays, sterilized seeds were grown vertically on 0.85% agar containing 1/2 MS, pH 5.7, and kept at 4 °C for 3 days. Seedlings were grown vertically for 3–4 days and then

transferred to medium with or without the indicated concentration of ABA, NaCl, mannitol or PEG. Root length was measured at the indicated days. IN-GEL KINASE ASSAY For in-gel kinase assays,

20 µg extract of total proteins was used for SDS/PAGE analysis with histone embedded in the gel matrix as the kinase substrate. After electrophoresis, the gel was washed three times at room

temperature with washing buffer (25 mM Tris-Cl, pH 7.5, 0.5 mM DTT, 10 mM Na3VO4, 5 mM NaF, 0.5 mg/mL BSA, and 0.1% Triton X-100) and incubated at 4 °C overnight with three changes of

renaturing buffer (25 mM Tris-HCl, pH 7.5, 1 mM DTT, 0.1 mM Na3VO4, and 5 mM NaF). The gel was then incubated at room temperature in 30 mL reaction buffer (25 mM Tris-Cl, pH 7.5, 2 mM EGTA,

12 mM MgCl2, 1 mM DTT, and 0.1 mM Na3VO4) with 200 nM ATP plus 50 µCi of [γ-32P]ATP for 90 min. The reaction was stopped by transferring the gel into 5% (w/v) trichloroacetic acid and 1%

(w/v) sodium pyrophosphate. The gel was washed in the same solution for at least 5 h with five changes of the wash solution. Radioactivity was detected with a Personal Molecular Imager

(Bio-Rad). PROTEIN EXTRACTION AND DIGESTION Protein extraction and digestion was performed as previously described30. Plants were lysed in lysis buffer (6 M guanidine hydrochloride in 100 mM

Tris-HCl, pH 8.5) with 10 mM NaF, EDTA-free protease, and phosphatase inhibitor cocktails (Sigma-Aldrich, St. Louis, MO). Disulfide bonds in proteins were reduced and alkylated with 10 mM

Tris(2-carboxyethyl)phosphine hydrochloride and 40 mM 2-chloroacetamide at 95 °C for 5 min. Protein lysate was precipitated using the methanol-chloroform precipitation method. Precipitated

protein pellets were suspended in digestion buffer (12 mM sodium deoxycholate and 12 mM sodium lauroyl sarcosinate in 100 mM Tris-HCl, pH 8.5) and then were 5-fold diluted with 50 mM TEAB

buffer. Protein amount was quantified using the BCA assay (Thermo Fisher Scientific, Waltham, MA). One mg of protein was then digested with Lys-C (Wako, Japan) in a 1:100 (v/w)

enzyme-to-protein ratio for 3 h at 37 °C, and trypsin (Sigma-Aldrich, St. Louis, MO) was added to a final 1:100 (w/w) enzyme-to-protein ratio overnight. The detergents were separated from

digested peptides by acidifying the solution using 10% TFA and then centrifuged at 16,000 _g_ for 20 min. The digests were then desalted using a 100 mg SEP-PAK C18 cartridge (Waters,

Milford, MA). TANDEM MASS TAG (TMT) LABELING The tryptic peptides (400 µg) from each replicate were dissolved in 100 µL of 200 mM HEPES (pH 8.5) and incubated with ACN-dissolved 0.8 mg of

TMT 6-plex reagent (Thermo Fisher Scientific, Waltham, MA) for 1 h at room temperature. The reaction was quenched by adding 8 µL of 5% hydroxylamine to the sample and incubating for 15 min.

All samples labeled with each TMT channel were pooled in a new tube, and the final concentration of ACN was diluted to less than 5% before desalting. The labeled phosphopeptides were

desalted using a SEP-PAK C18 cartridge. PHOSPHOPEPTIDE ENRICHMENT Phosphopeptide enrichment was performed according to the reported IMAC StageTip protocol with some modifications34,35. The

in-house-constructed IMAC tip was made by capping the end with a 20 μm polypropylene frits disk (Agilent). The tip was packed with 5 mg of Ni-NTA silica resin by centrifugation at 200 _g_

for 1 min. Ni2+ ions were removed by 100 µL of 100 mM EDTA solution. The tip was then activated with 100 µL of 100 mM FeCl3 and equilibrated with 100 µL of loading buffer (6% (v/v) acetic

acid at pH 3.0) prior to sample loading. The TMT-labeled peptides (400 µg) were reconstituted in 100 µL of loading buffer and loaded onto the IMAC tip. After successive washes with 200 µL of

washing buffer (4% (v/v) TFA, 25% acetonitrile (ACN)) and 100 µL of loading buffer, the bound phosphopeptides were eluted with 150 µL of 200 mM NH4H2PO4. The eluted phosphopeptides were

loaded into a C18 beads StageTip and separated into eight fractions using high-pH reverse phase fractionation. The fractionated phosphopeptides were dried using a SpeedVac. LC-MS/MS ANALYSIS

The phosphopeptides were dissolved in 5 µL of 0.25% formic acid (FA) and injected into an Easy-nLC 1000 (Thermo Fisher Scientific). Peptides were separated on a 45 cm in-house packed column

(360 µm OD × 75 µm ID) containing C18 resin (2.2 µm, 100 Å, Michrom Bioresources). The mobile phase buffer consisted of 0.1% FA in ultra-pure water (Buffer A) with an eluting buffer of 0.1%

FA in 80% ACN (Buffer B) run over a linear 90 min gradient of 6–30% buffer B at flow rate of 250 nL/min. The Easy-nLC 1000 was coupled online with a Velos Pro LTQ-Orbitrap mass spectrometer

(Thermo Fisher Scientific). The mass spectrometer was operated in the data-dependent mode in which a full-scan MS (from _m/z_ 350–1500 with the resolution of 60,000 at _m/z_ 400) was

followed by top 10 higher-energy collision dissociation (HCD) MS/MS scans of the most abundant ions with dynamic exclusion for 60 s and exclusion list of 500. The normalized collision energy

applied for HCD was 40% for 10 ms activation time. PROTEOMICS DATA SEARCH The raw files were searched directly against the _Arabidopsis thaliana_ database (TAIR10 with 35,386 entries) with

no redundant entries using MaxQuant software (version 1.5.4.1) with reporter ion MS2 type. Peptide precursor mass tolerance was set at 20 ppm, and MS/MS tolerance was set at 20 ppm. Search

criteria included a static carbamidomethylation of cysteines (+57.0214 Da) and variable modifications of (1) oxidation (+15.9949 Da) on methionine residues, (2) acetylation (+42.011 Da) at

N-terminus of protein, and (3) phosphorylation (+79.996 Da) on serine, threonine or tyrosine residues were searched. Search was performed with full tryptic digestion and allowed a maximum of

two missed cleavages on the peptides analyzed from the sequence database. The false discovery rates of proteins, peptides and phosphosites were set at 1% FDR. The minimum peptide length was

six amino acids, and a minimum Andromeda score was set at 40 for modified peptides. The phosphorylation sites induced by mannitol treatment in Col-0 and _snrk2_-_dec_ mutant plants were

selected using Perseus software (version 1.6.2.1). The intensities of phosphorylation sites were log2 transformed, and the quantifiable phosphorylation sites were selected from the

identification of all triplicate replicates in at least one sample group. The significantly enriched phosphorylation sites were selected by the ANOVA test with a permutation-based FDR

cut-off of 0.01 and S0 of 0.2. The principle component analysis (PCA) was performed using the phosphorylation sites identified across all Col-0 and _snrk2-dec_ mutant plants with a cut-off

of Benjamin-Hochberg FDR < 0.05. For hierarchical clustering, the intensities of the ANOVA significant phosphorylation sites were first z-scored and clustered using Euclidean as a

distance measure for row clustering. The number of clusters was set at 250, with a maximum of 10 iterations and 1 restart. The protein annotation search was performed using PANTHER database,

and enrichment of cellular component was performed using Fisher’s exact test with a cut-off of _p_ < 0.05. GENERATING HIGH-ORDER MUTANTS OF OKS The constructs for CRISPR were designed

according to the protocol described previously36. The sgRNAs for CRISPR/Cas9 vectors to edit RAFs are listed in Supplementary Table 1. To generate _OK__130__-weak_, a vector

pCAMBIA-1300-6RAFs containing 6 sgRNAs was used to transform _raf16_ (_Salk_007884_). A vector pCAMBIA-2300-2RAFs containing 4 sgRNAs was used to transform _OK__130__-weak_ to generate

_OK__130__-null_. To generate _OK__100__-quin_, a vector pCAMBIA-2300-5RAFs containing 6 sgRNAs was used to transform Col-0 wild type. The fourth vector pCAMBIA-2300-11RAFs containing 8

sgRNAs was used to transform _OK__130__-weak_ to generate _OK-quatdec_ and _OK-quindec_. All transgenic plants were screened for hygromycin or kanamycin resistance. The surviving T1

transformants were analyzed by sequencing their target regions, which were amplified by PCR using primer pairs listed in Supplementary Data 7. ELECTROLYTE LEAKAGE ASSAY To measure ion

leakage in seedlings induced by PEG treatment, 5-day-old wild type, _OK__130__-null_ and _OK-quindec_ seedlings were rinsed briefly in distilled water, and placed in a solution containing

30% PEG for 5 h. After treatment, seedlings were rinsed briefly in distilled water and placed immediately in a tube with 5 mL of water. The tube was agitated gently for 3 h before the

electrolyte content was measured. Three replicates of each treatment were conducted. MEASUREMENT OF GENE EXPRESSION Total RNA was extracted from wild type, _OK__130__-null_ and _OK-quatdec_

seedlings treated with 300 mM mannitol and 50 µM ABA for 6 h. Total RNA was isolated using the RNeasy Plant Mini Kit (QIAGEN) according to the manufacturer’s instructions. For real-time PCR

assays, reactions were set up with iQ SYBR Green Supermix (Bio-Rad). A CFX96 Touch Real-Time PCR Detection System (Bio-Rad) was used to detect amplification levels. Quantification was

performed using three independent biological replicates. The expression values of the RAF genes in different tissues, and under abiotic stress and hormonal treatments were downloaded from

the Arabidopsis eFP Browser “Developmental Map”, “Abiotic Stress” and “Hormone” data sources, respectively (http://bar.utoronto.ca/efp/cgi-bin/efpWeb.cgi). Heatmaps were generated using the

R package “pheatmap” (https://cran.r-project.org/package = pheatmap). WATER LOSS MEASUREMENT For the measurement of water loss, detached rosette leaves of 4-week-old plants were placed in

weighing dishes and left on the laboratory bench with light. Fresh weight was monitored at the indicated time. Water loss was expressed as a percentage of initial fresh weight. SPLIT

LUCIFERASE (LUC) COMPLEMENTATION ASSAY The coding sequence of RAF35 and SnRK2s was amplified by PCR, cloned into pENTR vectors and transferred to pEarley-nLUC/cLUC vectors through LR

reactions. Split-LUC complementation assay was performed by transient expression in tobacco leaves through agrobacterium-mediated infiltration. Two days after infiltration, luciferase

activity was detected with a CCD camera by applying firefly D-luciferin (NanoLight). PROTEIN EXPRESSION, PURIFICATION, AND IN VITRO KINASE ASSAY cDNA fragments encoding full-length SnRK2s

were cloned into _pET-28a_ vector with the coding sequence of 6 × HIS-tag, a thrombin cleavage site, and a T7 tag fused. cDNA fragments encoding kinase domains of the RAFs were cloned into

_pGEX-4T-1_ and _pMal-c2X_ vectors with the primer listed in Supplementary Data 7. The resulting plasmids were transformed into BL21 or ArcticExpression cells. The recombinant proteins were

expressed and purified using standard protocols. For the phosphorylation assay, recombinant full-length SnRK2s and kinase domains of RAFs (aa814-1117 for RAF40-KD, aa969-1237 for RAF24-KD,

aa734-1030 for RAF5-KD, aa650-933 for RAF2-KD, aa644-956 for RAF6-KD, aa466-831 for RAF10-KD, aa473-773 for RAF7-KD) were incubated in reaction buffer (25 mM Tris HCl, pH 7.4, 12 mM MgCl2, 2

 mM DTT), with 1 μM ATP plus 1 µCi of [γ-32P] ATP for 30 min at 30 °C. To detect the effects of RAF phosphorylation on SnRK2.4/6 kinase activity, recombinant SnRK2.4/6 were pre-incubated

with recombinant GST-ABI1 coupled on beads in 25 mM Tris-HCl, pH 7.4, 12 mM MgCl2 and 2 mM DTT for 30 min at 30 °C. After a brief centrifuge to remove the ABI1, aliquots of SnRK2.4/6 were

subjected to in vitro kinase reactions with or without the presence of wild type or “kinase-dead” forms of RAFs. After 30 min incubation at 30 °C, ABF2 and 1 µCi [γ-32P] were added to the

reaction and incubated for an additional 30 min at 30 °C. Reactions were terminated by boiling in SDS sample buffer and separated by 10% SDS-PAGE. IMMUNOBLOTTING 30 mg samples were ground

into fine powder in liquid N2 and dissolved in 100 μL protein extract buffer (100 mM HEPES, pH 7.5, 5 mM EDTA, 5 mM EGTA, 10 mM DTT, 10 mM Na3VO4, 10 mM NaF, 50 mM β-glycerophosphate, 1 mM

PMSF, 5 μg/mL leupeptin, 5 μg/mL antipain, 5 μg/mL aprotinin, and 5% glycerol) followed by centrifugation at for 40 min at 4 °C. The supernatants were separated by 12% SDS/PAGE. After

electrophoresis, the proteins were transferred to PVDF membrane and immunoblotted with antibodies against SnRK2.2/3/6 and SnRK2.6-p-S175. Immunoblot with anti-actin was used as the loading

control. YEAST TWO HYBRID ASSAY To detect protein interactions between RAFs and SnRK2s, pGADT7 plasmids containing RAFs were co-transformed with wild-type or mutated pGBKT7-SnRK2s into

Saccharomyces cerevisiae AH109 cells. Successfully transformed colonies were identified on yeast SD medium lacking Leu and Trp. Colonies were transferred to selective SD medium lacking Leu,

Trp, His, and in the presence of 3-Amino-1,2,4-Triazol (3-AT). To determine the intensity of protein interaction, saturated yeast cultures were diluted to 10−1, 10−2, and 10−3 and spotted

onto selection medium. Photographs were taken after 4 days incubation. CONFOCAL MICROSCOPY Seven-day-old seedlings of RAF-GFP were imaged using a Leica TCS SP8 laser scanning confocal

microscope at 488 nm laser excitation and 500 to 550 nm emission for GFP. QUANTIFICATION AND STATISTICAL ANALYSIS Student’s _t_-test was used to determine the statistical significance

between wild type and mutants in assays related to germination, root length, fresh weight, relative intensity, or relative abundance. REPORTING SUMMARY Further information on research design

is available in the Nature Research Reporting Summary linked to this article. DATA AVAILABILITY The phosphoproteomic data were deposited to the ProteomeXchange Consortium via the PRIDE

partner repository with the dataset identifier PXD014435. Source data underlying Fig. 1a–b; 3c; 4c–f; 5c–f, as well as Supplementary Figs. 2a, d, f; 3a; 6a, b, d; 7a, d; 8f; 9a–d, f–g; 10

are provided as a Source Data file. Source data underlying Figs. 2a, c, d are also available in Supplementary Data 4 and 5. Other data supporting the findings of this study are available

within the manuscript and its supplementary files or are available from the corresponding authors upon request. REFERENCES * Hasegawa, P. M., Bressan, R. A., Zhu, J. K. & Bohnert, H. J.

Plant cellular and molecular responses to high salinity. _Annu. Rev. Plant Physiol. Plant Mol. Biol._ 51, 463–499 (2000). Article  CAS  Google Scholar  * Thomashow, M. F. PLANT COLD

ACCLIMATION: freezing tolerance genes and regulatory mechanisms. _Annu. Rev. Plant Physiol. Plant Mol. Biol._ 50, 571–599 (1999). Article  CAS  Google Scholar  * Assmann, S. M. & Jegla,

T. Guard cell sensory systems: recent insights on stomatal responses to light, abscisic acid, and CO2. _Curr. Opin. Plant Biol._ 33, 157–167 (2016). Article  CAS  Google Scholar  * Boudsocq,

M., Barbier-Brygoo, H. & Christiane, L. Identification of nine sucrose nonfermenting 1-related protein kinases 2 activated by hyperosmotic and saline stresses in _Arabidopsis thaliana_.

_J. Biol. Chem._ 279, 41758–41766 (2004). Article  CAS  Google Scholar  * Fujii, H., Verslues, P. E. & Zhu, J. K. Arabidopsis decuple mutant reveals the importance of SnRK2 kinases in

osmotic stress responses in vivo. _Proc. Natl Acad. Sci. USA_ 108, 1717–1722 (2011). Article  ADS  CAS  Google Scholar  * Fujii, H. & Zhu, J. K. Arabidopsis mutant deficient in 3

abscisic acid-activated protein kinases reveals critical roles in growth, reproduction, and stress. _Proc. Natl Acad. Sci. USA_ 106, 8380–8385 (2009). Article  ADS  CAS  Google Scholar  *

Fujita, Y. et al. Three SnRK2 protein kinases are the main positive regulators of abscisic acid signaling in response to water stress in Arabidopsis. _Plant Cell Physiol._ 50, 2123–2132

(2009). Article  CAS  Google Scholar  * Raghavendra, A. S., Gonugunta, V. K., Christmann, A. & Grill, E. ABA perception and signalling. _Trends Plant Sci._ 15, 395–401 (2010). Article

CAS  Google Scholar  * Cutler, S. R., Rodriguez, P. L., Finkelstein, R. R. & Abrams, S. R. Abscisic acid: emergence of a core signaling network. _Annu. Rev. Plant Biol._ 61, 651–679

(2009). Article  Google Scholar  * Hubbard, K. E., Nishimura, N., Hitomi, K., Getzoff, E. D. & Schroeder, J. I. Early abscisic acid signal transduction mechanisms: newly discovered

components and newly emerging questions. _Genes Dev._ 24, 1695–1708 (2010). Article  CAS  Google Scholar  * Umezawa, T. et al. Molecular basis of the core regulatory network in ABA

responses: sensing, signaling and transport. _Plant Cell Physiol._ 51, 1821–1839 (2010). Article  CAS  Google Scholar  * Fujii, H. et al. In vitro reconstitution of an abscisic acid

signalling pathway. _Nature_ 462, 660–664 (2009). Article  ADS  CAS  Google Scholar  * Ma, Y. et al. Regulators of PP2C phosphatase activity function as abscisic acid sensors. _Science_ 324,

1064–1068 (2009). ADS  CAS  PubMed  Google Scholar  * Park, S.-Y. et al. Abscisic acid inhibits type 2C protein phosphatases via the PYR/PYL family of START proteins. _Science_ 324,

1068–1071 (2009). ADS  CAS  PubMed  PubMed Central  Google Scholar  * Ng, L. M. et al. Structural basis for basal activity and autoactivation of abscisic acid (ABA) signaling SnRK2 kinases.

_Proc. Natl Acad. Sci. USA_ 108, 21259–21264 (2011). Article  ADS  CAS  Google Scholar  * Umezawa, T. et al. Genetics and phosphoproteomics reveal a protein phosphorylation network in the

abscisic acid signaling pathway in Arabidopsis thaliana. _Sci. Signal._ 6, rs8- (2013). Article  Google Scholar  * Wang, P. et al. Quantitative phosphoproteomics identifies SnRK2 protein

kinase substrates and reveals the effectors of abscisic acid action. _Proc. Natl Acad. Sci. USA_ 110, 11205–11210 (2013). Article  ADS  CAS  Google Scholar  * Vlad, F. et al. Phospho-site

mapping, genetic and in planta activation studies reveal key aspects of the different phosphorylation mechanisms involved in activation of SnRK2s. _Plant J._ 63, 778–790 (2010). Article  CAS

  Google Scholar  * Kobayashi, Y., Yamamoto, S., Minami, H., Kagaya, Y. & Hattori, T. Differential activation of the rice Sucrose Nonfermenting1-Related Protein Kinase2 family by

hyperosmotic stress and abscisic acid. _Plant Cell_ 16, 1163–1177 (2004). Article  CAS  Google Scholar  * Zhao, Y. et al. Arabidopsis duodecuple mutant of PYL ABA receptors reveals PYL

repression of ABA-independent SnRK2 activity. _Cell Rep._ 23, 3340–3351 (2018). e5. Article  CAS  Google Scholar  * Vlad, F. et al. Protein phosphatases 2C regulate the activation of the

Snf1-related kinase OST1 by abscisic acid in Arabidopsis. _Plant Cell_ 21, 3170–3184 (2009). Article  CAS  Google Scholar  * Ichimura, K. et al. Mitogen-activated protein kinase cascades in

plants: a new nomenclature. _Trends Plant Sci._ 7, 301–308 (2002). Article  CAS  Google Scholar  * Rao, K. P., Richa, T., Kumar, K., Raghuram, B. & Sinha, A. K. In silico analysis

reveals 75 members of mitogen-activated protein kinase kinase kinase gene family in rice. _DNA Res._ 17, 139–153 (2010). Article  CAS  Google Scholar  * Saruhashi, M. et al. Plant Raf-like

kinase integrates abscisic acid and hyperosmotic stress signaling upstream of SNF1-related protein kinase2. _Proc. Natl Acad. Sci. USA_ 112, E6388–E6396 (2015). Article  CAS  Google Scholar

  * Shahzad, Z. et al. A potassium-dependent oxygen sensing pathway regulates plant root hydraulics. _Cell_ 167, 87–98 (2016). Article  CAS  Google Scholar  * Beaudoin, N., Serizet, C.,

Gosti, F. & Giraudat, J. Interactions between abscisic acid and ethylene signaling cascades. _Plant Cell_ 12, 1103–1116 (2000). Article  CAS  Google Scholar  * Lee, S.-j, Lee, M. H.,

Kim, J. I. & Kim, S. Y. Arabidopsis putative MAP Kinase Kinase Kinases Raf10 and Raf11 are positive regulators of seed dormancy and ABA response. _Plant Cell Physiol._ 56, 84–97 (2014).

Article  Google Scholar  * Gao, L. & Xiang, C.-B. The genetic locus At1g73660 encodes a putative MAPKKK and negatively regulates salt tolerance in Arabidopsis. _Plant Mol. Biol._ 67,

125–134 (2008). Article  CAS  Google Scholar  * Stecker, K. E., Minkoff, B. B. & Sussman, M. R. Phosphoproteomic analyses reveal early signaling events in the osmotic stress response.

_Plant Physiol._ 165, 1171–1187 (2014). Article  CAS  Google Scholar  * Wang, P. et al. Reciprocal regulation of the TOR kinase and ABA receptor balances plant growth and stress response.

_Mol. Cell_ 69, 100–112 (2018). e106. Article  CAS  Google Scholar  * Soon, F. F. et al. Molecular mimicry regulates ABA signaling by SnRK2 kinases and PP2C phosphatases. _Science_ 335,

85–88 (2012). Article  ADS  CAS  Google Scholar  * Boudsocq, M., Droillard, M.-J., Barbier-Brygoo, H. & Laurière, C. Different phosphorylation mechanisms are involved in the activation

of sucrose non-fermenting 1 related protein kinases 2 by osmotic stresses and abscisic acid. _Plant Mol. Biol._ 63, 491–503 (2007). Article  CAS  Google Scholar  * Yuan, F. et al. OSCA1

mediates osmotic-stress-evoked Ca2+ increases vital for osmosensing in Arabidopsis. _Nature_ 514, 367–371 (2014). Article  ADS  CAS  Google Scholar  * Tsai, C. F. et al. Sequential

phosphoproteomic enrichment through complementary metal-directed immobilized metal ion affinity chromatography. _Anal Chem_ 86, 685–693 (2014). Article  CAS  Google Scholar  * Hsu, C. C. et

al. Universal plant phosphoproteomics workflow and its application to tomato signaling in response to cold stress. _Mol Cell Proteomics_ 17, 2068–2080 (2018). Article  CAS  Google Scholar  *

Zhang, Z. et al. A multiplex CRISPR/Cas9 platform for fast and efficient editing of multiple genes in Arabidopsis. _Plant Cell Rep._ 35, 1519–1533 (2016). Article  CAS  Google Scholar

Download references ACKNOWLEDGEMENTS This work was supported by the Strategic Priority Research Program of the Chinese Academy of Sciences, Grant XDB27040106 (to P.W.), XDB27040000 (to

J.-K.Z.), and National Natural Science Foundation of China, Grant 31771358 (to P.W.). Y.L. is supported by China Scholarship Council. We are grateful to Prof. Dingzhong Tang of Fujian

Agriculture and Forestry University for providing the materials of EDR1, to Drs. Jiamu Du of the Shanghai Center for Plant Stress Biology and Huazhong Shi of the Texas Tech University for

helpful discussions. We would like to thank Life Science Editors for editorial assistance and AOMICS (Shanghai, China) for assistance on proteomics analyses. AUTHOR INFORMATION Author notes

* Chuan-Chih Hsu Present address: Department of Plant Biology, Carnegie Institution for Science, Stanford, CA, 94305, USA * These authors contributed equally: Zhen Lin, Yuan Li, Zhengjing

Zhang, Xiaolei Liu. AUTHORS AND AFFILIATIONS * Shanghai Center for Plant Stress Biology, CAS Center for Excellence in Molecular Plant Sciences, Chinese Academy of Sciences, Shanghai, 200032,

China Zhen Lin, Zhengjing Zhang, Xiaolei Liu, Chuan-Chih Hsu, Yanyan Du, Tian Sang, Chen Zhu, Yubei Wang, Viswanathan Satheesh, Pritu Pratibha, Yang Zhao, Jian-Kang Zhu & Pengcheng Wang

* State Key Laboratory of Plant Physiology and Biochemistry, College of Biological Sciences, China Agricultural University, Beijing, 100193, China Yuan Li * Department of Horticulture and

Landscape Architecture, Purdue University, West Lafayette, IN, 47907, USA Yuan Li & Jian-Kang Zhu * Key laboratory of Plant Stress Biology, School of Life Sciences, Henan University,

Kaifeng, 475004, China Chun-Peng Song * Department of Biochemistry, Purdue University, West Lafayette, IN, 47907, USA W. Andy Tao * Department of Chemistry, Purdue University, West

Lafayette, IN, 47907, USA W. Andy Tao Authors * Zhen Lin View author publications You can also search for this author inPubMed Google Scholar * Yuan Li View author publications You can also

search for this author inPubMed Google Scholar * Zhengjing Zhang View author publications You can also search for this author inPubMed Google Scholar * Xiaolei Liu View author publications

You can also search for this author inPubMed Google Scholar * Chuan-Chih Hsu View author publications You can also search for this author inPubMed Google Scholar * Yanyan Du View author

publications You can also search for this author inPubMed Google Scholar * Tian Sang View author publications You can also search for this author inPubMed Google Scholar * Chen Zhu View

author publications You can also search for this author inPubMed Google Scholar * Yubei Wang View author publications You can also search for this author inPubMed Google Scholar *

Viswanathan Satheesh View author publications You can also search for this author inPubMed Google Scholar * Pritu Pratibha View author publications You can also search for this author

inPubMed Google Scholar * Yang Zhao View author publications You can also search for this author inPubMed Google Scholar * Chun-Peng Song View author publications You can also search for

this author inPubMed Google Scholar * W. Andy Tao View author publications You can also search for this author inPubMed Google Scholar * Jian-Kang Zhu View author publications You can also

search for this author inPubMed Google Scholar * Pengcheng Wang View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS J.-K.Z. and P.W. conceived

the project and designed research; Z.L., Y.L., Z.Z., X.L., C.-C.H., Y.D., T.S., W,Y., P.P., S.V., C.Z., Y.Z. and P.W. performed research; Z.L., Y.L., Z.Z., X.L., C.-C.H., T.S., S.V.,

C.-P.S., W.A.T., P.W. and J.-K.Z. analyzed data; and J.-K.Z. and P.W. wrote the paper with contributions from all authors. CORRESPONDING AUTHORS Correspondence to Jian-Kang Zhu or Pengcheng

Wang. ETHICS DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ADDITIONAL INFORMATION PEER REVIEW INFORMATION _Nature Communications_ thanks the other anonymous,

reviewers for their contribution to the peer review of this work. Peer reviewer reports are available. PUBLISHER’S NOTE Springer Nature remains neutral with regard to jurisdictional claims

in published maps and institutional affiliations. SUPPLEMENTARY INFORMATION SUPPLEMENTARY INFORMATION PEER REVIEW FILE DESCRIPTION OF ADDITIONAL SUPPLEMENTARY FILES SUPPLEMENTARY DATA 1

SUPPLEMENTARY DATA 2 SUPPLEMENTARY DATA 3 SUPPLEMENTARY DATA 4 SUPPLEMENTARY DATA 5 SUPPLEMENTARY DATA 6 SUPPLEMENTARY DATA 7 REPORTING SUMMARY SOURCE DATA SOURCE DATA RIGHTS AND PERMISSIONS

OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or

format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons license, and indicate if changes were made. The images or

other third party material in this article are included in the article’s Creative Commons license, unless indicated otherwise in a credit line to the material. If material is not included in

the article’s Creative Commons license and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the

copyright holder. To view a copy of this license, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Lin, Z., Li, Y., Zhang, Z.

_et al._ A RAF-SnRK2 kinase cascade mediates early osmotic stress signaling in higher plants. _Nat Commun_ 11, 613 (2020). https://doi.org/10.1038/s41467-020-14477-9 Download citation *

Received: 19 August 2019 * Accepted: 08 January 2020 * Published: 30 January 2020 * DOI: https://doi.org/10.1038/s41467-020-14477-9 SHARE THIS ARTICLE Anyone you share the following link

with will be able to read this content: Get shareable link Sorry, a shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt

content-sharing initiative
