ABSTRACT Creatine (Cr) is essential for cellular energy homeostasis, particularly in muscle and brain tissues. Creatine Transporter Deficiency (CTD), an X-linked disorder caused by mutations


in the SLC6A8 gene, disrupts Cr transport, leading to intellectual disability, speech delay, autism, epilepsy, and various non-neurological symptoms. In addition to neurological


alterations, Creatine Transporter knockout (CrT−/y) mice exhibit severe muscle atrophy and functional impairments. This study provides the first characterization of the skeletal muscle


phenotype in CrT−/y mice, revealing profound ultrastructural abnormalities accompanied by reduced fiber cross-sectional area and muscle performance. Notably, mitochondria are involved, as


evidenced by disrupted cristae, increased mitochondrial size, impaired Ca2+ uptake, reduced membrane potential and ATP production. Mechanistically, the expression of atrophy-specific E3


ubiquitin ligases and suppression of the IGF1-Akt/PKB pathway, regulated by mitochondrial Ca2+ levels, further support the atrophic phenotype. These findings highlight the profound impact of


Cr deficiency on skeletal muscle, emphasizing the need for targeted therapeutic strategies to address both the neurological and peripheral manifestations of CTD. Understanding the


underlying mechanisms, particularly mitochondrial dysfunction, could lead to novel interventions for this disorder. SIMILAR CONTENT BEING VIEWED BY OTHERS A NEW RAT MODEL OF CREATINE


TRANSPORTER DEFICIENCY REVEALS BEHAVIORAL DISORDER AND ALTERED BRAIN METABOLISM Article Open access 15 January 2021 SMN DEFICIENCY PERTURBS MONOAMINE NEUROTRANSMITTER METABOLISM IN SPINAL


MUSCULAR ATROPHY Article Open access 13 November 2023 BRAIN OF MIYOSHI MYOPATHY/DYSFERLINOPATHY PATIENTS PRESENTS WITH STRUCTURAL AND METABOLIC ANOMALIES Article Open access 20 August 2024


INTRODUCTION Creatine (Cr) plays a crucial role in regulating cellular energy homeostasis, particularly in high-demanding tissues such as the muscle and the brain [1]. Creatine Kinase (CK)


converts Cr into phospho-creatine (PCr), a metabolically inert phosphagen used for temporal and spatial buffering of ATP levels. The PCr/CK system is vital for high-intensity physical


exercise in striated muscle and heart contraction when ATP hydrolysis exceeds production by other metabolic pathways [2, 3]. Approximately one-half of the daily Cr needs in humans comes from


the diet, with the remaining one-half synthesized endogenously through a two-step enzymatic pathway involving L-arginine:glycine amidinotransferase (AGAT) and


S-adenosyl-L-methionine:N-guanidinoacetate methyltransferase (GAMT) mostly in the liver, pancreas, and kidneys [3, 4]. After synthesis or nutritional supply, Cr is released into the


bloodstream to nourish all body cells. However, Cr cannot cross the lipid membrane and requires a specific Na+/Cl−-dependent transporter (Cr transporter, CrT). In humans, CrT is


predominantly expressed in the muscle, kidney, heart, and other tissues, including the brain [5,6,7]. Creatine Transporter Deficiency (CTD, OMIM #300352) is a monogenic X-linked disorder


[8], associated with multiple mutations in the solute carrier family 6-member 8 (Slc6a8) gene that encodes the protein responsible for cellular Cr transport [8, 9]. Recent studies suggest


that the prevalence of this disorder might range between 1% and 3% in males with intellectual disability [8, 10]. However, the lack of prenatal and perinatal screening makes CTD a still


underdiagnosed disorder. Clinical hallmarks include intellectual disability, severe speech delay, autistic features, epilepsy, and movement disorders [9]. Patients also experience


non-neurological symptoms, including gastrointestinal dysfunction, bladder dysfunction, cardiomyopathy, and ophthalmologic abnormalities [11, 12]. Skeletal muscle mass reduction and mild


muscle weakness have been described [12, 13], primarily as late onset deficits [14,15,16]. While Cr concentration in skeletal muscle appears to be within the normal range, this has only been


analyzed for a few specific mutations [17, 18]. The absence of a functional CrT renders Cr supplementation ineffective for CTD [8]. Consequently, effective treatments for CTD remain


elusive, posing ongoing challenges for patients and their families. To understand the causative mechanisms and the main molecular pathways altered in CTD, animal models lacking the Slc6a8


gene or engineered to express an allele with the point mutation found in patients have been generated [19,20,21,22]. These rodent lines have significantly contributed to dissecting the


pathological determinants of this disorder [8]. They revealed that the loss-of-function of Slc6a8 does not result in overt alterations in brain structure and neuronal density but rather in a


subtle reorganization of cerebral circuits and cellular metabolic processes [19, 22,23,24]. However, the cellular and molecular players involved in the development and progression of the


CTD phenotype, not only in the brain but also in skeletal muscle, remain largely unexplored [8]. Interestingly, unlike CTD patients, skeletal muscles of CrT knockout (CrT−/y) animals exhibit


low Cr levels and a severely compromised phenotype, characterized by impaired motor function, muscle atrophy, increased glucose metabolism due to AMPK activation [21, 25], and


susceptibility to fatigue [26]. Motor alterations are absent in mice harboring a brain-specific Slc6a8 deletion, suggesting a peripheral contribution to the onset of CTD pathology [27, 28].


Nevertheless, a complete description of the skeletal muscle phenotype and the underlying mechanisms remain elusive. The study of this aspect is particularly important given that the PCr-CK


system requires high levels of total Cr (20-40 mM) in skeletal muscle [29] that can be achieved only with functional cellular Cr uptake [29]. Interestingly, CTD clinical phenotype closely


resembles that observed in a wide range of mitochondrial disorders (e.g., developmental, or cognitive disabilities, seizures, fatigue and cardiomyopathy). CTD patients initially suspected of


having a mitochondrial disorder were later found to have a creatine transporter defect. Notably, there is a strong link between Cr and mitochondrial function, and changes in PCr/Cr ratio


finely regulate mitochondrial respiration [1, 30,31,32]. It is thus not surprising that the metabolic phenotype of Cr deficiency results in disturbed metabolic activity, as well as


structural abnormalities of mitochondrial organelles [24, 28, 33, 34]. Nevertheless, mitochondrial abnormalities and their causative role in the pathogenesis of this disease have scarcely


been assessed at functional and molecular levels. This is a crucial aspect, as preclinical evidence suggests that mitochondria might be promising targets for therapeutic intervention in


various brain and motor dysfunctions. In this study, we describe the profound impact of Cr deficiency on the skeletal muscle of CrT−/y animals. Specifically, we found that muscles exhibit an


atrophic phenotype accompanied by fibers ultrastructural alterations, diminished performance, and increased expression of key E3 ubiquitin ligases associated with the progression of


atrophy. Additionally, mitochondria display significant morphological abnormalities, reduced membrane potential, and impaired mitochondrial Ca2+ uptake, accompanied by changes in the


expression of proteins involved in mitochondrial Ca2+ homeostasis. RESULTS CRT−/Y MUSCLES EXHIBIT PRONOUNCED FIBER ATROPHY AND ULTRASTRUCTURAL ALTERATIONS The mouse model carrying the


ubiquitous deletion of 5–7 exons in the Slc6a8 gene (CrT knockout, CrT−/y) [20] exhibits low Cr levels in the brain, skeletal and cardiac muscles, and kidneys [20, 23]. Given that no


comprehensive characterization of skeletal muscle structure has been performed in this model thus far and considering the crucial role of Cr in muscle metabolism, we began by assessing the


presence of qualitative and quantitative ultrastructure alterations. Using Transmission Electron Microscopy (TEM), we analyzed the Extensor Digitorum Longus (EDL) muscle in WT and CrT−/y

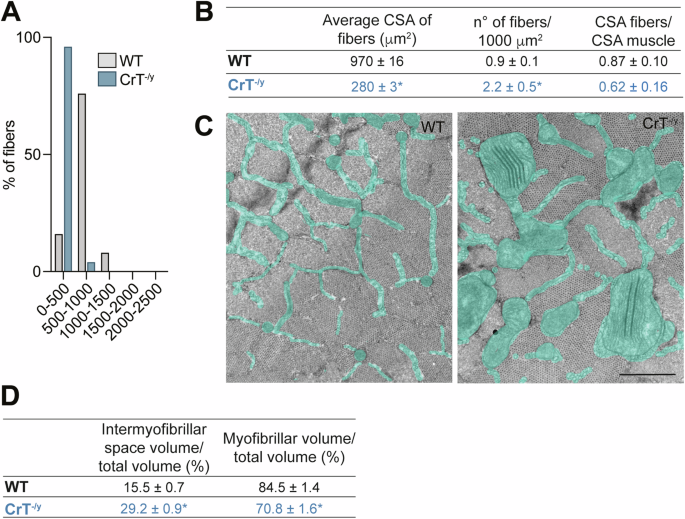

mice at Post Natal Day (PND) 40. In WT mice, the average cross-sectional area (CSA) of the fibers is 970 ± 16 μm2 (mean ± SEM) (Fig. 1A, _gray columns_ and Fig. 1B), while in CrT−/y mice the


CSA of the fibers is significantly reduced to 280 ± 3 μm2 (Fig. 1A_blue columns and_ Fig. 1B). The number of fibers per 1000 μm2 is 0.9 ± 0.1 in WT mice, resulting in a fractional area of


the muscle occupied by the fibers of [(970 μm2/fiber)/(1000 μm2/0.9 fibers)]= 0.87 ± 0.10 (Fig. 1B). In CrT−/y mice, with 2.2 ± 0.5 fibers per 1000 μm2 (Fig. 1B), the fractional area is the


muscle occupied by the fibers is 0.62 ± 0.16 (Fig. 1B), approximately 30% lower than in WT mice. CrT−/y muscles exhibit an increased fraction of intermyofibrillar space relative to fiber


volume (0.292 ± 0.009) compared to WT muscles (0.155 ± 0.007), resulting in a decreased fractional fiber volume (0.708 ± 0.016 in CrT−/y mice and 0.845 ± 0.014 in WT mice, Fig. 1C, D). The


CSA occupied by the myofibrils within the muscle can be determined multiplying the CSA of the EDL muscle, estimated from the wet weight of the muscle (see Methods), by a factor _α_ = 0.87 × 


0.845 = 0.74 ± 0.08 (or 74%) for the WT mice and 0.62 × 0.708 = 0.44 ± 0.10 (or 44%) for the CrT−/y mice. MUSCLE PERFORMANCE IMPAIRMENTS AND MYOSIN HEAVY CHAIN ISOFORM SHIFTS IN CRT-/Y MICE


We then investigated whether the observed morphological alterations affected muscle performance. Consistent with the structural changes, grip strength in CrT−/y mice showed a significant


reduction, with strength diminished to 45% and 10% of that in WT mice at PND 40 and 90, respectively (Fig. 2A). Additionally, the isometric force (_T_0) of EDL muscles from PND40 CrT−/y mice


was substantially lower, measuring 71 ± 3 mN, which is just 18 ± 1% of the WT mice’s force (395 ± 14 mN, Fig. 2D). To further assess muscle performance, we analyzed the force-velocity


(_T_-_V_) and the power-force (_P_-_T_) relations. The shortening velocity (_V_), measured following a drop in force from _T_0 to a pre-set value _T_ lower than _T_0 (Supplementary Fig. 1A),


was significantly reduced for _T_ < 0.4_T_0 in CrT−/y mice compared with WT mice (Supplementary Fig. 1B). This reduction was accompanied by a decrease in the curvature of the _T_-_V_


relation (increase in _a_/_T_0*, see Methods and Fig. 2), approximately two-fold, and a reduction in the unloaded shortening velocity (_V_max) from 4.4 ± 0.1 L0/s in WT mice to 3.0 ± 0.1


L0/s in CrT−/y mice, with L0 representing the initial muscle length (Fig. 2B, D, and Supplementary Fig. 1B). Power output (_P_ = _T_ × _V_) at any _T_ was lower in CrT−/y mice compared to WT


mice (Fig. 2C). The maximum power output (_P_max), achieved at about one-third of the maximum force, was reduced to approximately 14% of WT levels (from 1.83 ± 0.09 mW to 0.25 ± 0.03 mW,


Fig. 2C, D). The reduced muscle performance could be linked to a shift of the myosin heavy chain (MHC) isoforms expressed in the EDL muscle. The MHC-2X:MHC-2B ratio is 2:3 in the WT mice and


1:1 in the CrT−/y mice with a shift in the expression of the faster MHC-2B isoform to the slower MHC-2X isoform (Fig. 2E–G). Considering that fibers expressing pure MHC-2B and MHC-2X


isoforms have similar isometric force while the unloaded shortening velocity of the fibers expressing the MHC-2X isoform is about ½ of those expressing the MHC-2B isoform [35], the lower


_V_max found in the EDL muscle of mutated mice could be explained by the increased expression of the slower MHC-2X isoform with respect to the faster MHC-2B isoform. However, the shift in


the MHC isoforms alone would not fully account for the reduction in _P_max (Supplementary Fig. 1C). Therefore, other factors, such as fiber atrophy, structural alterations of sarcomeres, or


altered Ca2+ handling, must contribute to the reduced muscle performance. Focusing on Ca2+ dynamics, we measured cytosolic Ca2+ concentration [Ca2+]cyt on isolated Flexor Digitorum Brevis


(FDB) fibers upon caffeine stimulation using Fura-2/AM. While resting [Ca2+]cyt was unaffected (Fig. 3A), caffeine-induced Ca2+ transients were significantly reduced in CrT−/y mice compared


to WT (Fig. 3B, C), suggesting either a lower amount of Ca2+ released from the sarcoplasmic reticulum (SR) or a reduced capacity of the mitochondrial uptake machinery. To analyze changes


observed in cytosolic Ca2+ homeostasis, we examined whether the expression of the SR release channel RyR1 and the uptake pumps SERCA1 and SERCA2 were affected by the KO of CrT. Consistent


with the reduction in cytosolic Ca2+ levels upon caffeine stimulation, protein levels of RyR1 are significantly reduced (Fig. 3D, E). Concurrently, SERCA2 levels, but not SERCA1 levels, are


increased (Fig. 3F, G). MITOCHONDRIA OF CRT−/Y FIBERS ARE STRUCTURALLY ALTERED, WITH REDUCED MEMBRANE POTENTIAL AND CA2+ UPTAKE CAPABILITY Given the well-established link between Cr and


mitochondrial function [24, 28, 36], we investigated mitochondrial organization and morphology in EDL fibers of CrT−/y mice at PND40. In adult EDL fibers of WT mice, mitochondria are


predominantly located at the I band on both sides of the Z-line (Fig. 4A, _small arrows_) [37] are rarely found at the A-band of the sarcomere (Fig. 4A, D). These mitochondria exhibit a


round or oval shape, with an average area of 60 ± 6 ×103 nm2 (Fig. 4D) and display parallel cristae within a dense matrix (Fig. 4A, _inset_). They occupy about 3.5% of the total cell volume,


with 8.0 ± 0.5 per 100 μm2 of triads pairs (i.e. the Ca2+ release units, CRUs) (Fig. 4D). In contrast, CrT−/y EDL fibers show a pronounced alteration in mitochondrial distribution. A large


number of mitochondria are aligned along the A-band, forming longitudinal columns between myofibrils (Fig. 4B, _large arrow_), with 17.5 ± 1.4 mitochondria per unit area at the A band (Fig.


4D). These mitochondria are five-time larger (300 ± 22 × 103 nm2), occupy a significantly larger fiber volume (11.1 ± 0.7%), and are less frequently associated with CRUs (5.4 ± 0.4


mitochondria per CRU pairs per unit area) (Fig. 4D). Additionally, several mitochondria display structural abnormalities, including a clear matrix and damaged internal cristae (indicated by


a large black arrow in Fig. 4B, _and inset_). Moreover, damaged mitochondria frequently contain multi-layered structures (Fig. 4C, _empty arrows_), resembling lamellae arranged in a regular


fashion, which may significantly alter the internal cristae organization (Fig. 4C, _dashed box and inset_). Other notable structural alterations include: i) a high incidence of fibers


containing lipid droplets (Supplementary Fig. 2), which are typically absent in WT EDL fibers, and ii) about 35% of fibers showing severe damage, characterized by a total loss of


cross-striation and complete disruption of the sarcomeric structure. Mitochondrial impairment extends beyond the structural level. Specifically, by using mitochondrially targeted Fura-2/AM


(mitoFura-2/AM) we found that while basal mitochondrial Ca2+ concentrations ([Ca2+]mt) were comparable between WT and CrT−/y FDB muscle fibers (Fig. 5A), CrT−/y fibers exhibited a


significant reduction in mitochondrial Ca2+ uptake following caffeine-induced Ca2+ release from the SR (Fig. 5B, C). We then investigated whether the observed Ca2+ phenotypes might reflect


changes in the driving force of mitochondrial Ca2+ accumulation. To assess this, we measured mitochondrial membrane potential (ΔΨm) using tetramethyl rhodamine methyl ester dye (TMRM) in


non-quenching mode, wherein the dye is applied at low concentrations to avoid aggregation and quenching within mitochondria. As a result, depolarized mitochondria accumulate less of the


cationic dye, resulting in lower fluorescence, while hyperpolarized mitochondria show increased fluorescence due to higher dye accumulation [38]. CrT−/y mice showed a significant decrease in


ΔΨm, indicating potential impairment in ATP production (Fig. 5D). As mitochondrial Ca2+ plays a well-established role in regulating oxidative metabolism and the ΔΨm is the driving force for


ATP production [39], we analyzed whether CrT−/y is characterized by alteration of electron transport chain. Using Western blot analysis with a Total OXPHOS Antibody Cocktail kit, targeting


specific subunits of the five OXPHOS complexes (NDUFB8, SDHB, UQCRC2, MTCO1, and ATP5A), we found that CrT deletion does not reduce the protein levels of these OXPHOS subunits. Instead, a


slight increase was observed in complexes V and II, indicating the possible activation of potential compensatory mechanisms (Fig. 5E). Further analysis of ATP production in muscle tissue,


indeed, showed that CrT deletion leads to a significant reduction in ATP levels (Fig. 5F), supporting an overall impairment in mitochondrial function in CrT−/y muscles. Given the reduced


mitochondrial Ca2+ entry, we investigated the expression of the different components of the Mitochondrial Calcium Uniporter (MCU) complex, the channel responsible for Ca2+ entry into


mitochondria. Our results revealed a significant increase in the mRNA expression of the crucial regulator of the channel MICU1 (Fig. 5G), as well as elevated protein levels of both the


pore-forming subunit MCU and MICU1 in CrT−/y mice compared to WT (Fig. 5H). To explore the discrepancy between reduced mitochondrial Ca2+ uptake and increased expression of MCU complex


components, we measured Ca2+ extrusion rates in WT and CrT−/y muscles. We found no significant differences between the two groups (Supplementary Fig. 3). Furthermore, analysis of the mRNA


expression of the Pgc1-α gene showed that the lack of CrT triggers the induction of Pgc1-α (Fig. 5I), indicating enhanced mitochondriogenesis, which aligns with our ultrastructural findings


(Fig. 4) and the increased expression of MCU complex subunits. We also analyzed the protein expression of key mitochondrial markers from distinct compartments: Tom20 (outer membrane), AFG3L2


(inner membrane), and PDH (matrix). The expression levels of all these proteins were elevated in CrT−/y muscles compared to WT (Fig. 5L and Supplementary Fig. 4), further corroborating our


previous findings of mitochondrial alterations. In summary, these findings suggest that CrT deficiency in skeletal muscle leads to compromised mitochondrial Ca2+ homeostasis, which may


contribute to the observed pathological phenotype. THE IGF-1/AKT/PKB PATHWAY IS SUPPRESSED AND THE EXPRESSION OF ATROPHY-SPECIFIC E3 UBIQUITIN LIGASES IS INDUCED IN CRT−/Y MICE To elucidate


the mechanism underlying the atrophic phenotype in CrT−/y animals, we directed our focus toward the established hypertrophy pathways in skeletal muscle, specifically the IGF1-Akt/PKB


signaling axis [40]. This pathway is crucial for promoting muscle hypertrophy, whereas its suppression is known to lead to muscle atrophy [40]. In CrT−/y animals, we observed a marked


suppression of Akt signaling, as evidenced by reduced phosphorylation of Akt, S6, and 4E-BP1 (Fig. 6A–D). These findings suggest that the atrophic phenotype in CrT−/y mice is likely due to


impaired IGF1/Akt/PKB signaling. Additionally, we noted a significant upregulation of Atrogin-1 and MUSA1, two E3 ubiquitin ligases known to be involved in protein degradation during muscle


atrophy [40] (Fig. 6E). This increased expression further supports the association between CrT deficiency and enhanced muscle atrophy through disrupted signaling pathways and elevated


protein degradation. DISCUSSION Creatine (Cr) is essential for supplying cells with high-energy phosphates, facilitating the rapid regeneration of hydrolyzed ATP. The creatine transporter


(CrT/SLC6A8) is crucial for transporting Cr across tissue barriers and into specific cells, such as neurons and myocytes [41]. Mutations in the CrT gene lead to Creatine Transporter


Deficiency (CTD), associated with severe intellectual disability, epilepsy, autism, developmental delay, and motor dysfunction [8, 41]. While these manifestations primarily impact brain


function, non-neurological symptoms, including gastrointestinal dysfunction, bladder dysfunction, cardiomyopathy, and ophthalmologic abnormalities, are also observed [11, 12]. Skeletal


muscle hypotonia and nonspecific myopathic symptoms are common, though the literature on muscle Cr levels in CTD patients is poor [13, 17, 18]. Despite the limited understanding of


peripheral contributions to CTD pathology, evidence suggests that muscle impairment could affect neurological symptoms, as brain-specific CrT−/y mice do not fully reproduce the early


pathological features or autistic traits of CTD patients [42]. To address the gap in understanding muscle phenotype, we characterized the skeletal muscle of the CrT−/y mouse model, which


exhibits reduced body weight and cognitive impairments similar to those observed in CTD patients [23]. Creatine levels in the skeletal muscle of these mice were dramatically reduced (~65% at


PND30 and ~ 95% in adults, [23]), with insufficient compensation from increased AGAT expression [21, 43]. Our data clearly show that CrT−/y muscles are dramatically atrophic (Fig. 1A, B) in


accordance with previous results [21, 25]. Additionally, in EDL muscles the proportion of contractile elements in terms of fiber volume is significantly diminished in CrT−/y muscles


compared to WT, leading to a consequent increase of the intermyofibrillar space (Fig. 1C, D). This observation supports the atrophic phenotype of this murine model. Fiber atrophy in CrT−/y


muscles is associated to a functional decline, characterized by reduced grip strength, both at PND 40 and 90, with a marked reduction in isometric force and power at PND 40 (Fig. 2A–C). In


WT mouse, with a CSA of the EDL muscle of 19 × 10−3 cm2 (Fig. 2D), the specific isometric force per unit area is (395 mN / 19 × 10−3 cm2 =) 208 ± 10 kPa. As the muscle fibers represent 87%


of the cross-sectional area and the area of the fiber occupied by the myofibrils is 84.5% (Fig. 1B), the CSA occupied by the myofibrils is α = 74% of the muscle CSA, and _T_0 is (395 mN/(19 


× 10−3 cm2 × α) = ) 281 ± 10 kPa. In CrT−/y mouse, with a muscle CSA = 7.6 × 10−3 cm2 (Fig. 2D) and α = 44% (muscle fibers occupy 62% of the muscle CSA; myofibrils occupy 71% of the fiber


CSA, Fig. 1B), the same calculation gives an isometric force of 212 ± 17 kPa, about 30% lower than in WT mouse. After correction, the maximum power developed by the myofibrils within the


muscle is about 35% lower in CrT−/y mouse (82 ± 2 mW/g) than in control (128 ± 2 mW/g) (_Inset_ Fig. 2C). The reduced power in CrT−/y mice cannot be explained by differences in mechanical


parameters resulting from the shift in myosin heavy chain isoforms (Supplementary Fig. 1C). Instead, it may be related to the disruption of sarcomere structure observed in some fibers


(Supplementary Fig. 2), a decreased cytosolic [Ca2+] in response to caffeine (Fig. 3B, C), reduced Ca2+ release from the ER, as indicated by the lower protein levels of RyR1 (Fig. 3D, E),


and an increased capacity of the SR to reuptake Ca2+ upon stimulation, evidenced by elevated SERCA2 protein levels (Fig. 3F, G). Furthermore, in addition to the shift from the faster MHC-2B


isoform to the slower MHC-2X isoform, the presence of disrupted sarcomeres behaving as passive elements could also generate an internal load and contribute to the reduction of the shortening


velocity more evident at low loads. Cytoarchitectural abnormalities and a higher proportion of the cell volume occupied by mitochondria, resulting in a decreased concentration of


myofibrils, have been observed in other models of creatine deficiency [27, 28, 44] and an increase in [Ca2+]cyt occurs only during repeated tetanic stimulation, accompanied by a significant


decline in force in CK knockout mouse fibers [26]. The structural analysis of the current study has been focused on EDL muscles. EDLs are mostly composed of type IIb (fast-twitch glycolytic)


fibers which rely mainly on glycogen for anaerobic metabolism. Contrary to type I (slow-twitch oxidative) fibers, which have normally a high content of lipid droplets and mitochondria as


their energy metabolism is completely aerobic, type IIb fibers have reduced mitochondrial volume and lower contents of lipid droplets [45]. The structural observations and the quantitative


analysis revealed that in EDL fibers from CrT−/y mice there is an increase in mitochondrial number/volume and size (Fig. 4D), accompanied by a corresponding increase in the protein


expression levels of mitochondrial outer and inner membrane and matrix proteins (Fig. 5L and Supplementary Fig. 4). In addition, in CrT−/y fibers a high percentage of mitochondria is placed


at the A-band of the sarcomere, a spatial characteristic disposition of slow-twitch fibers (Fig. 4D). Interestingly, an unusual high number of lipid droplets, which are usually not present


in WT EDL fibers, has been also observed (Supplementary Fig. 2). A similar phenomenon has been documented in the AGAT−/− model of creatine deficiency [28]. In this model, the increased


activity of citrate synthase and F-type ATPase, along with the presence of intramyocellular lipid droplets, indicates a boost in oxidative ATP production within the mitochondria of resting


AGAT−/− muscle [28]. These structural results significantly support the change in the fiber composition and/or metabolism, with a fiber-type shift towards a slower isoform (Fig. 2E–G),


induced by the absence of CrT. In CrT−/y mice, the increased mitochondrial volume is accompanied by elevated expression of the master regulator of mitochondriogenesis, PGC-1α (Fig. 5I),


suggesting that creatine deficiency in skeletal muscle induces a precise transcriptional program. This result not only supports the increase in both the quantity and size of mitochondria


(Figs. 4, 5L and Supplementary Fig. 4) but also accounts for the slower myosin heavy chain phenotype (Fig. 2F). Indeed, this transcriptional co-activator, working in conjunction with Mef2,


activates transcription and acts as a target for calcineurin signaling, a pathway implicated in the expression of genes associated with slow fibers [46]. Overexpression of PGC-1α in skeletal


muscle has been shown to induce angiogenesis, improve muscle endurance, motor coordination, and balance in aged animals, and activate mitochondrial oxidative metabolism [46]. Hence, the


elevated expression of PGC-1α in CrT−/y may also serve as a compensatory mechanism activated to mitigate atrophy. Numerous mitochondria in EDL CrT−/y fibers showed a very peculiar structural


arrangement of internal cristae resembling multi-layered crystal-like structure rows (Fig. 4C, _empty arrows_). These structures were previously reported in the AGAT−/− model of creatine


deficiency [40], but up today either assembling or function is unknown. However, a comprehensive assessment of this issue extends beyond the scope of the current study. Mitochondrial


alterations extend beyond structure to function. Indeed, we observed a significant reduction in ΔΨm (Fig. 5D) and a marked decrease in Ca2+ influx into the mitochondria in isolated fibers of


the FDB CrT−/y muscle stimulated with caffeine (Fig. 5B, C). Notably, we did not observe any changes in the quantification of Ca2+ under basal conditions (Fig. 5A). Although the protein


expression levels of some of the components of the respiratory chain complexes were not reduced but rather induced in CrT−/y muscles compared to WT (Fig. 5E), ATP production is significantly


decreased (Fig. 5F). This result aligns with the crucial role of mitochondrial Ca2+ in controlling the rate of ATP generation within mitochondria [39]. It is also possible that the observed


reduction in mitochondrial Ca2+ uptake in isolated fibers of the FDB from CrT−/y mice could at least in part be due to the reduction in the number of CRU-mitochondrial pairs/100 μm2 (Fig.


4D) as previously reported in ageing [47] and in SEPN1-related myopathy patients [48, 49]. Specifically, changes in the relationship between mitochondria and CRUs may contribute to impaired


delivering of sufficient levels of Ca2+ and ATP required for optimal force generation and muscle performance. Data presented here in EDL from CrT−/y mice focus attention on previously


unreported alterations not only in mitochondrial morphology but also in their position and orientation with respect to the sarcomeric structure. In EDL fibers from CrT−/y mice, a


significantly higher percentage of mitochondria are longitudinally oriented along the A band, rather than occupying their normal I band position (Fig. 4D) and this structural result may


likely account for the observed significant reduction (about 35%) in the number of CRU-mitochondria pairs, a factor which could significantly interfere with a proper Ca2+ uptake and ATP


production. The decrease in mitochondrial Ca2+ is paradoxically accompanied by an elevation in the expression of the pore-forming subunit of the channel responsible for mitochondrial Ca2+


entry, MCU, and its positive regulator MICU1 (Fig. 5G, H). This increase, which we have shown to be independent of increased Ca2+ extrusion rates from mitochondria (Supplementary Fig. 3),


may result from both an expansion of mitochondrial volume and either modifications to other channels (e.g., post-translational modifications) or changes in the expression of other MCU


subunits. We extensively demonstrated that mitochondrial Ca2+ entry controls muscle homeostasis [50, 51]. Indeed, silencing MCU triggers muscle atrophy, while its overexpression leads to


muscle hypertrophy [51]. In relation to the mechanism, mitochondrial Ca2+ uptake regulates skeletal muscle trophism by modulating the IGF-1-AKT/PKB and the PGC-1α4 pathways [51]. Based on


these premises, we asked whether signaling pathways controlling muscle homeostasis were altered in CrT−/y animals focusing our attention on the IGF-1/AKT/mTOR pathway, whose activation


induces skeletal muscle hypertrophy by stimulating protein translation and concomitantly suppressing protein breakdown by phosphorylating the transcription factor FoxO3 [40]. In line with


the marked reduction of the muscle CSA, we found that the phosphorylation levels of AKT and of its downstream target 4E-BP1 are inhibited in EDL muscles of CrT KO mice (Fig. 6A–D).


Consistently, the expression of the ubiquitin ligases Atrogin-1 and MUSA1, involved in protein degradation during muscle atrophy [40], are induced (Fig. 6E). The suppression of the


IGF-1/Akt/PKB pathway and induction of atrophy-specific E3 ubiquitin ligases, such as Atrogin-1 and MUSA1, further support the link between creatine deficiency and muscle atrophy. While the


total knockout model does not differentiate between neuronal and muscular contributions, it is likely that reduced creatine levels in skeletal muscle could impact muscle function, especially


under stress conditions like intense exercise or infections. While employing a total KO model prevents a clear distinction between neuronal and muscular contributions to motor function, and


impaired skeletal muscle function may not be a predominant symptom in most CrT-deficient patients, we suggest that diminished creatine levels in skeletal muscle could potentially compromise


muscle function, particularly under stress conditions like intense exercise or infections in these patients. In summary, our findings demonstrate that muscles in CrT−/y mice display


significant morphological and functional abnormalities, culminating in a pronounced atrophic phenotype with substantially reduced performance at intermediate-high loads and limited


shortening capability at low loads. These findings underscore the role of Cr deficiency in muscle pathology and suggest that muscle impairment may contribute to the overall disease phenotype


in CTD. Notably, heterozygous females were not investigated in this study, leaving open questions about whether similar but potentially less severe phenotypes occur in female carriers.


MATERIALS AND METHODS ANIMALS We employed male mice hemizygous for the deletion of exons 5-7 in the _Slc6a8_ gene (KO; CrT−/y) and their wild-type (WT; CrT+/y) littermates [20]. Animals were


raised or acclimatized to the conditions of the animal facility, and housed in a ventilated room under a controlled temperature (21 ± 2 °C), with a 12:12 h light:dark cycle and free access


to chow rodent diet and water _ad libitum_. LIGHT MICROSCOPY For histological examination by light microscopy (LM) semithin sections (∼700 nm) were cut using a Leica Ultracut R microtome


(Leica Microsystem, Vienna, Austria) with a Diatome diamond knife (Diatome, Biel, Switzerland) and were stained in a solution containing 1% toluidine blue O and 1% sodium borate (tetra) in


distilled water for 3 min on a hot plate at 55–60 °C. After washing and drying, sections were mounted with DPX media for histology (Sigma–Aldrich, Milan, Italy) and observed with a Leica


DMLB light microscope connected to a DFC450 camera equipped with Application Suite v 4.13.0 for Windows (Leica Microsystem, CMS GmbH, Switzerland). ELECTRON MICROSCOPY EDL muscles were


dissected from mice, fixed at room temperature with 3.5% glutaraldehyde in 0.1 M NaCaCo buffer (pH 7.2), and kept at 4 °C in fixative until further use. Fixed muscles were then post-fixed,


embedded, stained en-block, and sectioned for EM, as described previously [37]. For EM, ultrathin sections ( ~ 50 nm), were examined after staining in 4% uranyl acetate and lead citrate,


with a Morgagni Series 268D electron microscope (FEI Company, Brno, Czech Republic), equipped with Megaview III digital camera (Munster Germany) at 60 kV. EM QUANTITATIVE ANALYSIS Estimates


of the relative fiber volume occupied by myofibrils were calculated in transversal sections by the well-established stereology point counting technique [52, 53]. Briefly, 2 micrographs from


each fiber (sample size: 15 fibers for each group) were taken at a magnification of 22 K excluding nuclei and subsarcolemmal regions. A grid of an orthogonal array of dots at a spacing of


0.35 μm was superimposed on each micrograph. The relative fiber volume occupied by the myofibrils vs. intermyofibrillar elements was then calculated by dividing the total number of dots by


the number of dots falling in either one of the compartments. BEHAVIORAL TESTING In the grip strength test, a peak amplifier is used to automatically measure the maximum force exerted by the


animal’s forelimbs [54]. MUSCLE MECHANICAL ANALYSES EDL muscle from WT or CrT−/y mice (PND40) was dissected under a stereomicroscope and mounted horizontally between the lever of a


motor/force transducer system (305C, Aurora Scientific Inc.) and a lever carried by a micromanipulator in a trough, containing physiological Krebs–Henseleit solution (composition (mM): 119


NaCl, 4.7 KCl, 1.0 MgSO4, 25 NaHCO3, 1.2 KH2PO4, and 1.1 glucose), continuously saturated with carbogen (95% O2 and 5% CO2, pH 7.4) at room temperature (22–24 °C). The muscle was


straightened just above its slack length using the micromanipulator. The trough was sealed with a Perspex cover and mounted vertically on the stage with the motor/force transducer system on


the top. Trains of stimuli of alternate polarity to elicit fused tetani (frequency 100–120 Hz) were delivered by means of two platinum wire electrodes running parallel to the muscle, 1 cm


apart. The intensity of the stimuli was increased until the isometric plateau force reached a maximum constant value, _T_0 (indicating that all cells in the muscle were activated). Muscle


length was further finely adjusted using the micromanipulator to obtain the maximum isometric force corresponding to the plateau of the force–length relation. Isometric force was normalized


to muscle Cross-Sectional Area (CSA), calculated from the muscle wet weight (w) according to the relation: CSA = (_w_ · cosθ)/(_L_f · δ), where θ is the pennation angle of the fibers (8,3°,


[55]), _L_f is the fiber length (cm), and δ is the muscle density, 1.056 g/cm3 [56]. _L_f was obtained by multiplying the muscle length by 0.51 [55]. The force–velocity relation was


determined by measuring the velocity of steady shortening (_V_) after a drop in force from _T_0 to a preset value _T_ < _T_0 (see Supplementary Fig. 1A for the protocol). The


force–velocity points were fitted to the Hill hyperbolic equation [56]: (_T_ + _a_)x(_V_ + _b_)=(_V_0 + _b_)x_a_, where _a_, _b_, and _V_0 (unloaded shortening velocity) are the regression


parameters. Force and motor positions were recorded with a multifunction I/O board (PCI-6110E, National Instruments), and a dedicated program written in LabView (National Instruments) was


used for signal recording and analysis. RNA EXTRACTION, REVERSE TRANSCRIPTION, AND QUANTITATIVE REAL-TIME PCR (RT-PCR) Total RNA was extracted from EDL muscles using Trizol reagent,


following the manufacturer’s instructions. The RNA was quantified using a Nanodrop spectrophotometer (Thermo Fisher Scientific). Complementary DNA (cDNA) was synthesized from 300 ng of total


RNA using the SuperScript II cDNA Synthesis Kit with oligo(dT)12-18 primers for first-strand synthesis by reverse transcriptase. The cDNA was analyzed by quantitative real-time PCR (RT-PCR)


on an IQ5 thermocycler using SYBR Green chemistry (Bio-Rad). Expression levels were quantified using the 2-ΔΔCT method [57]. Real-time PCR primer sequences were as follows: MCU: FW


AAAGGAGCCAAAAAGTCACG RV AACGGCGTGAGTTACAAACA MICU1: FW AAGGCAGCATCTTCTACAGCC RV CCTGCTCAAACTCCTCCATGT PGC-1α: FW CGCTGCTCTTGAGAATGGAT RV CGCAAGCTTCTCTGAGCTTC ACTIN: FW


CTGGGCTCCTAGCACCATGAAGAT RV GGTGGACAGTGAGGCCAGGAT ATROGIN-1: FW GCAAACACTGCCACATTCTCTC RV CTTGAGGGGAAAGTGAGACG MUSA1: FW TCGTGGAATGGTAATCTTGC RV CCTCCCGTTTCTCTATCACG MURF1: FW


CTTCTCTCAAGTGCCAAG RV CCTCAAGGCCTCTGCTATGT. Raw data are included as Supplemental Material. WESTERN BLOTTING AND ANTIBODIES Frozen muscles were pulverized using the QIAGEN Tissue Lyser for


protein extraction. The protein lysis buffer used contained 50 mM Tris pH=7.5, 150 mM NaCl, 5 mM MgCl2, 1 mM DTT, 10% glycerol, 2% SDS, 1% Triton X-100, Roche Complete Protease Inhibitor


Cocktail, 1 mM PMSF, 1 mM NaVO3, 5 mM NaF and 3 mM β-glycerophosphate. A total of 40 μg of protein, quantified using the BCA assay, was loaded onto 4–12% acrylamide gels for SDS-PAGE.


Proteins were separated by SDS-PAGE and transferred onto nitrocellulose membranes using the semi-dry method. Blots were blocked for 1 h at room temperature with 5% non-fat dry milk in TBS-T


buffer (50 mM Tris, 150 mM NaCl, and 0.01% Tween.20, pH = 7.4) and then incubated at 4 °C with primary antibodies overnight. Secondary antibodies were applied for 1 h at room temperature.


The following primary antibodies, used at dilution 1:1000, were used: COX IV (Cell Signaling Technology, Cat #4844), MCU (Merck, Cat #HPA016480), MICU1 (Merck, Cat #HPA037479), Akt (pan)


(C67E7) (Cell Signaling Technology, Cat #4691S), Phospho-Akt (Ser473) (D9E) (Cell Signaling Technology, Cat #4060S), S6 ribosomal protein (5G10) (Cell Signaling Technology, Cat #2217),


Phospho-S6 (S240/244)XP (Cell Signaling Technology, Cat #5364), 4EBP1 (Cell Signaling Technology, #9452), phosphor-4EBP1 (Thr37/46) (Cell Signaling Technology, Cat #9459), Actin (Merk, Cat #


A4700), SERCA1 (Thermo Fisher Scientific, Cat # MA3-911), SERCA2 (Thermo Fisher Scientific, Cat # 2A7-A1), AFG3L2 (Thermo Fisher Scientific, Cat # PA5-95347), TOM20 (Cell Signaling


Technology, Cat #42406), PDH (Cell Signaling Technology, Cat #2784), Total-OXPHOS (Abcam, Cat # ab110413). Full-length uncropped original western blots used in the manuscript are included as


Supplemental Material. FDB FIBER DISSOCIATION AND CULTURE FDB fibers were isolated from muscle digested in collagenase A (4 mg/mL) (Roche) dissolved in Tyrode’s salt solution pH = 7.4,


containing 10% FBS. Single fibers were obtained by mechanical dissociation and plated on laminin-coated glass coverslips. The FDB fibers were cultured in DMEM with HEPES, supplemented with


10% FBS, containing penicillin (100 U/mL) and streptomycin (100 U/mL), at 37 °C with 5% CO2. CYTOSOLIC AND MITOCHONDRIAL [CA2+] MEASUREMENTS IN FDB FIBERS For cytosolic [Ca2+] measurements,


FDB fibers were loaded with 2 μM cytosolic Fura-2/AM (Thermo Fischer Scientific, #F1221) diluted in Krebs-Ringer modified buffer (135 mM NaCl, 5 mM KCl, 1 mM MgCl2, 20 mM HEPES, 1 mM MgSO4,


0.4 mM KH2PO4, 1 mM CaCl2, 5.5 mM glucose, pH = 7.4), containing 0.02% Pluronic acid for 20 min and then washed with Krebs-Ringer modified buffer in the presence of 75 μM


N-benzyl-P-toluenesulfonamide (BTS) to avoid fiber contraction. Ca2+ release from the ER was induced with 20 μM caffeine treatment. For mitochondrial [Ca2+] measurements, FDB fibers were


loaded with 2 μM mitochondrially targeted mitoFURA-2/AM [58] diluted in Krebs-Ringer modified buffer (described above) containing 0.02% Pluronic acid for 30 min and then washed with


Krebs-Ringer modified buffer in the presence of 75 μM BTS. Ca2+ release from the ER was induced with 20 μM caffeine treatment. Cytosolic and Mitochondrial [Ca2+] experiments were performed


on a Zeiss Axiovert 200 microscope equipped with a 40×/1.3 N.A. PlanFluor objective. Excitation was performed with a DeltaRAM V high-speed monochromator (Photon Technology International)


equipped with a 75 W xenon arc lamp. Images were captured with a high-sensitivity Evolve 512 Delta EMCCD (Photometrics). The system was controlled by MetaMorph 7.5 (Molecular Devices) and


was assembled by Crisel Instruments. Images were collected by alternatively exciting the fluorophore at 340 and 380 nm and fluorescence emission was recorded through a 515/30 nm band-pass


filter (Semrock). Image analysis was performed with Fiji distribution of the ImageJ software. The images analyzed were background subtracted. Mitochondrial Ca2+ efflux was normalized on the


maximum Ca2+ value after caffeine stimulation. MITOCHONDRIAL MEMBRANE POTENTIAL Isolated FDB muscle fibers were incubated with 20 nM tetramethyl rhodamine methyl ester dye (TMRM) in


non-quenching mode together with 75 μM BTS in Krebs-Ringer modified buffer for 20 min at 37 °C. In non-quenching mode, the probe is used at lower concentrations to avoid dye aggregation and


quenching within mitochondria. Consequently, depolarized mitochondria will accumulate less of the cationic dye and display reduced fluorescence, whereas hyperpolarised mitochondria will


accumulate more dye, resulting in higher fluorescence [38]. Data acquisition was done with Leica TCS-SP5-II equipped with a PlanApo 100×/1.4 N.A. objective. The TMRM fluorescence was excited


by the 543 nm HeNe laser, and its emission was collected in the 555-700 nm range. 10 μM carbonyl cyanide 3-chlorophenylhydrazone (CCCP) was added at the end of the experiment to completely


collapse the Δψ. Data are expressed as difference of background corrected TMRM fluorescence before and after CCCP depolarization. MUSCLE ATP EXTRACTION AND QUANTIFICATION ATP was extracted


from EDL muscles from either WT or CrT−/y mice using the phenol-chloroform method, as previously reported [59]. ATP measurements were performed with the ATP Determination Kit (Thermo Fisher


Scientific, Catalog number: A22066), following the manufacturer’s instructions. Results were background corrected and normalized for muscle weight. STATISTICAL ANALYSIS OF DATA All data were


analyzed for statistical significance using GraphPad Prism software. Statistical data are presented as mean ± SEM. Depending on the experiments, a Student’s _t_-test, Mann-Whitney t-test,


and one or two-way ANOVA with Bonferroni post hoc test were applied. p < 0.05 was considered significant. DATA AVAILABILITY The data generated or analyzed during this study are accessible


upon reasonable request from the corresponding author. REFERENCES * Wallimann T, Wyss M, Brdiczka D, Nicolay K, Eppenberger HM. Intracellular compartmentation, structure and function of


creatine kinase isoenzymes in tissues with high and fluctuating energy demands: the ‘phosphocreatine circuit’ for cellular energy homeostasis. Biochem J. 1992;281:21–40. Article  CAS  PubMed


  PubMed Central  Google Scholar  * Ellington WR. Evolution and physiological roles of phosphagen systems. Annu Rev Physiol. 2001;63:289–325. Article  CAS  PubMed  Google Scholar  *


Guimaraes-Ferreira L. Role of the phosphocreatine system on energetic homeostasis in skeletal and cardiac muscles. Einstein. 2014;12:126–31. Article  PubMed  PubMed Central  Google Scholar


* Brosnan ME, Edison EE, da Silva R, Brosnan JT. New insights into creatine function and synthesis. Adv Enzyme Regul. 2007;47:252–60. Article  CAS  PubMed  Google Scholar  * Nash SR, Giros


B, Kingsmore SF, Rochelle JM, Suter ST, Gregor P, et al. Cloning, pharmacological characterization, and genomic localization of the human creatine transporter. Recept Channels.


1994;2:165–74. CAS  PubMed  Google Scholar  * Sora I, Richman J, Santoro G, Wei H, Wang Y, Vanderah T, et al. The cloning and expression of a human creatine transporter. Biochem Biophys Res


Commun. 1994;204:419–27. Article  CAS  PubMed  Google Scholar  * Iyer GS, Krahe R, Goodwin LA, Doggett NA, Siciliano MJ, Funanage VL, et al. Identification of a testis-expressed creatine


transporter gene at 16p11.2 and confirmation of the X-linked locus to Xq28. Genomics. 1996;34:143–6. Article  CAS  PubMed  Google Scholar  * Ghirardini E, Calugi F, Sagona G, Di Vetta F,


Palma M, Battini R, et al. The role of preclinical models in creatine transporter deficiency: neurobiological mechanisms, biomarkers and therapeutic development. Genes. 2021;12:1123. Article


  CAS  PubMed  PubMed Central  Google Scholar  * van de Kamp JM, Mancini GM, Salomons GS. X-linked creatine transporter deficiency: clinical aspects and pathophysiology. J Inherit Metab Dis.


2014;37:715–33. Article  PubMed  Google Scholar  * Bahl S, Cordeiro D, MacNeil L, Schulze A, Mercimek-Andrews S. Urine creatine metabolite panel as a screening test in neurodevelopmental


disorders. Orphanet J Rare Dis. 2020;15:339. Article  PubMed  PubMed Central  Google Scholar  * Beard E, Braissant O. Synthesis and transport of creatine in the CNS: importance for cerebral


functions. J Neurochem. 2010;115:297–313. Article  CAS  PubMed  Google Scholar  * van de Kamp JM, Betsalel OT, Mercimek-Mahmutoglu S, Abulhoul L, Grunewald S, Anselm I, et al. Phenotype and


genotype in 101 males with X-linked creatine transporter deficiency. J Med Genet. 2013;50:463–72. Article  PubMed  Google Scholar  * Puusepp H, Kall K, Salomons GS, Talvik I, Mannamaa M,


Rein R, et al. The screening of SLC6A8 deficiency among Estonian families with X-linked mental retardation. J Inherit Metab Dis. 2010;33:S5–11. Article  PubMed  Google Scholar  * deGrauw TJ,


Salomons GS, Cecil KM, Chuck G, Newmeyer A, Schapiro MB, et al. Congenital creatine transporter deficiency. Neuropediatrics. 2002;33:232–8. Article  CAS  PubMed  Google Scholar  * Hahn KA,


Salomons GS, Tackels-Horne D, Wood TC, Taylor HA, Schroer RJ, et al. X-linked mental retardation with seizures and carrier manifestations is caused by a mutation in the creatine-transporter


gene (SLC6A8) located in Xq28. Am J Hum Genet. 2002;70:1349–56. Article  CAS  PubMed  PubMed Central  Google Scholar  * Kleefstra T, Rosenberg EH, Salomons GS, Stroink H, van Bokhoven H,


Hamel BC, et al. Progressive intestinal, neurological and psychiatric problems in two adult males with cerebral creatine deficiency caused by an SLC6A8 mutation. Clin Genet. 2005;68:379–81.


Article  CAS  PubMed  Google Scholar  * deGrauw TJ, Cecil KM, Byars AW, Salomons GS, Ball WS, Jakobs C. The clinical syndrome of creatine transporter deficiency. Mol Cell Biochem.


2003;244:45–8. Article  CAS  PubMed  Google Scholar  * Pyne-Geithman GJ, deGrauw TJ, Cecil KM, Chuck G, Lyons MA, Ishida Y, et al. Presence of normal creatine in the muscle of a patient with


a mutation in the creatine transporter: a case study. Mol Cell Biochem. 2004;262:35–9. Article  CAS  PubMed  Google Scholar  * Skelton MR, Schaefer TL, Graham DL, Degrauw TJ, Clark JF,


Williams MT, et al. Creatine transporter (CrT; Slc6a8) knockout mice as a model of human CrT deficiency. PLoS One. 2011;6:e16187. Article  CAS  PubMed  PubMed Central  Google Scholar  *


Baroncelli L, Alessandri MG, Tola J, Putignano E, Migliore M, Amendola E, et al. A novel mouse model of creatine transporter deficiency. F1000Res. 2014;3:228. Article  PubMed  PubMed Central


  Google Scholar  * Stockebrand M, Sasani A, Das D, Hornig S, Hermans-Borgmeyer I, Lake HA, et al. A mouse model of creatine transporter deficiency reveals impaired motor function and muscle


energy metabolism. Front Physiol. 2018;9:773. Article  PubMed  PubMed Central  Google Scholar  * Duran-Trio L, Fernandes-Pires G, Simicic D, Grosse J, Roux-Petronelli C, Bruce SJ, et al. A


new rat model of creatine transporter deficiency reveals behavioral disorder and altered brain metabolism. Sci Rep. 2021;11:1636. Article  CAS  PubMed  PubMed Central  Google Scholar  *


Baroncelli L, Molinaro A, Cacciante F, Alessandri MG, Napoli D, Putignano E, et al. A mouse model for creatine transporter deficiency reveals early onset cognitive impairment and


neuropathology associated with brain aging. Hum Mol Genet. 2016;25:4186–200. Article  CAS  PubMed  Google Scholar  * Perna MK, Kokenge AN, Miles KN, Udobi KC, Clark JF, Pyne-Geithman GJ, et


al. Creatine transporter deficiency leads to increased whole-body and cellular metabolism. Amino Acids. 2016;48:2057–65. Article  CAS  PubMed  PubMed Central  Google Scholar  * Wawro AM,


Gajera CR, Baker SA, Nirschl JJ, Vogel H, Montine TJ. Creatine transport and pathological changes in creatine transporter deficient mice. J Inherit Metab Dis. 2021;44:939–48. Article  CAS


PubMed  Google Scholar  * Dahlstedt AJ, Katz A, Wieringa B, Westerblad H. Is creatine kinase responsible for fatigue? Studies of isolated skeletal muscle deficient in creatine kinase. FASEB


J. 2000;14:982–90. Article  CAS  PubMed  Google Scholar  * Steeghs K, Benders A, Oerlemans F, de Haan A, Heerschap A, Ruitenbeek W, et al. Altered Ca2+ responses in muscles with combined


mitochondrial and cytosolic creatine kinase deficiencies. Cell. 1997;89:93–103. Article  CAS  PubMed  Google Scholar  * Nabuurs CI, Choe CU, Veltien A, Kan HE, van Loon LJ, Rodenburg RJ, et


al. Disturbed energy metabolism and muscular dystrophy caused by pure creatine deficiency are reversible by creatine intake. J Physiol. 2013;591:571–92. Article  CAS  PubMed  Google Scholar


  * Wyss M, Kaddurah-Daouk R. Creatine and creatinine metabolism. Physiol Rev. 2000;80:1107–213. Article  CAS  PubMed  Google Scholar  * Walsh B, Tonkonogi M, Soderlund K, Hultman E, Saks V,


Sahlin K. The role of phosphorylcreatine and creatine in the regulation of mitochondrial respiration in human skeletal muscle. J Physiol. 2001;537:971–8. Article  CAS  PubMed  PubMed


Central  Google Scholar  * Dzeja PP, Hoyer K, Tian R, Zhang S, Nemutlu E, Spindler M, et al. Rearrangement of energetic and substrate utilization networks compensate for chronic myocardial


creatine kinase deficiency. J Physiol. 2011;589:5193–211. Article  CAS  PubMed  PubMed Central  Google Scholar  * Chamberlain KA, Chapey KS, Nanescu SE, Huang JK. Creatine enhances


mitochondrial-mediated oligodendrocyte survival after demyelinating injury. J Neurosci. 2017;37:1479–92. Article  CAS  PubMed  PubMed Central  Google Scholar  * Gori Z, De Tata V, Pollera M,


Bergamini E. Mitochondrial myopathy in rats fed with a diet containing beta-guanidine propionic acid, an inhibitor of creatine entry in muscle cells. Br J Exp Pathol. 1988;69:639–50. CAS


PubMed  PubMed Central  Google Scholar  * O’Gorman E, Beutner G, Wallimann T, Brdiczka D. Differential effects of creatine depletion on the regulation of enzyme activities and on


creatine-stimulated mitochondrial respiration in skeletal muscle, heart, and brain. Biochim Biophys Acta. 1996;1276:161–70. Article  PubMed  Google Scholar  * Pellegrino MA, Canepari M,


Rossi R, D’Antona G, Reggiani C, Bottinelli R. Orthologous myosin isoforms and scaling of shortening velocity with body size in mouse, rat, rabbit and human muscles. J Physiol.


2003;546:677–89. Article  CAS  PubMed  Google Scholar  * Wallimann T, Tokarska-Schlattner M, Schlattner U. The creatine kinase system and pleiotropic effects of creatine. Amino Acids.


2011;40:1271–96. Article  CAS  PubMed  PubMed Central  Google Scholar  * Boncompagni S, Rossi AE, Micaroni M, Beznoussenko GV, Polishchuk RS, Dirksen RT, et al. Mitochondria are linked to


calcium stores in striated muscle by developmentally regulated tethering structures. Mol Biol Cell. 2009;20:1058–67. Article  CAS  PubMed  PubMed Central  Google Scholar  * Perry SW, Norman


JP, Barbieri J, Brown EB, Gelbard HA. Mitochondrial membrane potential probes and the proton gradient: a practical usage guide. Biotechniques. 2011;50:98–115. Article  CAS  PubMed  PubMed


Central  Google Scholar  * D’Angelo D, Vecellio Reane D, Raffaello A. Neither too much nor too little: mitochondrial calcium concentration as a balance between physiological and pathological


conditions. Front Mol Biosci. 2023;10:1336416. Article  PubMed  PubMed Central  Google Scholar  * Sartori R, Romanello V, Sandri M. Mechanisms of muscle atrophy and hypertrophy:


implications in health and disease. Nat Commun. 2021;12:330. Article  CAS  PubMed  PubMed Central  Google Scholar  * Farr CV, El-Kasaby A, Freissmuth M, Sucic S. The creatine transporter


unfolded: a knotty premise in the cerebral creatine deficiency syndrome. Front Synaptic Neurosci. 2020;12:588954. Article  CAS  PubMed  PubMed Central  Google Scholar  * Udobi KC, Kokenge


AN, Hautman ER, Ullio G, Coene J, Williams MT, et al. Cognitive deficits and increases in creatine precursors in a brain-specific knockout of the creatine transporter gene Slc6a8. Genes


Brain Behav. 2018;17:e12461. Article  CAS  PubMed  Google Scholar  * Russell AP, Ghobrial L, Wright CR, Lamon S, Brown EL, Kon M, et al. Creatine transporter (SLC6A8) knockout mice display


an increased capacity for in vitro creatine biosynthesis in skeletal muscle. Front Physiol. 2014;5:314. Article  PubMed  PubMed Central  Google Scholar  * Tullson PC, Rush JW, Wieringa B,


Terjung RL. Alterations in AMP deaminase activity and kinetics in skeletal muscle of creatine kinase-deficient mice. Am J Physiol. 1998;274:C1411–6. Article  CAS  PubMed  Google Scholar  *


Ciciliot S, Rossi AC, Dyar KA, Blaauw B, Schiaffino S. Muscle type and fiber type specificity in muscle wasting. Int J Biochem Cell Biol. 2013;45:2191–9. Article  CAS  PubMed  Google Scholar


  * Chan MC, Arany Z. The many roles of PGC-1alpha in muscle-recent developments. Metabolism. 2014;63:441–51. Article  CAS  PubMed  PubMed Central  Google Scholar  * Protasi F, Pietrangelo


L, Boncompagni S. Improper remodeling of organelles deputed to Ca(2+) handling and aerobic ATP production underlies muscle dysfunction in ageing. Int J Mol Sci. 2021;22:6195. Article  CAS


PubMed  PubMed Central  Google Scholar  * Pietrangelo L, D’Incecco A, Ainbinder A, Michelucci A, Kern H, Dirksen RT, et al. Age-dependent uncoupling of mitochondria from Ca2(+) release units


in skeletal muscle. Oncotarget. 2015;6:35358–71. Article  PubMed  PubMed Central  Google Scholar  * Filipe A, Chernorudskiy A, Arbogast S, Varone E, Villar-Quiles RN, Pozzer D, et al.


Defective endoplasmic reticulum-mitochondria contacts and bioenergetics in SEPN1-related myopathy. Cell Death Differ. 2021;28:123–38. Article  CAS  PubMed  Google Scholar  * Gherardi G,


Nogara L, Ciciliot S, Fadini GP, Blaauw B, Braghetta P, et al. Loss of mitochondrial calcium uniporter rewires skeletal muscle metabolism and substrate preference. Cell Death Differ.


2018;26:362–81. Article  PubMed  PubMed Central  Google Scholar  * Mammucari C, Gherardi G, Zamparo I, Raffaello A, Boncompagni S, Chemello F, et al. The mitochondrial calcium uniporter


controls skeletal muscle trophism in vivo. Cell Rep. 2015;10:1269–79. Article  CAS  PubMed  PubMed Central  Google Scholar  * Loud AV. A Method for the Quantitative Estimation of Cytoplasmic


Structures. J Cell Biol. 1962;15:481–7. Article  CAS  PubMed  PubMed Central  Google Scholar  * Mobley BA, Eisenberg BR. Sizes of components in frog skeletal muscle measured by methods of


stereology. J Gen Physiol. 1975;66:31–45. Article  CAS  PubMed  Google Scholar  * Vannini E, Maltese F, Olimpico F, Fabbri A, Costa M, Caleo M, et al. Progression of motor deficits in


glioma-bearing mice: impact of CNF1 therapy at symptomatic stages. Oncotarget. 2017;8:23539–50. Article  PubMed  PubMed Central  Google Scholar  * Burkholder TJ, Fingado B, Baron S, Lieber


RL. Relationship between muscle fiber types and sizes and muscle architectural properties in the mouse hindlimb. J Morphol. 1994;221:177–90. Article  CAS  PubMed  Google Scholar  * Hill AV.


The heat of shortening and the dynamic constants of muscle. Proc R Soc Lond B Biol Sci. 1938;126:136–95. Article  Google Scholar  * Rao X, Huang X, Zhou Z, Lin X. An improvement of the


2^(-delta delta CT) method for quantitative real-time polymerase chain reaction data analysis. Biostat Bioinform Biomath. 2013;3:71–85. Google Scholar  * Pendin D, Norante R, De Nadai A,


Gherardi G, Vajente N, Basso E, et al. A Synthetic fluorescent mitochondria-targeted sensor for ratiometric imaging of calcium in live cells. Angew Chem Int Ed Engl. 2019;58:9917–22. Article


  CAS  PubMed  Google Scholar  * Chida J, Yamane K, Takei T, Kido H. An efficient extraction method for quantitation of adenosine triphosphate in mammalian tissues and cells. Anal Chim Acta.


2012;727:8–12. Article  CAS  PubMed  Google Scholar  Download references ACKNOWLEDGEMENTS We thank the staff of the mechanical workshop of the Department of Physics and Astronomy


(University of Florence) for mechanical engineering support. This research was supported with funding from the Italian Ministry of University and Research (MUR), PRIN 20207P85MH to AR and


ML, Next Generation EU-DM 1557, 11.10.2022, in the context of the National Recovery and Resilience Plan (NRRP), Investment PE8—Project Age-It: “Ageing Well in an Ageing Society” to ML,


National Center for Gene Therapy and Drugs Based on RNA Technology, funded in the framework of the NRRP, Mission 4, Component 2, Investment 1.4, funded by the European Union - Next


Generation EU, Project CN00000041, CUP C93C22002780006, Spoke n. 4 “Metabolic and Cardiovascular diseases” to RR, ECS_00000017 MUR Directoral Decree n.1055, 23 June 2022, CUP


B83C22003930001, “Tuscany Health Ecosystem – THE”, Spoke 8 and Italian Ministry of Health, and RC 2023 to LB. DVR was supported by European Union funding program Horizon Europe


(HORIZON-MSCA-2021-PF Project ID 101065790). AUTHOR INFORMATION Author notes * These authors contributed equally: Irene Pertici, Donato D’Angelo. AUTHORS AND AFFILIATIONS * PhysioLab


(Department of Biology and Department of Experimental and Clinical Medicine), University of Florence, Florence, Italy Irene Pertici, Massimo Reconditi, Ilaria Morotti, Marco Linari &


Marco Caremani * Department of Biomedical Sciences, University of Padova, Padova, Italy Donato D’Angelo, Gaia Gherardi, Agnese De Mario, Rosario Rizzuto & Anna Raffaello * Institute for


Diabetes and Obesity, Helmholtz Diabetes Center, Helmholtz Zentrum Munich, Munich, Germany Denis Vecellio Reane * Institute of Neuroscience, National Research Council (CNR), Pisa, Italy


Elena Putignano, Debora Napoli & Laura Baroncelli * Center for Advanced Studies and Technology, Department of Neuroscience, Imaging, and Clinical Sciences, University G. D’Annunzio of


Chieti-Pescara, Chieti, Italy Giorgia Rastelli & Simona Boncompagni * National Center of Gene Therapy and RNA-based Drugs, Padova, Italy Rosario Rizzuto * Department of Developmental


Neuroscience, IRCCS Stella Maris Foundation, Pisa, Italy Laura Baroncelli * Myology Center (CIR-Myo), University of Padua, Padua, Italy Anna Raffaello Authors * Irene Pertici View author


publications You can also search for this author inPubMed Google Scholar * Donato D’Angelo View author publications You can also search for this author inPubMed Google Scholar * Denis


Vecellio Reane View author publications You can also search for this author inPubMed Google Scholar * Massimo Reconditi View author publications You can also search for this author inPubMed


Google Scholar * Ilaria Morotti View author publications You can also search for this author inPubMed Google Scholar * Elena Putignano View author publications You can also search for this


author inPubMed Google Scholar * Debora Napoli View author publications You can also search for this author inPubMed Google Scholar * Giorgia Rastelli View author publications You can also


search for this author inPubMed Google Scholar * Gaia Gherardi View author publications You can also search for this author inPubMed Google Scholar * Agnese De Mario View author publications


You can also search for this author inPubMed Google Scholar * Rosario Rizzuto View author publications You can also search for this author inPubMed Google Scholar * Simona Boncompagni View


author publications You can also search for this author inPubMed Google Scholar * Laura Baroncelli View author publications You can also search for this author inPubMed Google Scholar *


Marco Linari View author publications You can also search for this author inPubMed Google Scholar * Marco Caremani View author publications You can also search for this author inPubMed


Google Scholar * Anna Raffaello View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS IP, DDA, MC, Investigation, Visualization and


Writing—Original Draft; DVR, MR EP, DN, GR, IM, ADM, and GG. Investigation, SB, LB, and RR. Resources, Writing – Review & Editing and Conceptualization; ML and AR, Conceptualization,


Writing – Original Draft, Writing – Review & Editing. All authors read and approved the final manuscript. CORRESPONDING AUTHORS Correspondence to Marco Caremani or Anna Raffaello. ETHICS


DECLARATIONS COMPETING INTERESTS The authors declare no competing interests. ETHICS APPROVAL AND CONSENT TO PARTICIPATE All animal procedures were performed at the University of Padova and


the University of Florence in accordance with the Italian law D. L.vo n.26/2014 and with the Directive 2010/63/EU of the European Parliament on the protection of animals used for scientific


purposes. All methods were performed in accordance with the relevant guidelines and regulations. ADDITIONAL INFORMATION PUBLISHER’S NOTE Springer Nature remains neutral with regard to


jurisdictional claims in published maps and institutional affiliations. Edited by Professor Paolo Pinton SUPPLEMENTARY INFORMATION SUPPLEMENTAL MATERIAL SUPPLEMENTARY INFORMATION RIGHTS AND


PERMISSIONS OPEN ACCESS This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any


medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The


images or other third party material in this article are included in the article’s Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not


included in the article’s Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly


from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/. Reprints and permissions ABOUT THIS ARTICLE CITE THIS ARTICLE Pertici, I.,


D’Angelo, D., Vecellio Reane, D. _et al._ Creatine transporter (SLC6A8) knockout mice exhibit reduced muscle performance, disrupted mitochondrial Ca2+ homeostasis, and severe muscle atrophy.


_Cell Death Dis_ 16, 99 (2025). https://doi.org/10.1038/s41419-025-07381-x Download citation * Received: 14 August 2024 * Revised: 17 December 2024 * Accepted: 22 January 2025 * Published:


14 February 2025 * DOI: https://doi.org/10.1038/s41419-025-07381-x SHARE THIS ARTICLE Anyone you share the following link with will be able to read this content: Get shareable link Sorry, a


shareable link is not currently available for this article. Copy to clipboard Provided by the Springer Nature SharedIt content-sharing initiative
