Digital-to-biological converter for on-demand production of biologics

ABSTRACT Manufacturing processes for biological molecules in the research laboratory have failed to keep pace with the rapid advances in automization and parellelization1,2,3. We report the

development of a digital-to-biological converter for fully automated, versatile and demand-based production of functional biologics starting from DNA sequence information. Specifically, DNA

templates, RNA molecules, proteins and viral particles were produced in an automated fashion from digitally transmitted DNA sequences without human intervention. Access through your

institution Buy or subscribe This is a preview of subscription content, access via your institution ACCESS OPTIONS Access through your institution Access Nature and 54 other Nature Portfolio

journals Get Nature+, our best-value online-access subscription $29.99 / 30 days cancel any time Learn more Subscribe to this journal Receive 12 print issues and online access $209.00 per

year only $17.42 per issue Learn more Buy this article * Purchase on SpringerLink * Instant access to full article PDF Buy now Prices may be subject to local taxes which are calculated

during checkout ADDITIONAL ACCESS OPTIONS: * Log in * Learn about institutional subscriptions * Read our FAQs * Contact customer support SIMILAR CONTENT BEING VIEWED BY OTHERS SYNTHETIC DNA

APPLICATIONS IN INFORMATION TECHNOLOGY Article Open access 17 January 2022 DNA-BASED PROGRAMMABLE GATE ARRAYS FOR GENERAL-PURPOSE DNA COMPUTING Article 13 September 2023 PLUG-AND-PLAY

PROTEIN BIOSENSORS USING APTAMER-REGULATED IN VITRO TRANSCRIPTION Article Open access 12 September 2024 ACCESSION CODES ACCESSIONS NCBI REFERENCE SEQUENCE * KY199424 * KY199425 * KY199426 *

KY199427 * KY199428 * KY199429 * KY199430 * KY199431 * KY199432 * NC_001422.1 REFERENCES * Rauch, S., Dallinger, M., Dallasega, P. & Matt, D.T. Sustainability in manufacturing through

distributed manufacturing systems (DMS). _Procedia CIRP_ 29, 544–549 (2015). Article  Google Scholar  * Srai, J.S. et al. Distributed manufacturing: scope, challenges and opportunity. _Int.

J. Prod. Res._ 54, 6917–6935 (2016). Article  Google Scholar  * Pearce, J.M. Materials science. Building research equipment with free, open-source hardware. _Science_ 337, 1303–1304 (2012).

Article  CAS  Google Scholar  * Jones, R. et al. RepRap—the replicating rapid prototyper. _Robotica_ 29, 177–191 (2011). Article  Google Scholar  * Pearce, J.M., Anzalone, N.C. & Heldt,

C.L. Open-source wax RepRap 3-D printer for rapid prototyping paper-based microfluidics. _J. Lab. Autom._ 21, 510–516 (2016). Article  CAS  Google Scholar  * Gottschalk, U., Brorson, K.

& Shukla, A.A. The need for innovation in biomanufacturing. _Nat. Biotechnol._ 30, 489–492 (2012). Article  CAS  Google Scholar  * Gibson, D.G. et al. Creation of a bacterial cell

controlled by a chemically synthesized genome. _Science_ 329, 52–56 (2010). Article  CAS  Google Scholar  * Hutchison, C.A. III et al. Design and synthesis of a minimal bacterial genome.

_Science_ 351, aad6253 (2016). Article  Google Scholar  * Smith, H.O., Hutchison, C.A. III, Pfannkoch, C. & Venter, J.C. Generating a synthetic genome by whole genome assembly: phiX174

bacteriophage from synthetic oligonucleotides. _Proc. Natl. Acad. Sci. USA_ 100, 15440–15445 (2003). Article  CAS  Google Scholar  * Perez-Pinera, P. et al. Synthetic biology and

microbioreactor platforms for programmable production of biologics at the point-of-care. _Nat. Commun._ 7, 12211 (2016). Article  CAS  Google Scholar  * Pardee, K. et al. Portable, on-demand

biomolecular manufacturing. _Cell_ 167, 248–259.e12 (2016). Article  CAS  Google Scholar  * Li, J. et al. Synthesis of many different types of organic small molecules using one automated

process. _Science_ 347, 1221–1226 (2015). Article  CAS  Google Scholar  * Khan, K.H. DNA vaccines: roles against diseases. _Germs_ 3, 26–35 (2013). Article  CAS  Google Scholar  * Moreland,

L., Bate, G. & Kirkpatrick, P. Abatacept. _Nat. Rev. Drug Discov._ 5, 185–186 (2006). Article  CAS  Google Scholar  * Narayanan, R., Kuppermann, B.D., Jones, C. & Kirkpatrick, P.

Ranibizumab. _Nat. Rev. Drug Discov._ 5, 815–816 (2006). Article  CAS  Google Scholar  * Hudis, C.A. Trastuzumab—mechanism of action and use in clinical practice. _N. Engl. J. Med._ 357,

39–51 (2007). Article  CAS  Google Scholar  * Gibson, D.G. et al. Enzymatic assembly of DNA molecules up to several hundred kilobases. _Nat. Methods_ 6, 343–345 (2009). Article  CAS  Google

Scholar  * Geall, A.J. et al. Nonviral delivery of self-amplifying RNA vaccines. _Proc. Natl. Acad. Sci. USA_ 109, 14604–14609 (2012). Article  CAS  Google Scholar  * Dormitzer, P.R. et al.

Synthetic generation of influenza vaccine viruses for rapid response to pandemics. _Sci. Transl. Med._ 5, 185ra68 (2013). Article  Google Scholar  * Stech, M.K.S. & Kubick, S. Cell-free

synthesis meets antibody production: a review. _Antibodies_ 4, 12–33 (2015). Article  CAS  Google Scholar  * Grote, A. et al. JCat: a novel tool to adapt codon usage of a target gene to its

potential expression host. _Nucleic Acids Res._ 33, W526–W5331 (2005). Article  CAS  Google Scholar  Download references ACKNOWLEDGEMENTS The authors thank C. Beard, S. Farah, O. Fetzer, K.

Han, C. Hutchison, A. Lee, D. Lomelin, A. Nandi, T. Newman-Lehman, T. Peterson, S. Riedmuller, J. Robinson, H. Smith, J. Strauss, J. Thielmier, L. Warden, M. Winstead, and A. Witschi for

their contributions to this work, and the US Defense Advanced Research Projects Agency (contract HR0011-13-C-0073 for D.G.G. and J.C.V.) for funding aspects of this work. AUTHOR INFORMATION

Author notes * Kent S Boles and Krishna Kannan: These authors contributed equally to this work. AUTHORS AND AFFILIATIONS * Synthetic Genomics, Inc., La Jolla, California, USA Kent S Boles,

Krishna Kannan, John Gill, Martina Felderman, Heather Gouvis, Bolyn Hubby, Kurt I Kamrud, J Craig Venter & Daniel G Gibson Authors * Kent S Boles View author publications You can also

search for this author inPubMed Google Scholar * Krishna Kannan View author publications You can also search for this author inPubMed Google Scholar * John Gill View author publications You

can also search for this author inPubMed Google Scholar * Martina Felderman View author publications You can also search for this author inPubMed Google Scholar * Heather Gouvis View author

publications You can also search for this author inPubMed Google Scholar * Bolyn Hubby View author publications You can also search for this author inPubMed Google Scholar * Kurt I Kamrud

View author publications You can also search for this author inPubMed Google Scholar * J Craig Venter View author publications You can also search for this author inPubMed Google Scholar *

Daniel G Gibson View author publications You can also search for this author inPubMed Google Scholar CONTRIBUTIONS J.C.V. and D.G.G. conceived the study; K.S.B., K.K., J.G., H.G., B.H.,

K.I.K. and D.G.G. designed experiments and analyzed data; K.S.B., K.K., M.F. and D.G.G. performed experiments; and K.S.B., K.K., J.C.V. and D.G.G. wrote the paper. CORRESPONDING AUTHOR

Correspondence to Daniel G Gibson. ETHICS DECLARATIONS COMPETING INTERESTS The authors are or have been employed by Synthetic Genomics, Inc. (SGI), a privately held company, and may hold

stock or stock options. SGI has filed provisional applications with the US Patent and Trademark Office on aspects of this research (PCT/US2013/055454). INTEGRATED SUPPLEMENTARY INFORMATION

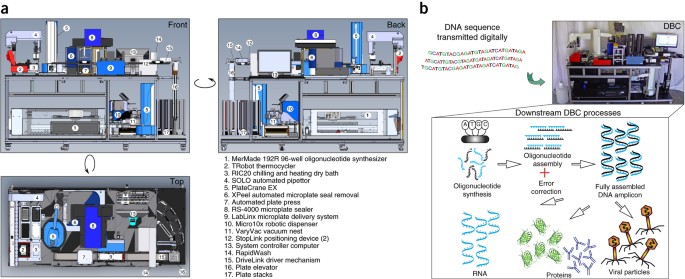

SUPPLEMENTARY FIGURE 1 PROTOTYPE OF THE DIGITAL-TO-BIOLOGICAL CONVERTER (DBC). Components that constitute the DBC are marked as indicated in the following equipment list. SUPPLEMENTARY
