Abrupt onset of a second energy gap at the superconducting transition of underdoped bi2212

ABSTRACT The superconducting gap—an energy scale tied to the superconducting phenomena—opens on the Fermi surface at the superconducting transition temperature (_T_c) in conventional BCS

superconductors. In underdoped high-_T_c superconducting copper oxides, a pseudogap (whose relation to the superconducting gap remains a mystery) develops well above _T_c (refs 1, 2).

Whether the pseudogap is a distinct phenomenon or the incoherent continuation of the superconducting gap above _T_c is one of the central questions in high-_T_c research3,4,5,6,7,8. Although

some experimental evidence suggests that the two gaps are distinct9,10,11,12,13,14,15,16,17,18, this issue is still under intense debate. A crucial piece of evidence to firmly establish

this two-gap picture is still missing: a direct and unambiguous observation of a single-particle gap tied to the superconducting transition as function of temperature. Here we report the

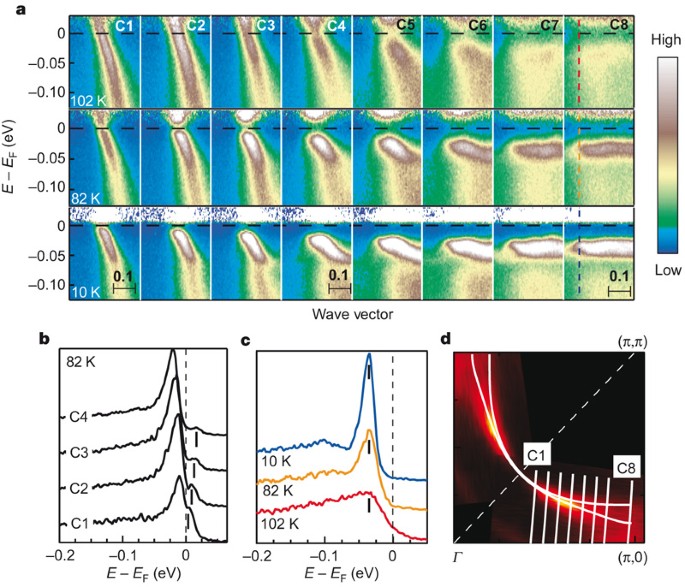

discovery of such an energy gap in underdoped Bi2Sr2CaCu2O8+_δ_ in the momentum space region overlooked in previous measurements. Near the diagonal of Cu–O bond direction (nodal direction),

we found a gap that opens at _T_c and has a canonical (BCS-like) temperature dependence accompanied by the appearance of the so-called Bogoliubov quasi-particles, a classical signature of

superconductivity. This is in sharp contrast to the pseudogap near the Cu–O bond direction (antinodal region) measured in earlier experiments19,20,21. Access through your institution Buy or
